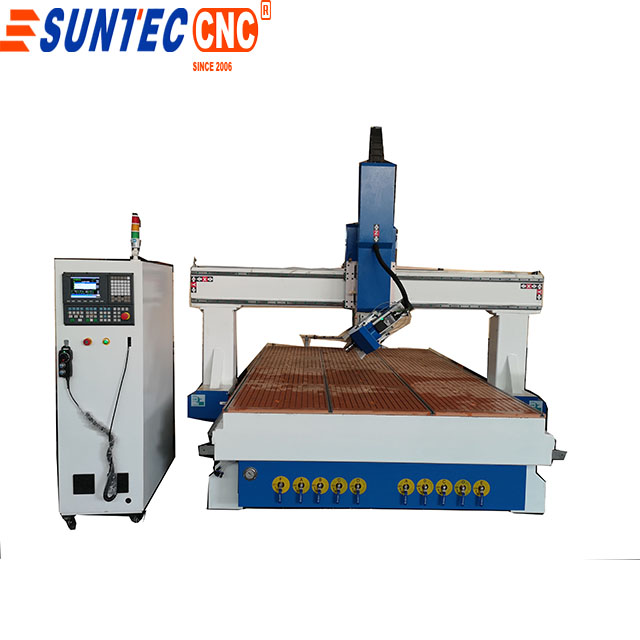

3d mold making atc 9kw hsd spindle 180 degree rotary 4 axis cnc router

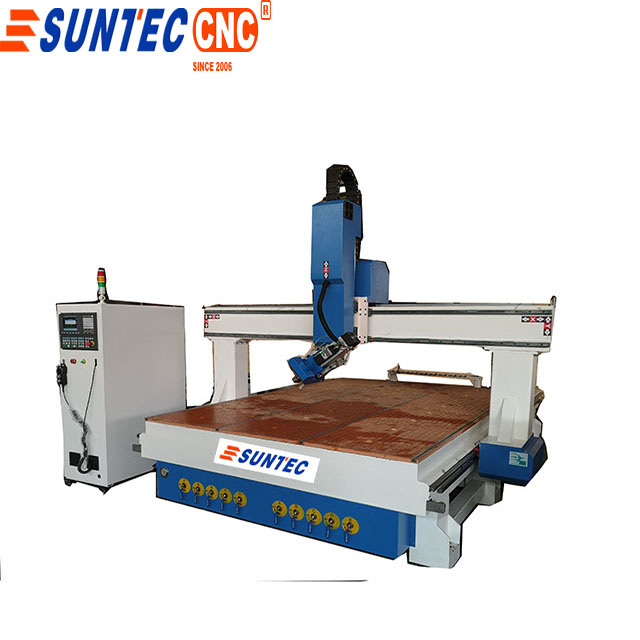

suntec 4 axis cnc router ST2030 working 2000*3000*600mm .
japan spindle 9kw HSD ISO 30 automatic tool change 8 piece / 9kw HQD spindle /6kw spindle for optional . according your budget and material thickenss to choose.
Vacuum table with vacuum pump 5.5kw ,which is for chuck material tightly .
japan yaskwa driver and motor
.syntec control .
6. spindle can swing 180 degree (90 degree right and left ),which mainly for 3d carving for the material using powermill software .
Number | Description | Parameter |
1 | X,Y,Z Working Area | 2000x3000x600mm/2000*5000*1000mm/2000*3000*1000mm or customized size |
2 | Table Size | 2350×3540mm*2000mm/3350*5350*2000mm/3500*4350*2000mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.01/1000mm |
4 | X,Y,Z Repositioning Accuracy: | ±0.01mm |
5 | Table Surface | Vacuum and T-slot Combined (Option: T-slot Table) |
6 | Frame | Big Steel Tube Structure |
7 | X, Y Structure | Rack and Pinion Drive, TaiwnPMI30 Rail Linear Bearings |
8 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
9 | Max. Power Consumption | (Without Spindle) 9 Kw |
10 | Max. Rapid Travel Rate | 80000mm/min |
11 | Max. Working Speed | 60000mm/min |
12 | Spindle Power | Italy 9KW HSD /Hiteco ATC 8 piece |
13 | Spindle Speed | 0-24000RPM |
14 | Drive Motors | 1300W Yaskawa Motors |
15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
16 | Command Language | G Code |
17 | Operating System | Syntec 60-E Control System |
18 | Computer Interface | USB |
19 | Flash Memory | 512M |
20 | Collet | ISO 30 |
21 | X,Y Resolution | <0.01mm |
22 | Software Compatibility | powermill UG software |
23 | Running Environment Temperature | 0 - 45 Centigrade |
24 | Relative Humidity | 30% - 75% |
25 | Packing Size | 6500X2100X2300mm |
26 | N.W. | 8000KG |
27 | G.W. | 8300KG |
28 | Optional Parts | Dust Collector/ Dust Hoods for three Axis |
Vacuum Pump | ||
Rotary System | ||
Mist-cooling System | ||
Delta/ Panasonic Servo Motors | ||
Colombo Spindle/Hitec | ||
TPA/OSAI control |
Productions details

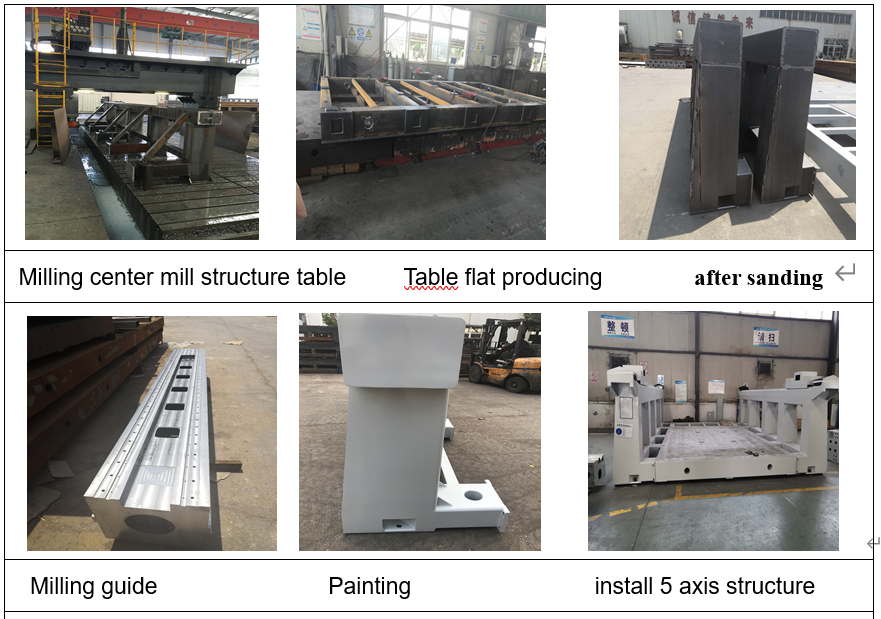

Suntec all the structure table milling by cnc center to make sure high precision . and especailly heat-treatment . so our cnc use many years no deformation .
some customers use our machine nearly 10 years still well .
Working sample

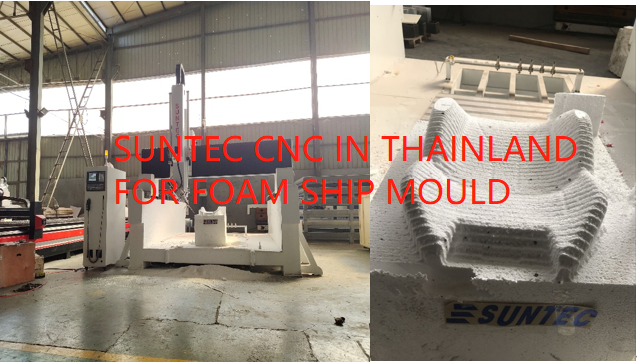

SUNTEC CNC MACHINE IN THAINLAND , WHO MAINLY FOR 3D FOAM MOLD MAKING
USING POWERMILL SOFTWARE TO MAKING 3D PEOPLE BOAT MOLD MAKING WORKING 2000*3000*1000MM
WITH ROTARY 300*3000MM MOVABLE

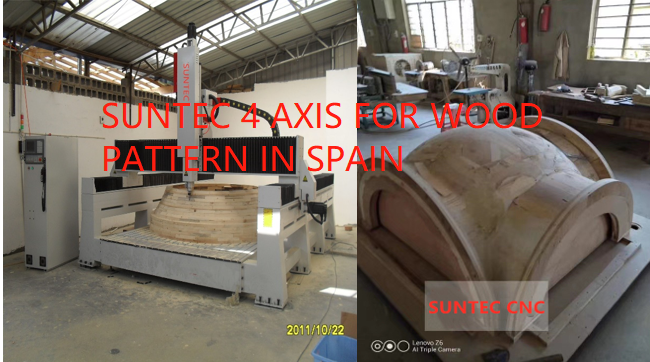

SUNTEC 4 AXIS CNC IN SPAIN CUSTOMER WORKSHOP . WHO USE OUR MACHINE 9 YEARS STILL USE WELL .

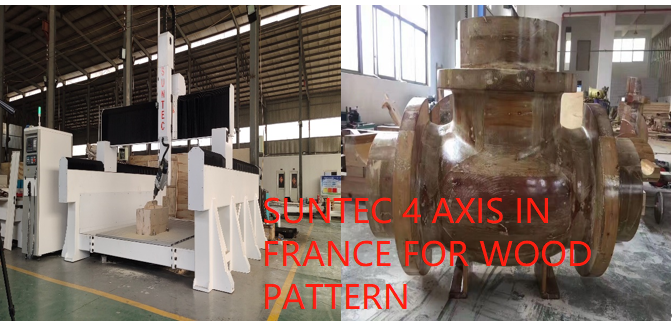

SUNTEC CNC IN FRANCE CUSTOMER WORKSHOP . WHO MAINLY FOR WOOD PATTERN MAKING
9KW ITALY HSD SPINDLE WORKING 2000*3000*1000MM SWING 180 DEGREE ROTARY FOR MOILD SURFACE RIGHT AND LEFT MAKING

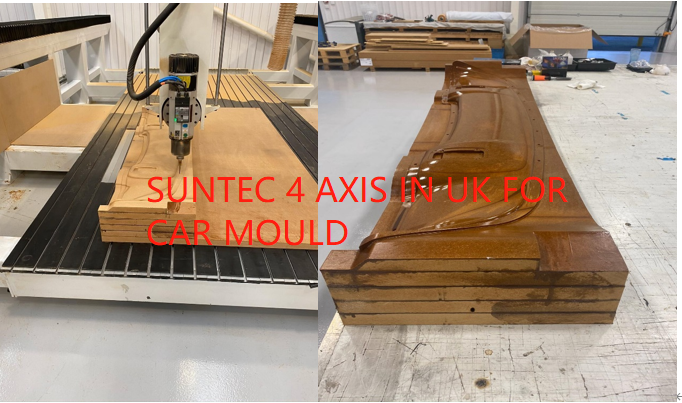

SUNTEC 4 AXIS IN UK CUSTOMER WORKSHOP. WHO MAINLY USE SOLDWORKS TO DESIGN CAR MOLD MAKING .
HE MAKE MOLD PARTS TO PARTS THEN CONNECT . HE USE OUR MACHINE 4 YEARS . NOW WANT TO SELL SUNTEC CNC IN UK MARKET .
