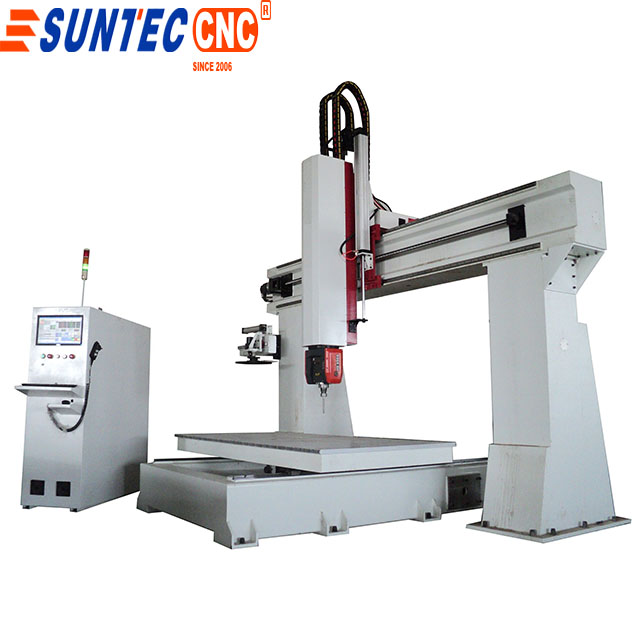

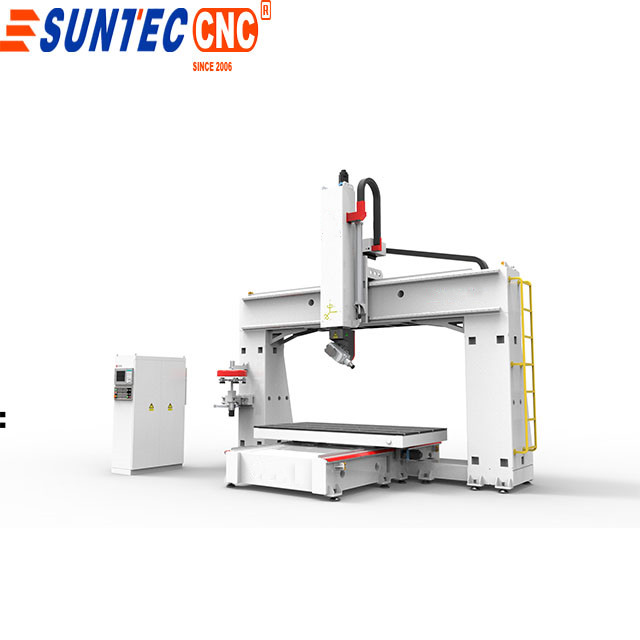

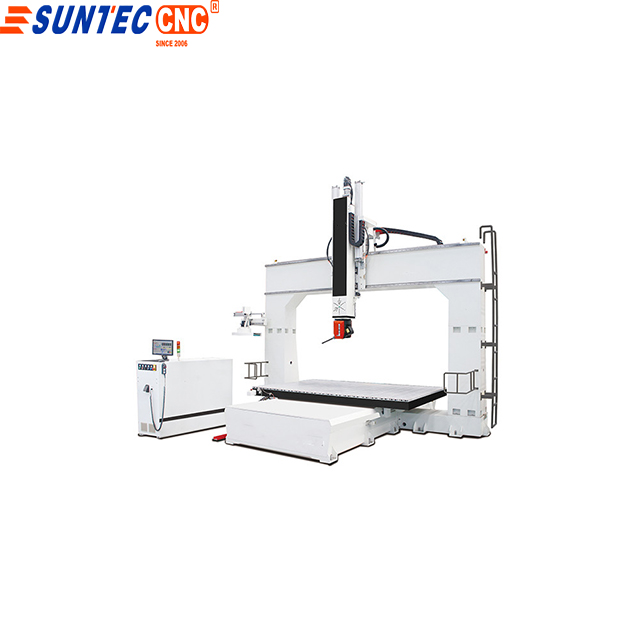

customized italy HSD spindle 360 degree 3d model wood FOAM car ship plane 5 axis cnc router

customized italy HSD spindle 360 degree 3d model wood FOAM car ship plane 5 axis cnc router

1.The spindle can rotate A +-110 ,C+- 245  degree can make multi-kinds of surface which we can design with Software.
2. We use top quality components for the machines, like HSD spindle, Syntec control osai TPA for optional , Delta Inverter,
Yaskawa servo motors, and separate control box, Hiwin linear and so on, to keep the machine in best condition even after manyyears working.
3. With hard steel structure, is fit for hard wood working, like cutting and engraving on Rosewood for furniture, indoor
decoration. And with the Vacuum holding way and dust collector, the machine is qualified for mass- producing of furniture.
4. this machine all model heat -treatment . which using many years no deformation.so no vibrating when
working .
5. 5 axis working size can customized 1300*2500*1000mm. which can do small size movable table which can make material high precision.
6.. working table and structure according your material , Foam wood aluminum etc
7. MPG XYZAC Hand Wheel for easy origin and work piece setting.
8. Measure Tool setting device.
9. One starter set woodworking tools.
10. 3 x collets, choice from 1-20mm (imperial available if preferred).
11. Inverter: Taiwanese Delta Inverter 0-22000rpm control.
12. German Schneider Electronic Spare parts.
13. Japanese OMRON limit switches.
14. Voltage: 3PH 415V 50HZ.with transformer

15.RTCP function

RTCP (Rotation Tool Center Point) Function maintains rotary axes at a constant angle between tool and surface to be machined. It is a crucial difference between real (simultaneous) and fake (3+2) 5-axis CNC systems.

For machines with RTCP functionality, the control system keeps the tool center in the programmed position. In this case, programming is independent and is programming that is independent of machine motion. When processing on the machine, you don't have to worry about machine movement and tool length. All you need to consider is the relative motion between the tool and the workpiece. The work control system will handle the rest for you.

For machines that does not have RTCP functionality, that is to say, the pseudo five-axis programming needs to consider the swing length of the spindle and the position of the rotating table. This means that when programming with a fake five-axis CNC system and machine tools, it is necessary to rely on CAM programming and po

st-processing techniques to plan the tool path in advance.

5 axis Italy HSD spindle or Hiteco /Demas optional

Working sample
