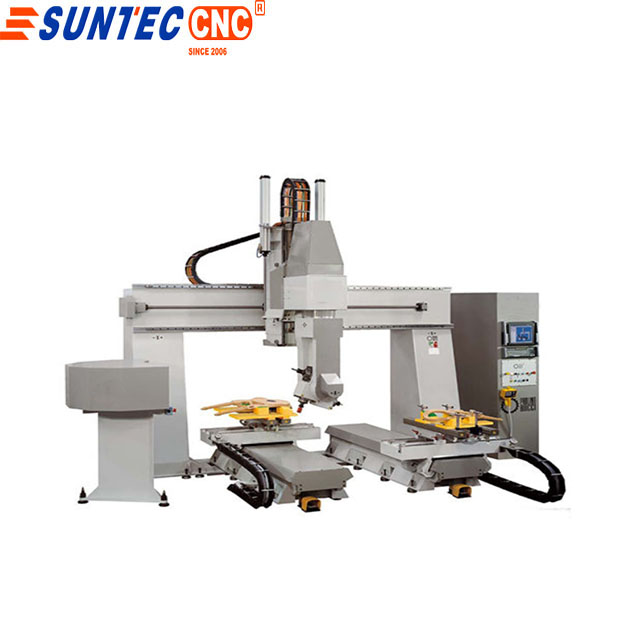

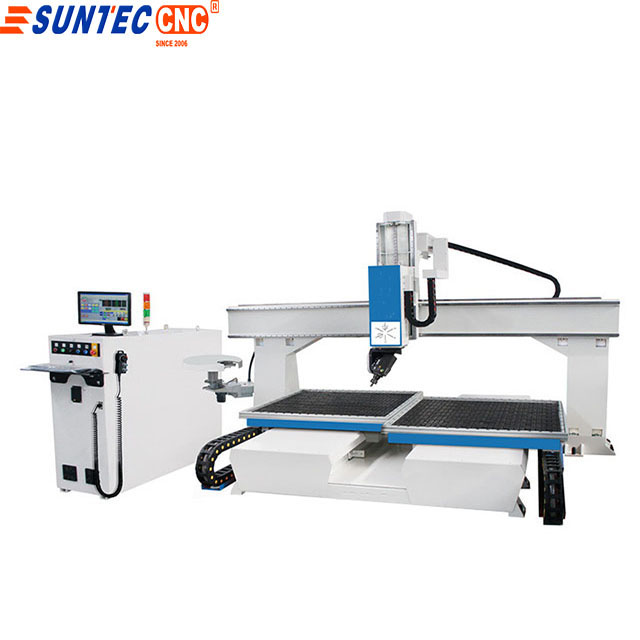

Customized double movable table Hiteco spindle 5 axis cnc router center for 3d mould foam wood chairs making

Customized double movable table Hiteco spindle 5 axis cnc router center for 3d mould foam wood chairs making

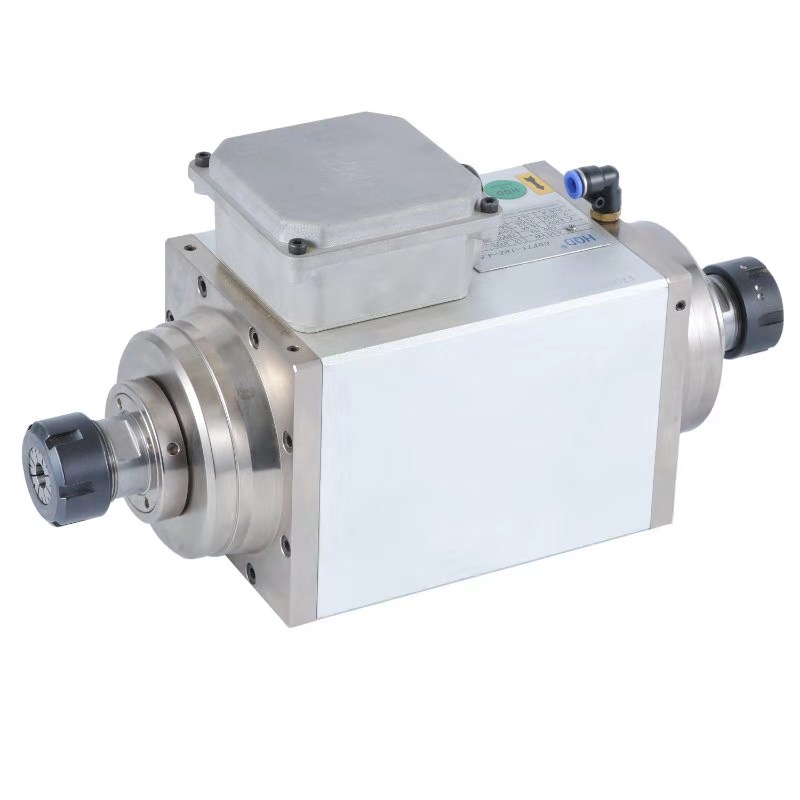

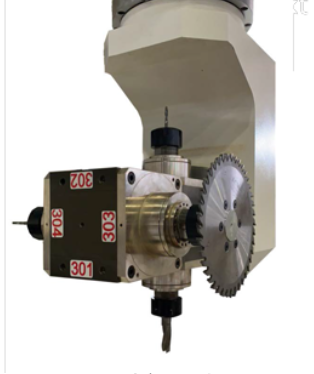

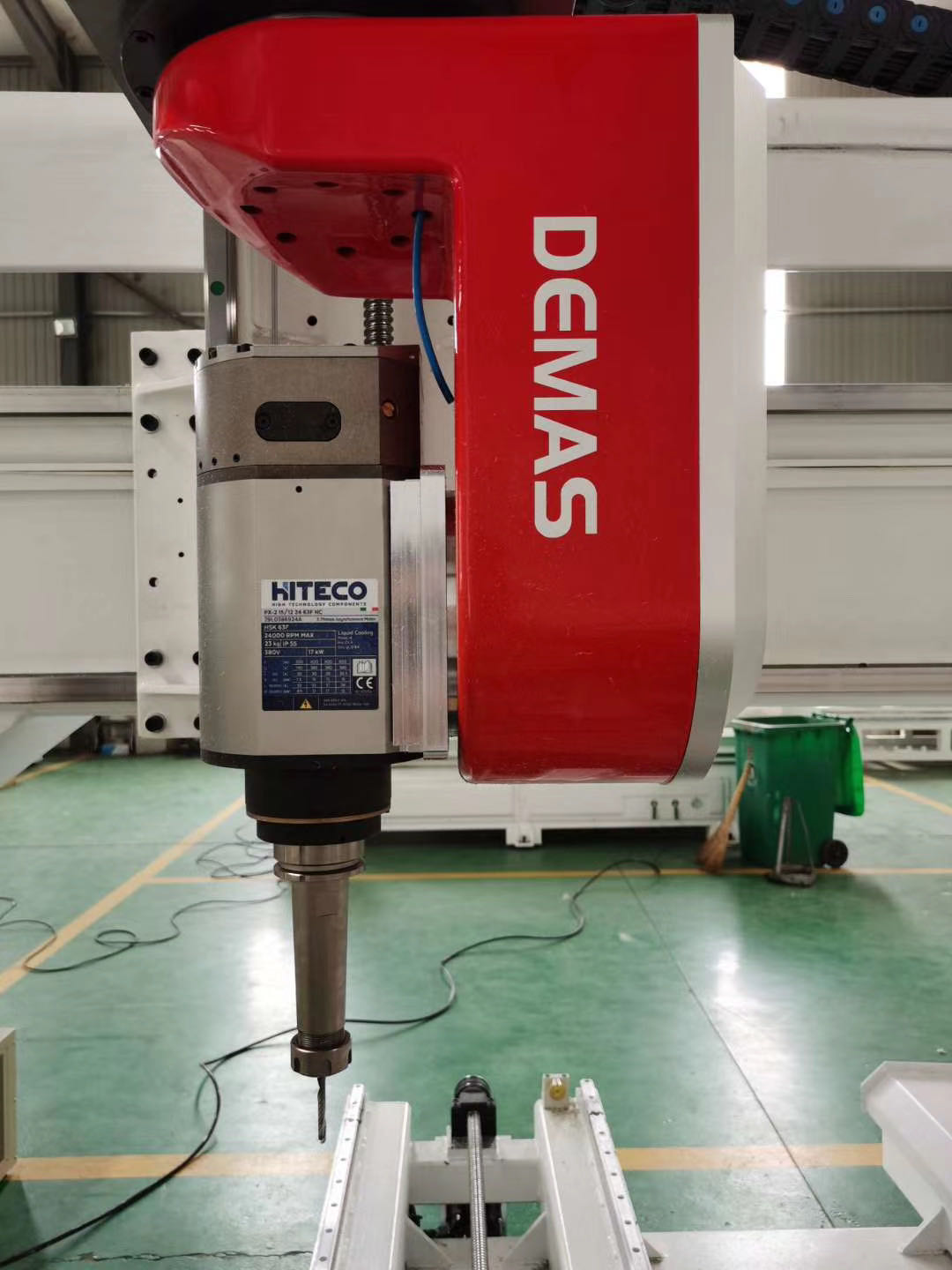

Four spindle 18000 rpm also double outlet spindle 7.5kw four optional improve your working effiency .

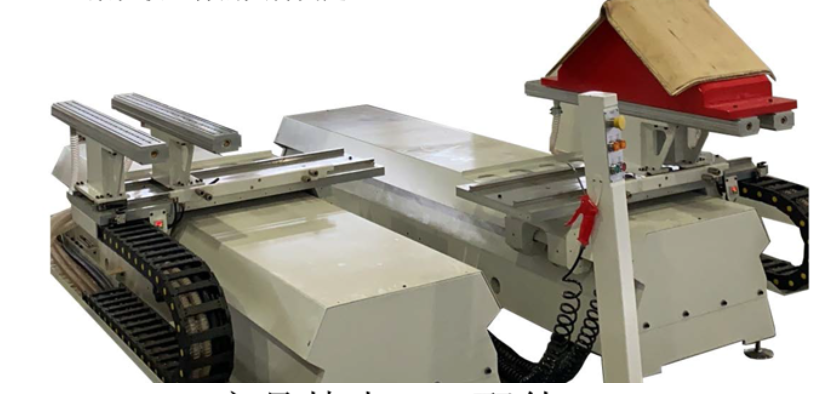

working two different table for optional one is for strip anothers for bend wood chairs .according your working type to choose

1. The spindle can rotate A +-110 ,C 220 +- degree can make multi-kinds of surface which we can design with Software.
2. We use top quality components for the machines, like HSD spindle, Syntec EZ-21MA control system osai TPA, Delta Inverter,
Yaskawa servo motors, and separate control box, Hiwin linear and so on, to keep the machine in best condition even after manyyears working.
3. With hard steel structure, is fit for hard wood working, like cutting and engraving on Rosewood for furniture, indoor
decoration. And with the Vacuum holding way and dust collector, the machine is qualified for mass- producing of furniture.
4. this machine movable table which can do two piece at same time
5. working size can customized1800*300*700mm or according your requirments
6.. working table and structure according your material , Foam wood aluminum etc
7. MPG XYZAC Hand Wheel for easy origin and work piece setting.
8. Tool setting device.
9. One starter set woodworking tools.
10. 3 x collets, choice from 1-20mm (imperial available if preferred).
11. Inverter: Taiwanese Delta Inverter 0-22000rpm control.
12. German Schneider Electronic Spare parts.
13. Japanese OMRON limit switches.
14. Voltage: 3PH 415V 50HZ.with transformer

15.RTCP function

2. Application

Suntec 5 axis cnc mainly for Non-metallic five-axis processing of non-metallic molds/models, wooden molds, inspection tools, automobile and train interior parts, etc.

3. how to use software

1.During the design of the casting mold, input the three-dimensional drawing of the customer's product into the Solidworks software, set the parameters such as mold shrinkage and draft slope according to the casting process drawing of the product, and draw the three-dimensional drawing of the upper and lower molds.

2. Programming step by step according to the different surfaces of the mold, selecting the appropriate machining program, selecting the appropriate tool, spindle speed, feed speed, tool path step and other processing parameters to generate the tool path.

3. using software post processor come out NC format then can using cnc to milling it

4. if making wood , need rough milling with short cutter, then fine milling to make your mold .

5 suntec professional wood chairs making machine  manufacturer factory can offer you right machine for you .

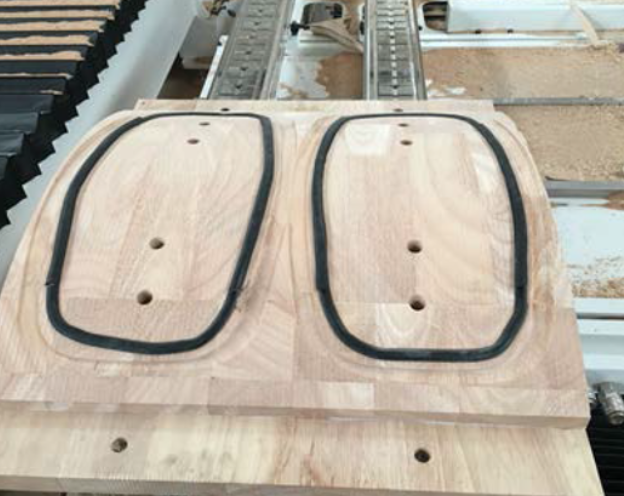

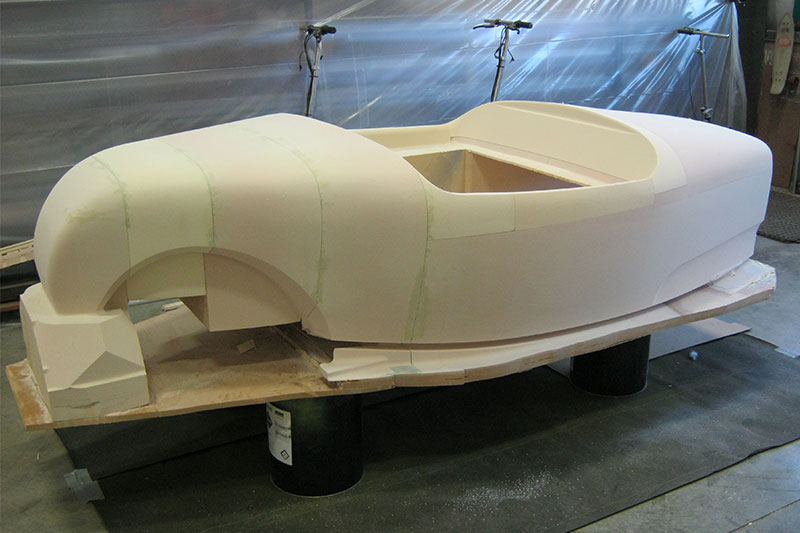

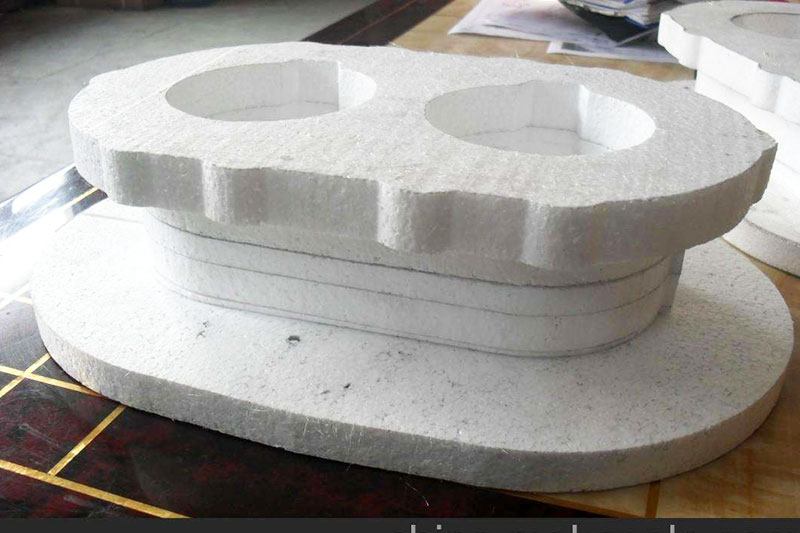

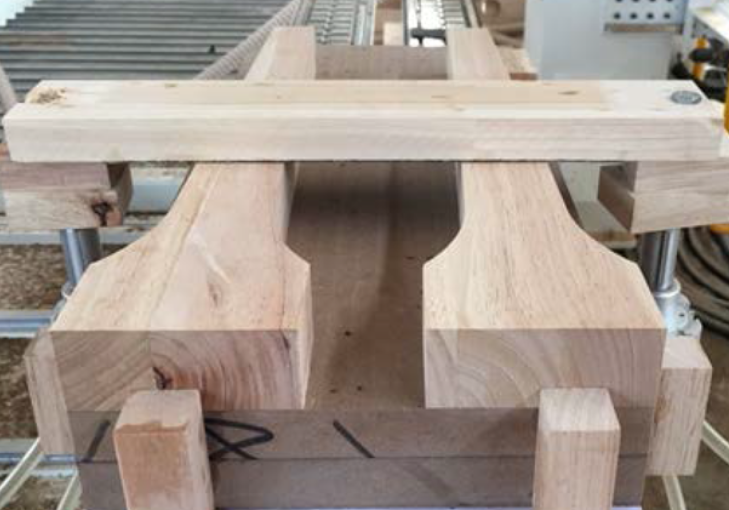

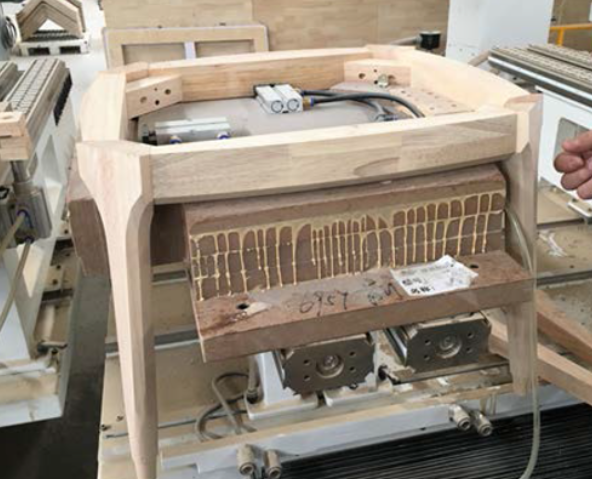

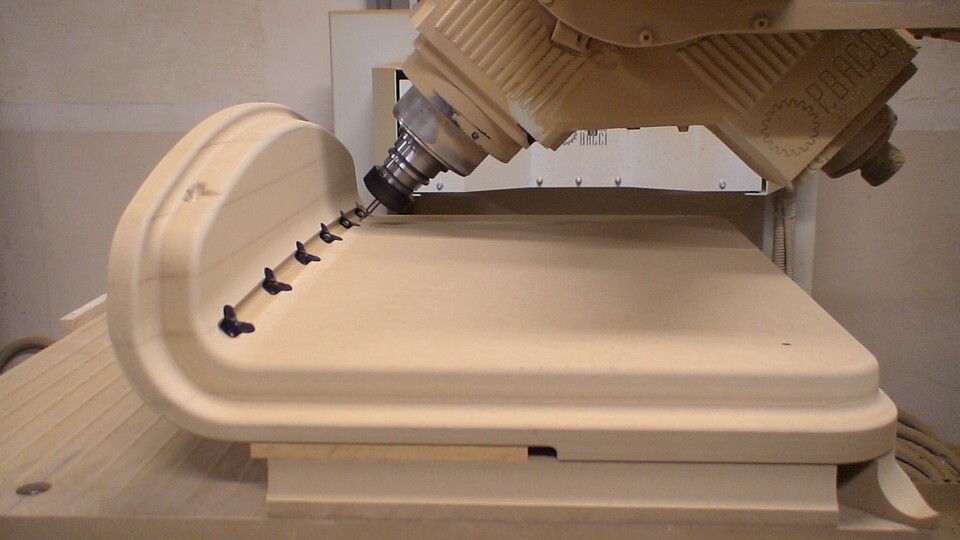

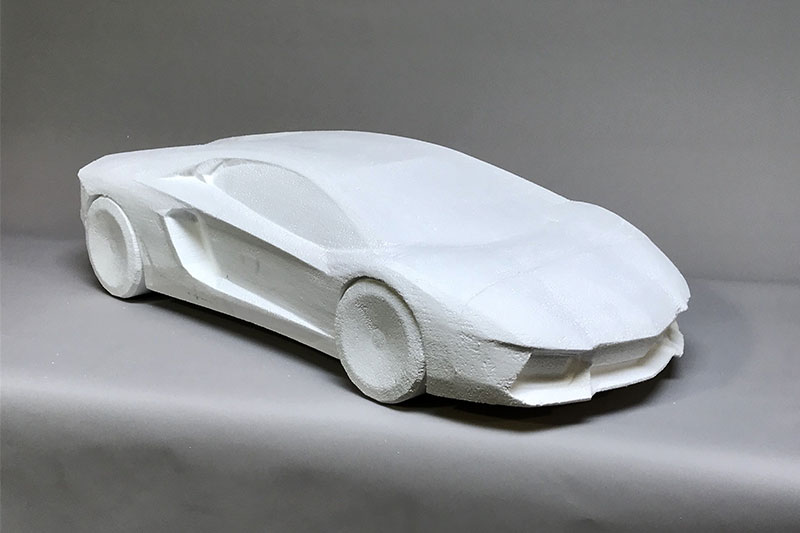

4. working sample

5. SERVICE

1. when you order suntec cnc , suntec cnc can offer your operation video ,operation manual .facetime training. teamviewer remotore control .

2. you can also welcome to visit our factory to learn . if you need our engineer to go , you should charge double tickets accomodation

3. 24 hours on line . our machine warranty 2 years , if out warranty , we can give you parts in our cost price .
