Customized whole cover 5 axis cnc router for eps foam wood mould making for Spain

Customized  whole cover 5 axis cnc router for eps foam wood mould making for Spain

1, control system: 5 axis cnc control osai (five-axis high-precision high-speed control system, with RTCP function) italy TPA, syntec control for optional

(1) Highly open CNC system, good man-machine performance

(2) CNC system using 17-inch display, with Chinese and English operating interface, compatible with the WINDOWS operating system

(3) Five-axis high-precision high-speed belt RTCP function, to provide three-dimensional knife length correction, the controller will take the knife length into account, the tip point will always be machined on the contour of the workpiece

(4) Bus type control system, can make the processing efficiency of a large cut short difference time, processing smoothness greatly improved

(5) Maximum program storage capacity 512MB, support CF card, USB flash drive, Ethernet program input

(6) with the program re-execution function, that is, during the processing of equipment failure, repair can automatically revert to the processing state in the event of failure, continue the function of processing.

(7) Mirror, scale and rotate functions

(8) Main program call subroutine, empty run, single-segment run

(9) Operation mode: Automatic/MDI/JOG/EDIT/handwheel

(10) Tool length/RADIUS compensation

(11) With abnormal automatic alarm function and emergency parking function.

(12) has the function of self-fault diagnosis.

 (13) The system is equipped with portable handwheel box, high degree of automation, simple operation, easy and fast fixed-point operation.

2, Linear Guide rail: Taiwan brand high dust-proof high static ball linear guide rail, friction resistance is small, pressure block installation, to ensure accuracy

3, Transmission screw: Taiwan brand Grinding ball Screw C5 class, high rigidity

5, Rack Drive: Henrian, Germany

6, Frequency converter: Taiwan Delta Inverter

7, Drive System: Japan yaskawa Servo, ultra-high speed, ultra-precision servo bus communication.

8, Reducer: Japan shimpo reducer, high rigidity, high precision, series of low noise planetary deceleration mechanism and helical gears

9, low-voltage electrical appliances: France Schneider Electrical components

10, Automatic lubrication system: Automatic lubrication, guide rail screw software control automatic timing quantitative on-demand refueling

5 axis cnc advantage :

fiver axis cnc center , a flat-bottomed end mill is used to maintain the vertical surface of the complex mold processing surface, which can greatly reduce the processing time. The principle of the five-axis machining center is also suitable for side milling with an angled surface, which can eliminate the rib-like texture caused by the ball end mill, making the surface quality of the mold more ideal, and reducing the need to clean the mold surface. The workload of manual milling and manual work.

     Through the five-axis machining technology, the problem of repositioning the workpiece at a complex angle and requiring multiple times of debugging and clamping is solved, which not only shortens the time, but also greatly reduces the errors generated. The tooling fixture required when installing the workpiece A large amount of cost has also been saved, and the machine tool has also achieved the processing of complex parts, such as drilling, taper processing, cavity concavity, etc. required for complex surfaces, which are not possible by traditional methods.

     The tool used in the five-axis machining is shorter, and the entire part can be processed at one time. There is no need to install the card again or use the longer tool required in the same three-axis machining, which can be used in a shorter time. Finish the production of the mold in-house, and the quality of the surface of the part is also good

PRODUCTIONS DETAILS

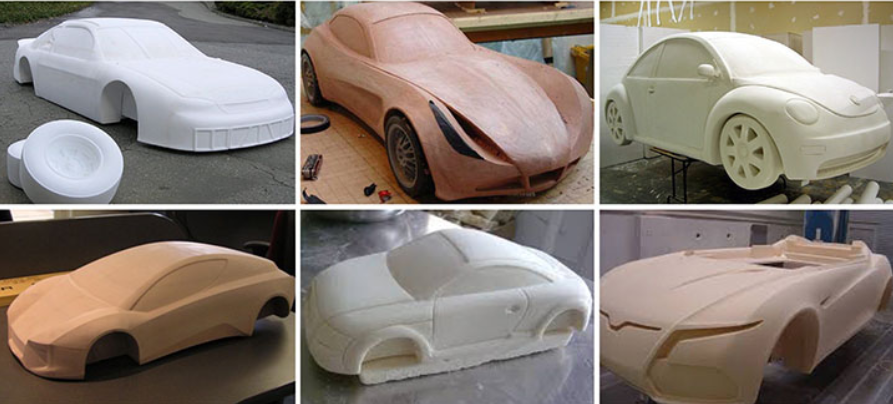

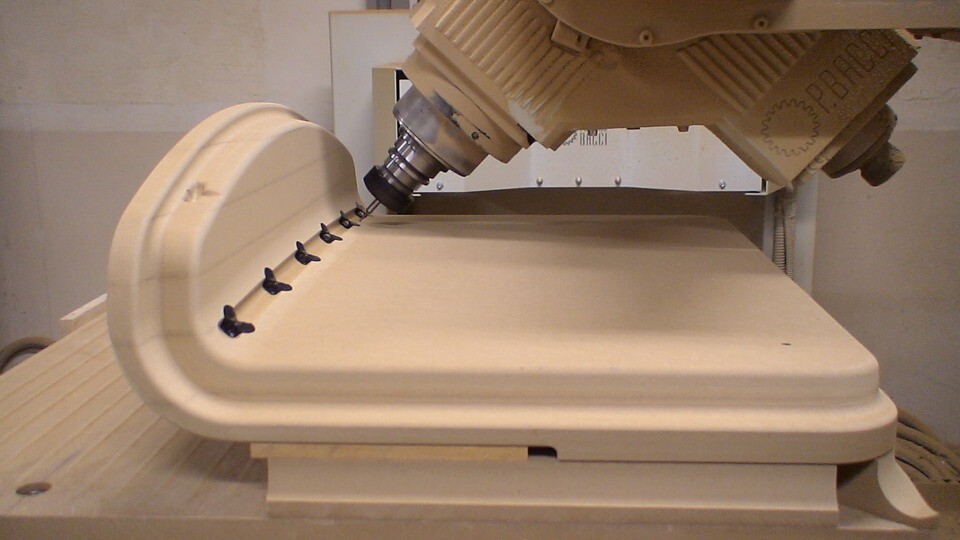

WORKING SAMPLE
