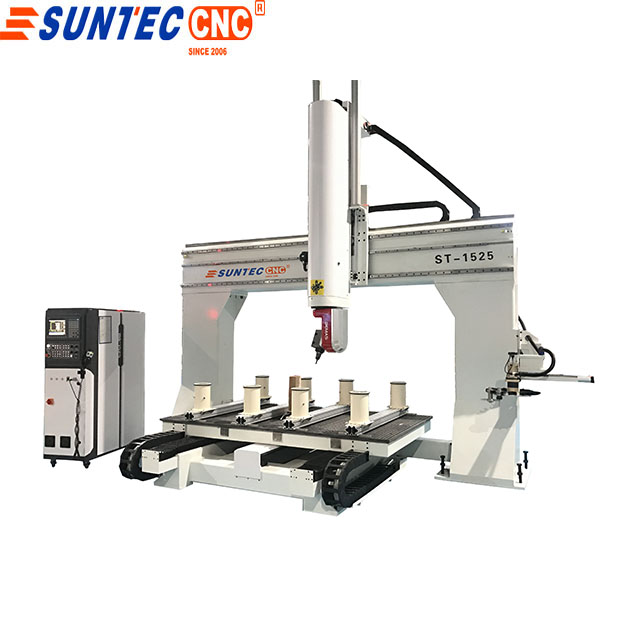

Customized SUNTEC 5 axis cnc machine for hardwood chair making ST-1525

Customized SUNTEC  5 axis cnc machine for hardwood chair making ST-1525

Table falt device to make table at same level to make sure high precision

Sanding delete rust itself to make painting well no scrap

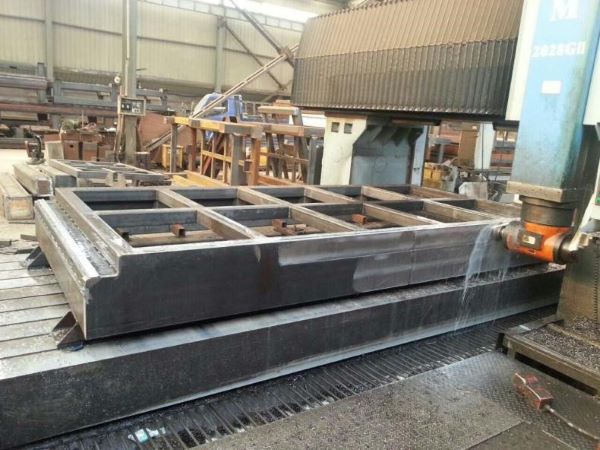

5 sides milling center to milling square to make sure precision 0.01mm

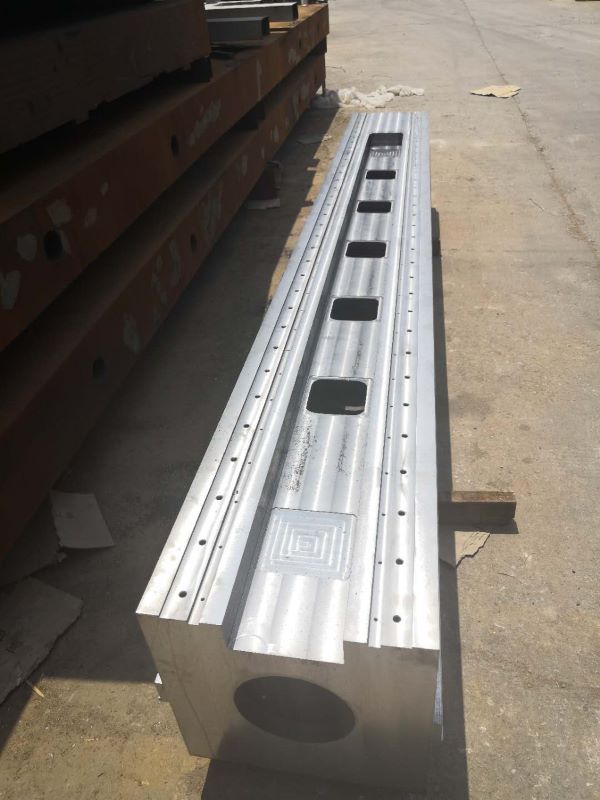

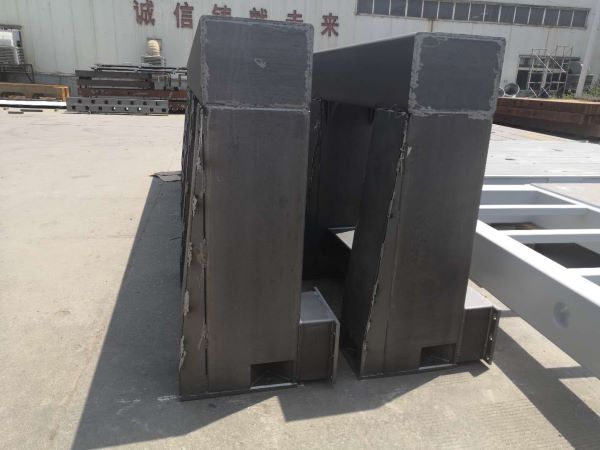

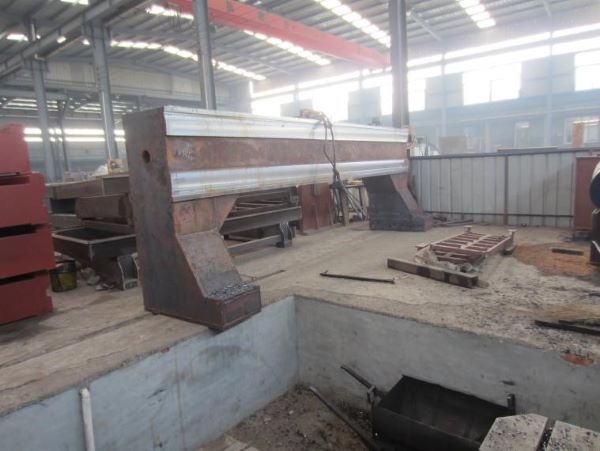

Cast iron gantry to vibrating when working

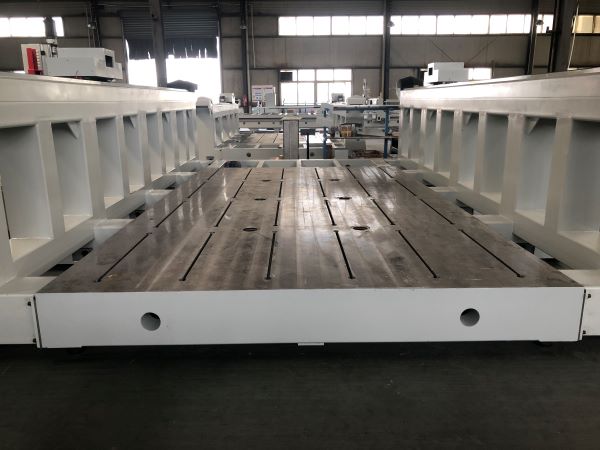

cast iron table with T slot so strong heavier no vibrating and easy to fixed wood

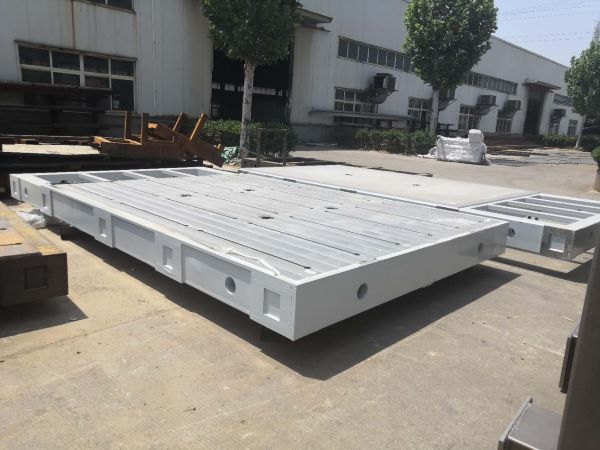

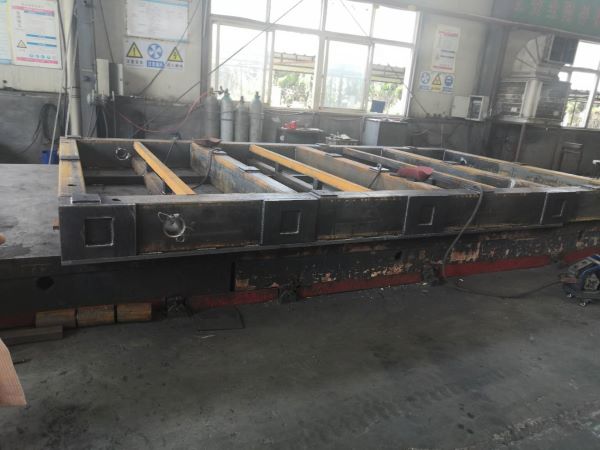

all structure heattreatment to delete steel itself rigidity to make sure longlife use

installation machine

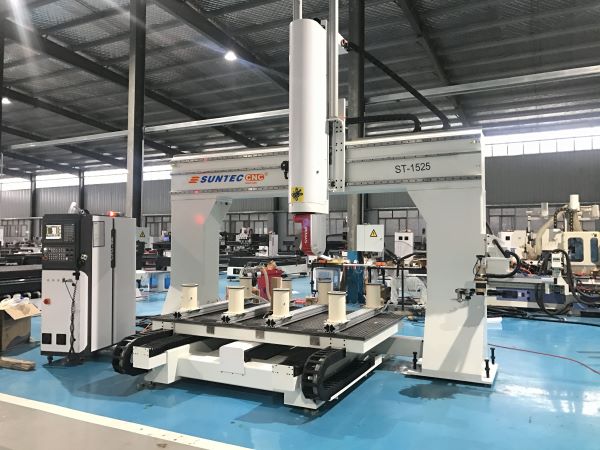

suntec st-1525 5 axis in workshop test

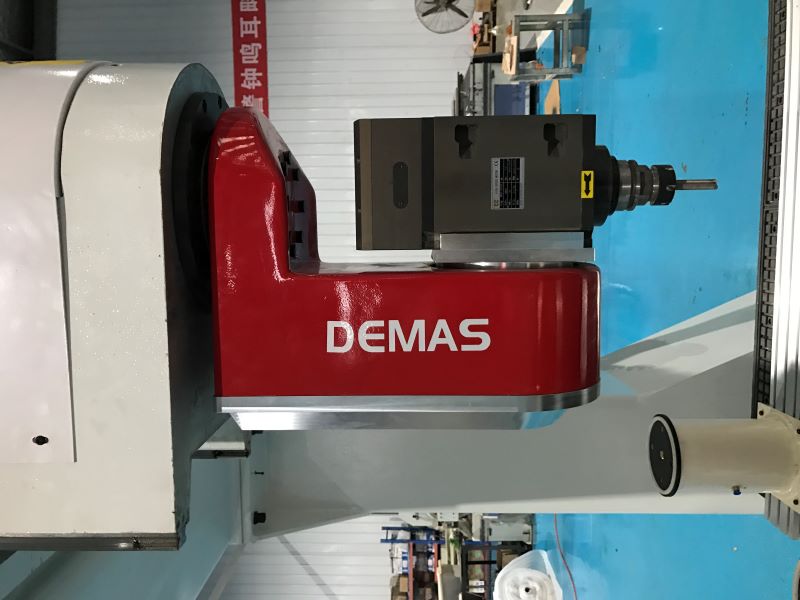

Germany Demas 5 axis head with 14 kw atc spindle

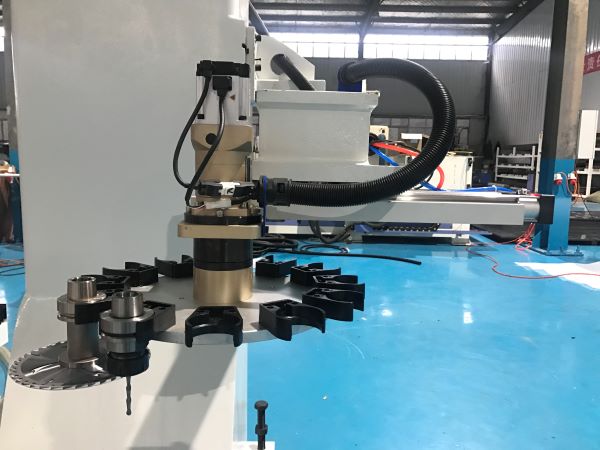

ATC tools

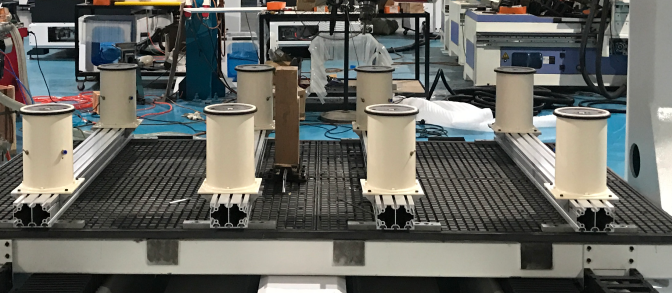

customized vacuum cups device for fixed hard wood for wood chair then spindle can rotary to mill

1. The spindle can rotate A +-120 ,C+- 360   degree can make multi-kinds of surface which we can design with Software.
2. We use top quality components for the machines, like italy hitec , Syntec control
syntec servo motors, and separate control box, Hiwin linear and so on, to keep the machine in best condition even after manyyears working.
3. With hard steel structure, is fit for hard wood working, like cutting and engraving on Rosewood for furniture, indoor
decoration. And with the Vacuum holding way and dust collector, the machine is qualified for mass- producing of furniture.
4. this machine all model heat -treatment . which using many years no deformation.so no vibrating when
working .
5. 5 axis/working size  1500*2500*900mm. customized for vacuum table
6.. working table and structure according your material , Foam wood aluminum etc
7. MPG XYZAC Hand Wheel for easy origin and work piece setting.
8. Measure Tool setting device.
9. One starter set woodworking tools.
10. 3 x collets, choice from 1-20mm (imperial available if preferred)
11. Inverter: Taiwanese Delta Inverter 0-22000rpm control.
12. German Schneider Electronic Spare parts.
13. Japanese OMRON limit switches.

14.RTCP function

RTCP (Rotation Tool Center Point) Function maintains rotary axes at a constant angle between tool and surface to be machined. It is a crucial difference between real (simultaneous) and fake (3+2) 5-axis CNC systems.

For machines with RTCP functionality, the control system keeps the tool center in the programmed position. In this case, programming is independent and is programming that is independent of machine motion. When processing on the machine, you don't have to worry about machine movement and tool length. All you need to consider is the relative motion between the tool and the workpiece. The work control system will handle the rest for you.

For machines that does not have RTCP functionality, that is to say, the pseudo five-axis programming needs to consider the swing length of the spindle and the position of the rotating table. This means that when programming with a fake five-axis CNC system and machine tools, it is necessary to rely on CAM programming and po

st-processing techniques to plan the tool path in advance.
