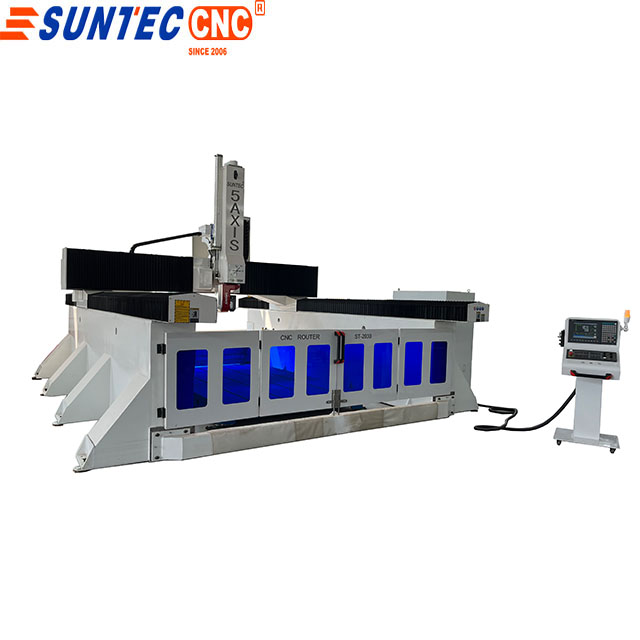

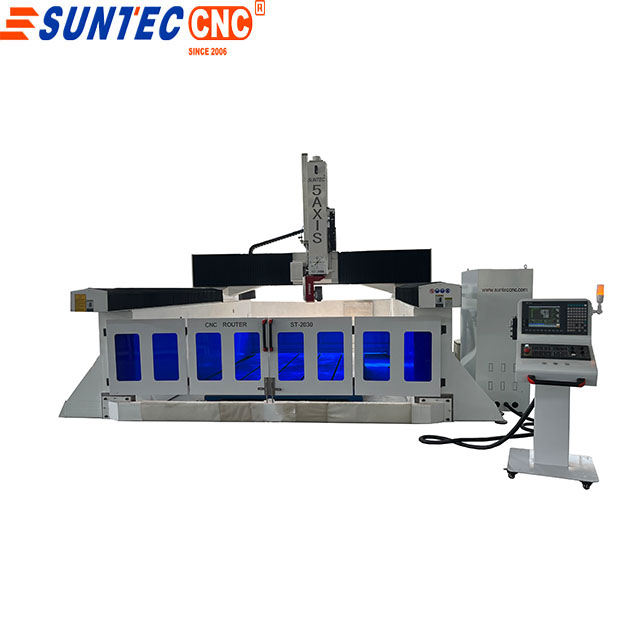

Customized ST-2030 5 axis cnc router center for fiberglass composite material mold making

Customized ST-2030 5 axis cnc router center for fiberglass composite material mold

 making

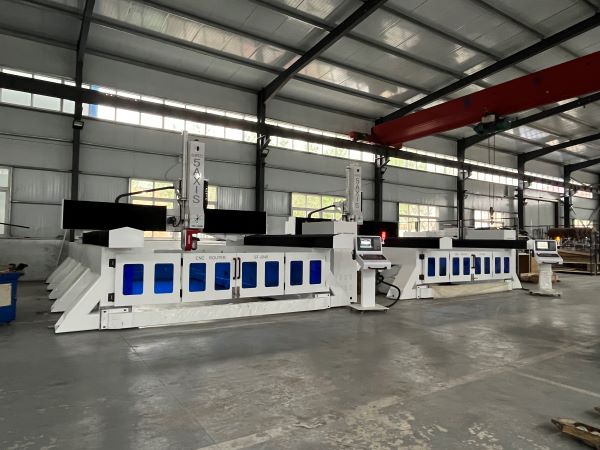

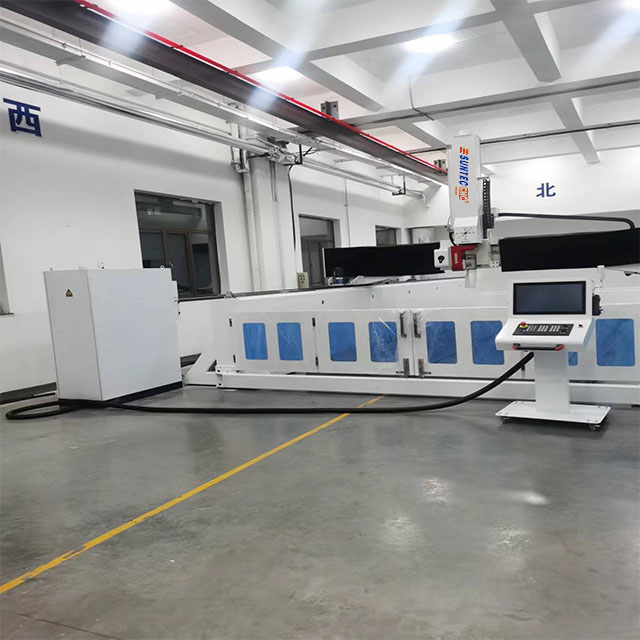

SUNTEC 5 AXIS ST-2030 IN CUSTOMER WORKSHOP FOR PLANE PARTS MAKING

SUNTEC 5 AXIS FOR MAKING FIBERGLASS MODLE FOR PLANE PARTS MAKING

HEAVY DUTY CAST IRON STRUCTURE TABLE TO MAKE HIGH PRECISION WITH T SLOT CAN FIXED MATERIAL WITH PLATE

After welding then heattreament stress relief sanding polish to delete steel itself rigidity to make sure longlife used no deformed strong rigidity, good shock absorption performance

After aging treatment; large section, strong rigidity, low inertia, good high-speed performance

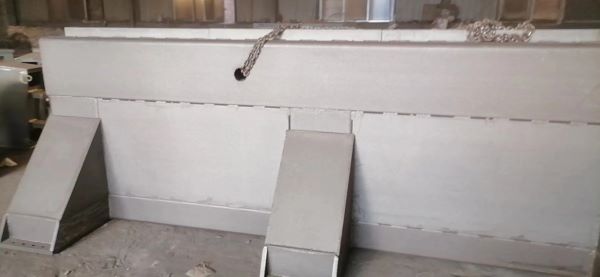

HEAVY DUTY STRUCTURE LEGS WITH ENFORED PARTS ONE LEGS WEIGHT 5T TWO LEGS 10T WITH ENFORCED STEEL PLATE INSIDE . WHICH CAN MAKE NO VIBRATING WHEN WORKING

WE LEFT HOLE FIRSTLY TO BALANCE TWO LEGS CONTERACT THE TENSION ON BOTH SIDES  SECONDLY EASY TO LOAD

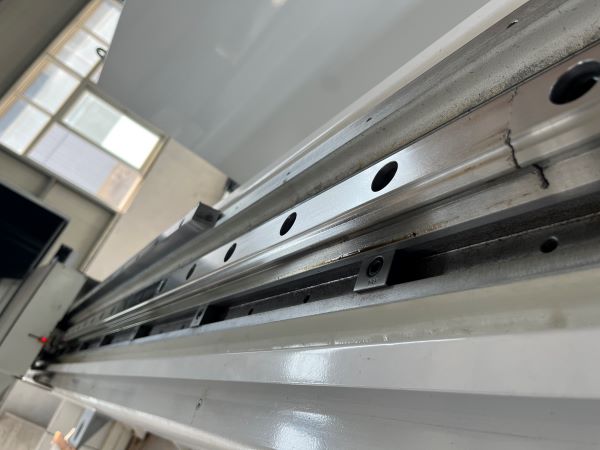

we use Germany square guide and using flat piece to make sure it same level to make sure high precision

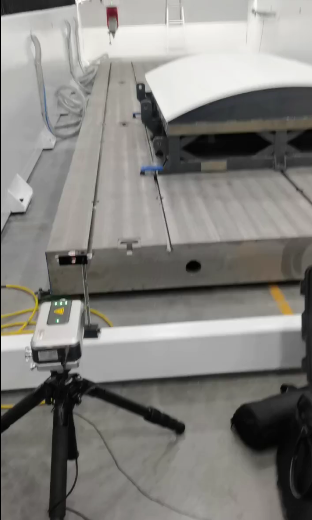

After install gantry using laser to calibrate three axis XYZ . to make sure two legs at same level four sides . laser calibration is  most sophisticated and most accurate till now .especaill making high precision parts such as plane mold car mold  plane parts  composite material etc suntec normal 5 axis cnc machine precision can  ± 0.1mm

after suntec 5 axis finished use articulated arm polyworks laser or Renishaw laser scan it precision and report past then we delivery .we also test S letter with trangle and circle also compared drawing 1:1 rate to output report . it will show very high precision normal 500mm distance  ± 0.1mm  someparts 0.03mm of course much length distance much precision .

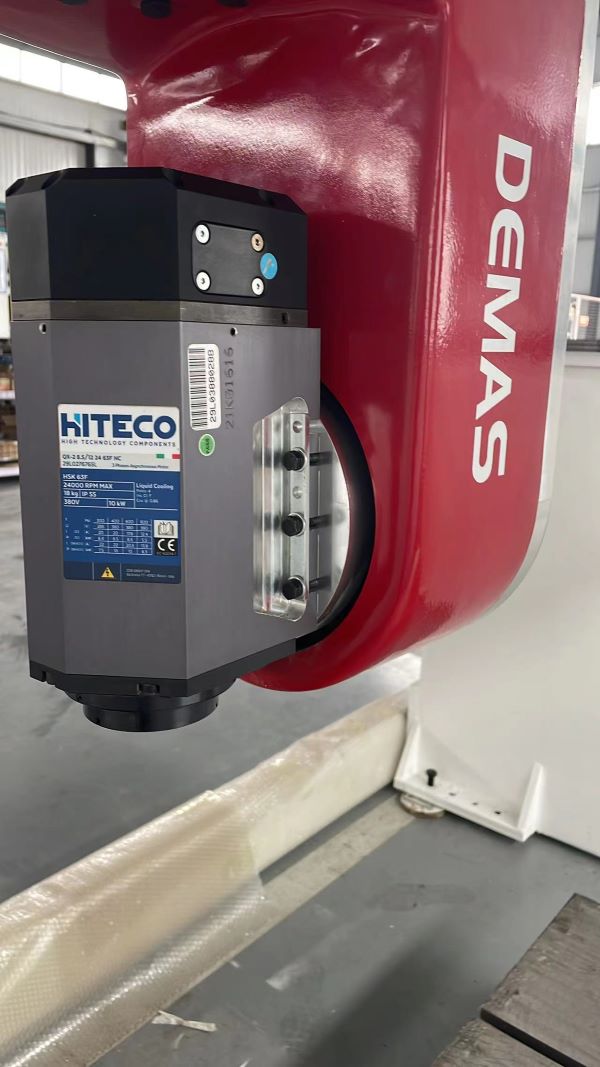

Italy Demas 5 axis head with hiteo water cooling spindle 24000 rpm HSK-63 low torque

high power . Gmany HSM 5 aixs head for optional according your material to choose .

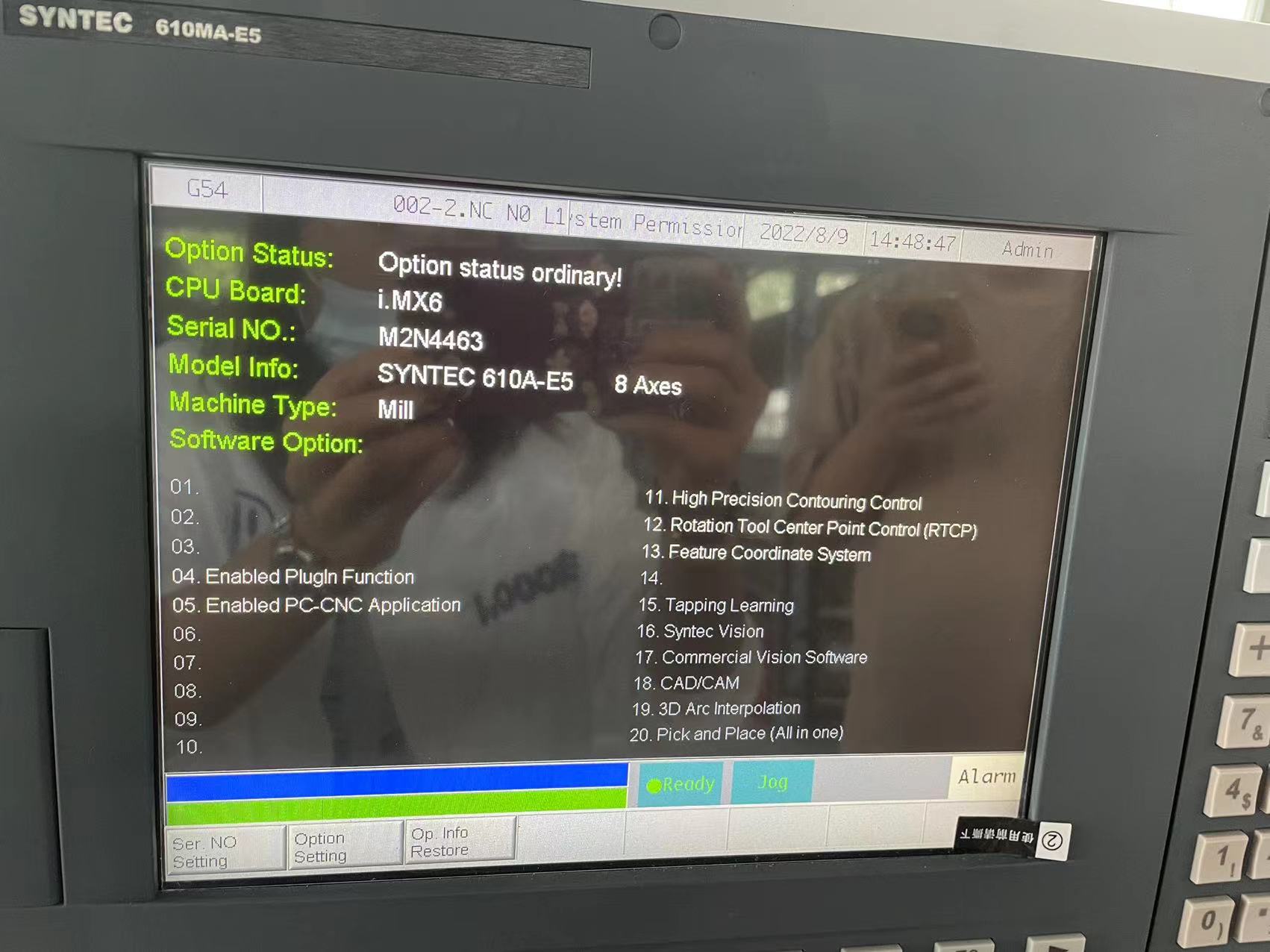

Syntec controller with RTCP (Rotated Tool Center Point), also known as TCPM、TCPC or RPCP, refers to the function maintaining rotary axes at constant angle between tool and surface to be machined. In 5-axis machining, the additional motion of the tool point is generated due to the rotary motion when following the tool point path and the angle between the tool and the workpiece. The control point of CNC system is often not coincident with the tool point, so the CNC system should automatically correct the control point to ensure that the tool point moves according to the given trajectory.

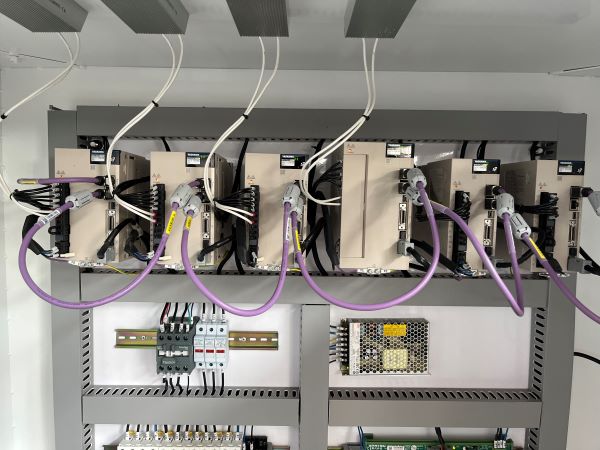

japan yaskawa absolutely driver high powerful for making

ATC 8 piece tools holder HSKF63 for saw for cutter according your material working method to choose 12 /16/18 piece for optional

air condioner for cooling cabinet to make stable working envirmoment

independent controller easy to move and operate

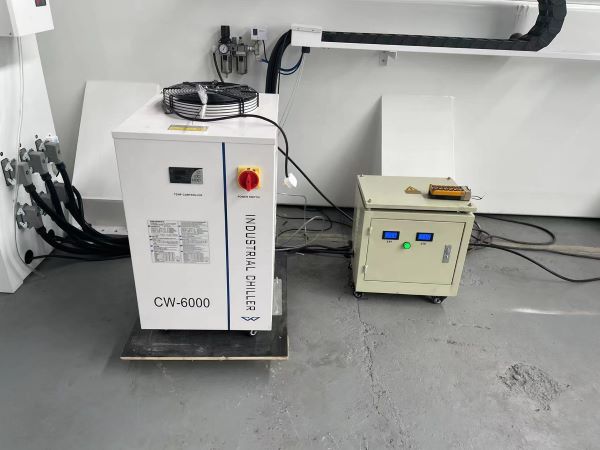

water chiller to cooling spindle even working 24hours it still same temperature no broken

air plug for easy to load container

SUNTEC 5 AXIS CNC IN CUSTOMER WORKSHOP FOR BATHROOM PARTS

SUNTEC 5 AXIS FOR BOAT MOLD

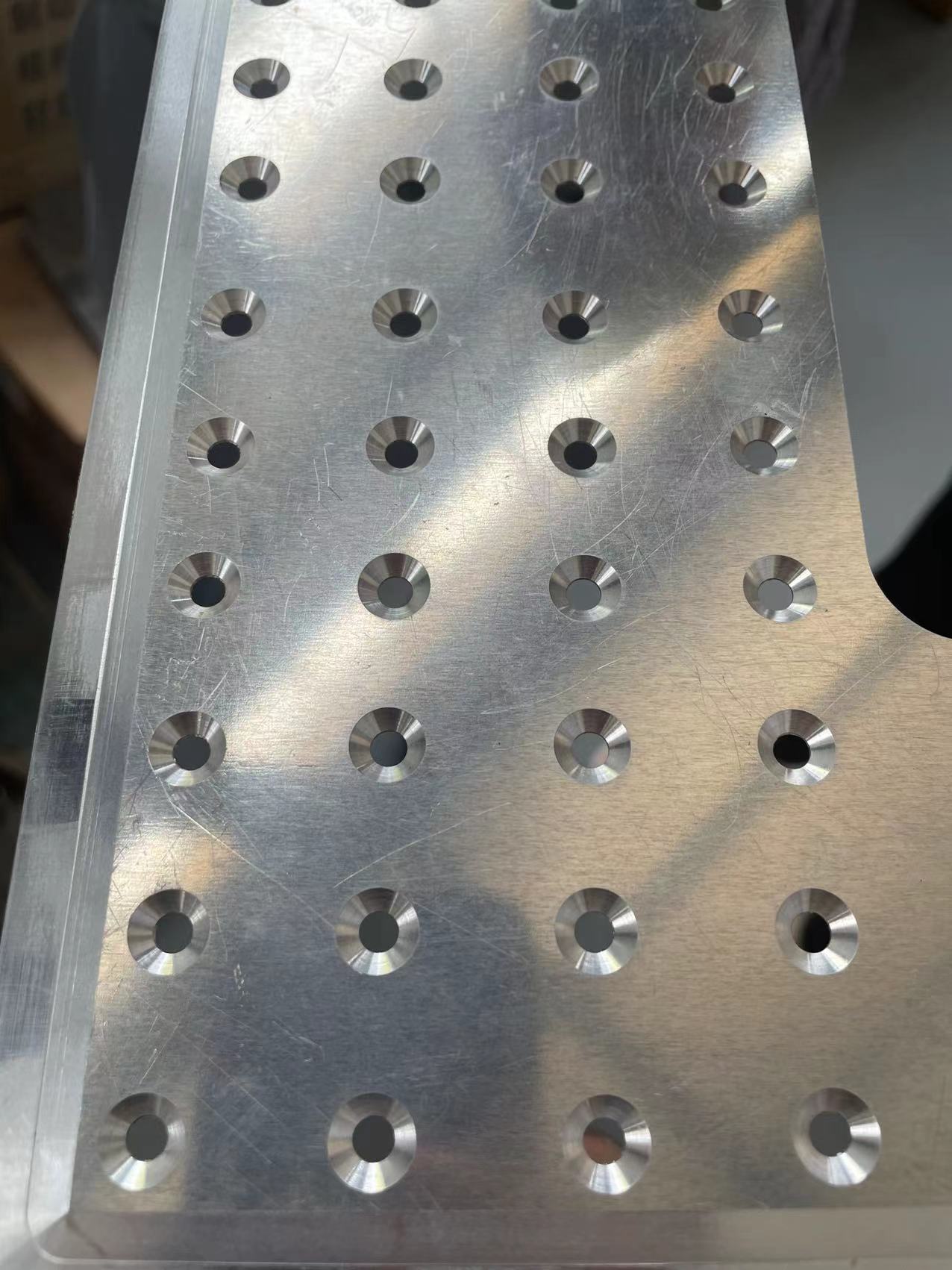

SUNTEC 5 AXIS CNC FOR AVIATION ALUMINUM PLATE FOR HOLE PRICISION 0.1MM

Renishaw for optional

Material application :Steel, aluminum skin, carbon fiber, glass fiber reinforced plastic, aramid honeycomb, aluminum honeycomb, foam, honeycomb panel, substitute wood and other composite materials

Aluminum profiles, aluminum plates, composite materials, etc. automotive interior industry ,new engergy car mold parts  rail transit industries, such as luggage racks, sunroof railings, bumpers, high-speed rail, body side panels, body, roof

Suntec 5 axis cnc can apply for Aerospace industrial ,green engergy parts new energy cars ,stamping die, plastic injection mold ,railways parts ,boats and yacht ,crawler shoes ,spider cap, bathtubs ,bathroom parts mold etc ,army parts , airplanes parts etc .can work fiberglass ,carbon material ,foundary molds ,GFK MDF wood , construction transport vehicles etc .

sunteccnc free training in our factory and also our engineer can be your workshop from build Nc code how to use software and how to install and how to operate machine need about 5-7 days till you learn well .

sunteccnc can customized any size cnc machine our engineer have more than 20 years experience since cnc begin . he is the beginner for the first cnc .

1. The spindle can rotate A +-120 ,C+- 245 degree can make multi-kinds of surface which we can design with Software.
2. We use top quality components for the machines, like italy hitec , Syntec control
syntec servo motors, and separate control box, Hiwin linear and so on, to keep the machine in best condition even after manyyears working.
3. With hard steel structure, is fit for hard wood working, like cutting and engraving on Rosewood for furniture, indoor
decoration. And with the Vacuum holding way and dust collector, the machine is qualified for mass- producing of furniture.
4. this machine all model heat -treatment . which using many years no deformation.so no vibrating when
working .
5. 5 axis/working size  2000*3000*1000mm. customized for vacuum table
6.. working table and structure according your material , Foam wood aluminum etc
7. MPG XYZAC Hand Wheel for easy origin and work piece setting.
8. Measure Tool setting device.
9. One starter set woodworking tools.
10. 3 x collets, choice from 1-20mm (imperial available if preferred)
11. Inverter: Taiwanese Delta Inverter 0-22000rpm control.
12. German Schneider Electronic Spare parts.
13. Japanese OMRON limit switches.

14.RTCP function

RTCP (Rotation Tool Center Point) Function maintains rotary axes at a constant angle between tool and surface to be machined. It is a crucial difference between real (simultaneous) and fake (3+2) 5-axis CNC systems.

For machines with RTCP functionality, the control system keeps the tool center in the programmed position. In this case, programming is independent and is programming that is independent of machine motion. When processing on the machine, you don't have to worry about machine movement and tool length. All you need to consider is the relative motion between the tool and the workpiece. The work control system will handle the rest for you.

For machines that does not have RTCP functionality, that is to say, the pseudo five-axis programming needs to consider the swing length of the spindle and the position of the rotating table. This means that when programming with a fake five-axis CNC system and machine tools, it is necessary to rely on CAM programming and po

st-processing techniques to plan the tool path in advance.
