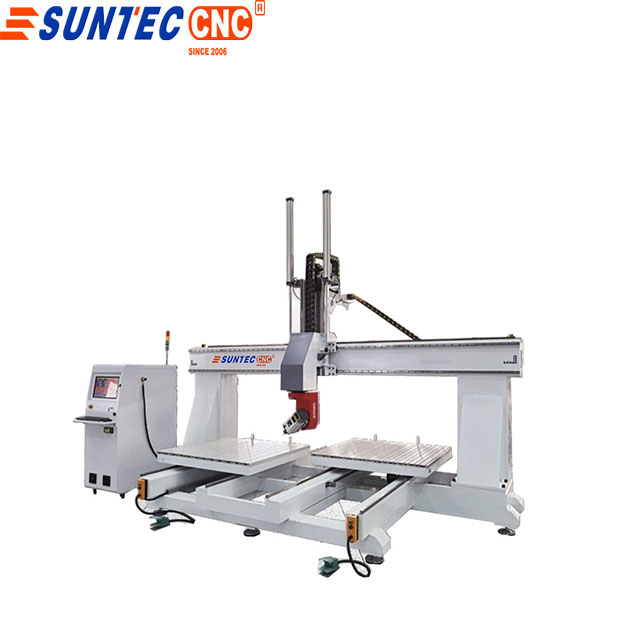

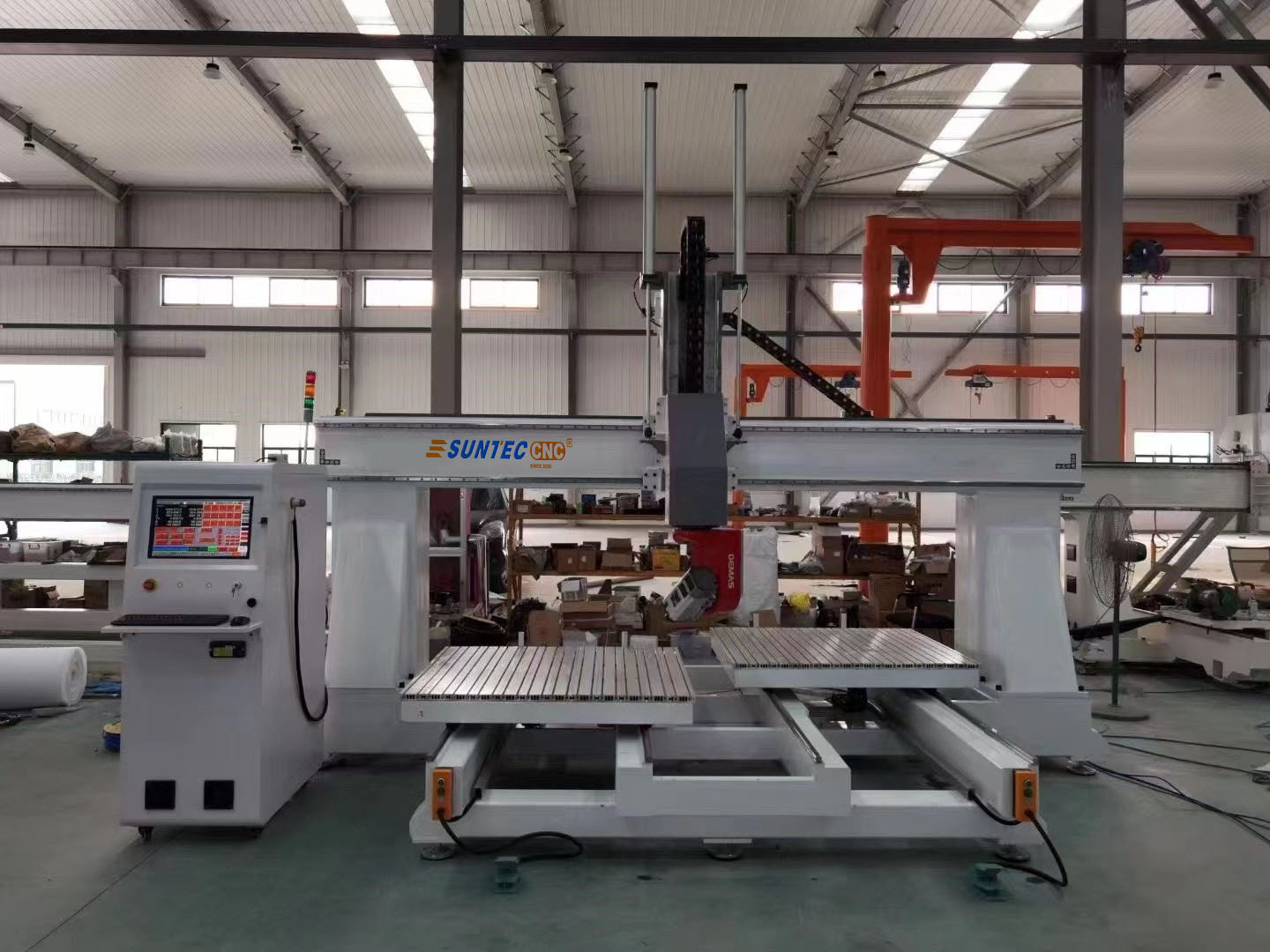

Customized suntec solid bending wood chair making double table 5 axis cnc router

  • Model:ST-1212
  • Category : 5 Axis CNC Router
  • Working area: 1200*1200*600
  • Standard price: 75000
  • Customized: Negoation
  • Payment Terms: T/T(Telegrahic Transfer), Master card, Visa, Paypal, West Union
  • Send Email WhatsApp WhatsApp

Customized suntec solid bending wood chair making double table 5 axis cnc router

bending wood chair making suntec 5 axis cnc router

double outlet spindle

double outlet spindle for optional


1. The spindle can rotate A +-110 ,C 220 +- degree can make multi-kinds of surface which we can design with Software.
2. We use top quality components for the machines, like HSD spindle, Syntec EZ-21MA control system osai TPA, Delta Inverter,
Yaskawa servo motors, and separate control box, Hiwin linear and so on, to keep the machine in best condition even after manyyears working.
3. With hard steel structure, is fit for hard wood working, like cutting and engraving on Rosewood for furniture, indoor
decoration. And with the Vacuum holding way and dust collector, the machine is qualified for mass- producing of furniture.
4. this machine movable table which can do two piece at same time
5. working size can customized1200*1200*600mm or according your requirments
6.. working table and structure according your material , Foam wood aluminum etc
7. MPG XYZAC Hand Wheel for easy origin and work piece setting.
8. Tool setting device.
9. One starter set woodworking tools.
10. 3 x collets, choice from 1-20mm (imperial available if preferred).
11. Inverter: Taiwanese Delta Inverter 0-22000rpm control.
12. German Schneider Electronic Spare parts.
13. Japanese OMRON limit switches.
14. Voltage: 3PH 415V 50HZ.with transformer

15.RTCP function


2. Application

Suntec 5 axis cnc mainly for Non-metallic five-axis processing of non-metallic molds/models, wooden molds, inspection tools, automobile and train interior parts, etc.

3. how to use software

1.During the design of the casting mold, input the three-dimensional drawing of the customer's product into the Solidworks software, set the parameters such as mold shrinkage and draft slope according to the casting process drawing of the product, and draw the three-dimensional drawing of the upper and lower molds.

2. Programming step by step according to the different surfaces of the mold, selecting the appropriate machining program, selecting the appropriate tool, spindle speed, feed speed, tool path step and other processing parameters to generate the tool path.

3 .Fully realistic 3D dynamic simulation

100% real multi-axis machine tool 3D dynamic simulation can be achieved. For machine tool moving parts with more than 5 axes and multiple heads

Including machine tool model, machining workpiece model, fixture model and toolpath 360

Intelligently avoid collision and interference

4. using software post processor come out NC format then can using cnc to milling it

5. if making wood , need rough milling with short cutter, then fine milling to make your mold .

umber

Description

Parameter

1

X,Y,Z Working Area

1200*1200*600mm double movable  table

2

Table Size

3550×5540mm

3

X,Y,Z Traveling Positioning Accuracy

±0.01/600mm

4

A axis

±110   degree

5

C AXIS

±220   degree

6

Axis positioning   accuracy

1 arcmin

7

Table Surface

movable table or gantry movable

8

Frame

Big Steel Tube Structure   with heat treatment

9

X, Y Structure

Rack and Pinion Drive, Hiwin Rail Linear Bearings

10

Z Structure

Hiwin Rail Linear Bearings and Ball Screw

11

Max. Power Consumption

(Without Spindle)    11 Kw

12

Max. Rapid Travel Rate

40000mm/min

13

Max. Working Speed

40000mm/min

14

Spindle Power

9KW/12/13/15 /5.5 double head driiling for optiaonal

15

Spindle Speed

0-24000RPM

16

Drive Motors

 Yaskawa Motors

17

Working Voltage

AC380V/50/60Hz,3PH (Option: 220V))

18

Command Language

G Code

19

Operating System

Syntec Control System/TPA   /OSAI

20

Computer Interface

USB

21

Flash Memory

512M

22

Collet

63F

23

X,Y Resolution

<0.01mm

24

Software Compatibility

 powermill UG software

25

Running Environment  Temperature

0 - 45 Centigrade

26

Relative Humidity

30% - 75%

27

Packing Size

5500X2100X2300mm

28

N.W.

50000KG

29

G.W.

60000KG

30

Optional Parts

Dust Collector/ Dust Hoods for three Axis

Vacuum Pump

Rotary System

Mist-cooling System

Delta/ Panasonic Servo Motors

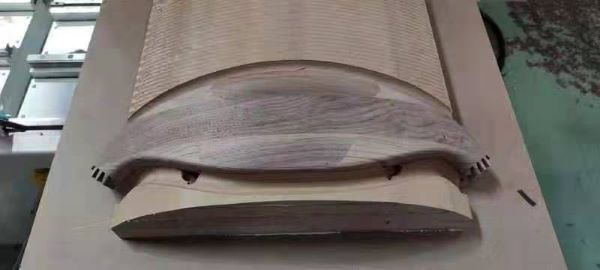

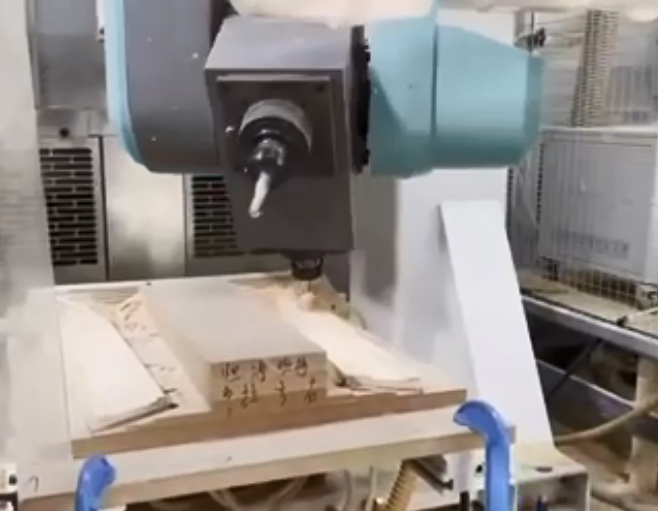

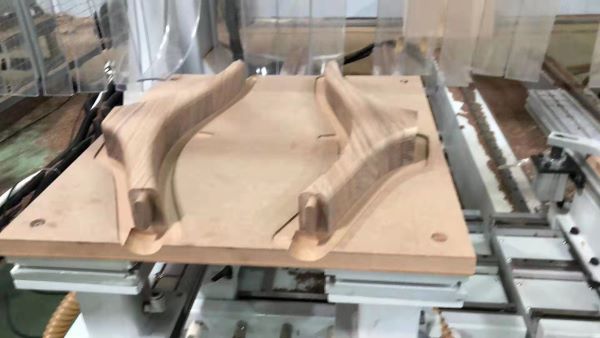

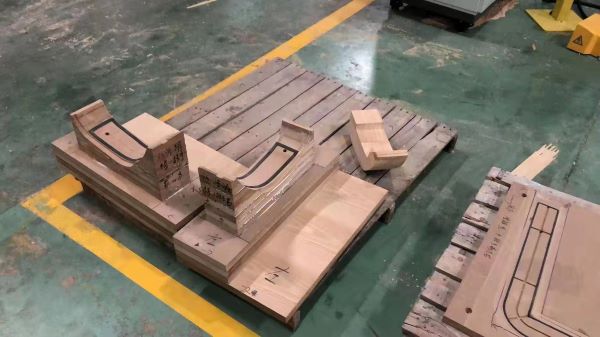

Working samples

some sample need special customized fixture so just tell us what solid wood you working for .sunteccnc can offer your best solutions .
