5 Axis CNC Router

SUNTEC 5 Axis CNC Router 5 axis CNC machining router center 5-Axis CNC router

  • Model:ST-1530
  • Category : 5 Axis CNC Router
  • Working area: 1500*3000*1000mm
  • Standard price: 85000
  • Customized: Negoation
  • Payment Terms: T/T(Telegrahic Transfer), Master card, Visa, Paypal, West Union
  • Send Email WhatsApp WhatsApp

SUNTEC  5 Axis CNC Router 5 axis CNC machining router center 5-Axis CNC router

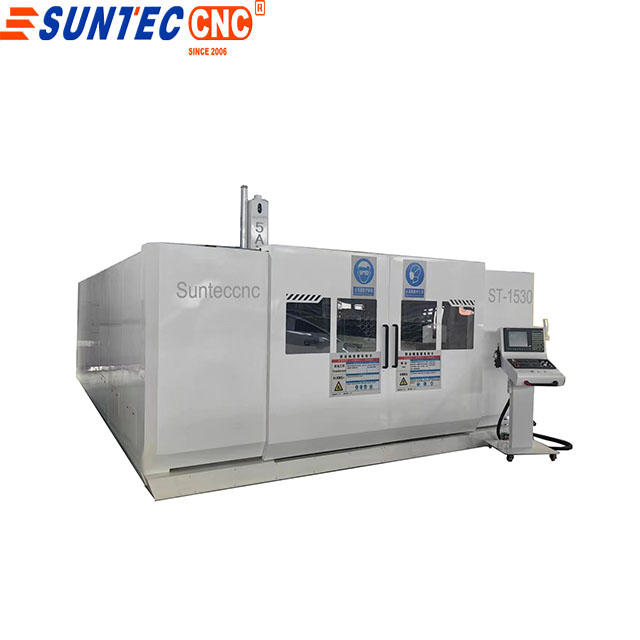

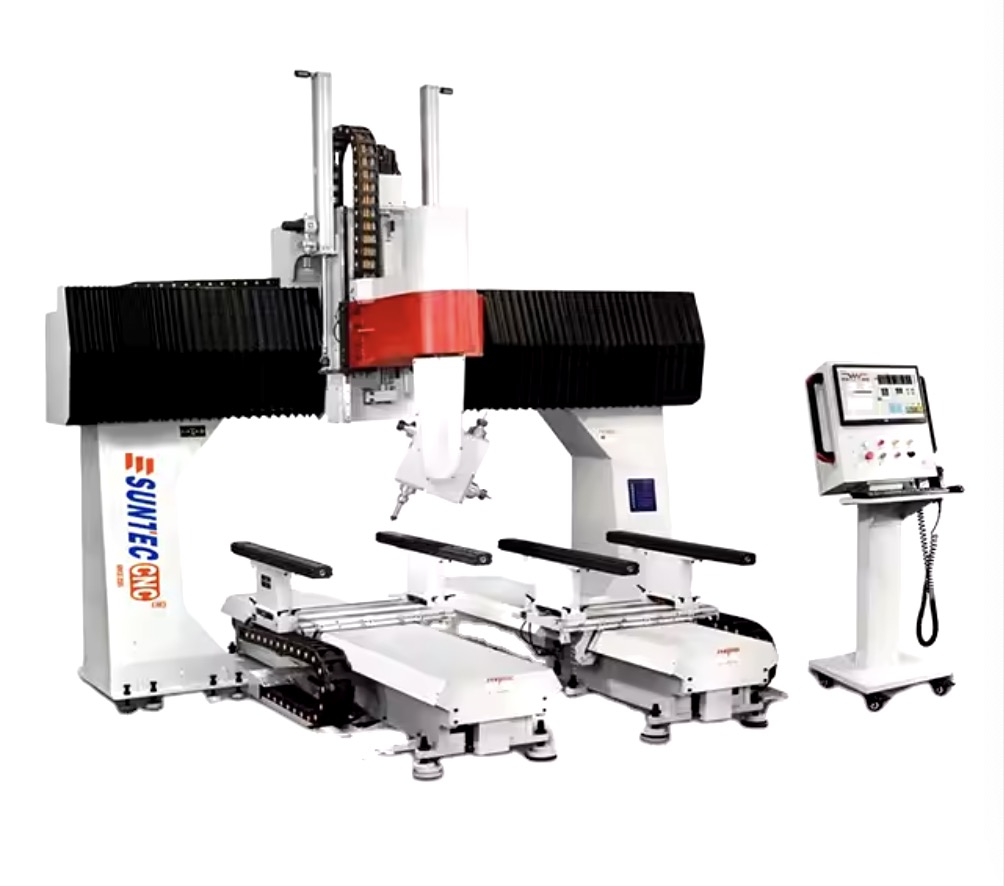

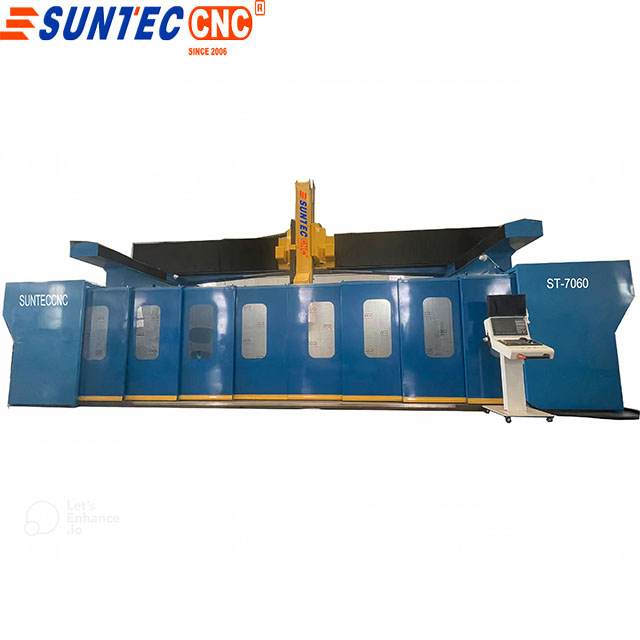

whole cover st-1530 5 axis cnc center

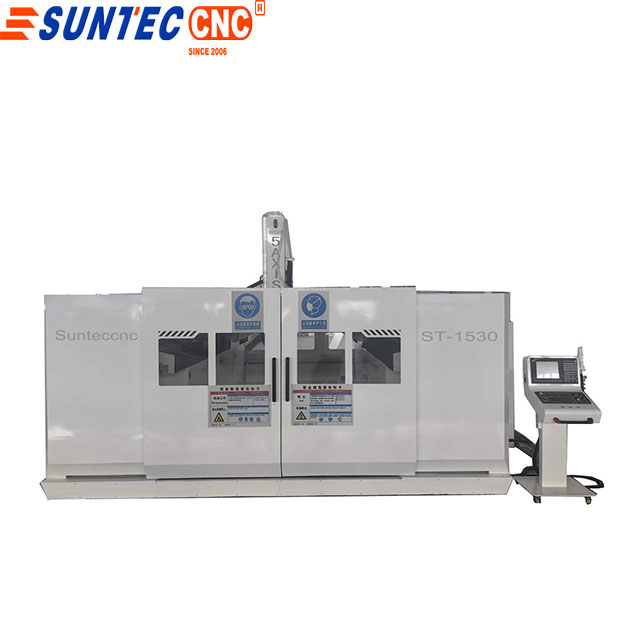

ST-1530 cnc router

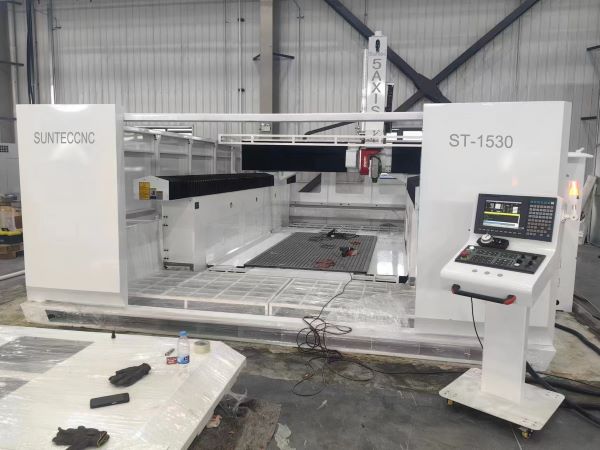

suntec 5 axis cnc router in customer workshop

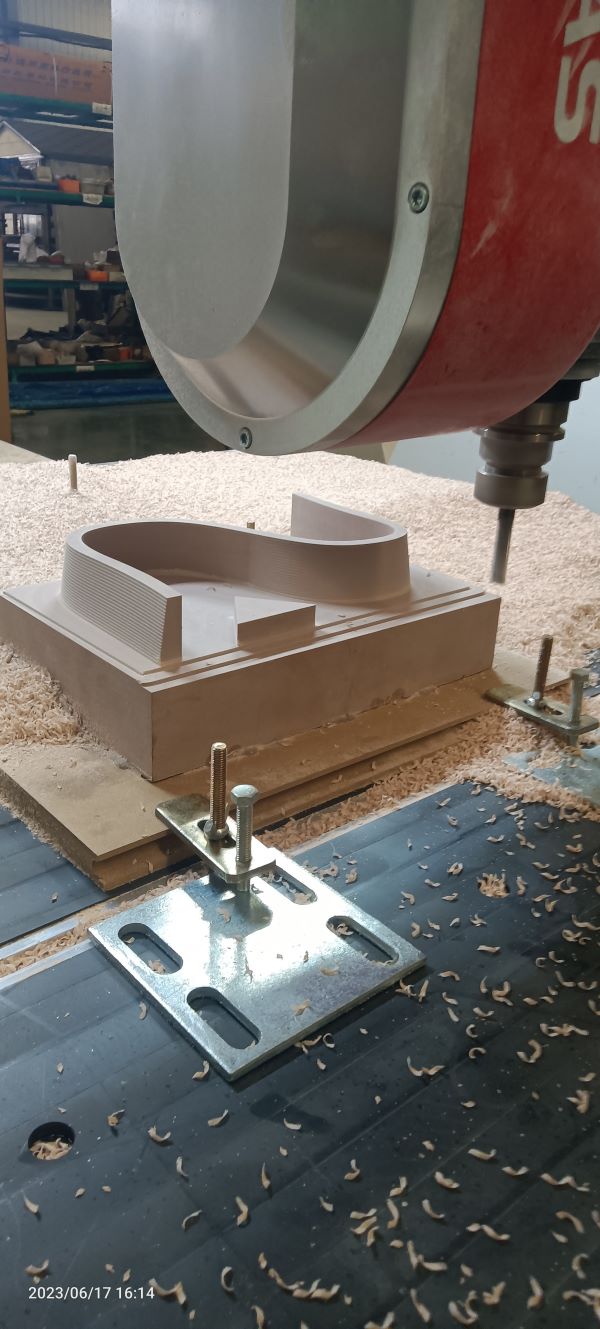

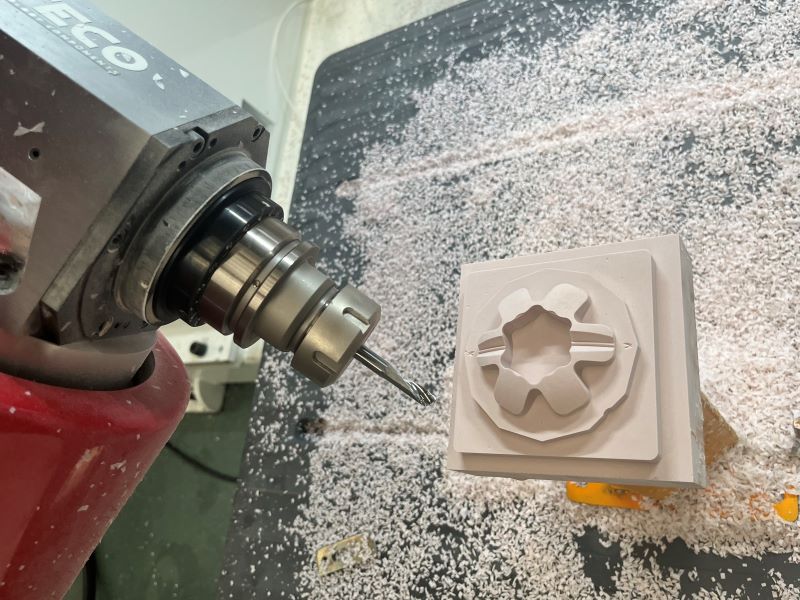

Test high density hard wood

smothly

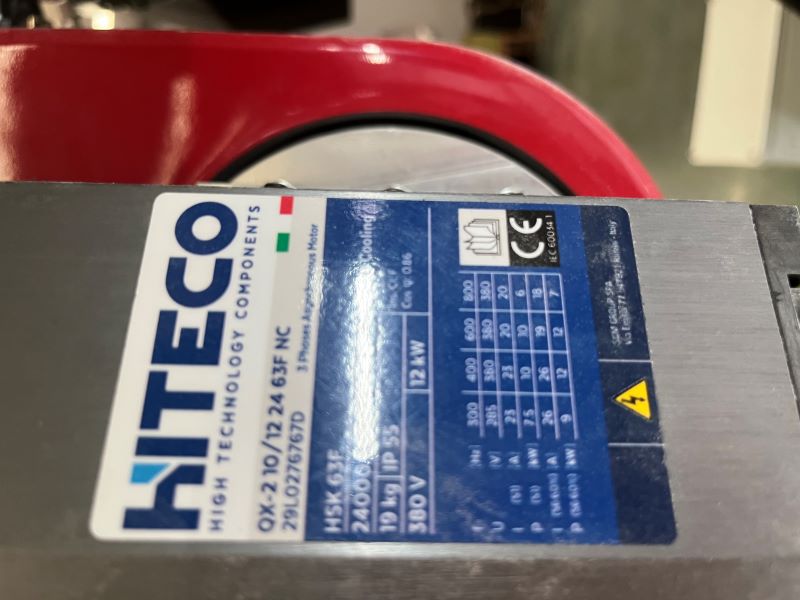

12kw hitec water cooling spindle

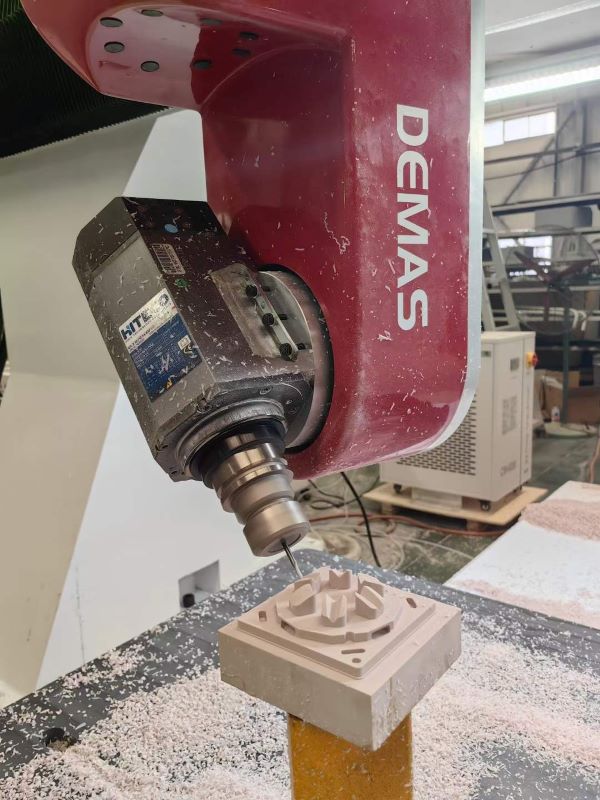

Italy hitec spindle 12kw 24000rpm HSKF63 collect for carbon material

S letter test suntec 5 axis cnc precision

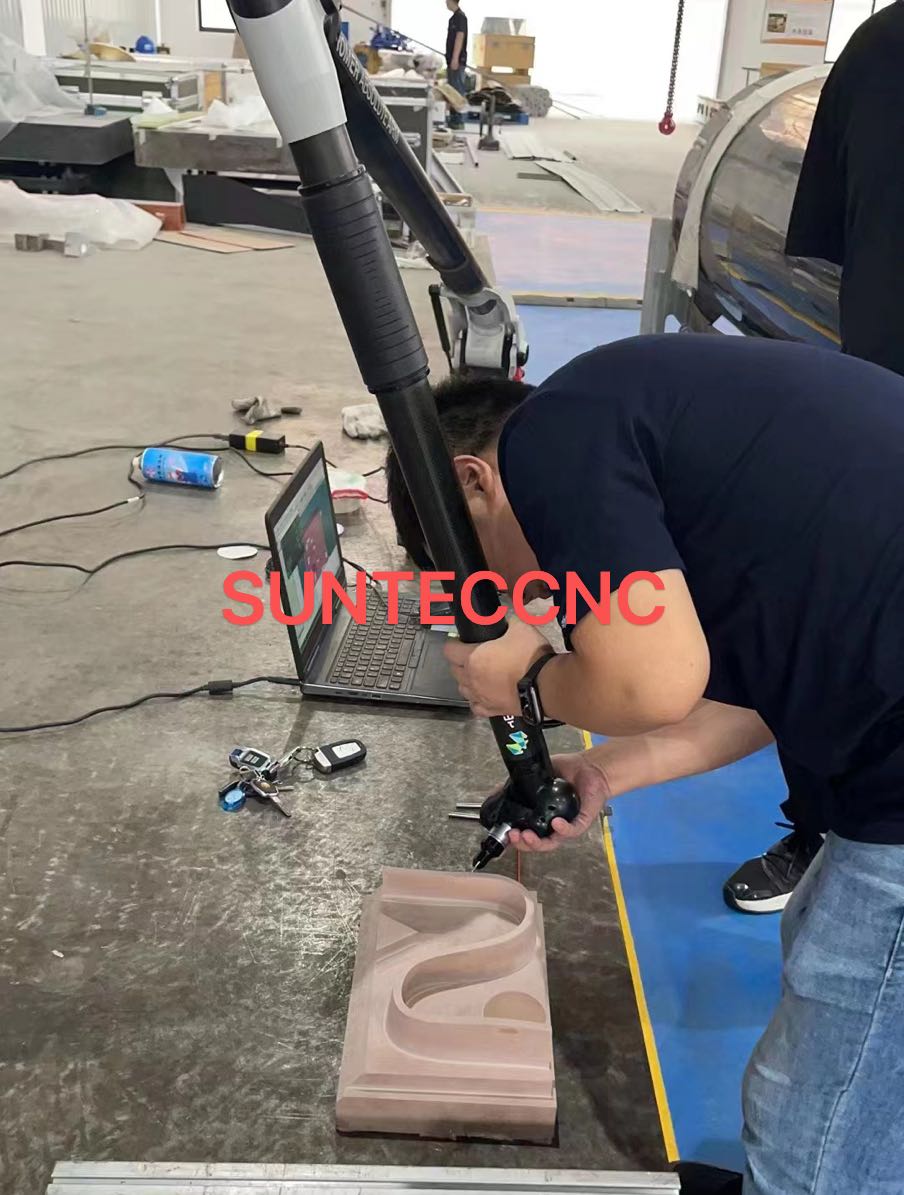

Test S letter with trangle circle  with suntec 5 axis cnc any degree precision which is international standard test XYZAC 5 axis cnc precision precision then use laser test with his drawing 1:1 rate

polyworks test precision

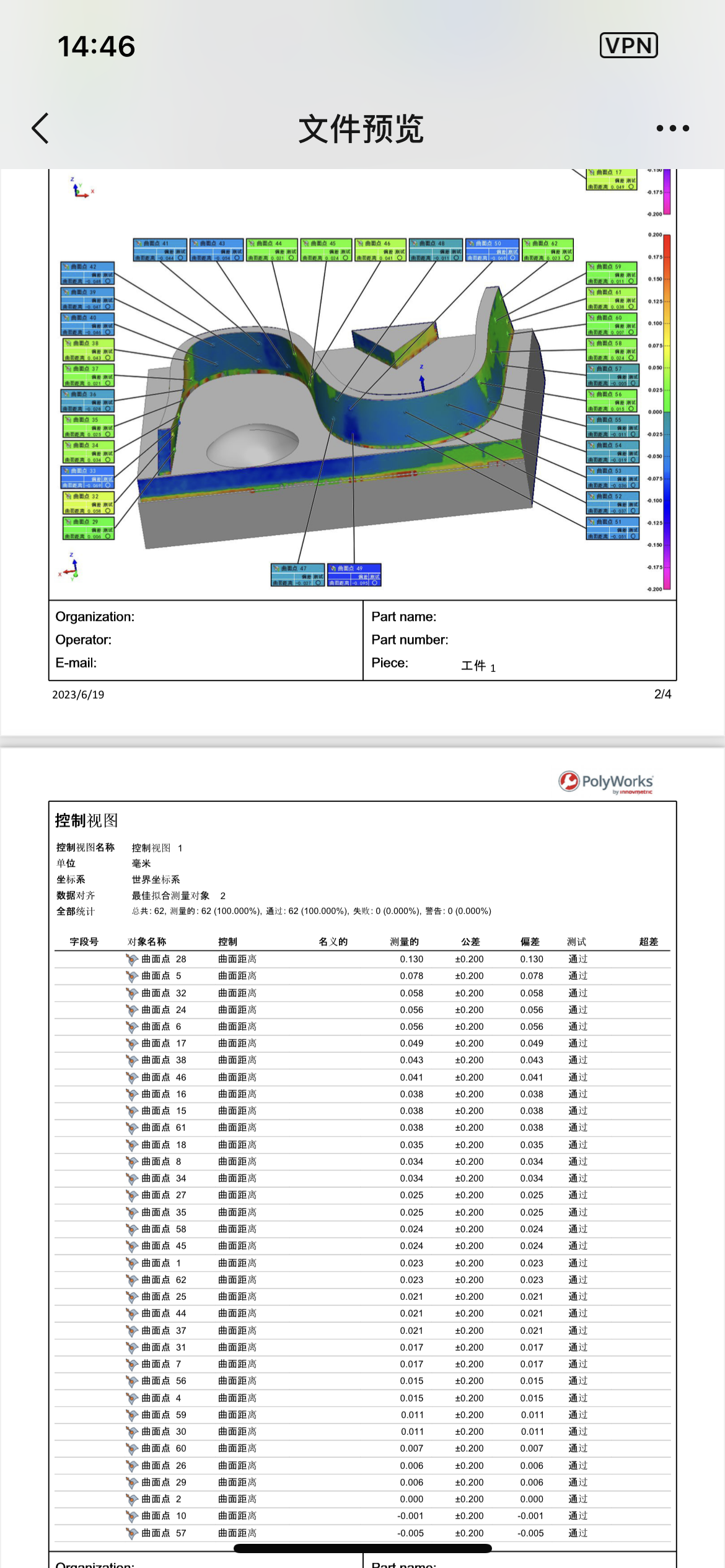

Suntec 5 axis test past by polyworks laser test .

Sunec 5-Axis CNC Machining – Common Uses

5-axis CNC machining can be used to produce parts utilized in plenty of different industries due to their efficiency and the ability to produce complex shapes. Here are a few examples of industries that most commonly take advantage of this technology:

  Aerospace – this industry requires a very precise machine, as the shapes are very intricate and unique.

 Medical – 5-axis CNC machining can help manufacturers of medical equipment in the production of devices, implants, as well as other pieces of equipment that need to be made with extra precision in order to meet healthcare standards which tend to be rigorous (rightfully so).

 Military – another industry that uses 5-axis CNC machining to produce the needed parts. Some of the possible applications include submarine parts, high-performance engine parts, turbine and compressor blades, smart weapons, sensors, stealth applications, as well as, in some cases, nuclear weaponry.

 Energy equipment – producing parts for energy equipment often requires using materials that are hard to work with. With 5-axis CNC machining, you can make the whole process easier and more efficient.



 suntec 5 axis cnc router Advantage 1 Single setup

Because of its five axes, 5-axis CNC machines allow you to set up your workpiece once; the machine then handles every machining operation needed to create your desired part. This is quite different from conventional 3-axis machines, where you’d need several machine setups to fabricate a complex geometry.

The single-setup nature of 5-axis CNC machines allows you to machine complex parts quickly while reducing costs and mitigating errors prevalent in conventional CNC machines.

suntec 5 axis cnc center Advantage 2 Shorter Cutting Tools and Better Surface Finishes

The fourth and fifth axes of 5-axis CNC machines allow you to bring the workpiece closer to the cutting tool. This means that you’re able to use shorter cutting tools, which are less susceptible to vibration and allow you to achieve better surface finishes.

suntec 5 axis cnc Advantage 3 Better precision

Due to movement flexibility, 5-axis CNC machines are much more precise than 3-axis machines, which is why they not only produce smoother parts but they can also produce parts that would be too complex for a 3-axis machine.

suntec 5 axis cnc router Advantage 4 More business

5-axis CNC machining can be used in the production of many parts for which 3-axis machining is simply not suitable.

While there are more benefits associated with using 5-axis CNC machining, these are the most important ones.



1. The spindle can rotate A +-120 ,C+- 245 degree can make multi-kinds of surface which we can design with Software.

2. We use top quality components for the machines, like italy hitec , Syntec control

syntec servo motors, and separate control box, Hiwin linear and so on, to keep the machine in best condition even after manyyears working.

3. With hard steel structure, is fit for hard wood working, like cutting and engraving on Rosewood for furniture, indoor

decoration. And with the Vacuum holding way and dust collector, the machine is qualified for mass- producing of furniture.

4. this machine all model heat -treatment . which using many years no deformation.so no vibrating when

working .

5. 5 axis/working size  1500*3000*1000mm. customized for vacuum table with whole cover can removed dust material

6.. working table and structure according your material , Foam wood aluminum carbon fiberglass composite material  etc non-metal material .

7. MPG XYZAC Hand Wheel for easy origin and work piece setting.

8. Measure Tool setting device.

9. One starter set woodworking tools.

10. 3 x collets, choice from 1-20mm (imperial available if preferred)

11. Inverter: Taiwanese Delta Inverter 0-22000rpm control.

12. German Schneider Electronic Spare parts.

13. Japanese OMRON limit switches.

14.RTCP function



RTCP (Rotation Tool Center Point) Function maintains rotary axes at a constant angle between tool and surface to be machined. It is a crucial difference between real (simultaneous) and fake (3+2) 5-axis CNC systems.



For machines with RTCP functionality, the control system keeps the tool center in the programmed position. In this case, programming is independent and is programming that is independent of machine motion. When processing on the machine, you don't have to worry about machine movement and tool length. All you need to consider is the relative motion between the tool and the workpiece. The work control system will handle the rest for you.



For machines that does not have RTCP functionality, that is to say, the pseudo five-axis programming needs to consider the swing length of the spindle and the position of the rotating table. This means that when programming with a fake five-axis CNC system and machine tools, it is necessary to rely on CAM programming and po

st-processing techniques to plan the tool path in advance.

Description

Parameter

X,Y,Z Working Area

1500*3000*1000mm

Table Size

3550×5440mm

X,Y,Z Traveling Positioning Accuracy

±0.05-0.1/1000mm

A axis

±120 degree

C axis

±245 degree

Table Surface

 vacuum table

Frame

Big Steel plate Structure with heat treatment

X, Y Structure

Rack and Pinion Drive, Taiwan  Rail Linear Bearings

Z Structure

PMI  Rail Linear Bearings and Ball Screw

Max. Power Consumption

(Without Spindle)  15 Kw

Max. Rapid Travel Rate

40000mm/min

Max. Working Speed

30000mm/min

Spindle Power

10/12/14

Spindle Speed

0-24000RPM

Drive Motors

XY 1300W Yaskawa Motors Z AXIS1800W

Working Voltage

AC380V/50/60Hz,3PH (Option: 220V))

Command Language

G Code

Operating System

Syntec Control System/TPA /OSAI

Computer Interface

USB

Flash Memory

512M

Collet

HSKF63 ER40

X,Y Resolution

<0.01mm

Software Compatibility

 powermill UG software

Running Environment  Temperature

0 - 45 Centigrade

Relative Humidity

30% - 75%

Packing Size

5500X2100X2300mm

N.W.

10000KG

G.W.

12000KG
