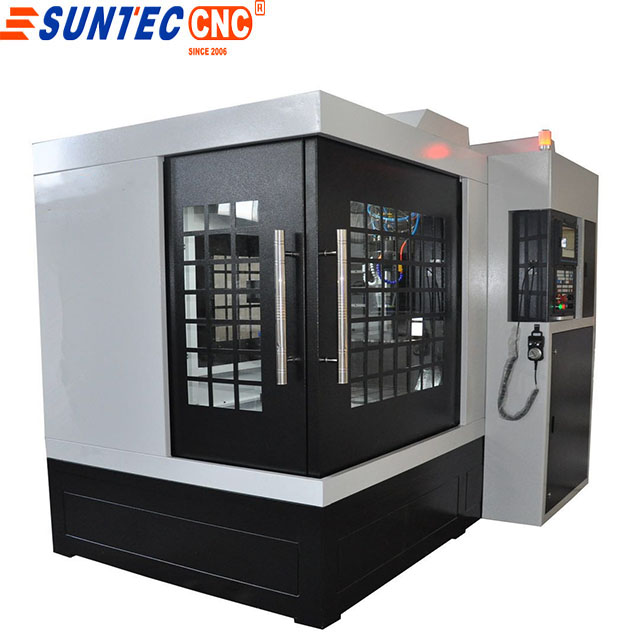

china factory price 4 axis metal cnc milling center for copper aluminum engraving ST6060 (23*23inch )
Model | ST-6060M | ||
Machine body | Cast iron | ||
Working area(XYZ axis) | 600*600*200mm | ||
Moving type | Table moving | ||
X Y Z rail | Taiwan HIWIN linear square guide rail | ||
X Y Z transmission | High precision ball screw | ||
Spindle | 2.2kw water cooled spindle/5.5kw atc spindle | ||
Spindle speed | 24000rpm | ||
Inverter | 3KW inverter | ||
Motor | Leasine/yaskawa | ||
Driver | Leadsine driver/yaskawa driver |
Auto Lubrication system | Yes |
Max. speed | 20m/min |
Max. working speed | 15m/min |
Voltage | AC 220V/AC 380V 50HZ |
Collets | BT30 3.175-16mm |
Repeat reposition accuracy | 0.01mm |
Cover | X Y Z cover |
Command | G code |

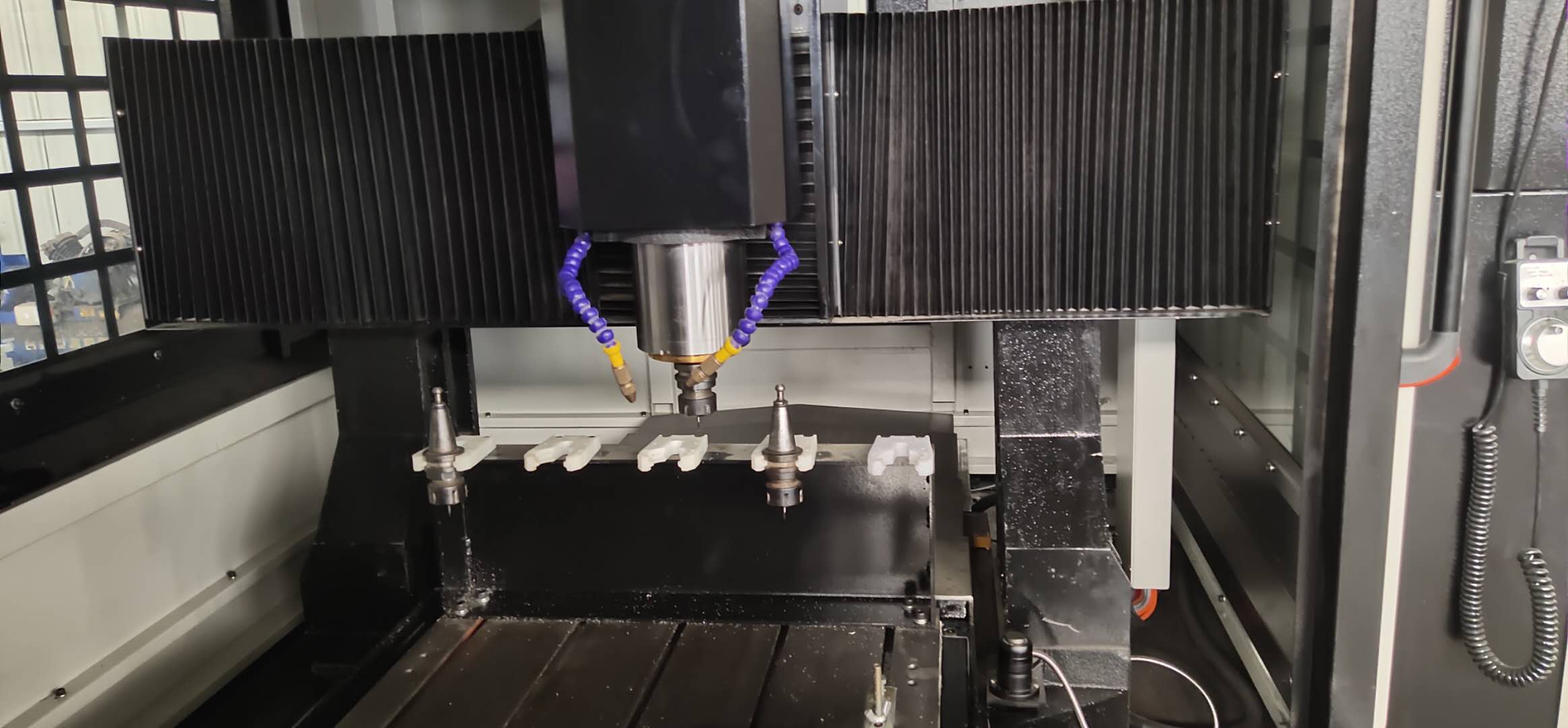

5.5 kw water cooling spindle with atc tools

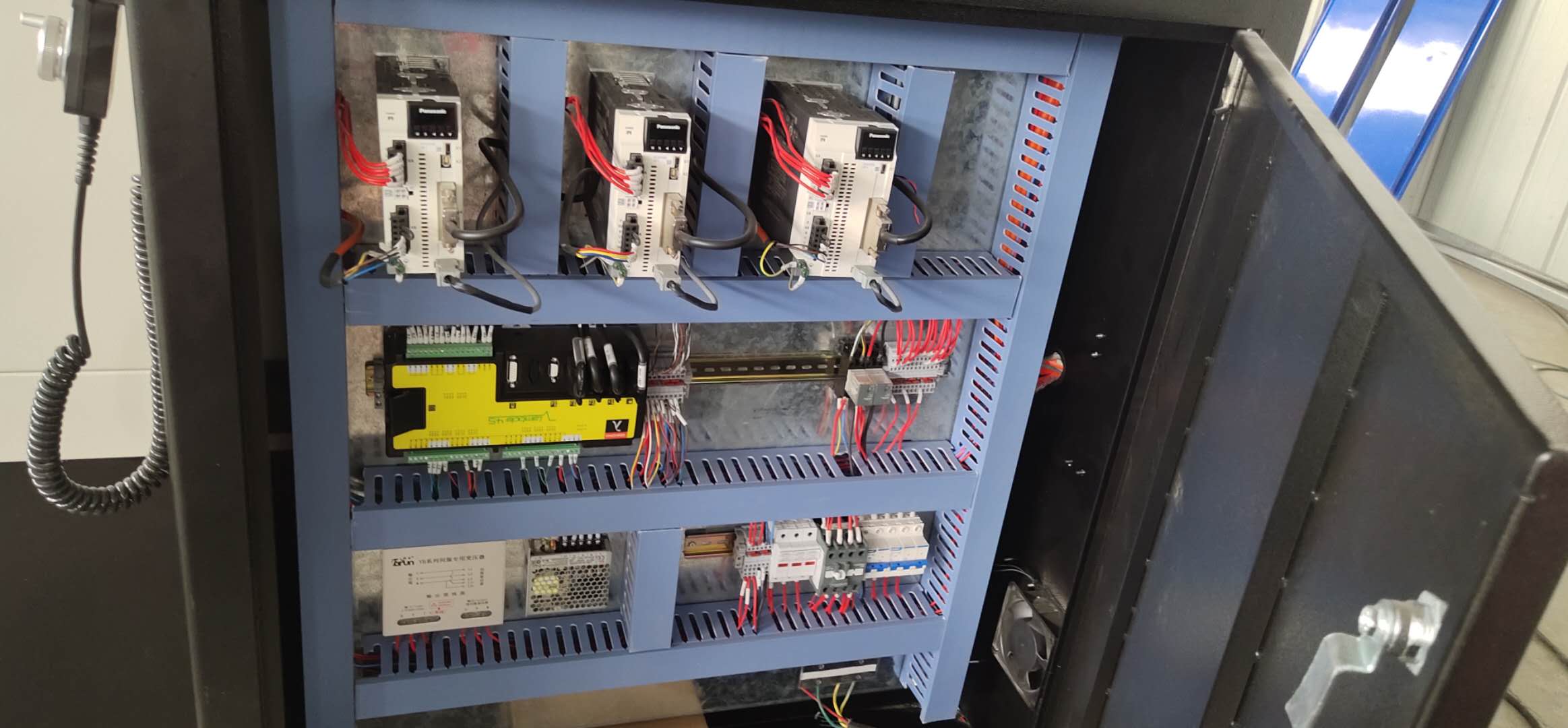

japan panasonic driver

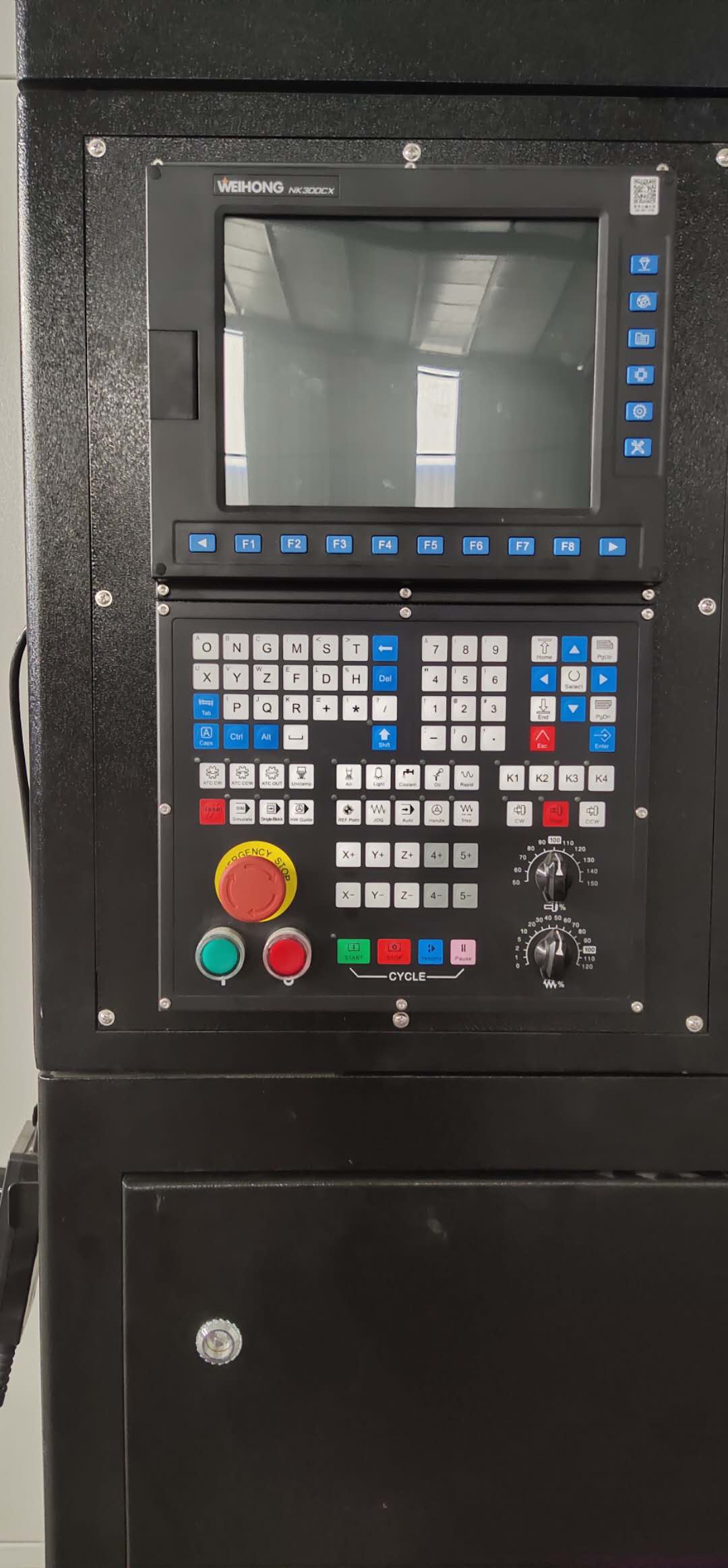

Nk300 control with handwheel

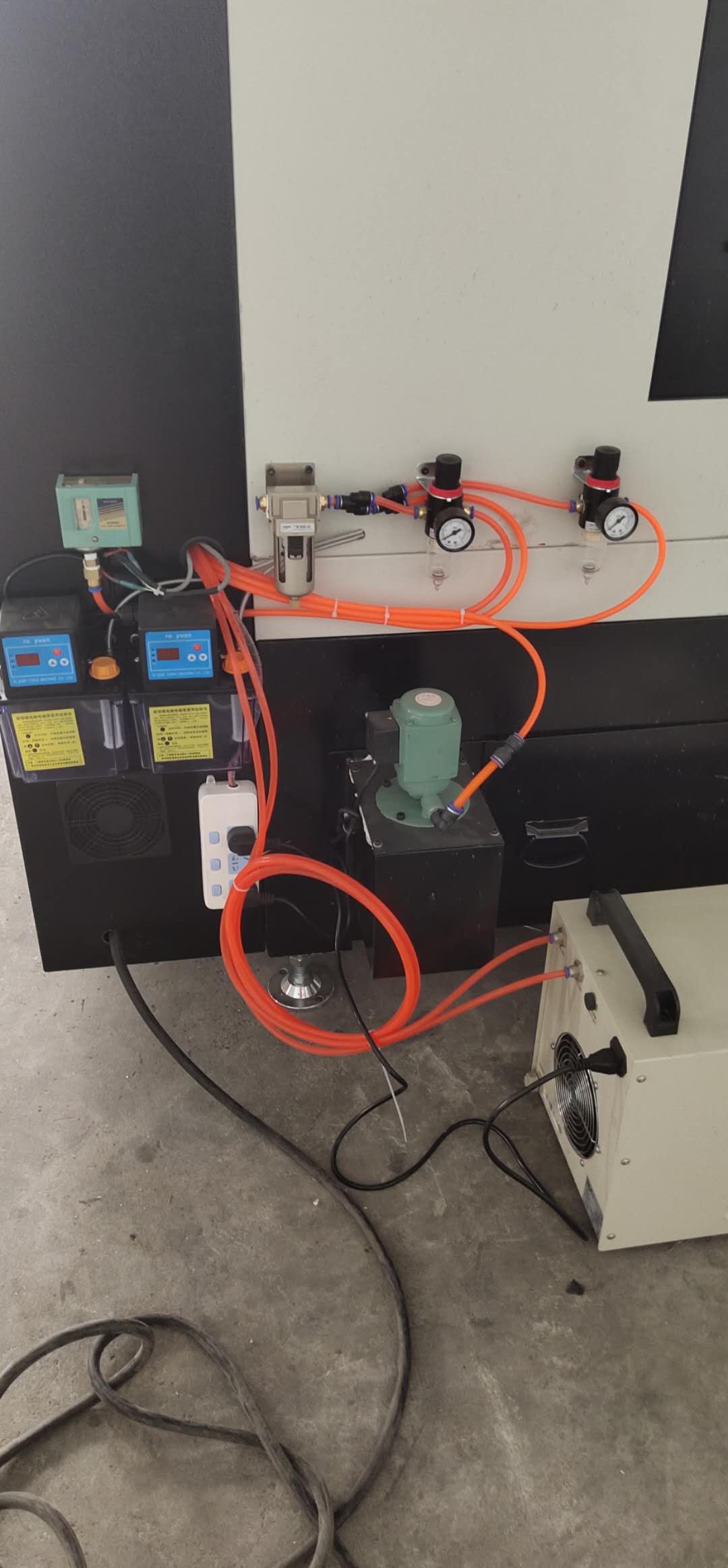

automatic oil with oil systerm
