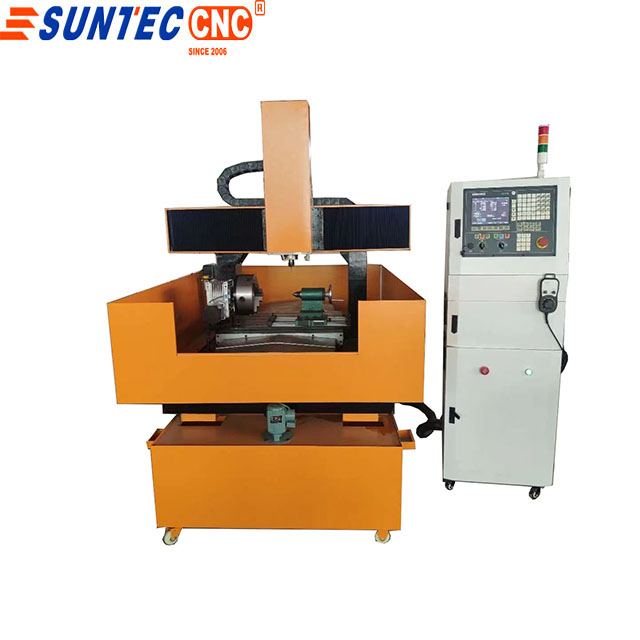

Cheap price iron aluminum metal 3d engraving cnc router center

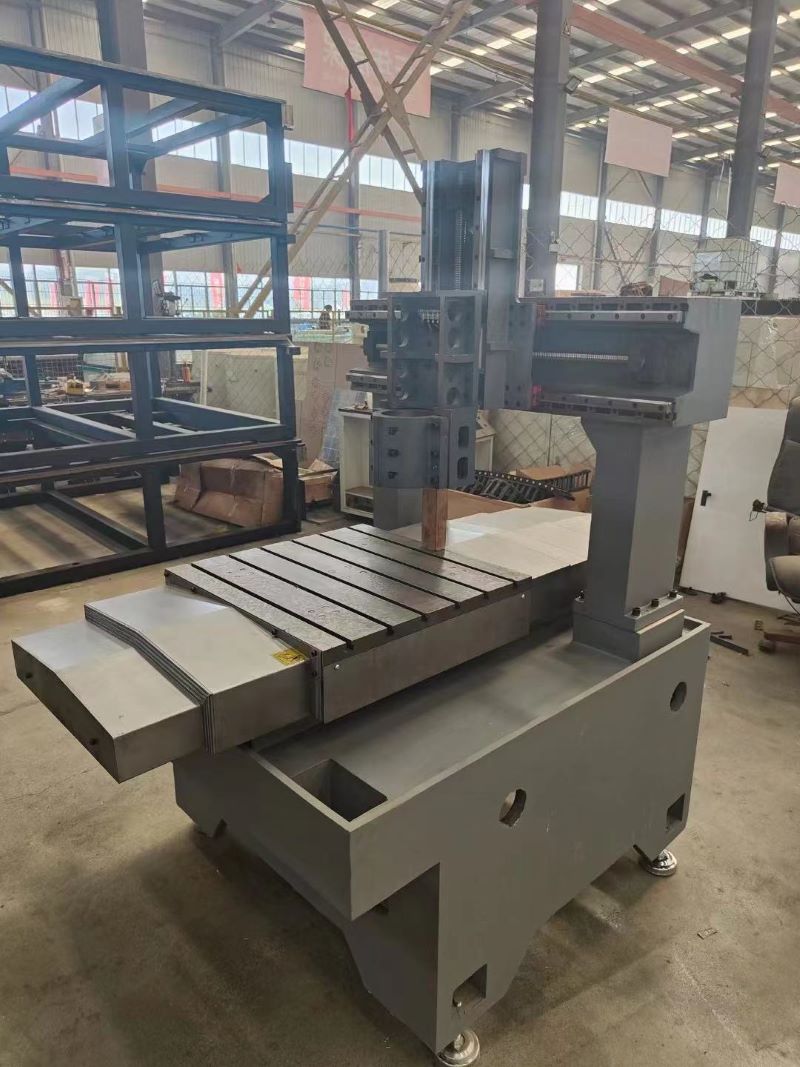

heavy cast iron structure weight 4000kgs no vibrating when working
high precision square guide and ballscrew
Constant BT 40 mechnical spindle high powerful for 3d carving
4. High precision 0.01mm
NO. | Description | Parameter |
1 | X,Y,Z Working Area | 600x600x200mm |
2 | X,Y,Z Traveling Positioning Accuracy | ±0.01/200mm |
3 | X,Y,Z Repositioning Accuracy | ±0.01mm |
4 | Table | Movable table |
5 | Frame | cast by iron |
6 | X, Y,Z Structure | Ballscrew transmission |
8 | Spindle power | 5.5kw constant |
9 | Max. Rapid Travel Rate | 40m/min |
10 | Max. Working Speed | 6-13m/min |
12 | Spindle Speed | 0-24000RPM |
13 | Drive Motors | DELTA OR YASKAWA |
14 | Working Voltage | AC220/380V/50/60Hz,3PH |
15 | Command Language | G Code |
16 | Operating System | SYNTEC CONTROLLER |
