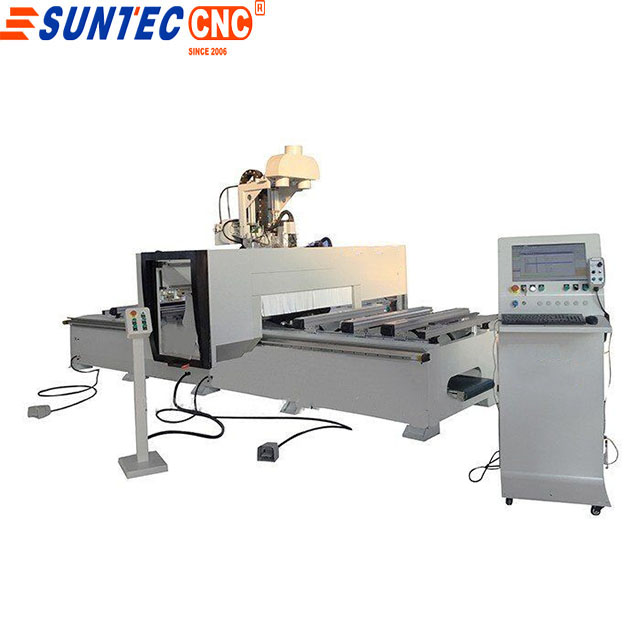

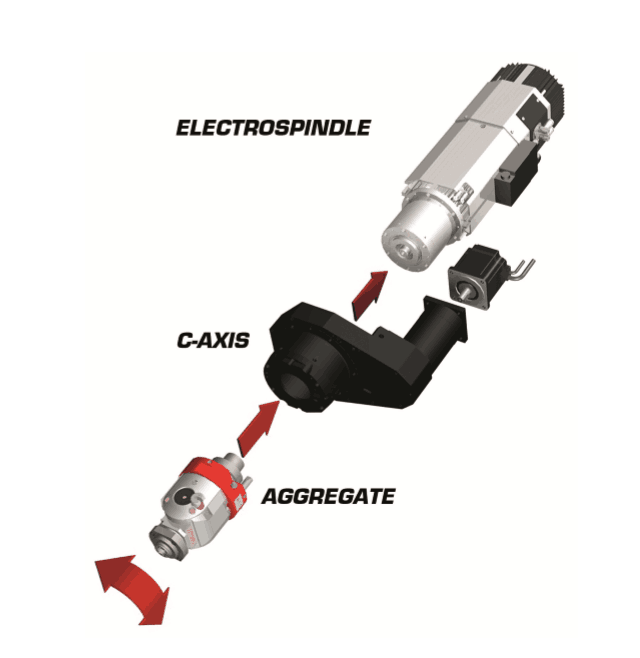

Italy TPA control 12 kw HSD spindle HSD boring center PTP with C axis aggregate woodworking center 5 sides drilling for solid cabinet door making

1.  Automatic tools changer 12 piece tools

2.Gantry bigger cover with bigger door   with LED lights, gantry double support .

2.Working area 3200*1650*300,

3. Japan THK Linear Rail  HIWIN

4.  YASKAWA1300W  with Planetary   SHIMPO reducermotor,

5. 9KW HSD AirCooling  Spindle 24000 rpm

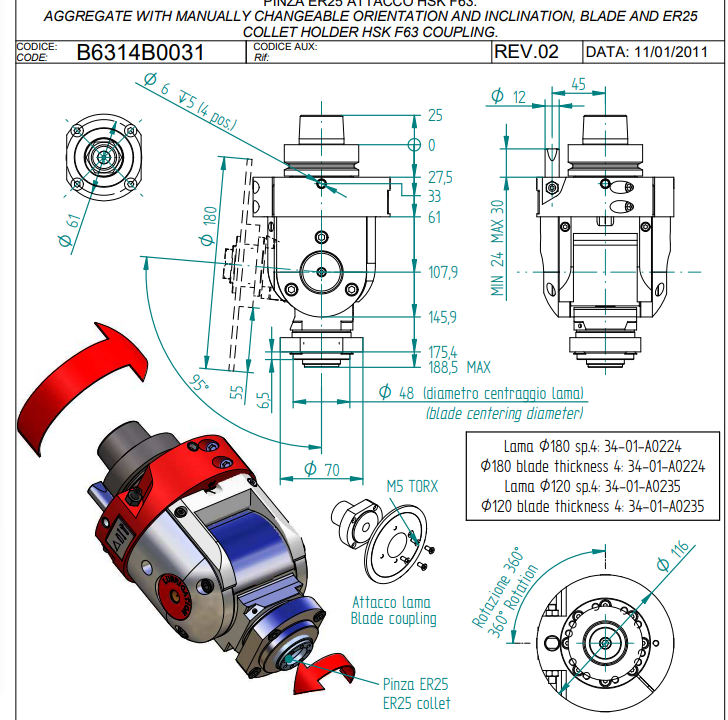

6. Aggregate: Saw 180mm/HSK-F63/HSD/Italy

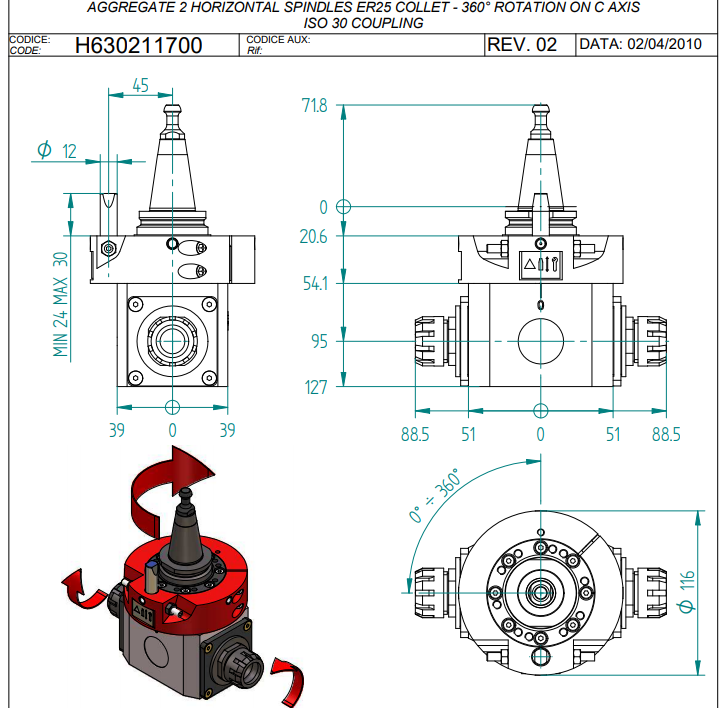

7. Aggregate: Double Outlet   tools/milling/HSK-F63/HSD/Italy,

8.Fixed Tools SCalibrator,

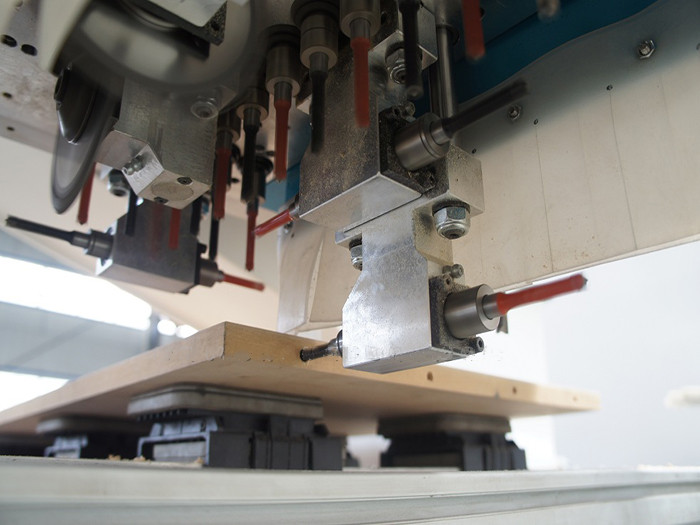

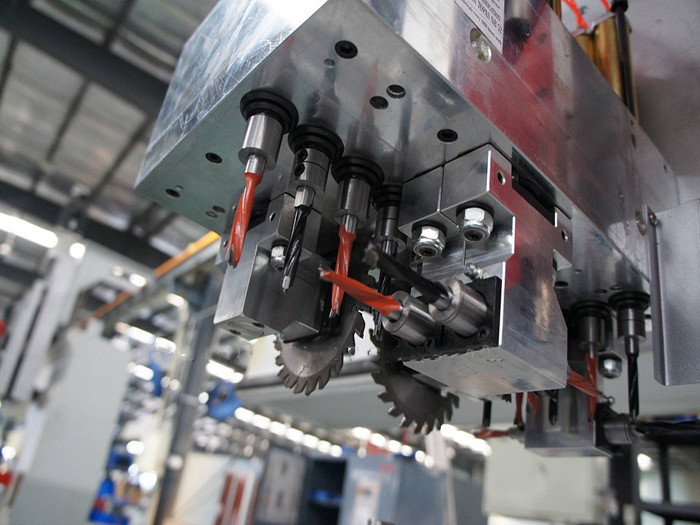

9.Boring group-9V6H1S/ HSD/ Italy/Pneumatic   cylinder

10.  Italy TPA CN2008 Control system with   &Monitor&control box, N°1 WSCM SW0.2.01,

11.  Design software: TPACAD Professional CAM software,

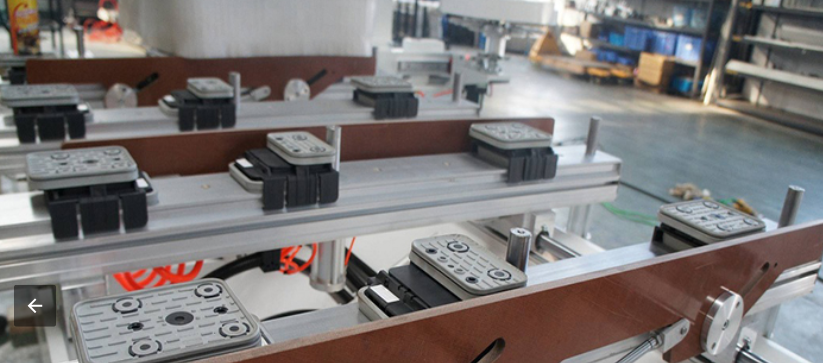

12.  Point to Point/ Vacuum working table-German SCHMALZ K1 series   Aluminum barsX10 sets(each set include: 2 position stop pins, 28 pcs Vacuum   pads/Maganetic/Original  SCHMALZ.

13.Total Pneumatic Pusher 6 pcs, 4 side stops/2 left/2   right), 2 vacuum zone controlled with solenoidevalves,                                                                                                                                                --Pendulumn working with Middle control box

14.Waste conveyor under working table,

15.Vacuum pump YONGDUN 250M3/H, Air condation for   electrical cabinet

16.Electric cabinet and Control cabinet is Seperately

17.Automatic lubrication

18.Automatic central control Aspiration dust collect

19.Laser curtain safety protector.

20.Electric parts: CE standard, famous brand,   380V,50HZ,3 Phase.)
