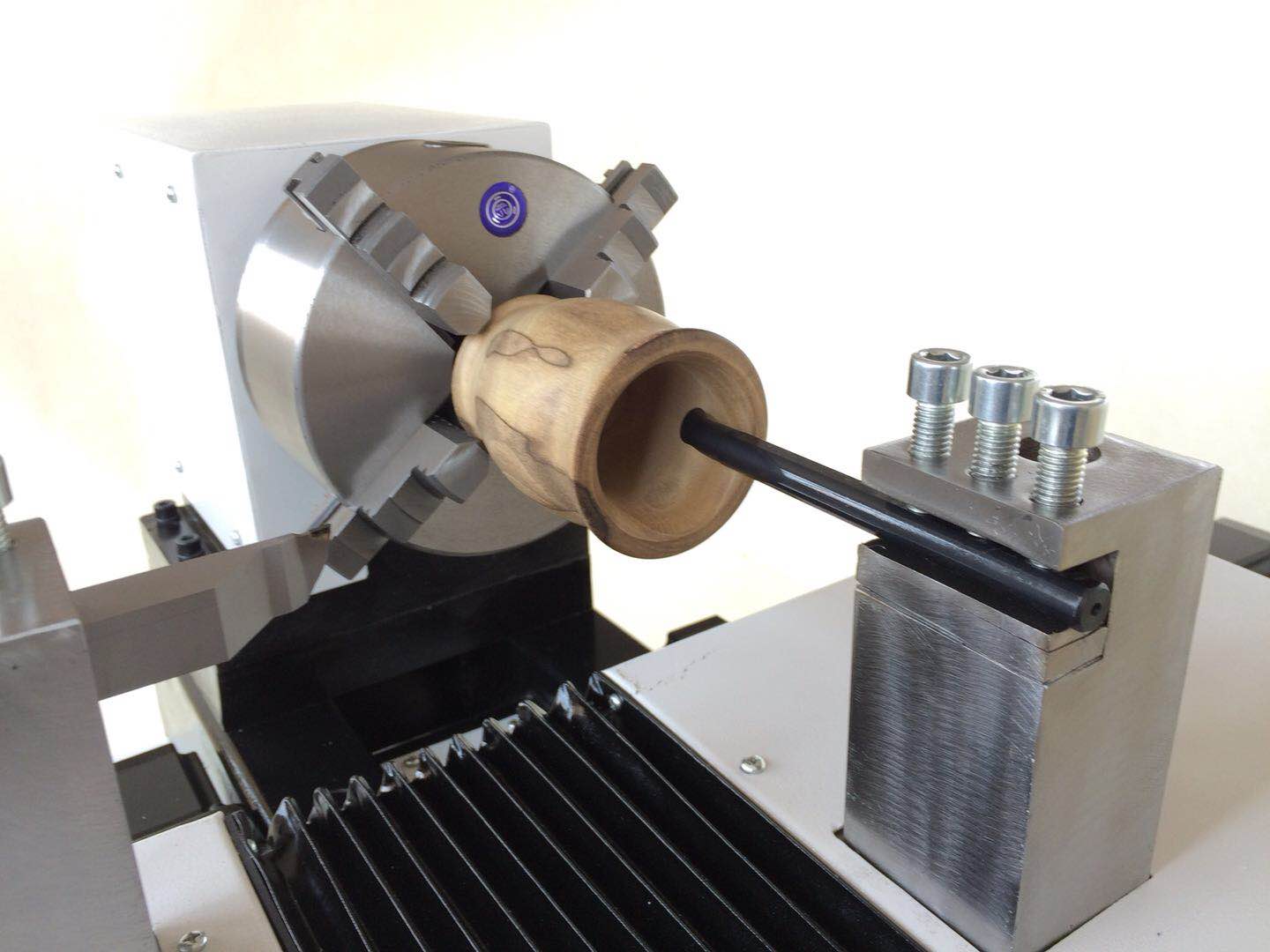

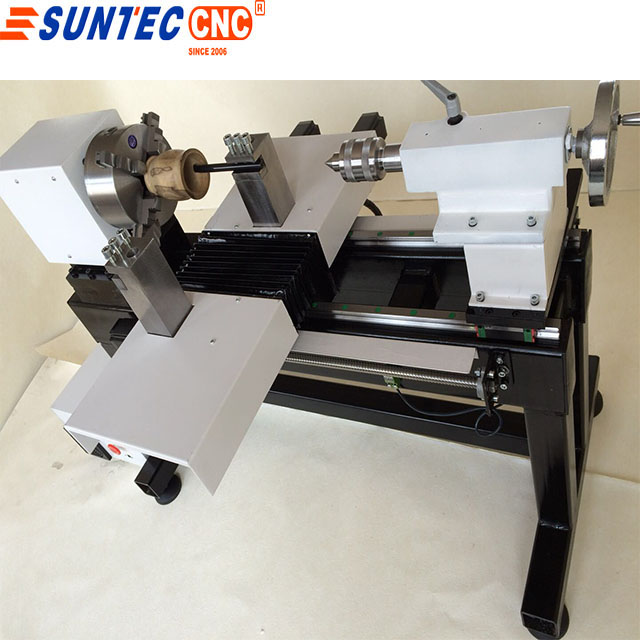

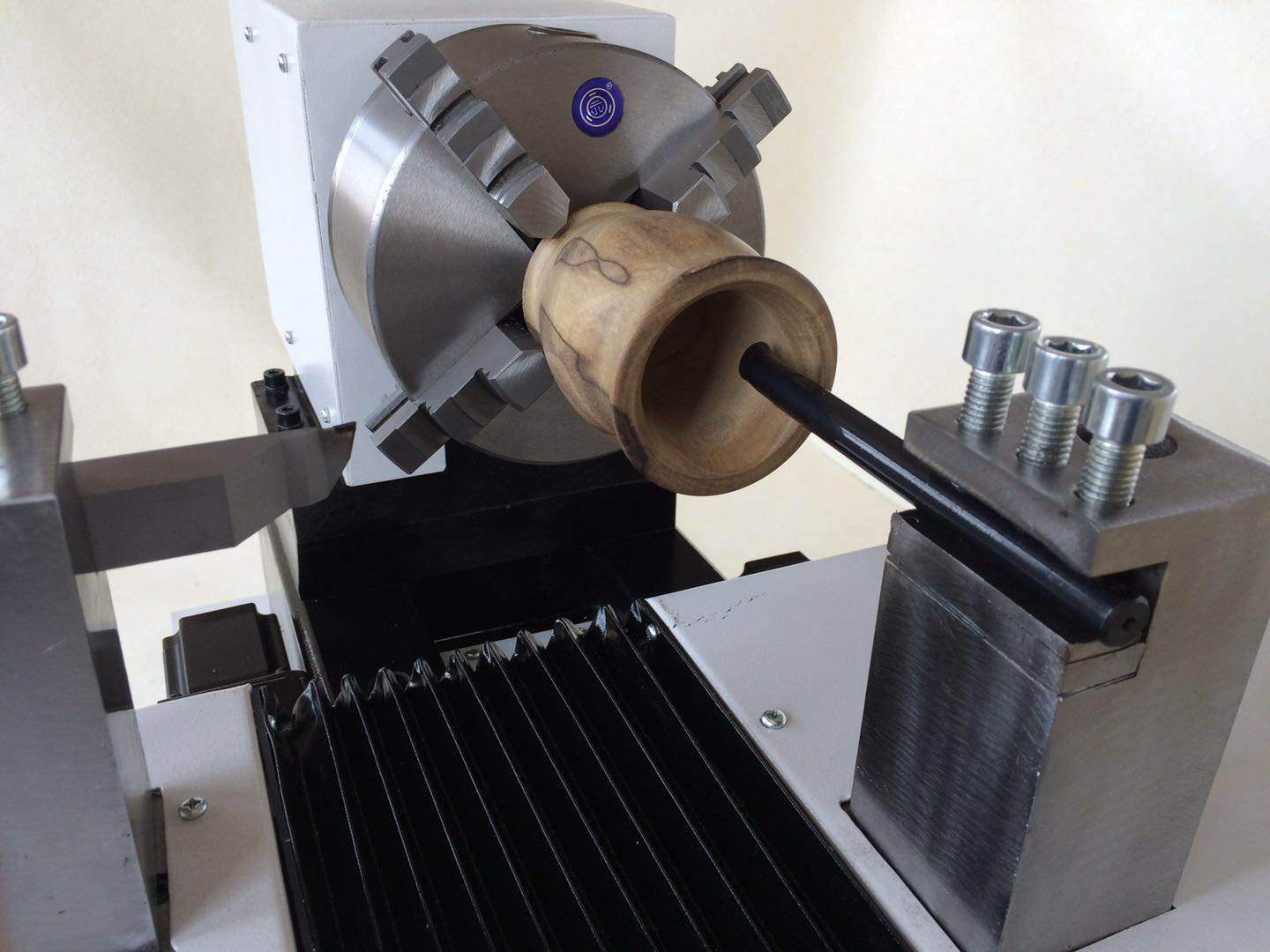

Suntec mini wood beads bowl making cnc wood lathe machine ST1040

Max.turing   diameter

4-100mm

Distance between centers

400mm

Spindle bore

21mm

Taper of Spindle bore

MT3

Range of Spindle speeds

50-2500rpm

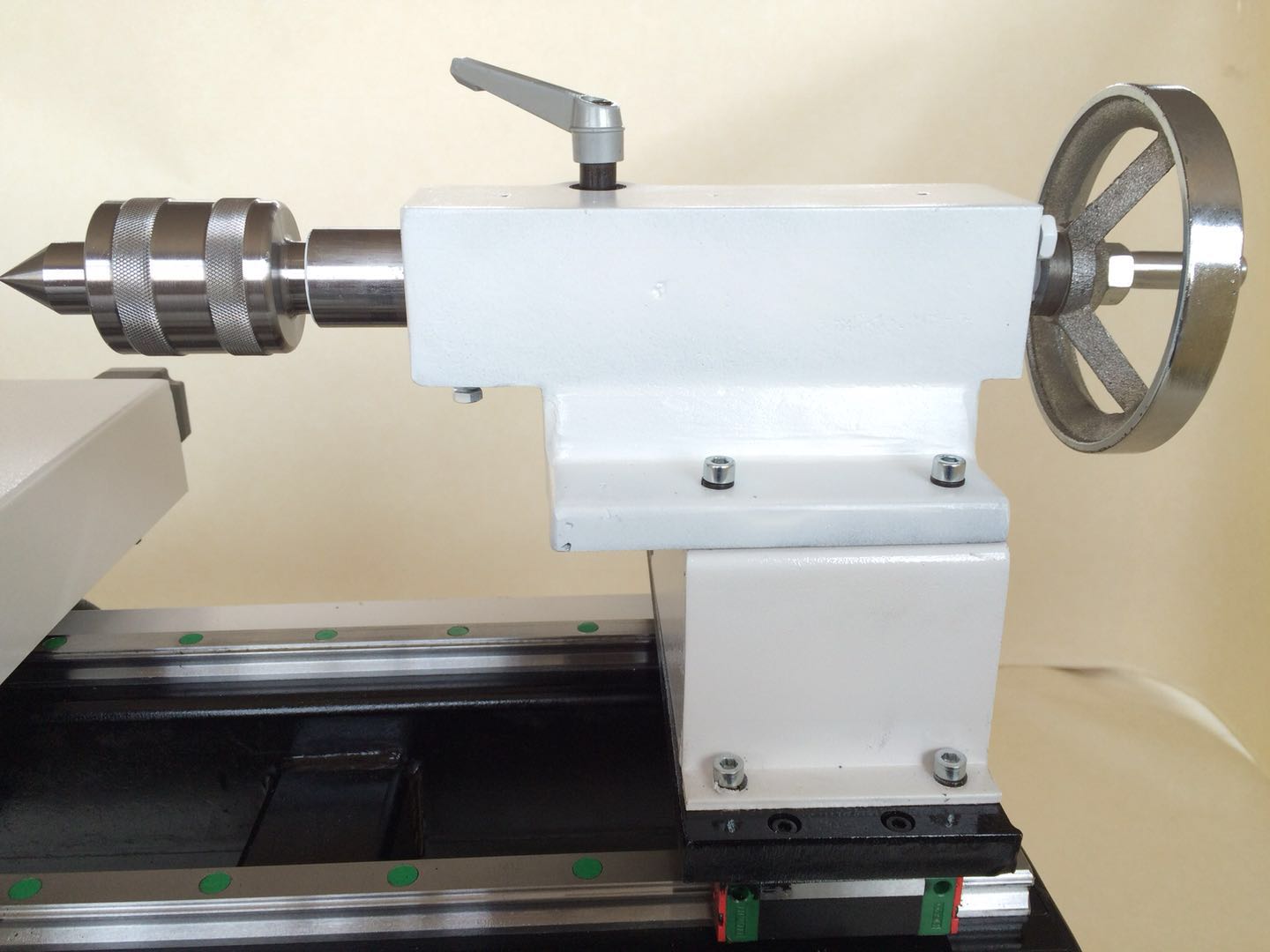

Taper of tailstock quill

MT2

Metric threads can be cut

0.5-3mm

Inch threads can be cut

10-44TPI

Max travel of cross slide

75mm

Bed of width

100mm

Travel of Tailstock sleeve

60mm

Motor power

1.5W

Driver

Stepper   motor

Transmission

Square   orbit ballscrew

GW/NW

170KGS

Package size( L*W*H )

1.2*0.45*0.7m
