automatic tool change cnc wood lathe dilling tool for wood cups container bowl making ST1530
automatic tool change to mill outside wood shape

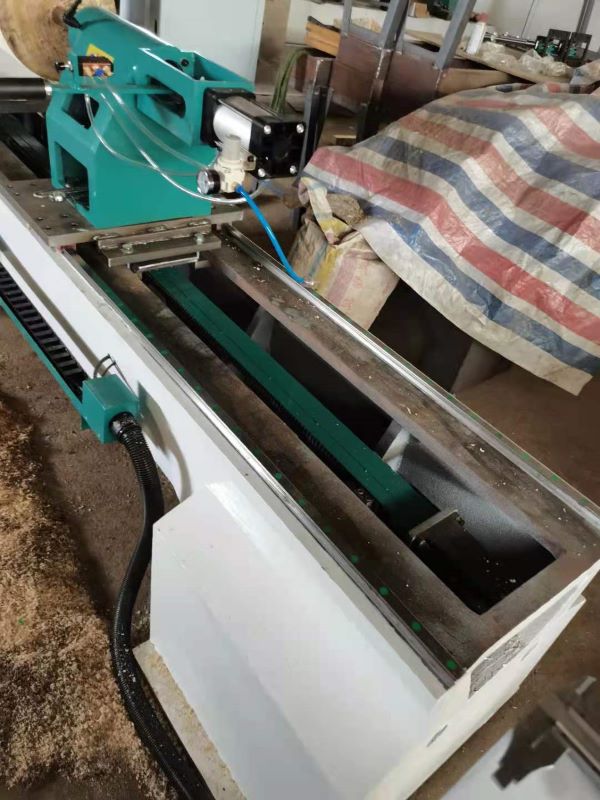

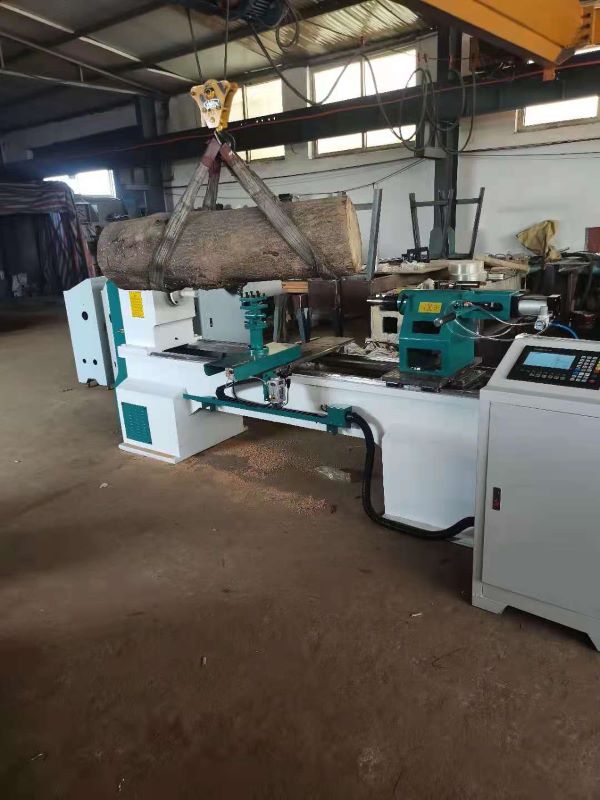

heavy duty cast iron structure table weigth 1700kgs to make sure no vibrating when working

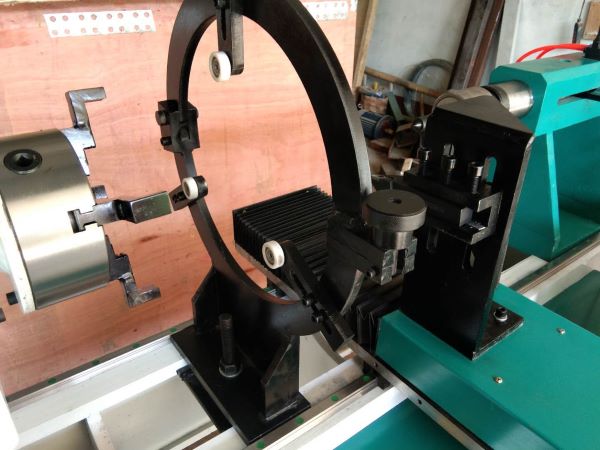

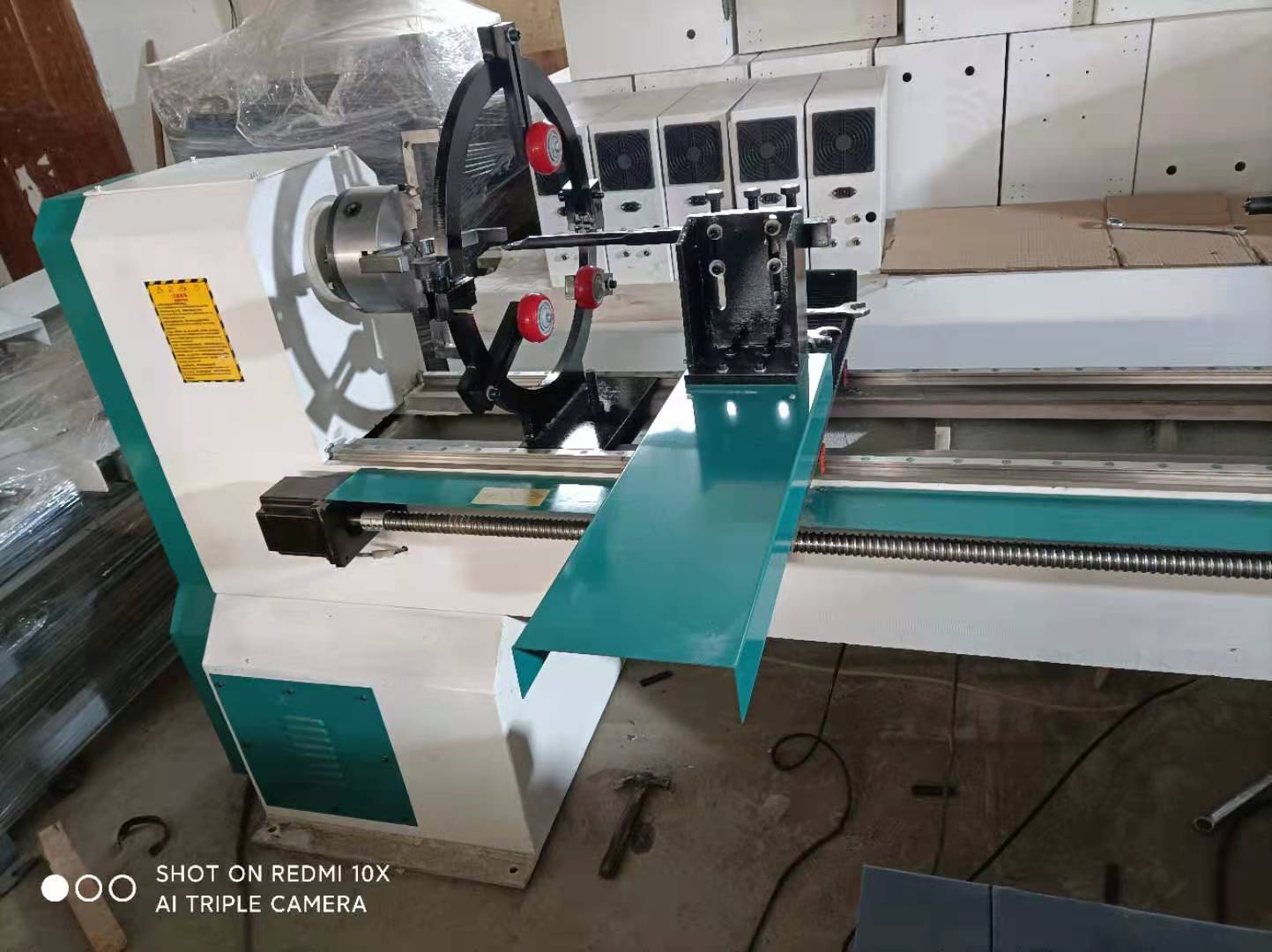

steady ring for fix big wood

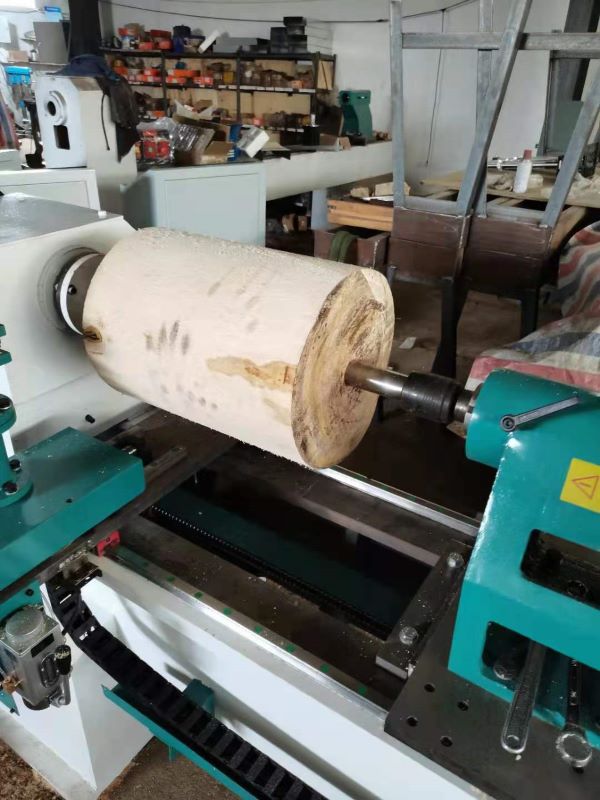

350mm diameter wood with inner hole
heavy duty structure table weight 1.7t which can turn wood no vibrating

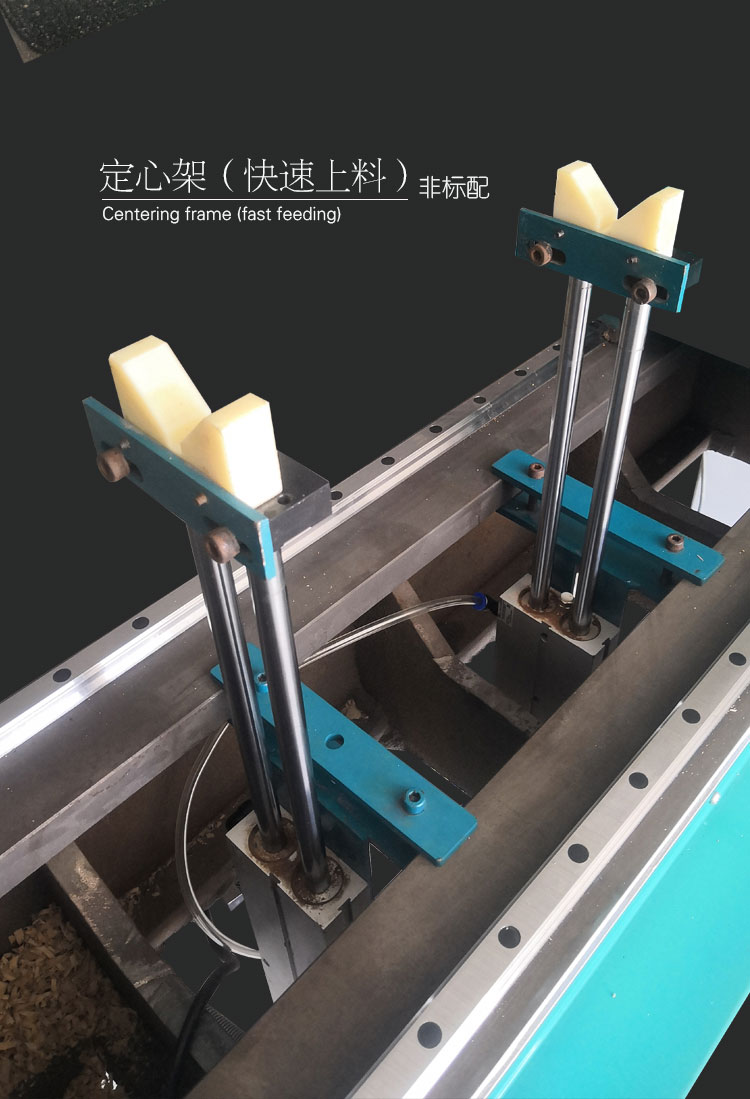

automatic feeding device which can saving labors to feeding wood material
Big stepper driver and motor ,which is powerful and low noise
4.5kw engraving spindle which can engrave any design according your drawing .
Model: | ST-1530(1500*300mm) _1 axis_2 blades |
Structure: | Cast iron |
Spindle shaft: | Sturdy spindle, NSK deep groove ball bearing, P5 grade. |
Drive system: | - Three phase current of 380V, 50HZ. 4 Kw. , 1 set - Stepper motor: 450B 2 sets - Stepper driver: YKAO2811MA 2 sets - Servo motor is optional 5.5kw 220v/3ph/220v/1ph for optional |
Inverter: | Best inverter 5.5 kw (Fuling brand is optional) |
Guide rail: | Taiwan HIWIN/PMI linear square guide rail. |
Spindle speed: | 3000 r/min |
Material size: | 300*1500 mm (length: 2000mm, 2500mm, 3000mm are optional) |
Center Sleeve ID: | 1.414 times the side length of material (no need sleeve if material diameter is more than 60mm) |
Weight – bearing: | 500 kg |
Engraving speed: | 4 m/min |
Max. feed | 15 mm/r |
Max. feed rate: | 700 mm /min |
Min. setting unit: | 0.1 mm |
Pivoting device: | Pneumatic air connection within 6-8 bar. |
Tailstock: | Precisely and easily movable, with quick clamping with pneumatic |
Electric system: | Air break switch protection |
Dimensions(L*W*H):Machine (without operation box) | 3100 *1280*1780 mm |
Packing dimensions:Machine (with operation box) | 3200*1380*1980 mm |
Weight: | 1700 kg |
Software | AUTOCAD (DXF format ) |
Control system: | NC with automatic feeding device |
