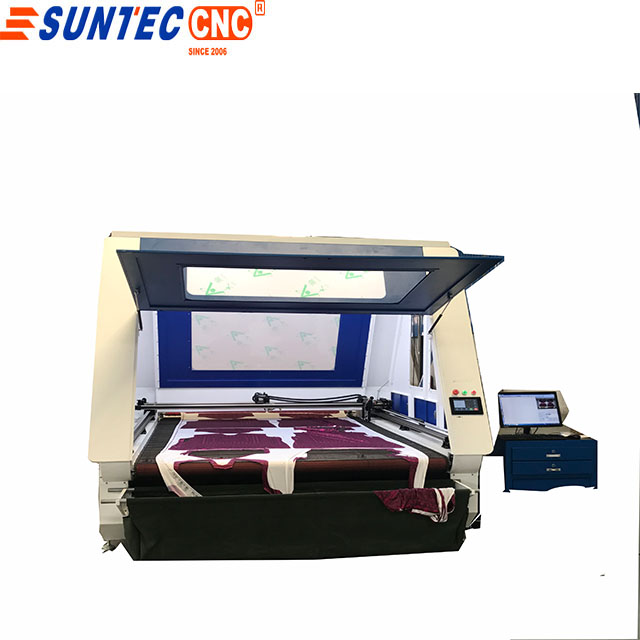

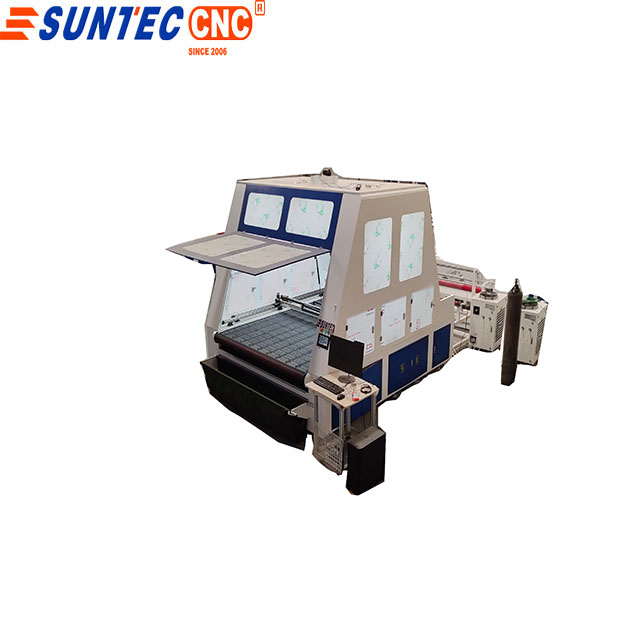

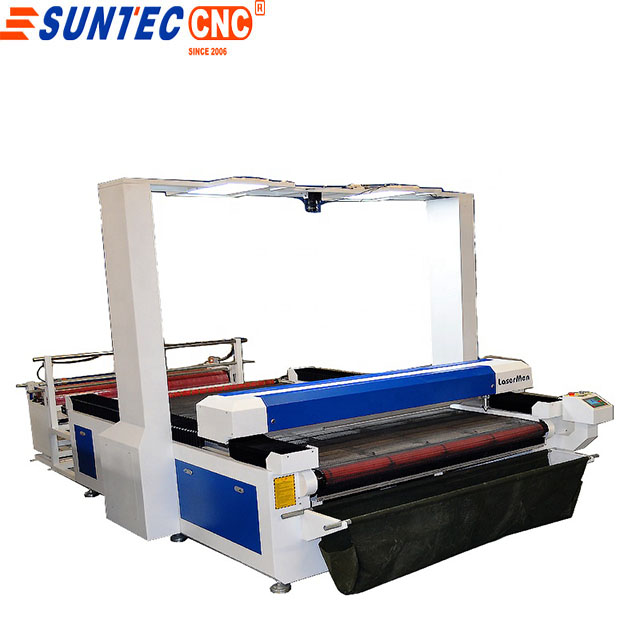

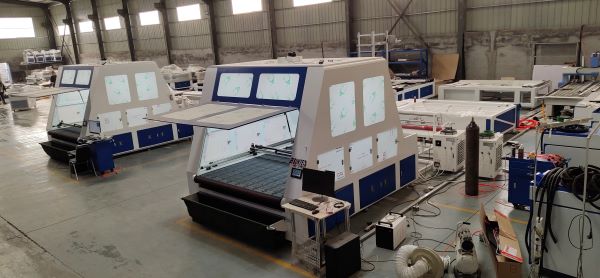

automatic feeding loading unloading CO2 fabric laser cutting machine CCD
1.Working 2000*2000mm or other customized size
2. 280w *2 double laser tube which is cutting fast speed .
3. 1.5 billion pixel camera for scan printed shape or contour then cutting
4. Double gantry laser , which can cutting at same time to improve working effiency .
5.Mold transmission which can stronger than belt
6. whole cover for the machine to protec safety

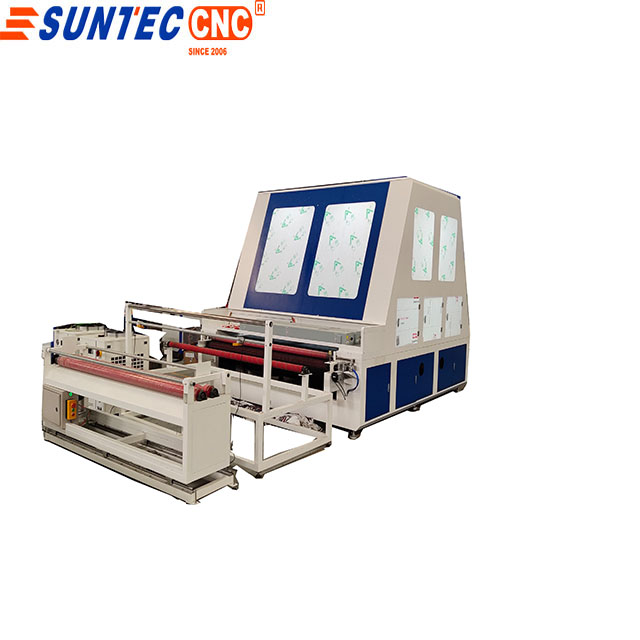

7. automatic correction loading systerm which can fabric at same level no deformed .
8. unloading syster which can pick up finished fabric easily .
Name: | ST- 2020 |
Processing area | 2000mm*2000mm |
Laser power | 150w/180W/220W/280/300W |
Laser type: | Sealed Co2 glass laser tube |
Cooling mode: | Water cooling and protection system |
Resetting positioning accuracy: | ±0.01mm |
Compatible Software: | CorelDraw AutoCAD Photoshop |
Whole machine size: | 5220mm*2320mm*2200mm |
Engraving speed | 1-60000mm/min |
Cutting speed | 1-10000mm/min |
Cutting thickness | 0-25mm acrylic (others determined by materials) |
Resolution ratio | ≤0.0125mm |
Position system: | Red dot |
Interface: | USB |
Minimum shaping character | letter 0.5mm, Chinese 0.5mm |
Support graphic format | DST, PLT, BMP, DXF |
Gross power | 1000W |
Driving mode: | DC0.8A 24V stepper motor |
Cooling mode: | Circulation water cooling |
Working voltage: | AC 110 - 220V±10%, 50 - 60Hz or depend on customer |
Operating temperature | 0-45C |
Operating humidity: | 5-95%
|
Driving system | panasonic driver andm otor |
Option: | Up and down table, rotary attachment |
Packing: | wooden box |
Guarantee time: | 1 year, laser tube 8 months |
Option: | Rotary attachment for column materials |
Operation: | Video to tell customer how to operate the machine |
Gross weight: | 2500KGS after package |

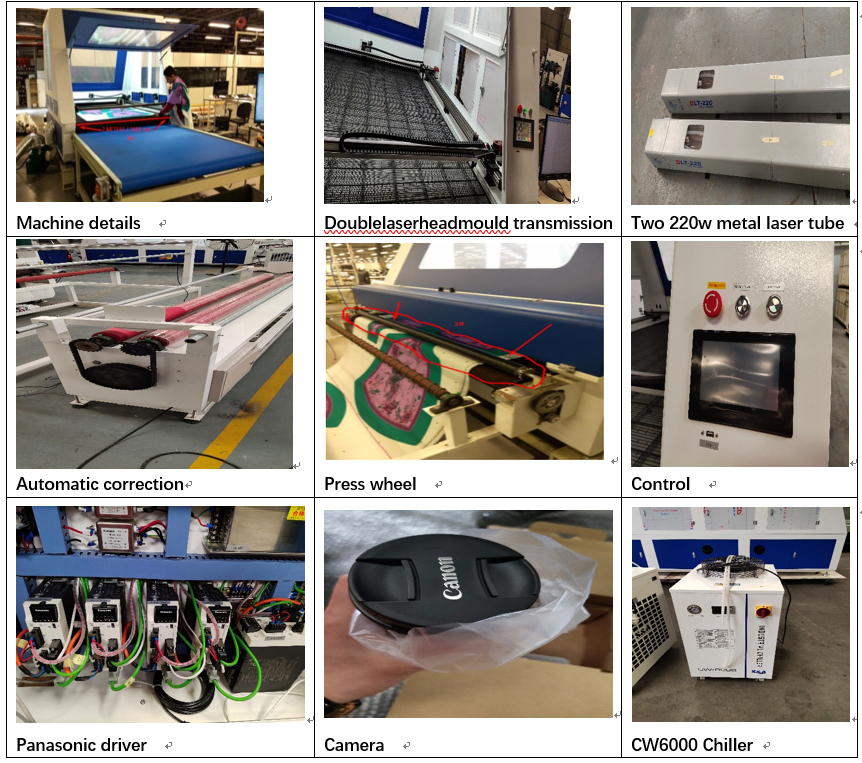

Main parts

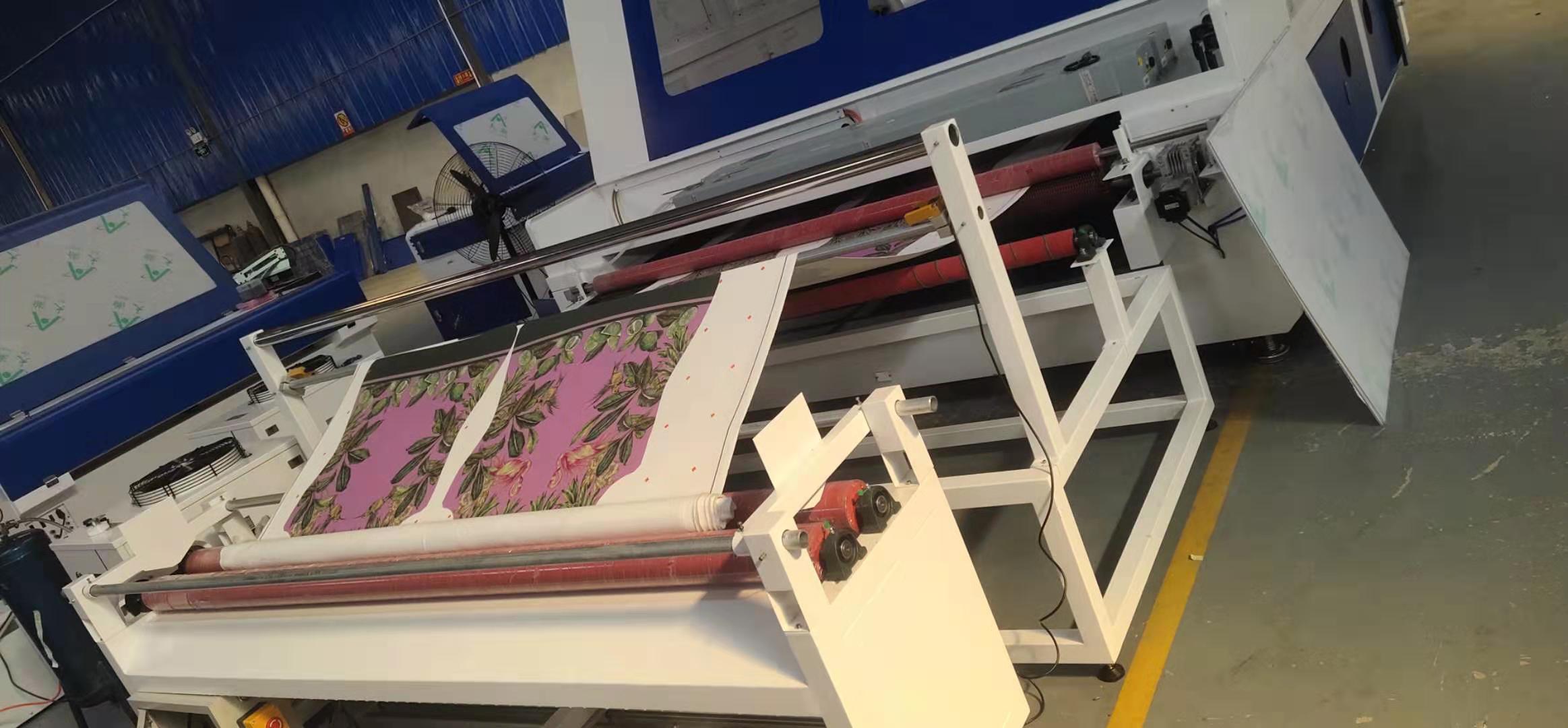

Automatic feeding correction device to make fabric at same postion no moved when cutting to make high position cutting .
Packing

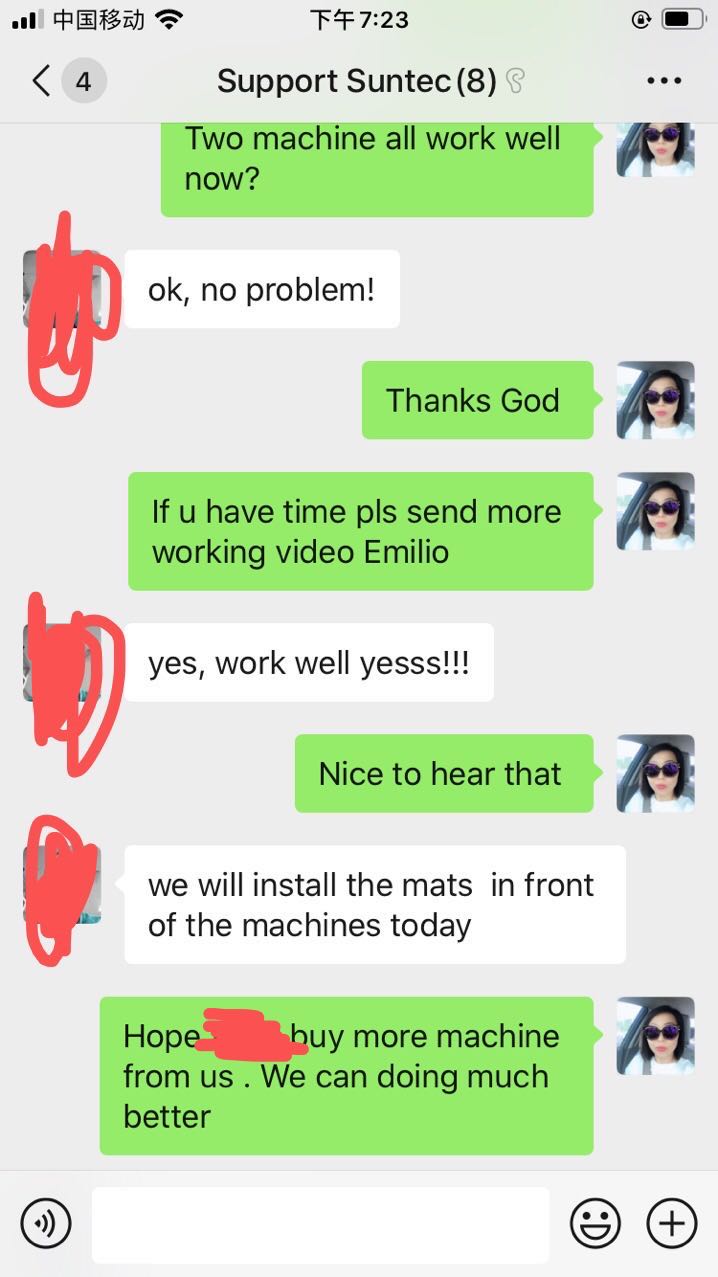

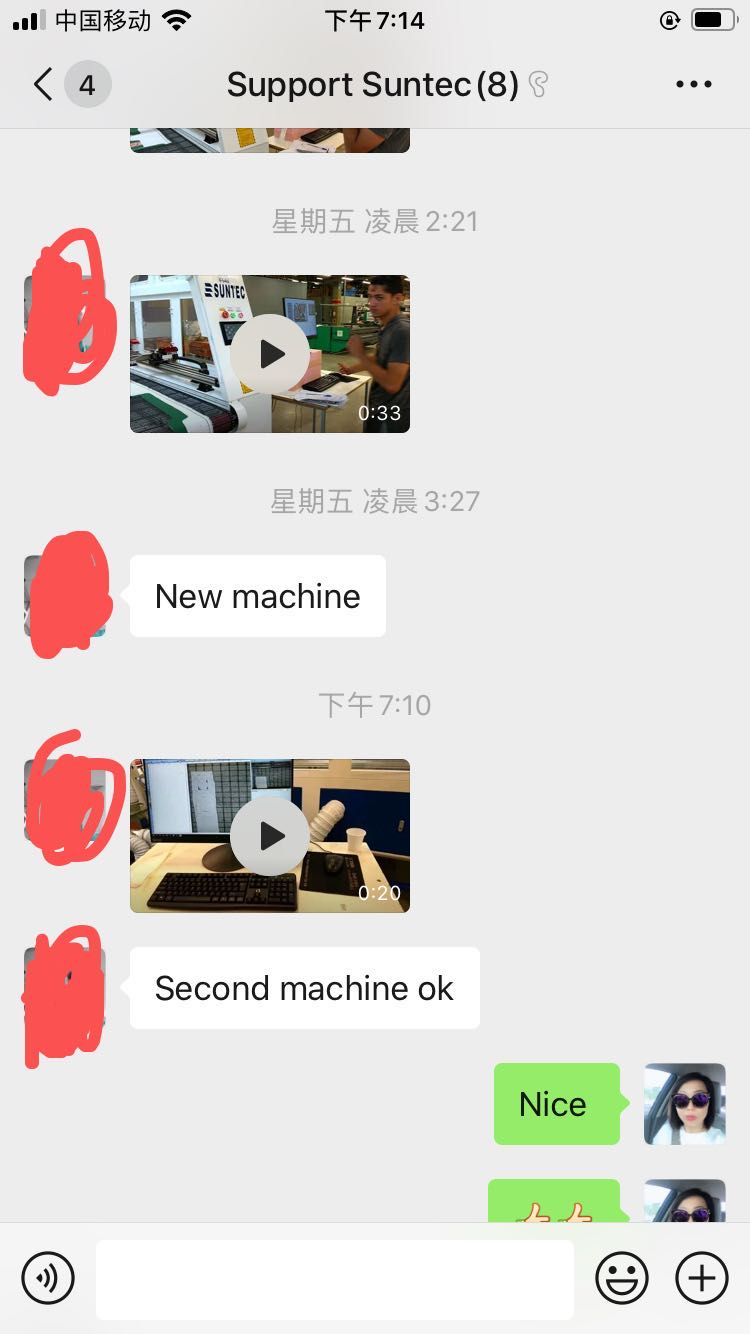

Feedback
