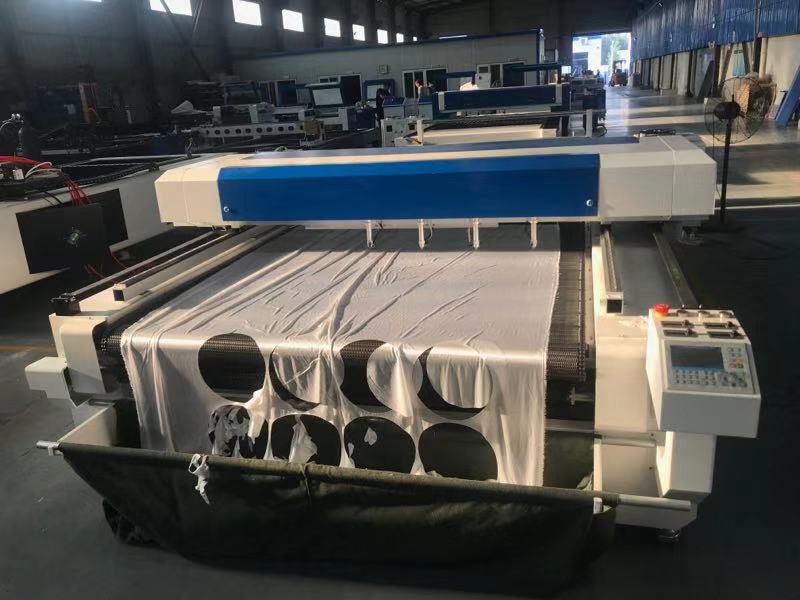

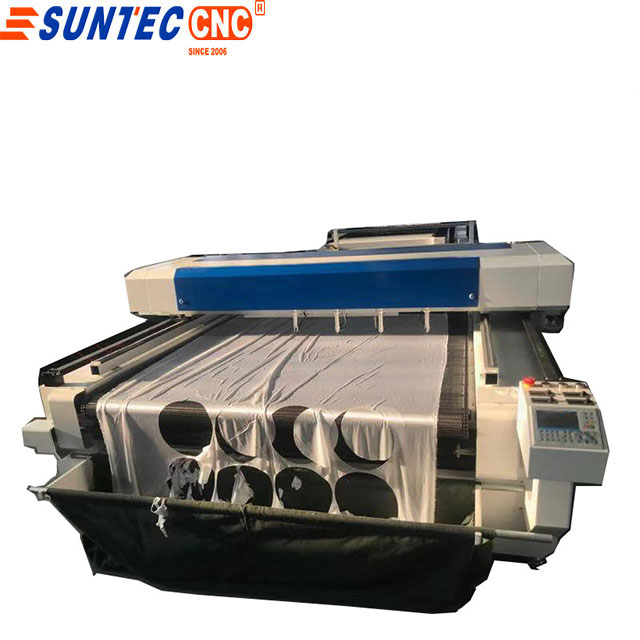

ST1325 four head 150w automatic feeding fabric laser cutting machine
1. 150w reci laser tube four piece which high working effiency
2. automatic feeding device .

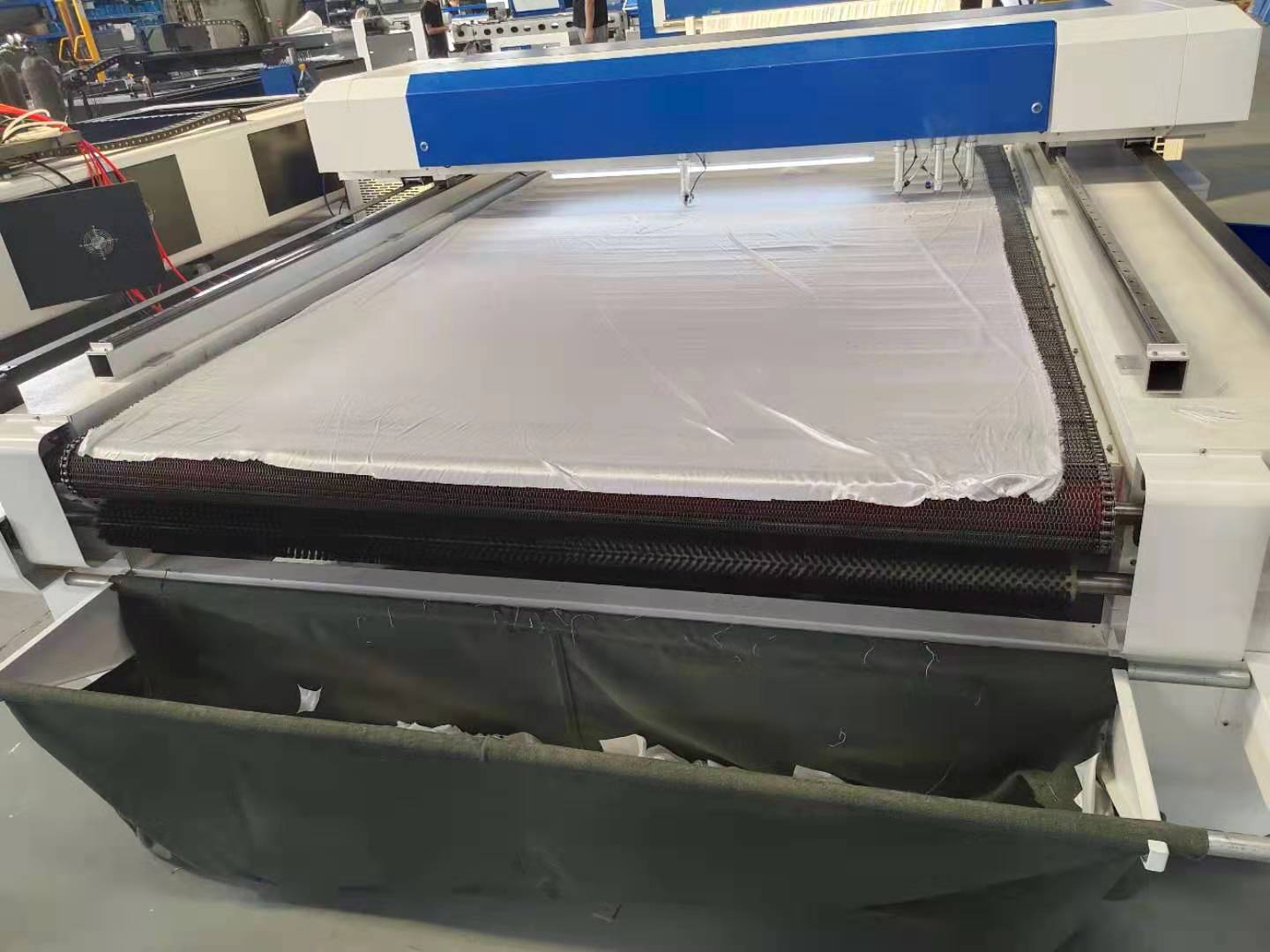

3. net table with chain which can cut fabric flat
4. movable brush for cleaning

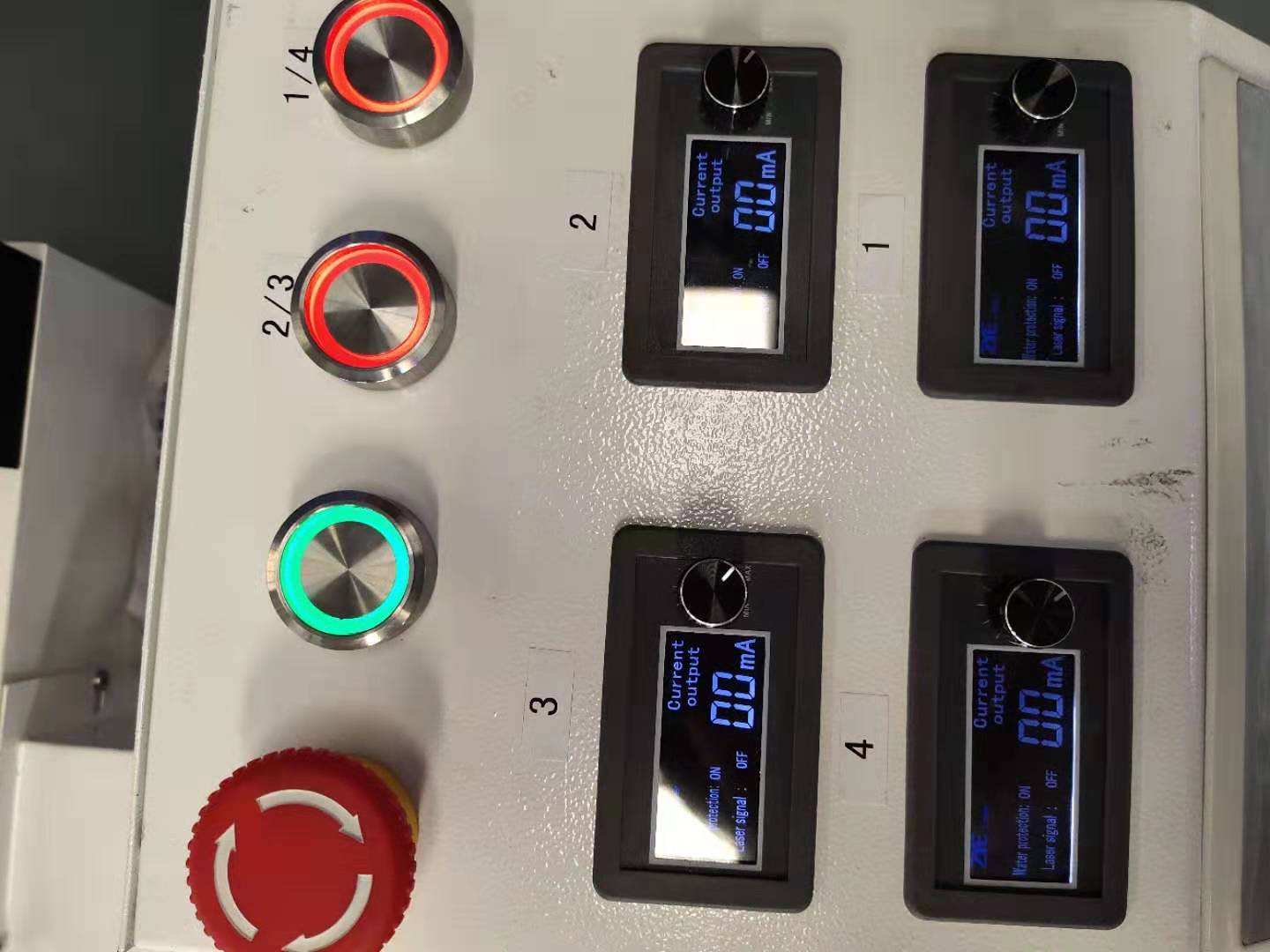

5. Rd control
6. Current display which can adjust speed .
7. Red dot can mark righ position
8. working size 1300*2500mm other size customized .
Name: | ST- 1325 |
Processing area | 1300mm*2500mm |
Laser power | 150w/180W/260W/2802/300W |
Laser type: | Sealed Co2 glass laser tube |
Cooling mode: | Water cooling and protection system |
Resetting positioning accuracy: | ±0.01mm |
Compatible Software: | CorelDraw AutoCAD Photoshop |
Whole machine size: | 3820mm*2320mm*2000mm |
Engraving speed | 1-60000mm/min |
Cutting speed | 1-10000mm/min |
Cutting thickness | 0-25mm acrylic (others determined by materials) |
Resolution ratio | ≤0.0125mm |
Position system: | Red dot |
Interface: | USB |
Minimum shaping character | letter 0.5mm, Chinese 0.5mm |
Support graphic format | DST, PLT, BMP, DXF |
Gross power | 1000W |
Driving mode: | DC0.8A 24V stepper motor |
Cooling mode: | Circulation water cooling |
Working voltage: | AC 110 - 220V±10%, 50 - 60Hz or depend on customer |
Operating temperature | 0-45C |
Operating humidity: | 5-95%
|
Driving system | panasonic driver and motor |
automaticfeeding | yes |
Packing: | wooden box |
Guarantee time: | 1 year, laser tube 8 months |
Option: | Rotary attachment for column materials |
Operation: | Video to tell customer how to operate the machine |
Gross weight: | 1550KGS after package |
Unload piece which can make fished fabric loading this device

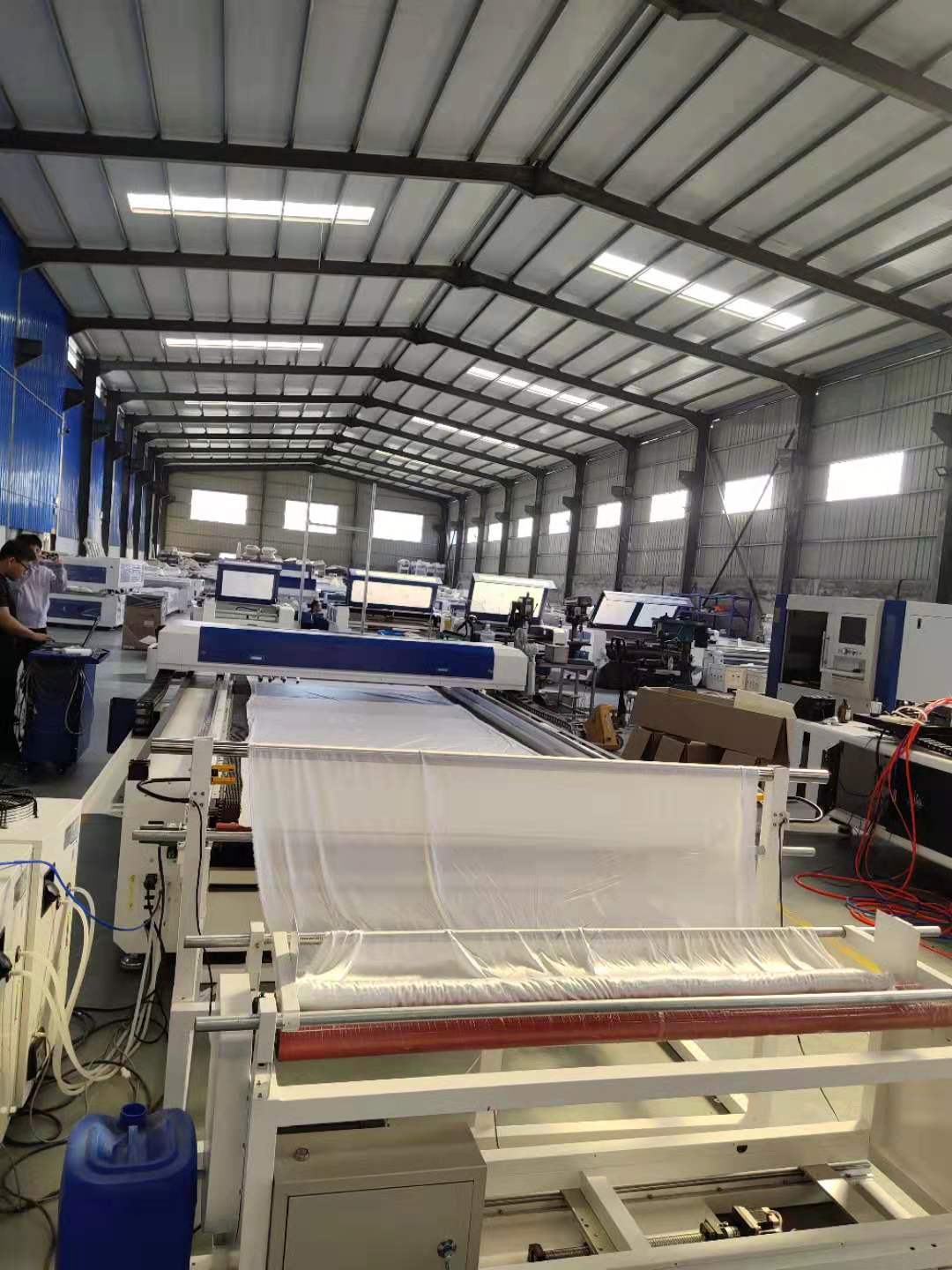

automatic feeding device and correct position device which make fabric at same level cutting

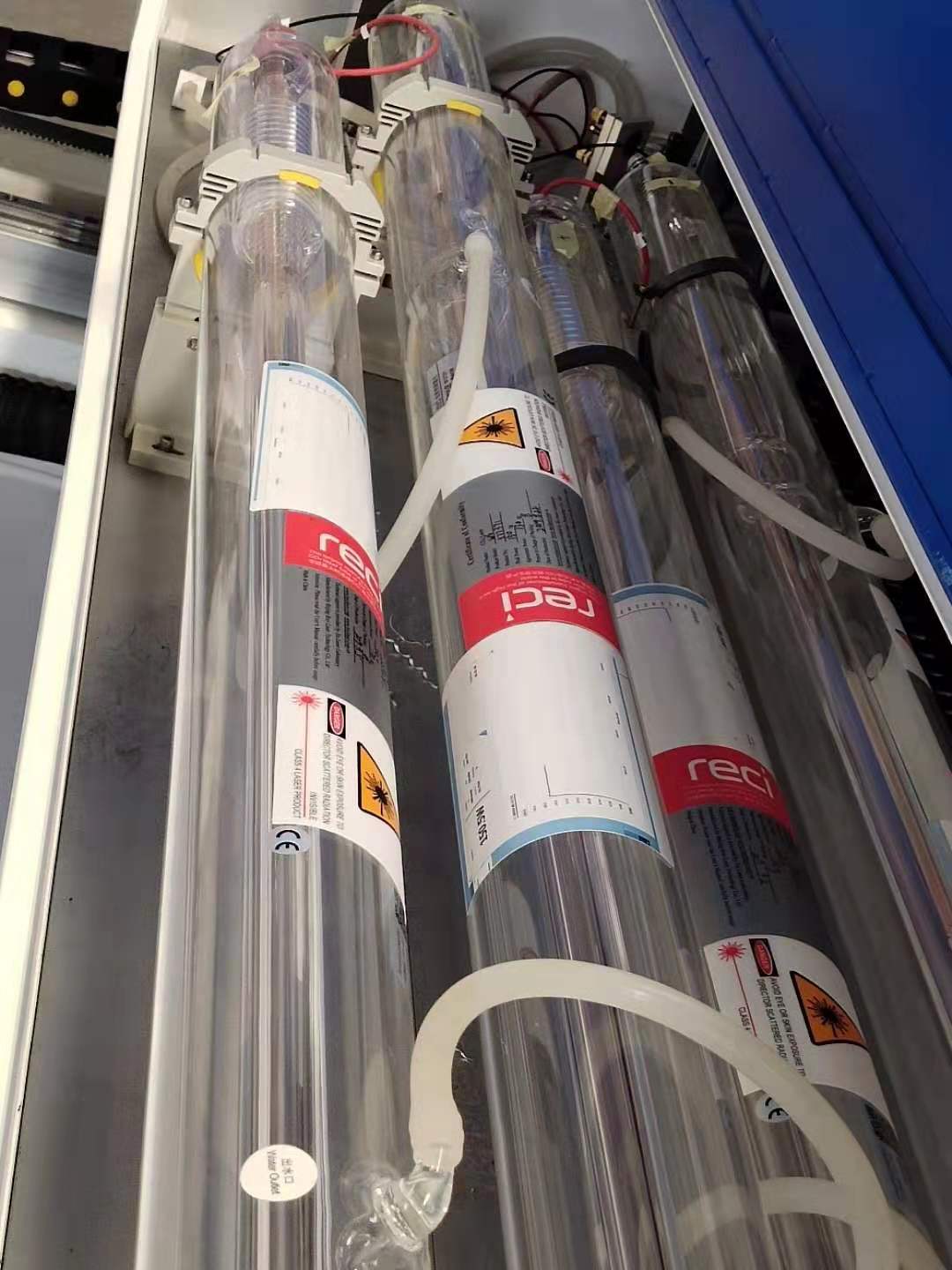

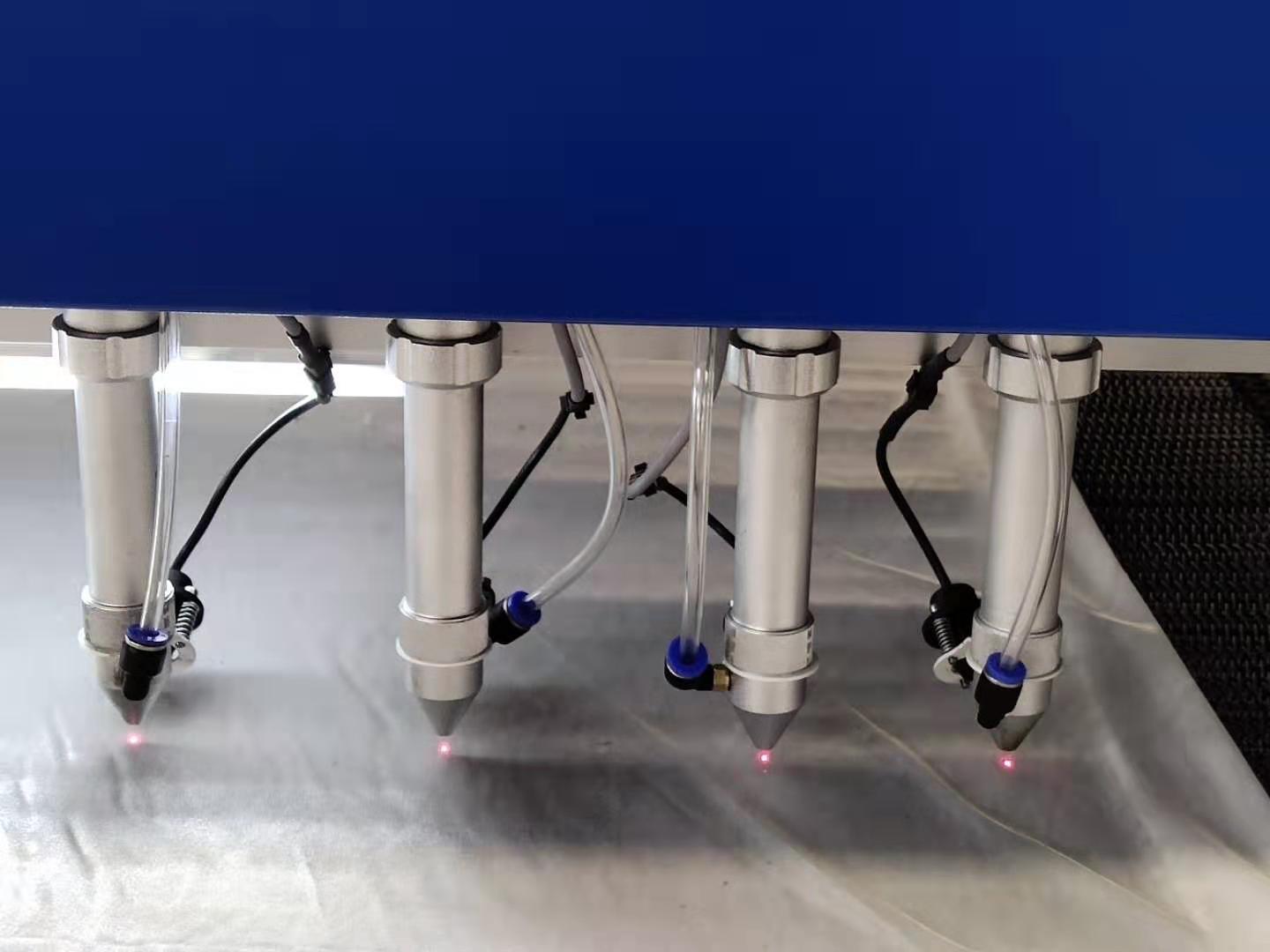

150w reci laser tube four piece cut fabric at same time improving working effiency
RD control

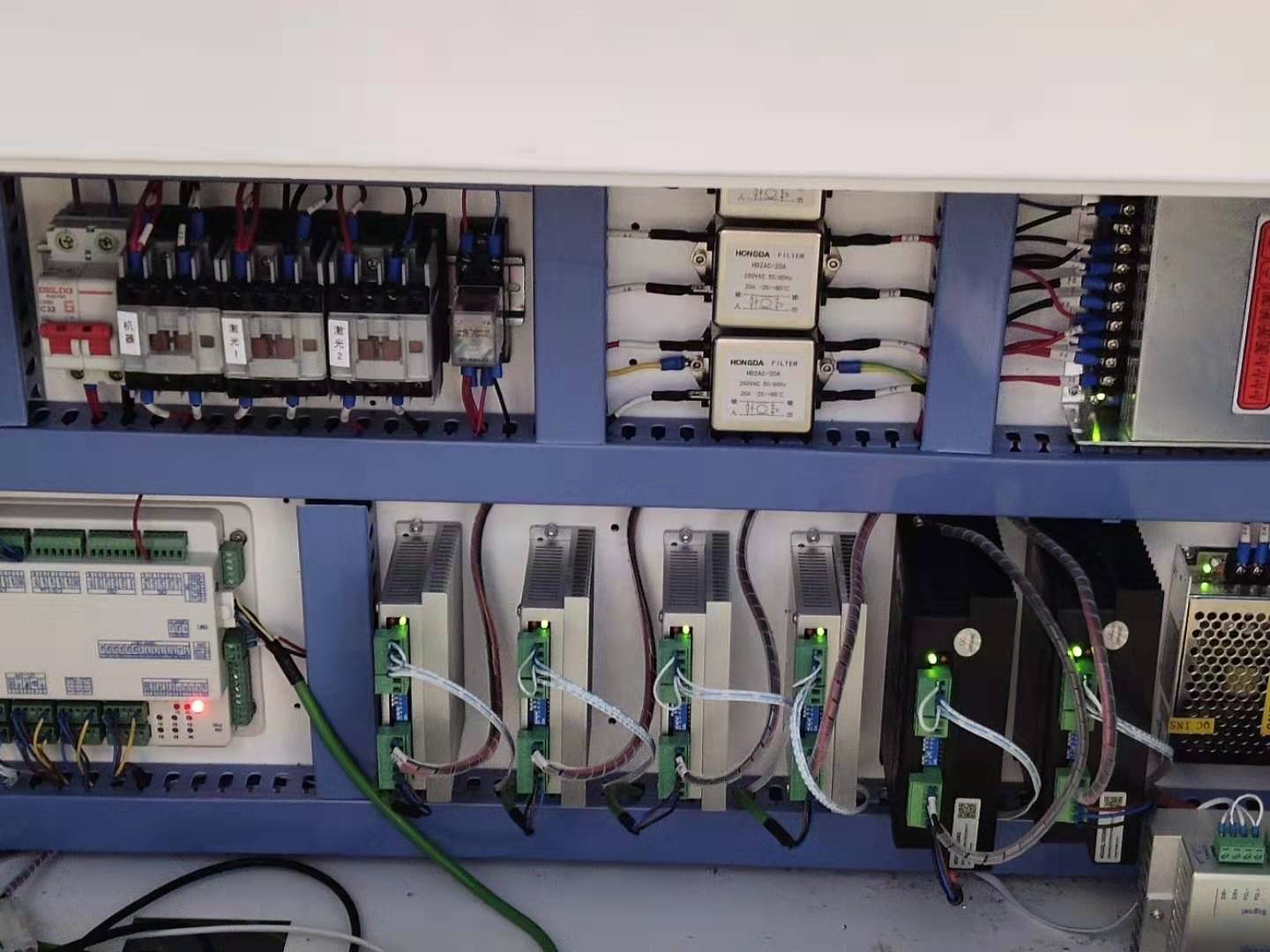

Electrical box
