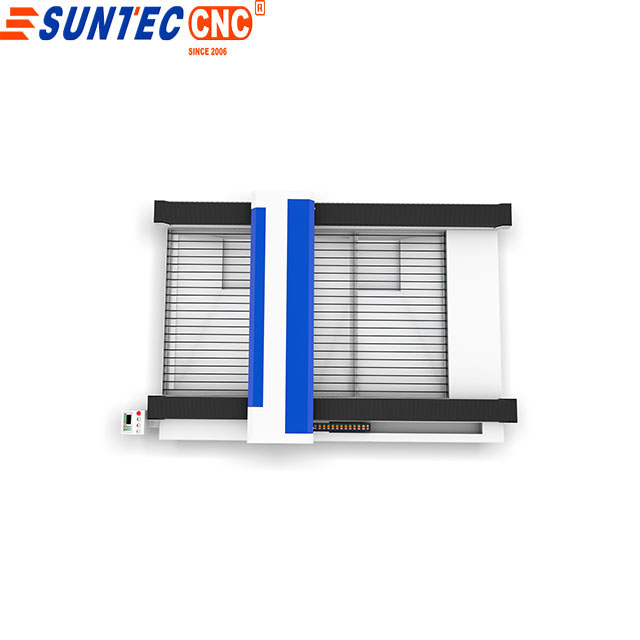

ST1325 280w co2 mixed laser cutting machine for metal nonmetal cutting

ST1325 280w co2 mixed laser cutting machine for metal nonmetal cutting

1. Adopt imported high-precision linear guide rail transmission, to make the optical laser path and machine movement more stable,
   and cutting and engraving effect better;
   2. Adopt the most advanced DSP control system, high movement speed, easy operation, high speed engraving;
   3.The X axis adopts high-strength aluminum alloy structure, comparing with traditional steel frame, it has advantages of lighter
   weight, less resonance and smoother movement;
   4.Boxed type exhaust fan to ensure the cleanliness of the working envirnment;
   5.Machine is very suitable for large sized sheets cutting, such as MDF,acrylic,etc.

   Applicable Materials

   Die board, wood , acrylic, perspex, MDF, leather, composite material and metal  etc.

   Applicable Industries

   Die processing, printing and packing, advertisement, decoration, furniture, wooedn toy, sheet metal processing products industry,




   Machine  model	ST-1325 280w Laser Machine
   Work  size	1300*2500mm
   Laser type	Sealed CO2 Glass Tube
   Laser power	60/80/100/130/150/180/280/300 watt
   Cooling mode	Circulating-water-cooling
   Power adjustment	0-100% controlling, no segment and adjusting  by software
   Max engraving speed	60000mm/min
   Max cutting speed	50000mm/min
   Repeating location	0.01mm
   Minimum  character	Chinese character: 1.5mm: crisscross-row:1mm
   Working environment	Temperature: 0-45℃, Humidity: 5%-95%
   Dictate format	*.plt,  *.dst , *.dxf,  *.bmp , *.dwg , *.ai , *.las , support




2.

3.

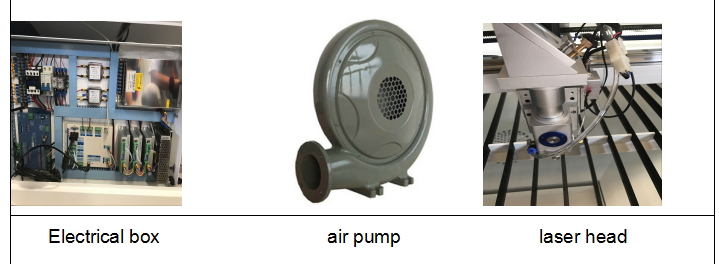

   mixed laser head
