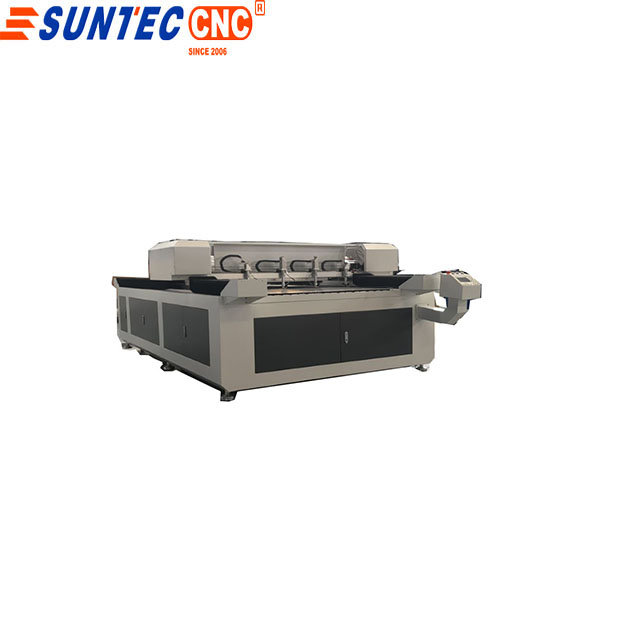

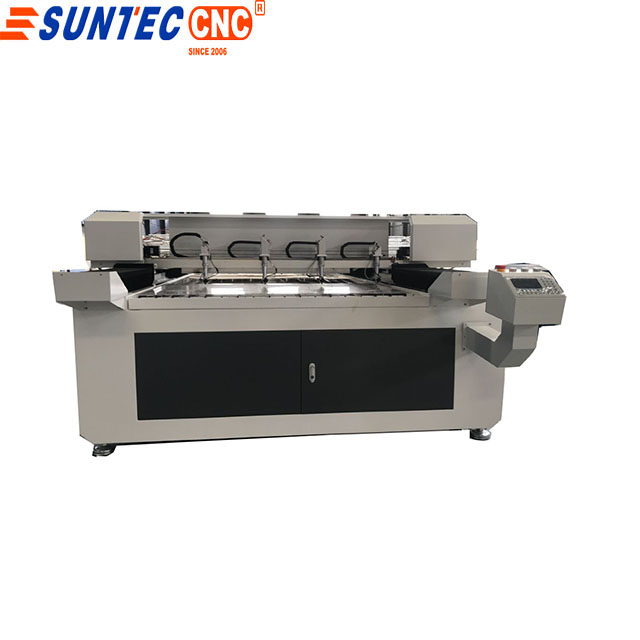

ST1325 metal non metal cutting four head 280w mixed laser cutting machine
Adopt imported high-precision linear guide rail transmission, to make the optical laser path and machine movement more stable,
and cutting and engraving effect better;
Adopt the most advanced DSP control system, high movement speed, easy operation, high speed engraving;
The X axis adopts high-strength aluminum alloy structure, comparing with traditional steel frame, it has advantages of lighter
weight, less resonance and smoother movement;
Boxed type exhaust fan to ensure the cleanliness of the working envirnment;
Machine is very suitable for large sized sheets cutting, such as MDF,acrylic,etc.
Four laser head can working at same time which improve your working effiency .
Machine model | ST-1325 Multi heads Laser Machine |
Work size | 1300*2500mm |
Laser type | Sealed CO2 Glass Tube |
Laser power | 60/80/100/130/150/180/280/300watt |
Cooling mode | Circulating-water-cooling |
Power adjustment | 0-100% controlling, no segment and adjusting by software |
Max engraving speed | 60000mm/min |
Max cutting speed | 50000mm/min |
Repeating location | 0.01mm |
Minimum character | Chinese character: 1.5mm: crisscross-row:1mm |
Working environment | Temperature: 0-45℃, Humidity: 5%-95% |
Dictate format | *.plt, *.dst , *.dxf, *.bmp , *.dwg , *.ai , *.las , support |

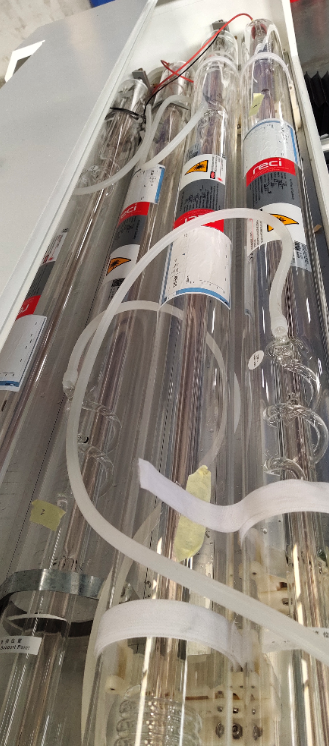

150w reci laser tube four piece

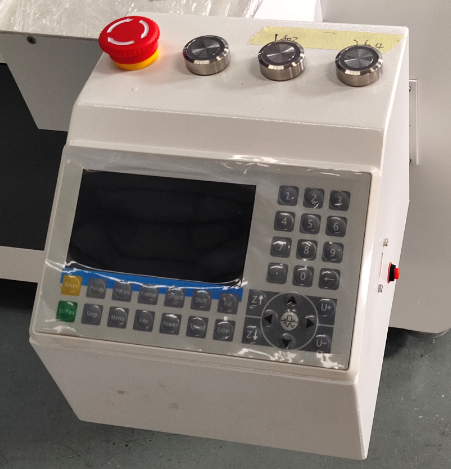

Rd control

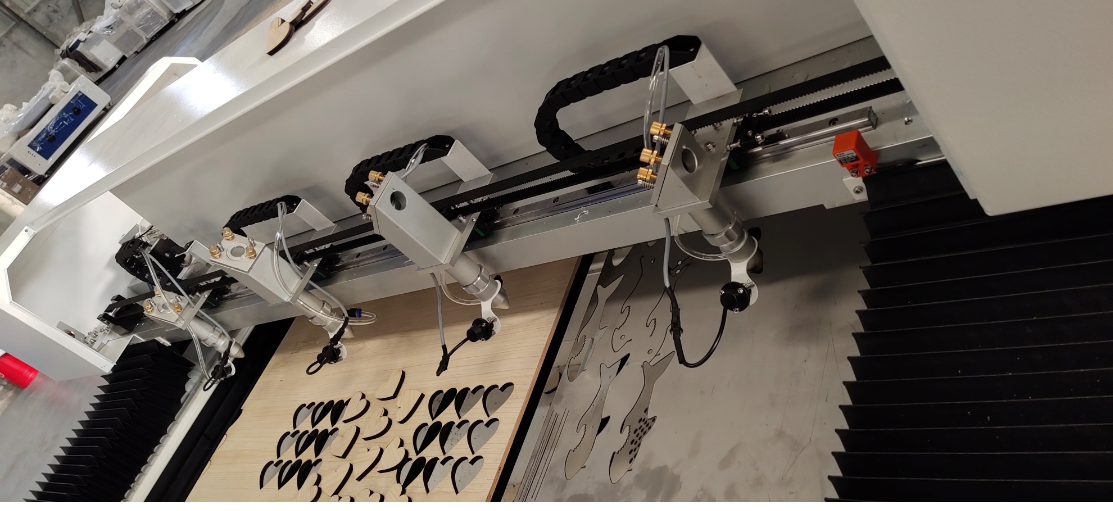

four laser head can working at same time to improve working effiency

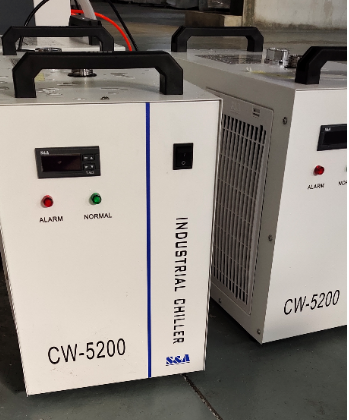

CW5200 water chiller

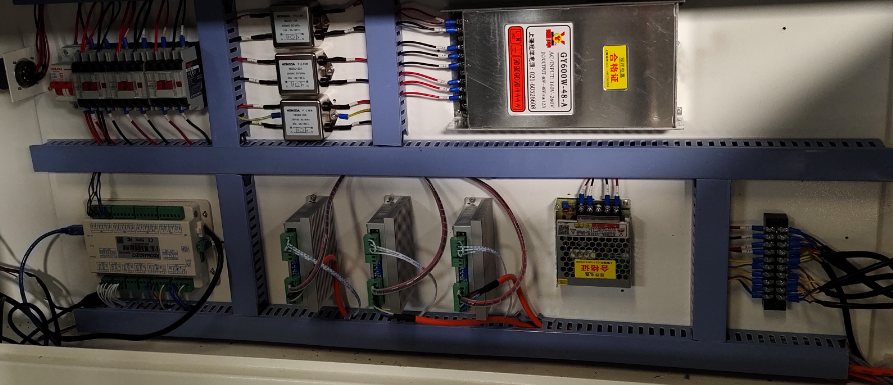

Electrical box
