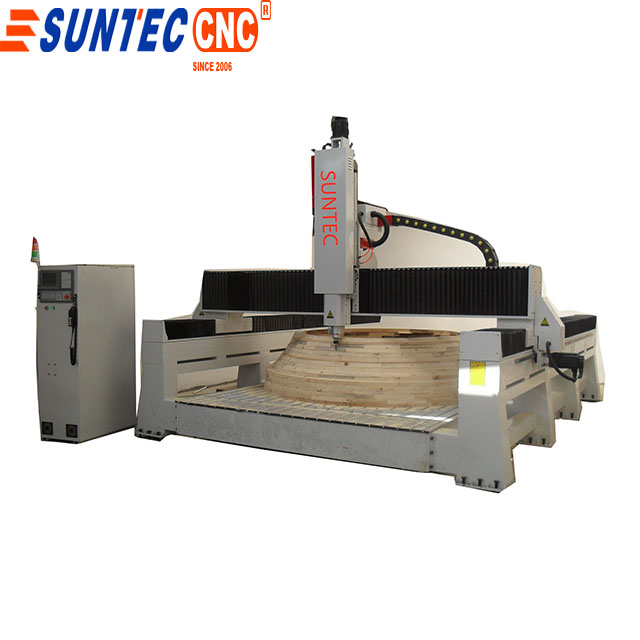

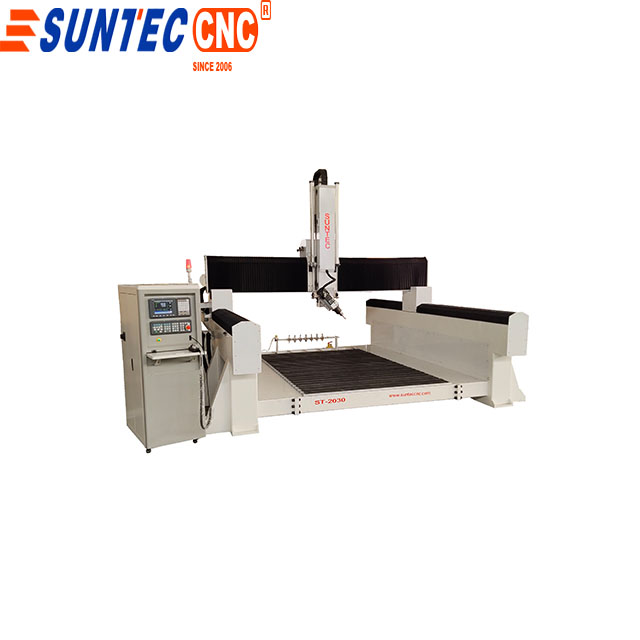

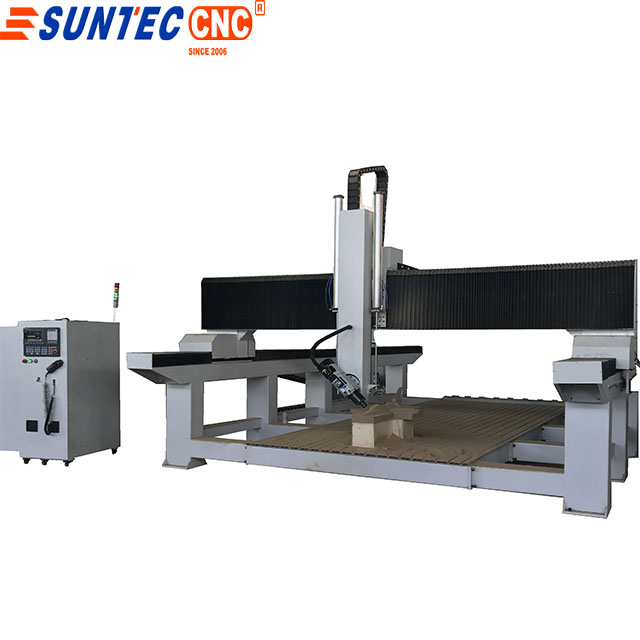

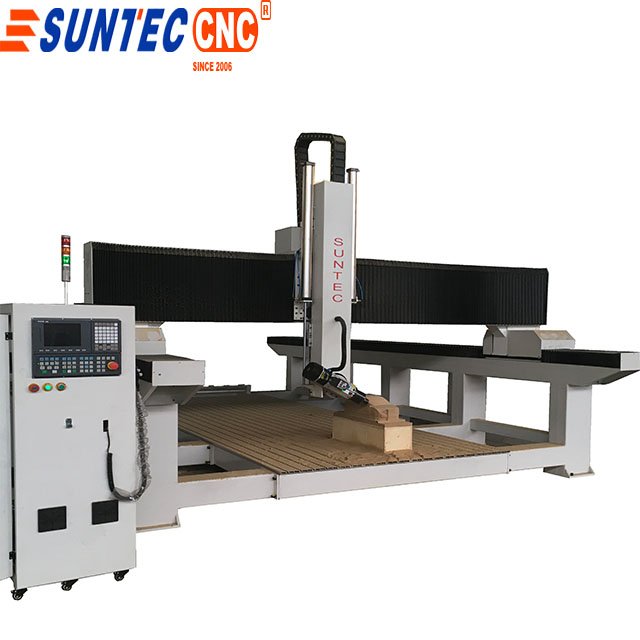

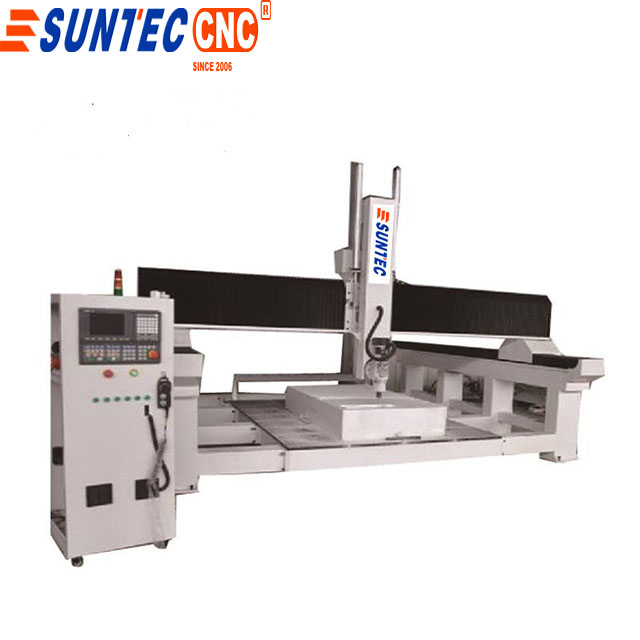

3d wood mould carving automatic tool change 180 degree spindle 4 axis cnc router
9kw HSD atc spindle fast speed to milling wood .

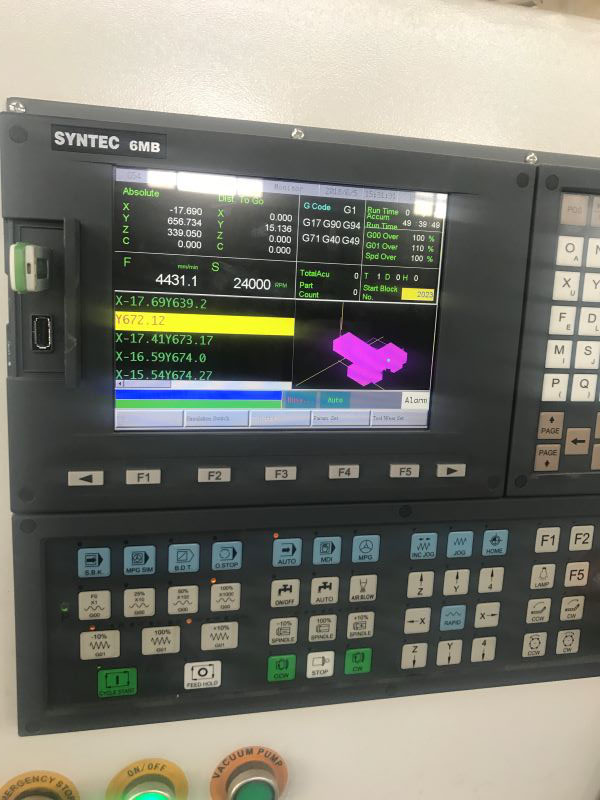

syntec 6MB control for 4 axis simplely easy to operation
Japan yasawa driver absolutely driver

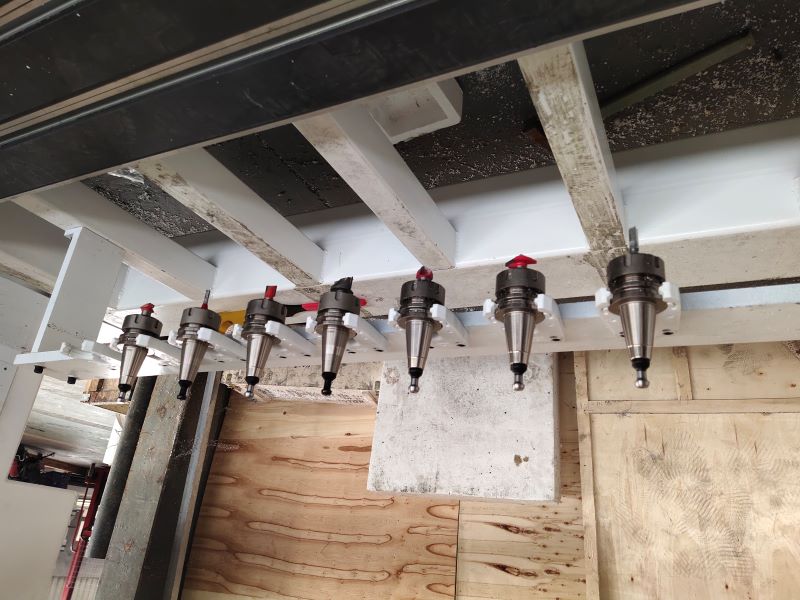

ATC tools change
The spindle can swing 90 degree right left ,which can milling material surface using software such as powermill UG etc

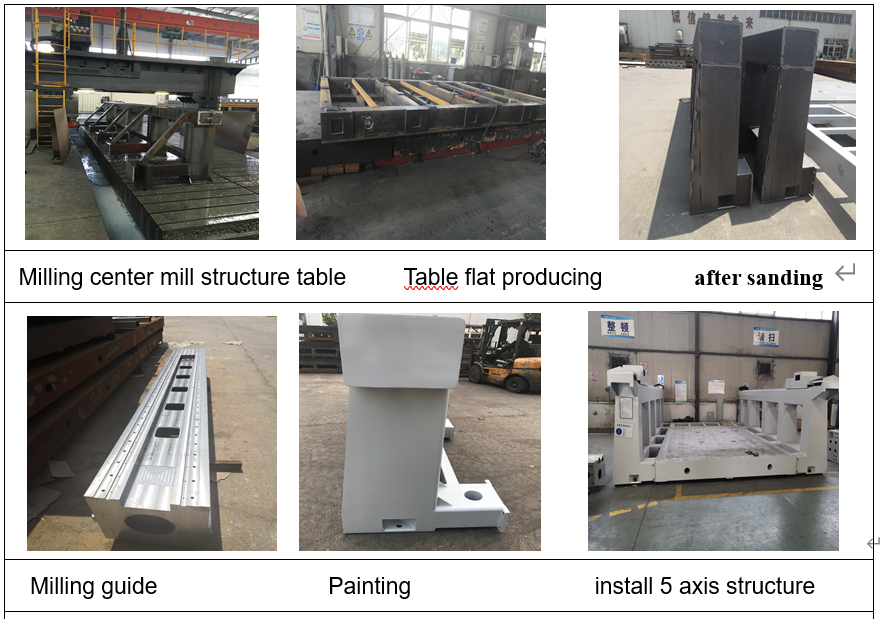

Heavy duty structure table square steel welded and heat-treatment .which can use many years no defomation ,especially no vibrating when working .
japan yaskwa driver and motor which powerful and high speed to mill material
italy HSD spindle ISO 30 ER32 which can chuck within 20mm diameter tools .
if milling styrofoam using 200-300mmlength tool if milling wood using short tools
Number | Description | Parameter |
1 | X,Y,Z Working Area | 1300x2500x1000mm/2000*5000*1000mm/2000*3000*1000mm or customized size |
2 | Table Size | 2350×3540mm*2000mm/3350*5350*2000mm/3500*4350*2000mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.01/1000mm |
4 | X,Y,Z Repositioning Accuracy: | ±0.01mm |
5 | Table Surface | Vacuum and T-slot Combined (Option: T-slot Table) |
6 | Frame | Big Steel Tube Structure |
7 | X, Y Structure | Rack and Pinion Drive, TaiwnPMI30 Rail Linear Bearings |
8 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
9 | Max. Power Consumption | (Without Spindle) 9 Kw |
10 | Max. Rapid Travel Rate | 80000mm/min |
11 | Max. Working Speed | 60000mm/min |
12 | Spindle Power | Italy 9KW HSD /Hiteco ATC 8 piece |
13 | Spindle Speed | 0-24000RPM |
14 | Drive Motors | 1300W Yaskawa Motors |
15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
16 | Command Language | G Code |
17 | Operating System | Syntec 60-E Control System |
18 | Computer Interface | USB |
19 | Flash Memory | 512M |
20 | Collet | ISO 30 |
21 | X,Y Resolution | <0.01mm |
22 | Software Compatibility | powermill UG software |
23 | Running Environment Temperature | 0 - 45 Centigrade |
24 | Relative Humidity | 30% - 75% |
25 | Packing Size | 6500X2100X2300mm |
26 | N.W. | 8000KG |
27 | G.W. | 8300KG |
28 | Optional Parts | Dust Collector/ Dust Hoods for three Axis |
Vacuum Pump | ||
Rotary System | ||
Mist-cooling System | ||
Delta/ Panasonic Servo Motors | ||
Colombo Spindle/Hitec | ||
TPA/OSAI control |
Production
Working sample

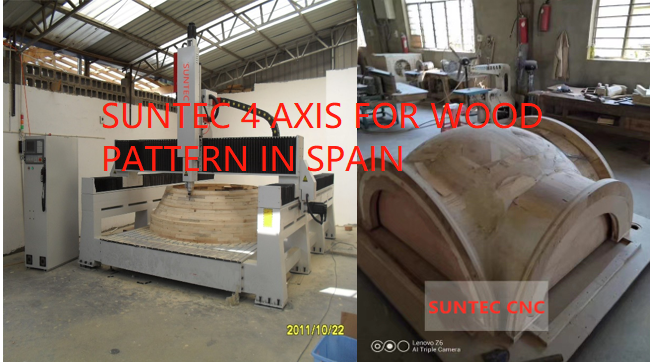

Suntec 4 axis cnc in spian customer workshop for wood pattern making Bt 40 spindle water cooling spindle ER40 collect for fast rough milling wood . after fine milling wood using straight tools making

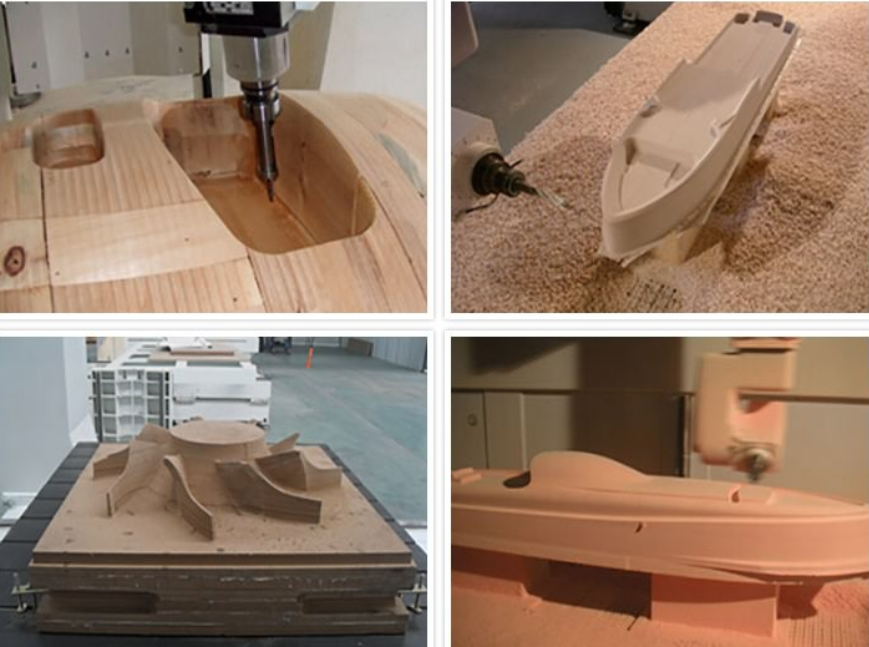

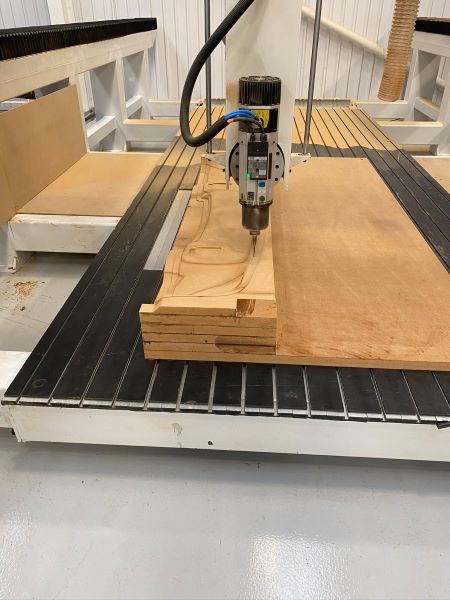

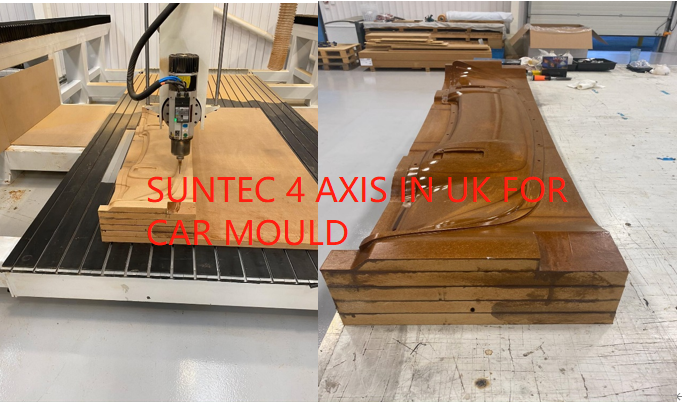

Suntec 4 axis cnc swing 180 degree rotary working 2000*5000*1000mm for Car mould making . you can use MDF wood styrofoam to make 3d mould . you need take your mould part by parts to make withing 4 axis swing spindle 180 degree . then connect .
Suntec 4 axis swing 180 degree cnc making wood pattern which can using powermill or UG software to design NC format then using suntec 4 axis cnc to make mould
Suntec 4 axis cnc working 1300*2500*1000mm with rotary 300*2500 which maily for 3d
figure sculpture ship mould making .
