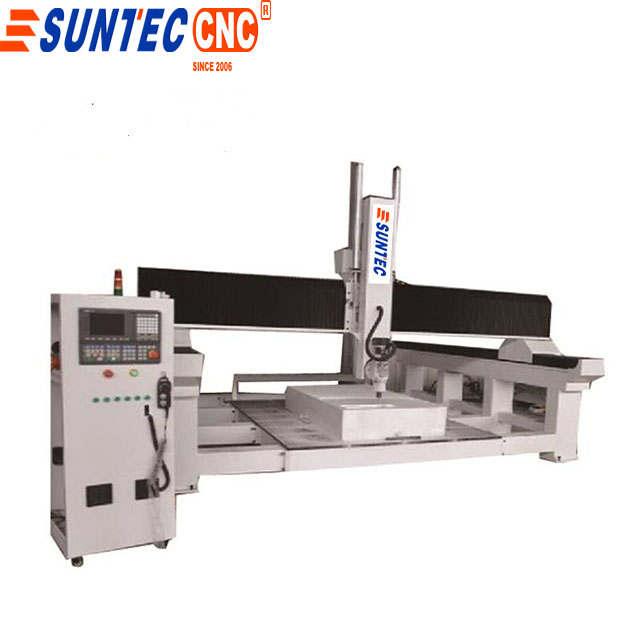

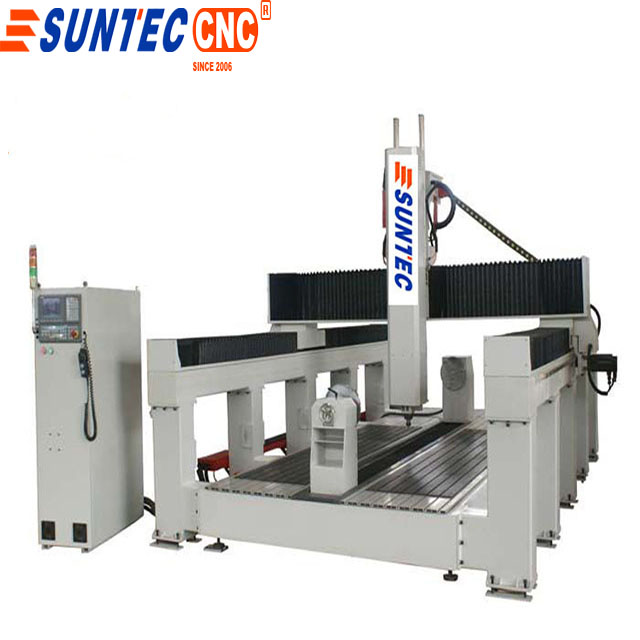

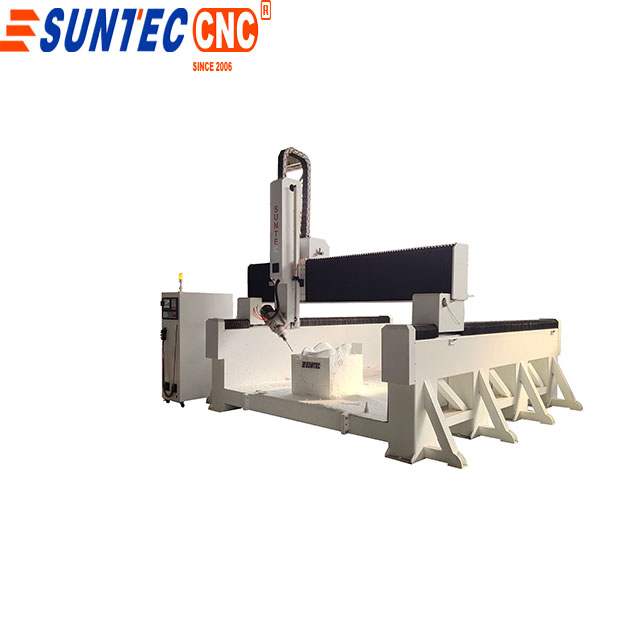

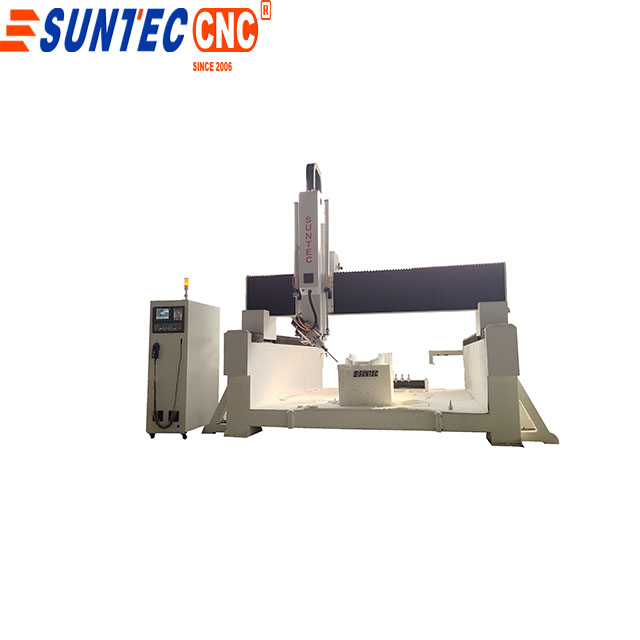

4 axis cnc router swing 180 degree spindle 3d mould figure ATC ST1325
The spindle can swing 90 degree right left ,which can milling material surface using software such as powermill UG etc

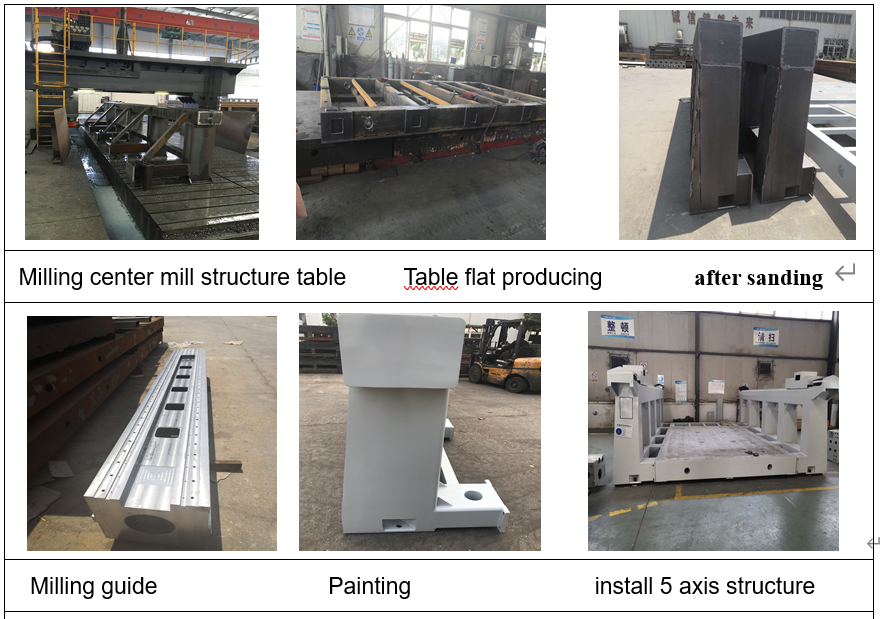

Heavy duty structure table square steel welded and heat-treatment .which can use many years no defomation ,especially no vibrating when working .
japan yaskwa driver and motor which powerful and high speed to mill material
italy HSD spindle ISO 30 ER32 which can chuck within 20mm diameter tools .
if milling styrofoam using 200-300mmlength tool if milling wood using short tools
Number | Description | Parameter |
1 | X,Y,Z Working Area | 1300x2500x1000mm/2000*5000*1000mm/2000*3000*1000mm or customized size |
2 | Table Size | 2350×3540mm*2000mm/3350*5350*2000mm/3500*4350*2000mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.01/1000mm |
4 | X,Y,Z Repositioning Accuracy: | ±0.01mm |
5 | Table Surface | Vacuum and T-slot Combined (Option: T-slot Table) |
6 | Frame | Big Steel Tube Structure |
7 | X, Y Structure | Rack and Pinion Drive, TaiwnPMI30 Rail Linear Bearings |
8 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
9 | Max. Power Consumption | (Without Spindle) 9 Kw |
10 | Max. Rapid Travel Rate | 80000mm/min |
11 | Max. Working Speed | 60000mm/min |
12 | Spindle Power | Italy 9KW HSD /Hiteco ATC 8 piece |
13 | Spindle Speed | 0-24000RPM |
14 | Drive Motors | 1300W Yaskawa Motors |
15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
16 | Command Language | G Code |
17 | Operating System | Syntec 60-E Control System |
18 | Computer Interface | USB |
19 | Flash Memory | 512M |
20 | Collet | ISO 30 |
21 | X,Y Resolution | <0.01mm |
22 | Software Compatibility | powermill UG software |
23 | Running Environment Temperature | 0 - 45 Centigrade |
24 | Relative Humidity | 30% - 75% |
25 | Packing Size | 6500X2100X2300mm |
26 | N.W. | 8000KG |
27 | G.W. | 8300KG |
28 | Optional Parts | Dust Collector/ Dust Hoods for three Axis |
Vacuum Pump | ||
Rotary System | ||
Mist-cooling System | ||
Delta/ Panasonic Servo Motors | ||
Colombo Spindle/Hitec | ||
TPA/OSAI control |

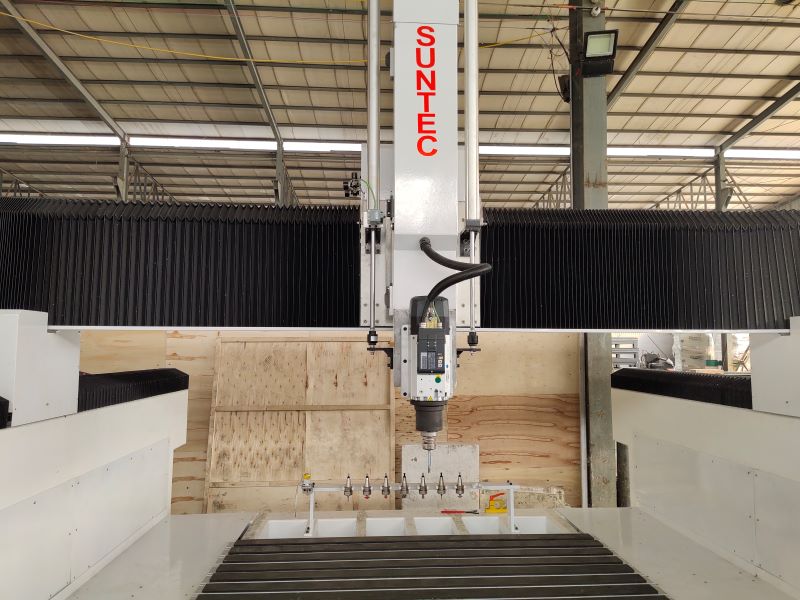

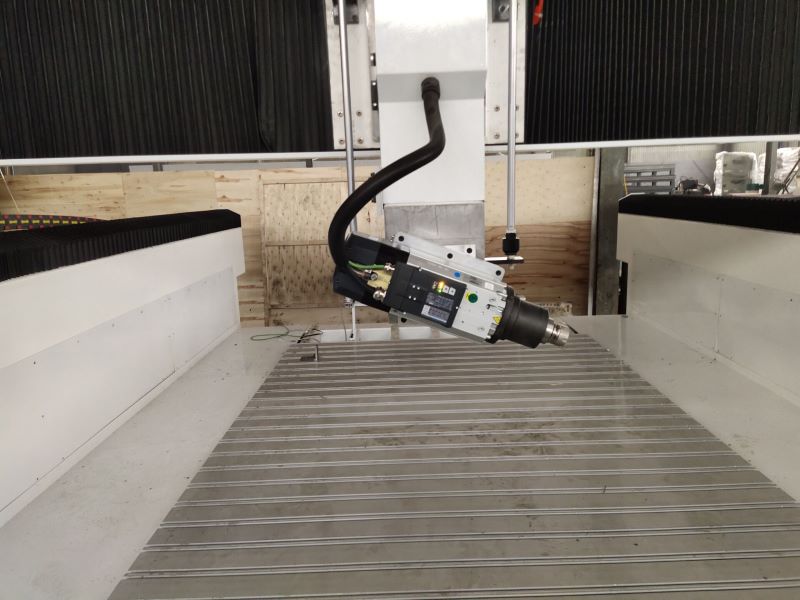

9kw HSD spindle which can swing 90 degree right and left . so milling material surface according software design

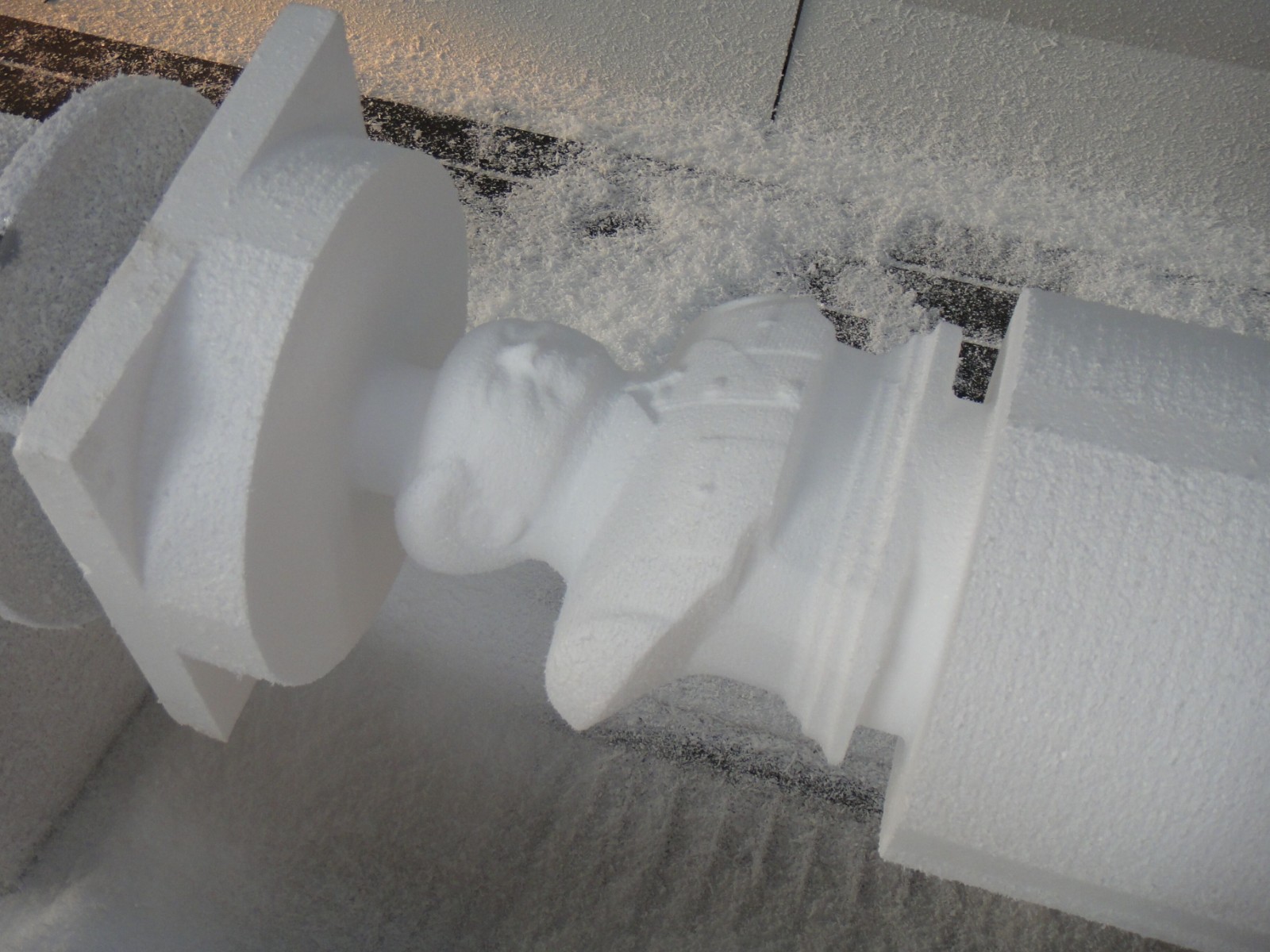

especially for 3d mould making such as car ship people figure boat etc

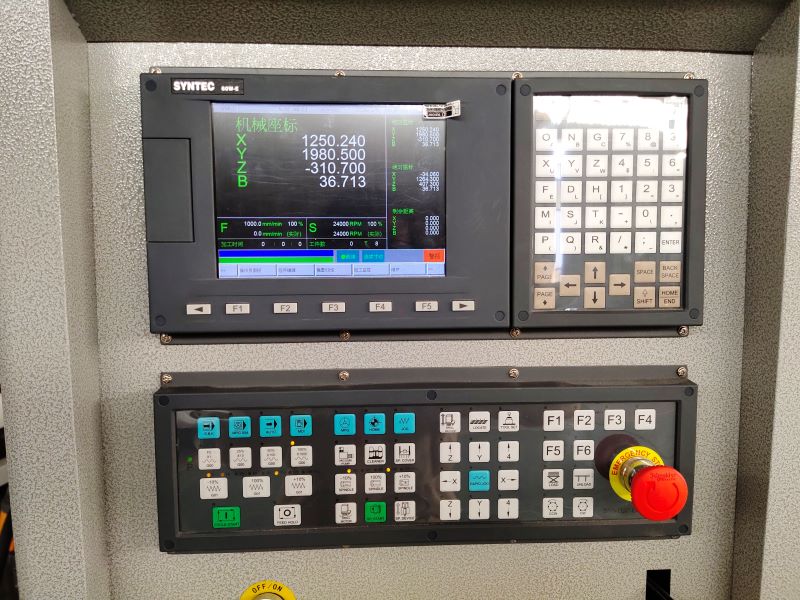

Syntec 60W-E 4 axis control . which can do Nc format simply to indenty and give signal to machine to make the mould

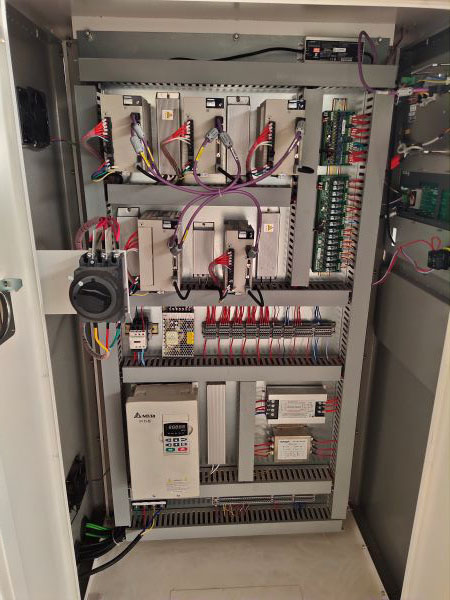

japan yaskawa driver with resistance . high speed and high precison

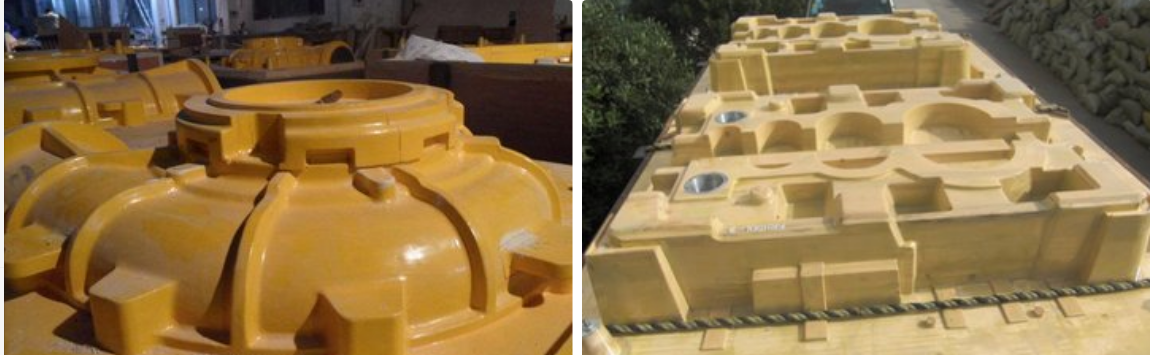

Working sample

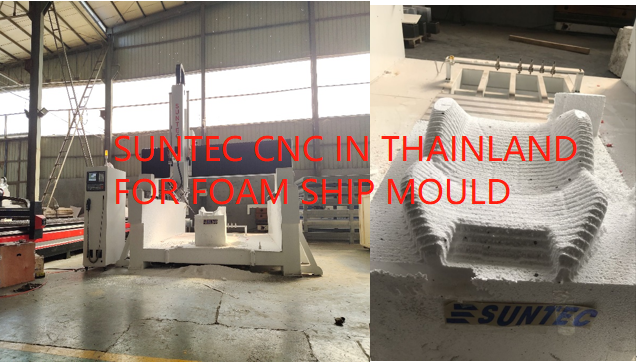

suntec 4 axis in thainland making foam ship mould making

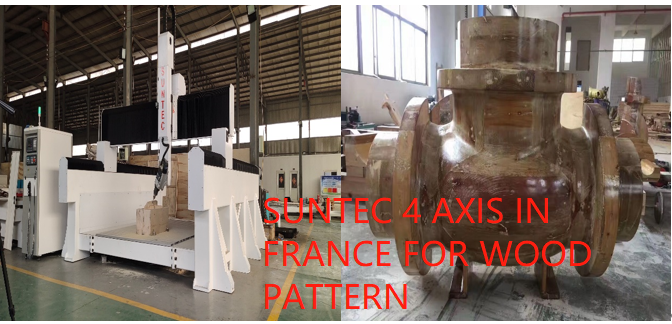

suntec 4 axis in france making wood mould making

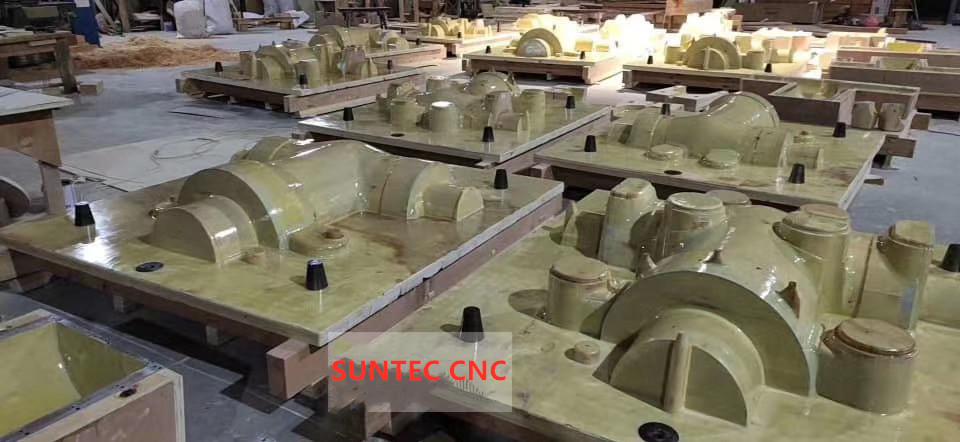

Suntec 4 axis in uk making car mould
