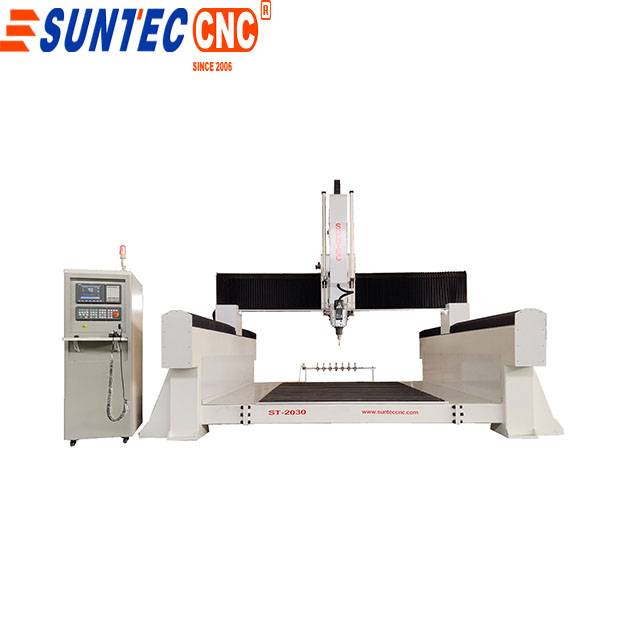

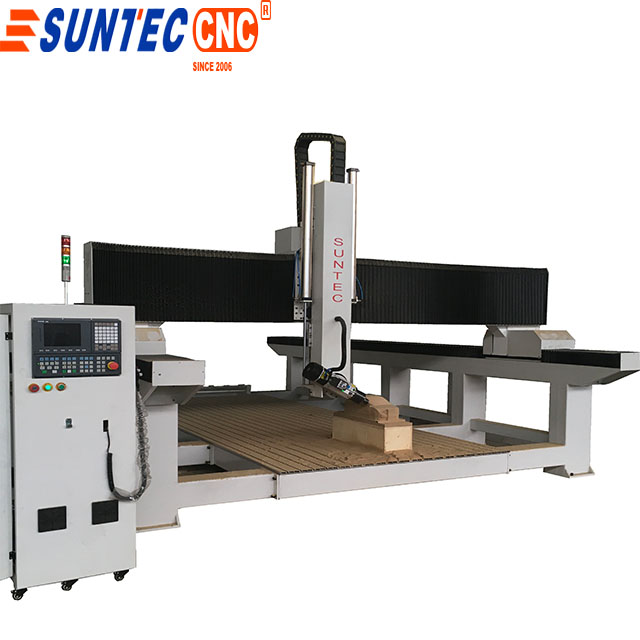

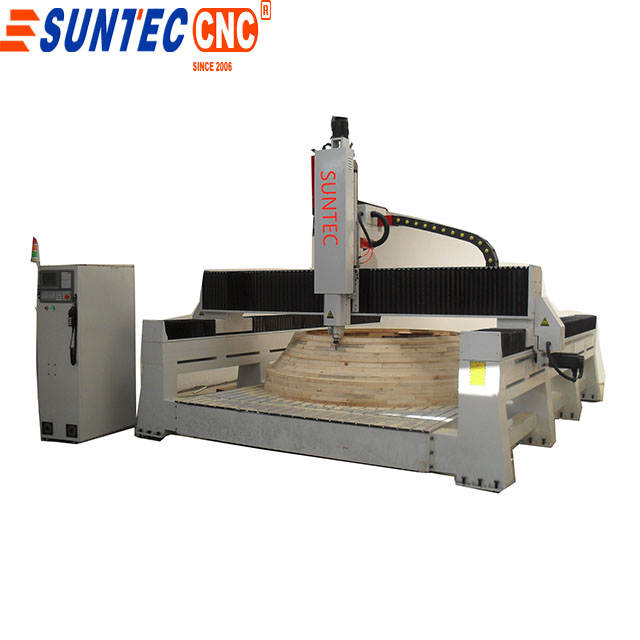

wood pattern metal 3d mold making BT40 spindle cnc router ST2030
1. working 2000*3000*1000mm
2. Bt40 7.5KW water cooling mechanisam spindle ,which is powerful for wood pattern and alumiun mold .
this spindle low speed high torque professional for hard material .so make sure high precision .
3. Heavy duty structure table with heat-treatment . no defomation using many years .
4. japan yaskawa absolutely driver and motor with shimpo reducer
5.syntec control
Number | Description | Parameter |
1 | X,Y,Z Working Area | 1300x2500x1000mm/2000*5000*1000mm/2000*3000*1000mm or customized size |
2 | Table Size | 2350×3540mm*2000mm/3350*5350*2000mm/3500*4350*2000mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.01/1000mm |
4 | X,Y,Z Repositioning Accuracy: | ±0.01mm |
5 | Table Surface | Vacuum and T-slot Combined (Option: T-slot Table) |
6 | Frame | Big Steel Tube Structure |
7 | X, Y Structure | Rack and Pinion Drive, TaiwnPMI30 Rail Linear Bearings |
8 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
9 | Max. Power Consumption | (Without Spindle) 9 Kw |
10 | Max. Rapid Travel Rate | 80000mm/min |
11 | Max. Working Speed | 60000mm/min |
12 | Spindle Power | Italy 9KW HSD /Hiteco ATC 8 piece |
13 | Spindle Speed | 0-24000RPM |
14 | Drive Motors | 1300W Yaskawa Motors |
15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
16 | Command Language | G Code |
17 | Operating System | Syntec 60-E Control System |
18 | Computer Interface | USB |
19 | Flash Memory | 512M |
20 | Collet | ISO 30 |
21 | X,Y Resolution | <0.01mm |
22 | Software Compatibility | powermill UG software |
23 | Running Environment Temperature | 0 - 45 Centigrade |
24 | Relative Humidity | 30% - 75% |
25 | Packing Size | 6500X2100X2300mm |
26 | N.W. | 8000KG |
27 | G.W. | 8300KG |
28 | Optional Parts | Dust Collector/ Dust Hoods for three Axis |
Vacuum Pump | ||
Rotary System | ||
Mist-cooling System | ||
Delta/ Panasonic Servo Motors | ||
Colombo Spindle/Hitec | ||
TPA/OSAI control |
Productions details

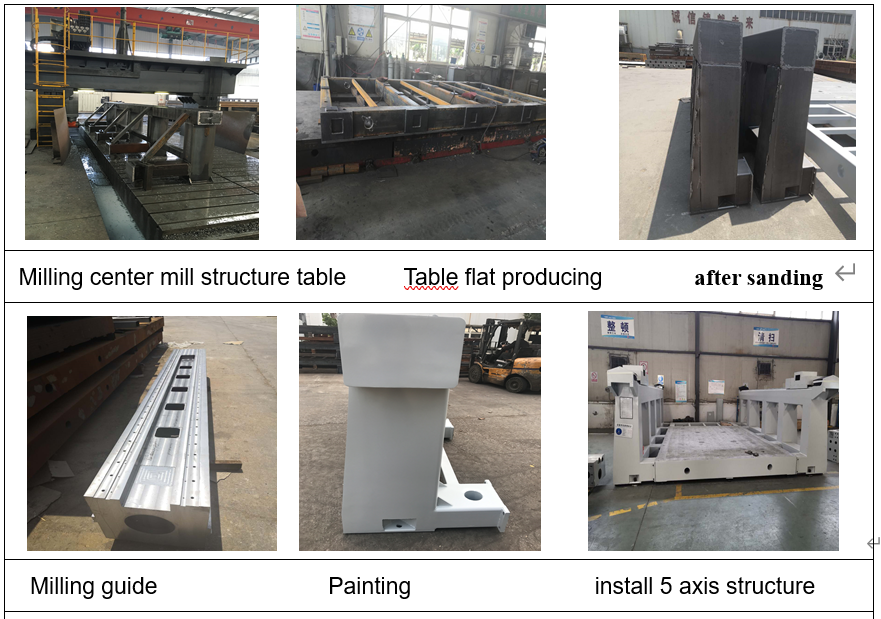

suntec all the structure table welded square tube steel then heat -treat ment so suntec cnc machine can use many years no deformation .
Working sample
ST-1325 cnc router 4 axis cnc 3d mold making customer mainly for 3d figure people making with rotary spindle can swing 180 degree then mill surface right and left to make high precision .

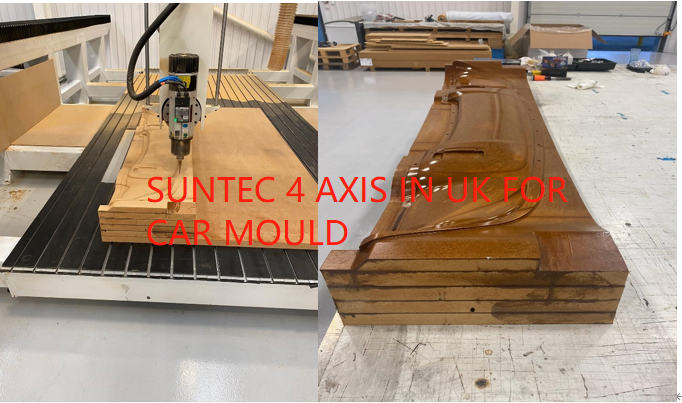

Uk customer mainly used suntec 4 axis making racecar mold using hard wood and carbon glass to make usingsolidworks software making program .

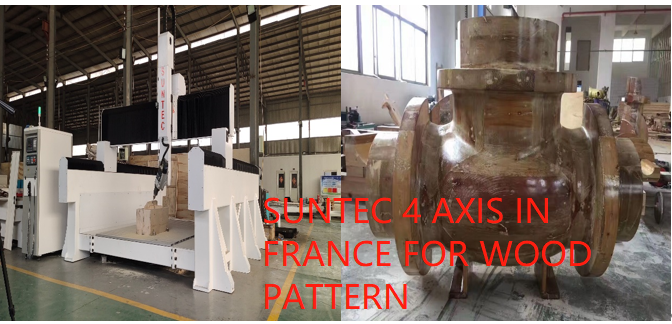

ST-2030 4 axis cnc in france for hardwood pattern
