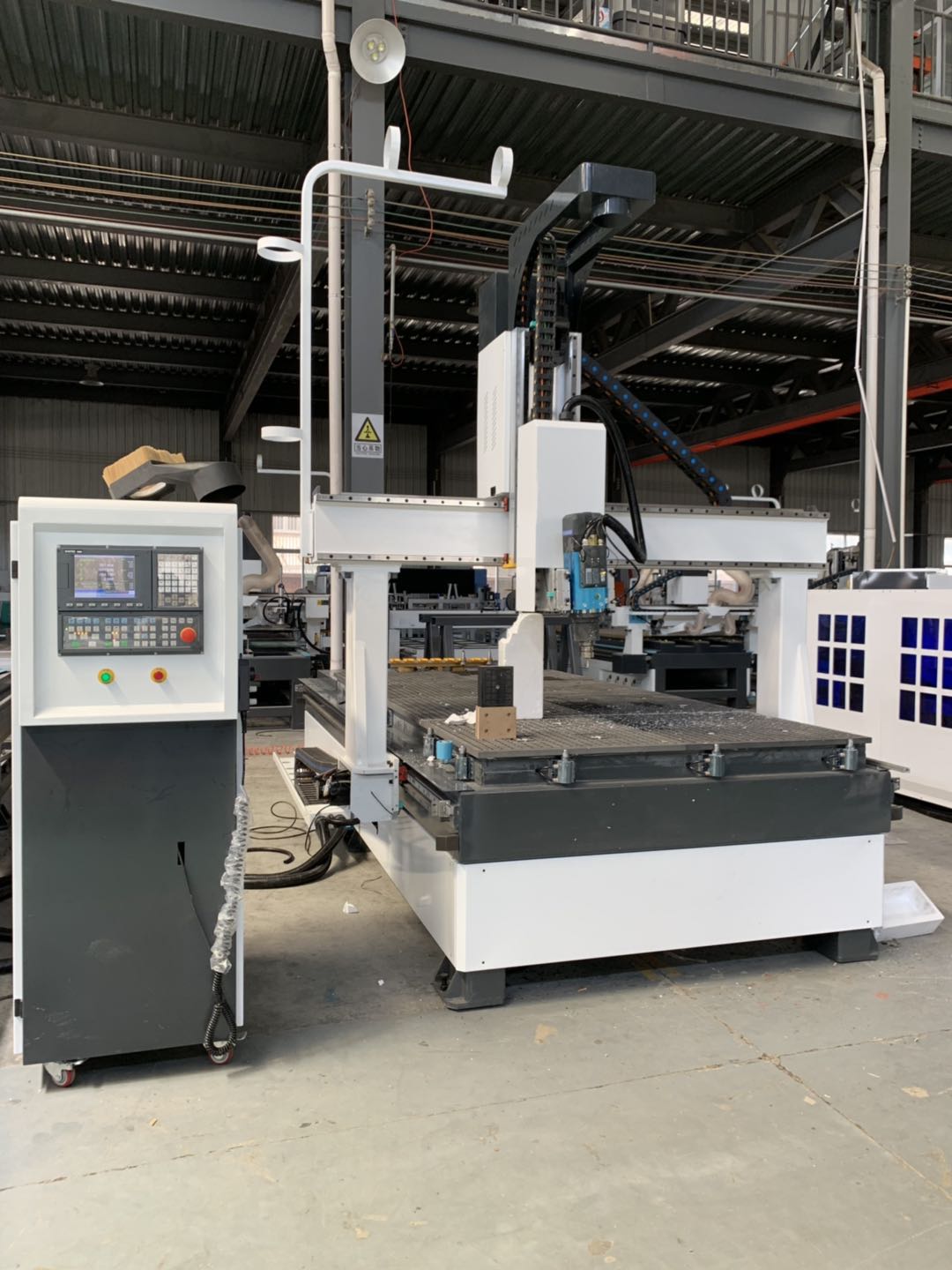

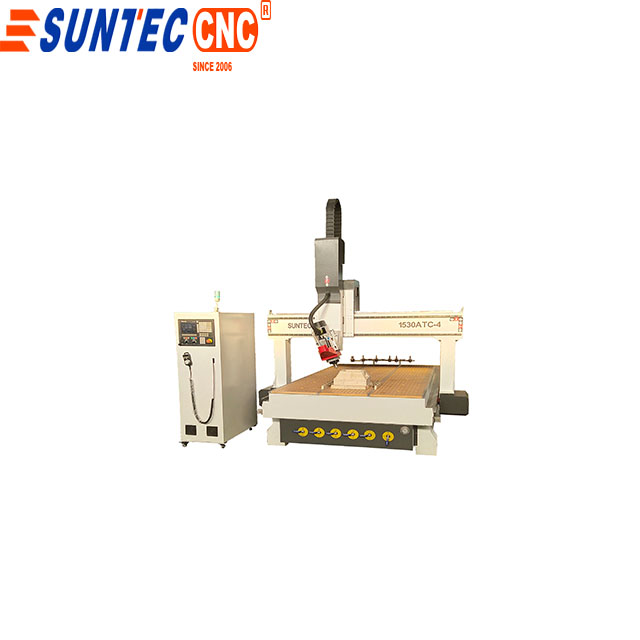

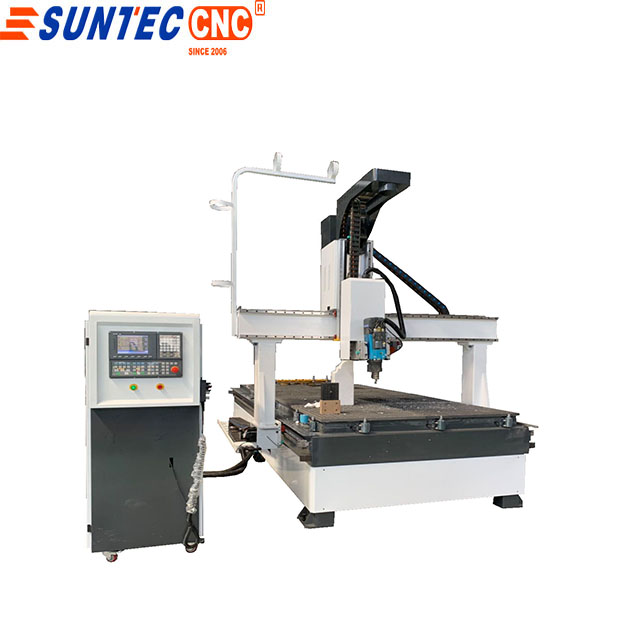

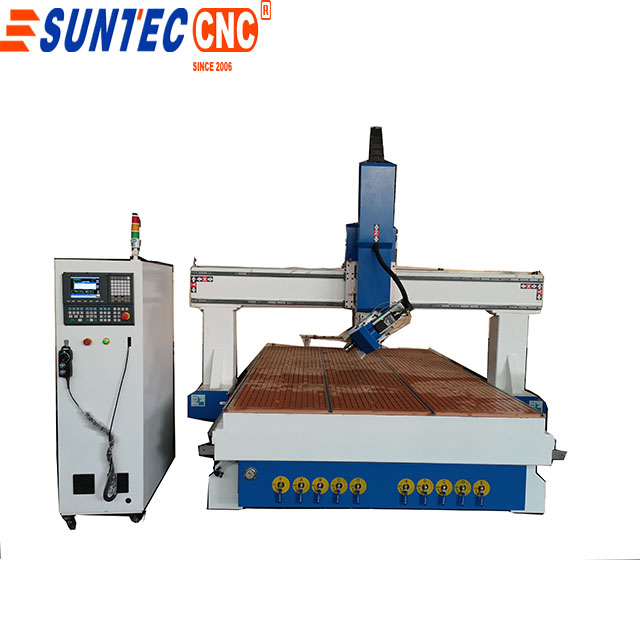

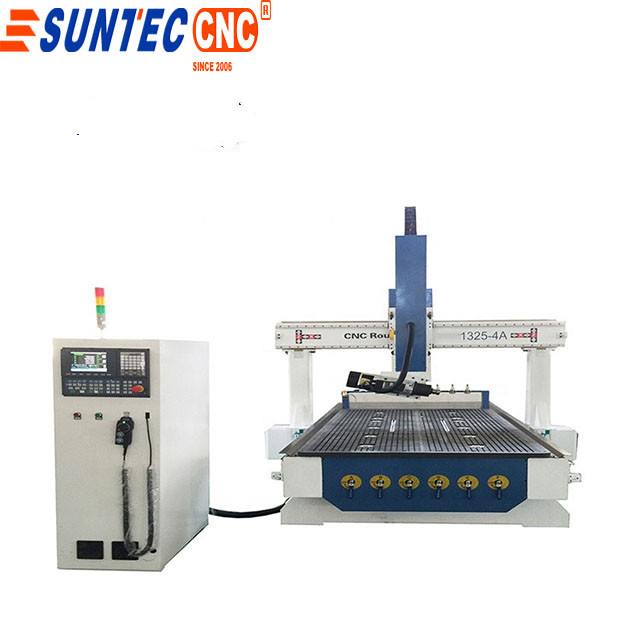

ST1325 4 axis 180 degree ATC cnc router for 3d mold making

1

X,Y,Z Working Area

1300x2500x600mm/2000*5000*1000mm/2000*3000*1000mm or   customized size

2

Table Size

2350×3540mm*2000mm/3350*5350*2000mm/3500*4350*2000mm

3

X,Y,Z Traveling Positioning Accuracy

±0.01/600mm

4

X,Y,Z Repositioning Accuracy:

±0.01mm

5

Table Surface

Vacuum and  T-slot Combined (Option: T-slot Table)

6

Frame

Big Steel Tube Structure

7

X, Y Structure

Rack and Pinion Drive, TaiwnPMI30 Rail Linear Bearings

8

Z Structure

Hiwin Rail Linear Bearings and Ball Screw

9

Max. Power Consumption

(Without Spindle)  9 Kw

10

Max. Rapid Travel Rate

80000mm/min

11

Max. Working Speed

60000mm/min

12

Spindle Power

Italy 9KW HSD /Hiteco ATC 8 piece

13

Spindle Speed

0-24000RPM

14

Drive Motors

1300W Yaskawa Motors

15

Working Voltage

AC380V/50/60Hz,3PH (Option: 220V))

16

Command Language

G Code

17

Operating System

Syntec 60-E  Control System

18

Computer Interface

USB

19

Flash Memory

512M

20

Collet

ISO 30

21

X,Y Resolution

<0.01mm

22

Software Compatibility

 powermill UG software

23

Running Environment  Temperature

0 - 45 Centigrade

24

Relative Humidity

30% - 75%

25

Packing Size

6500X2100X2300mm

26

N.W.

8000KG

27

G.W.

8300KG

28

Optional Parts

Dust Collector/ Dust Hoods for three Axis

Vacuum Pump

Rotary System

Mist-cooling System

Delta/ Panasonic Servo Motors

Colombo Spindle/Hitec

TPA/OSAI control
