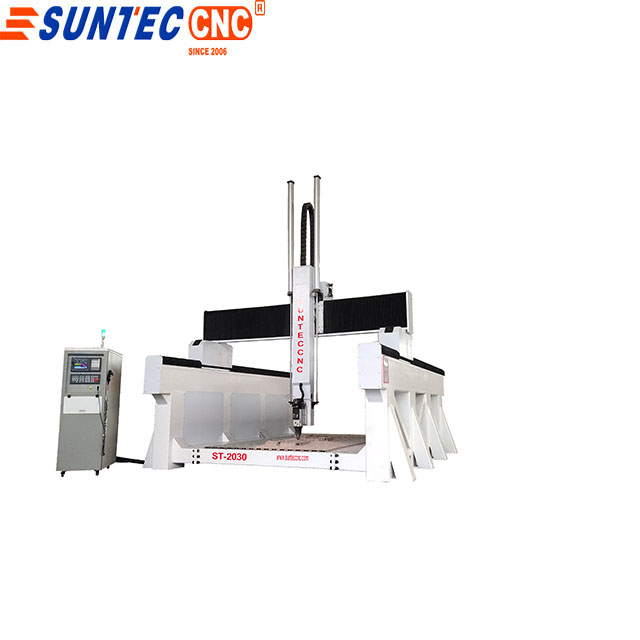

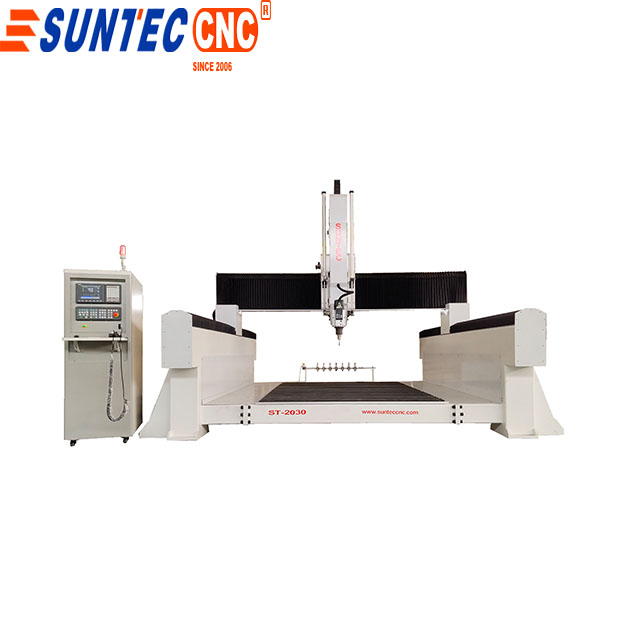

ST2030 4 axis 180 degree rotary atc cnc router italy HSD spindle 3d mold making with rotary
italy HSD spindle 180 degree rotary （right left 90 degree rotary ）,which can mill surface according powermill or UG software .
Heavy duty square steel welded , with heat-treatment , which can use many years no doformation . especailly working no vibrating .
japan yaskawa driver and motor , which can make machine fast speed and high precision .
syntec control for 4 axis which can make milling way clearly .
Taiwan PMI 30 square guide , Germany herion gear and rack 2M which can no noise when working .
if you milling wood need small diamete tools ,if milling foam need 300mm tools for rough . then using straight tools for finished milling .
italy TPA OSAI for optional
8. other customized size for optional
Number | Description | Parameter |
1 | X,Y,Z Working Area | 1300x2500x1000mm/2000*5000*1000mm/2000*3000*1000mm or customized size |
2 | Table Size | 2350×3540mm*2000mm/3350*5350*2000mm/3500*4350*2000mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.01/1000mm |
4 | X,Y,Z Repositioning Accuracy: | ±0.01mm |
5 | Table Surface | Vacuum and T-slot Combined (Option: T-slot Table) |
6 | Frame | Big Steel Tube Structure |
7 | X, Y Structure | Rack and Pinion Drive, TaiwnPMI30 Rail Linear Bearings |
8 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
9 | Max. Power Consumption | (Without Spindle) 9 Kw |
10 | Max. Rapid Travel Rate | 80000mm/min |
11 | Max. Working Speed | 60000mm/min |
12 | Spindle Power | Italy 9KW HSD /Hiteco ATC 8 piece |
13 | Spindle Speed | 0-24000RPM |
14 | Drive Motors | 1300W Yaskawa Motors |
15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
16 | Command Language | G Code |
17 | Operating System | Syntec 60-E Control System |
18 | Computer Interface | USB |
19 | Flash Memory | 512M |
20 | Collet | ISO 30 |
21 | X,Y Resolution | <0.01mm |
22 | Software Compatibility | powermill UG software |
23 | Running Environment Temperature | 0 - 45 Centigrade |
24 | Relative Humidity | 30% - 75% |
25 | Packing Size | 6500X2100X2300mm |
26 | N.W. | 8000KG |
27 | G.W. | 8300KG |
28 | Optional Parts | Dust Collector/ Dust Hoods for three Axis |
Vacuum Pump | ||
Rotary System | ||
Mist-cooling System | ||
Delta/ Panasonic Servo Motors | ||
Colombo Spindle/Hitec | ||
TPA/OSAI control |

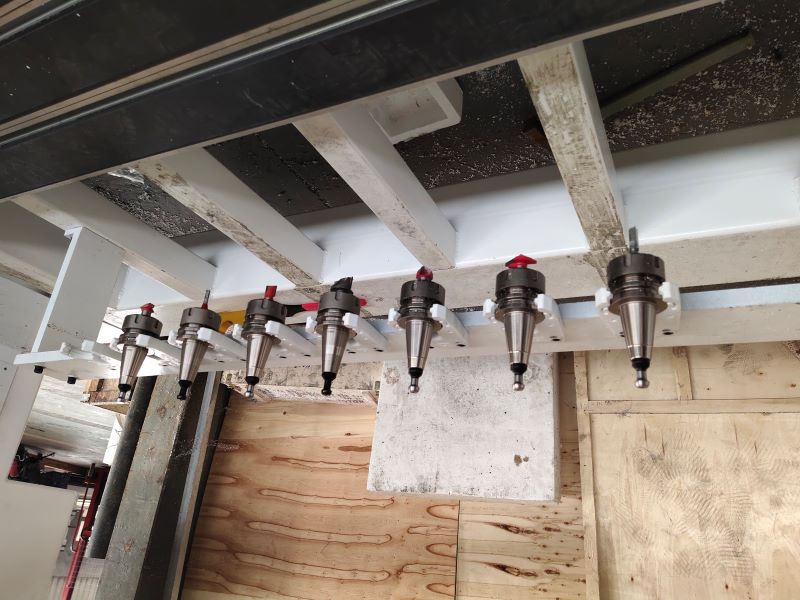

ATC tools ISO 30 piece

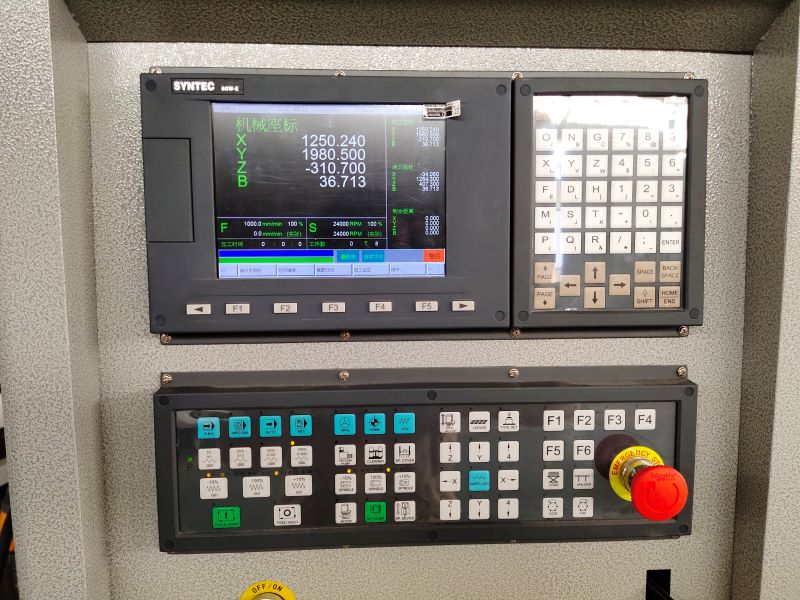

Syntec 60WE control with Handwheel

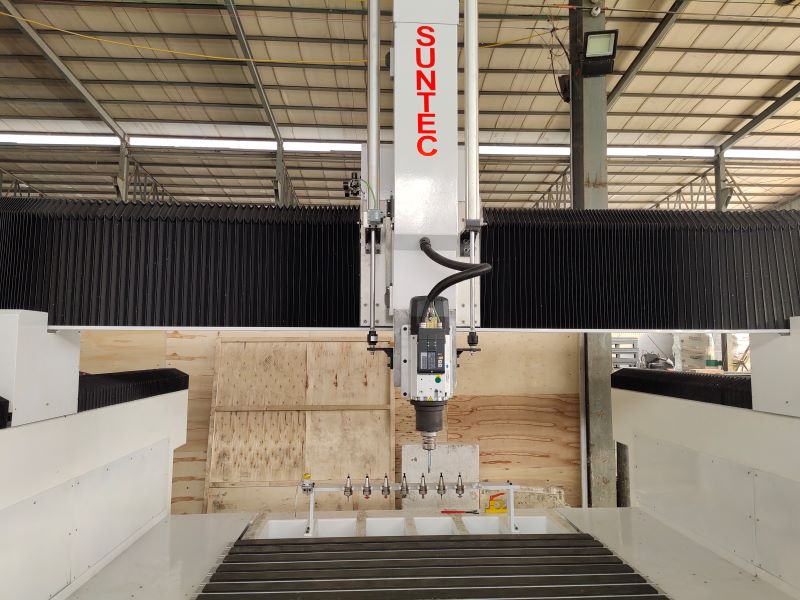

9kw italy HSD spindle 24000 rpm iso 30

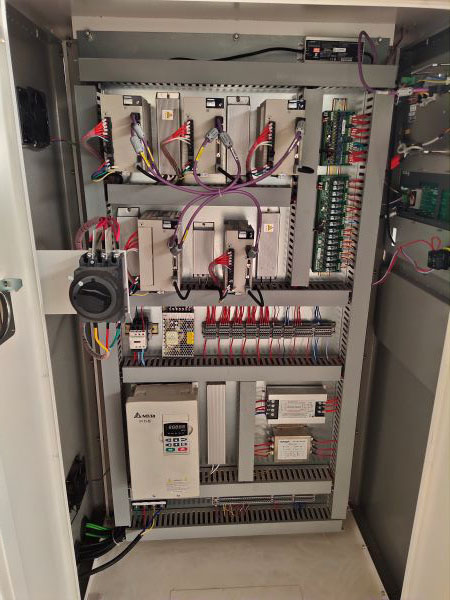

Japan yaskawa driver absolutely driver which by control no need pulse transfer . so it fast speed can high precision

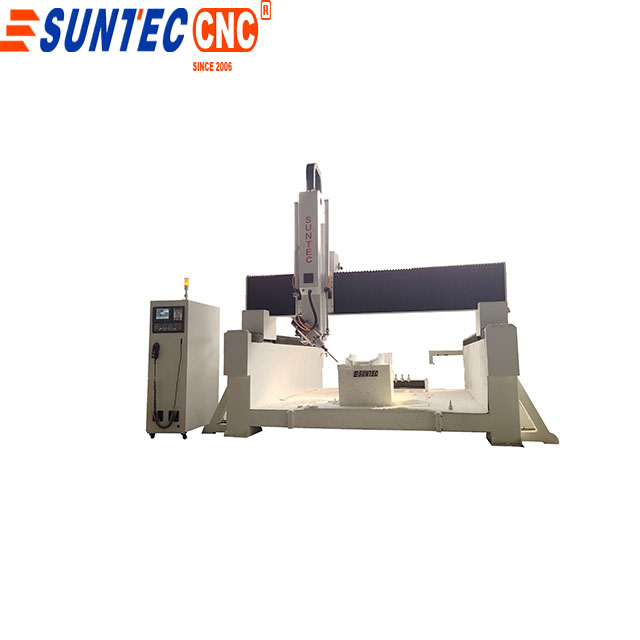

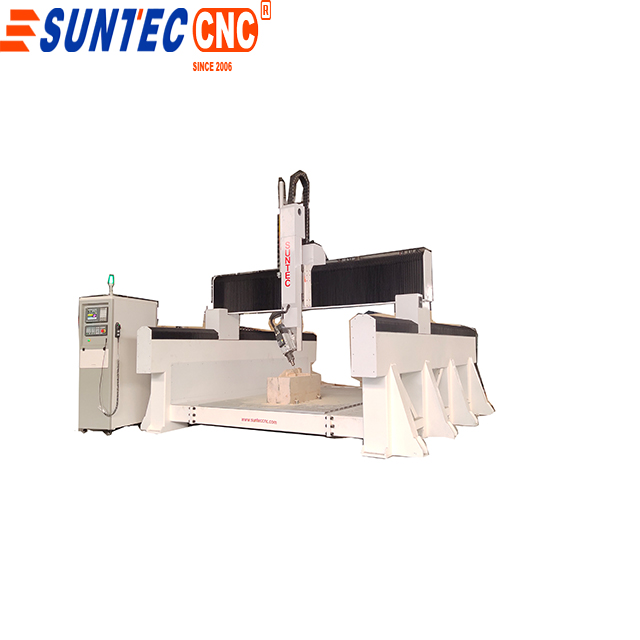

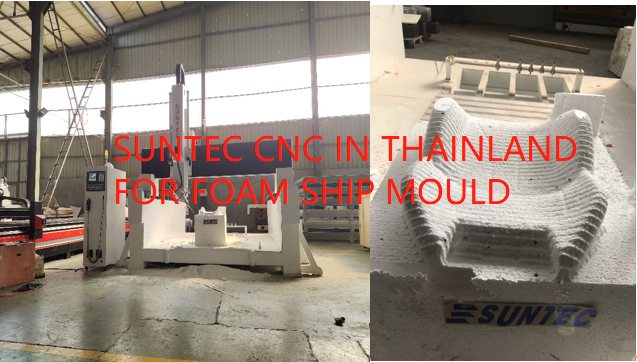

3d foam cnc milling 180 degree rotary cnc router working 1300*2500*1000mm with rotary for 3d people figure making with powermill sofware making program then rough miling then fine milling .
Bt 40 spindle working 1500*3000*1000mm for wood pattern making

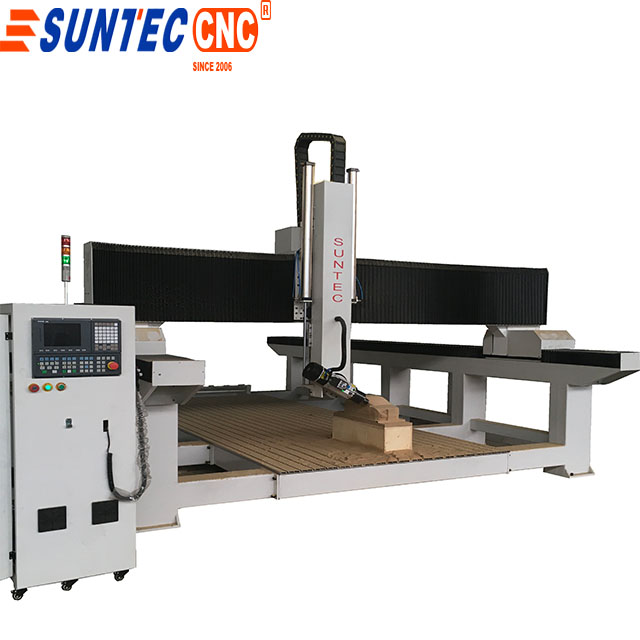

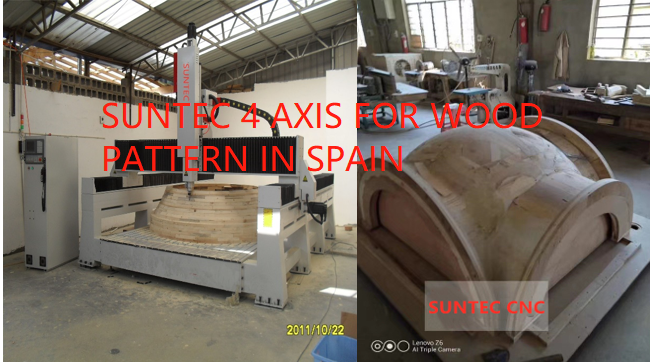

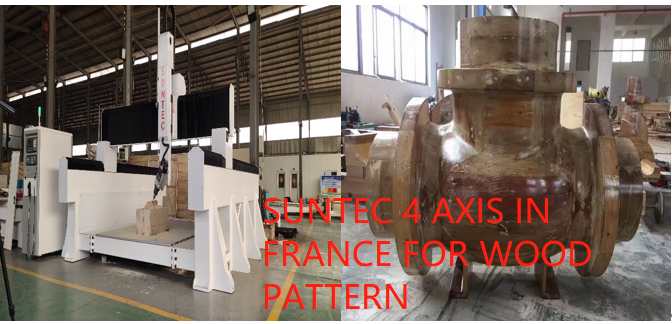

wood pattern making suntec ST2030 for france customer this need 200mm blade to rough milling then use fine cutter to engrave part by part

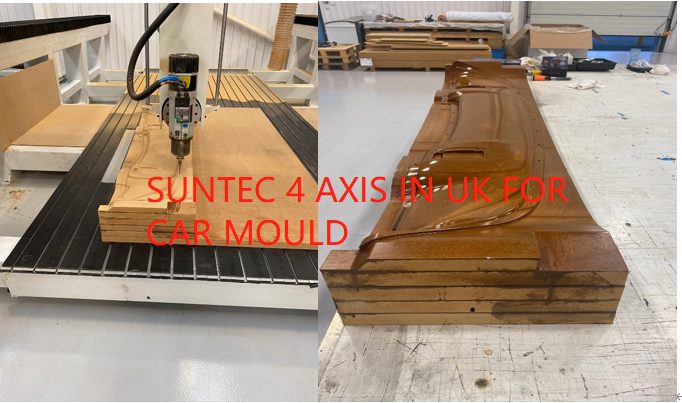

Uk customer 3d car mold making st2050 customer use solidworks making file then use 4 axis cnc machine milling race carparts .
