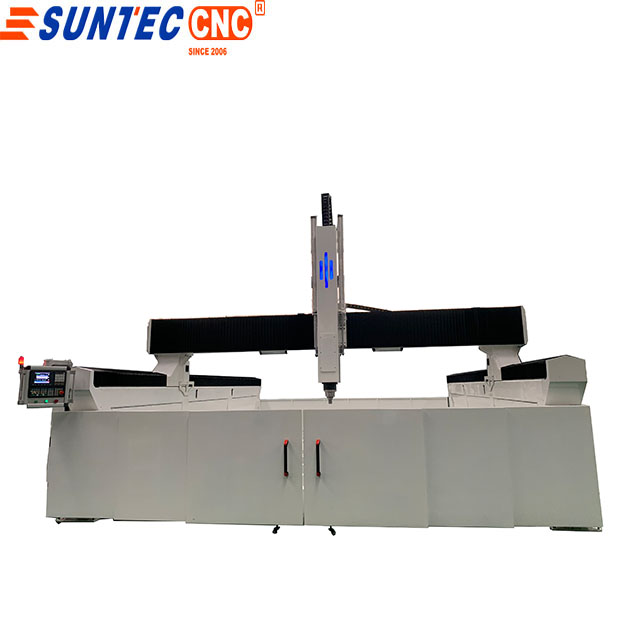

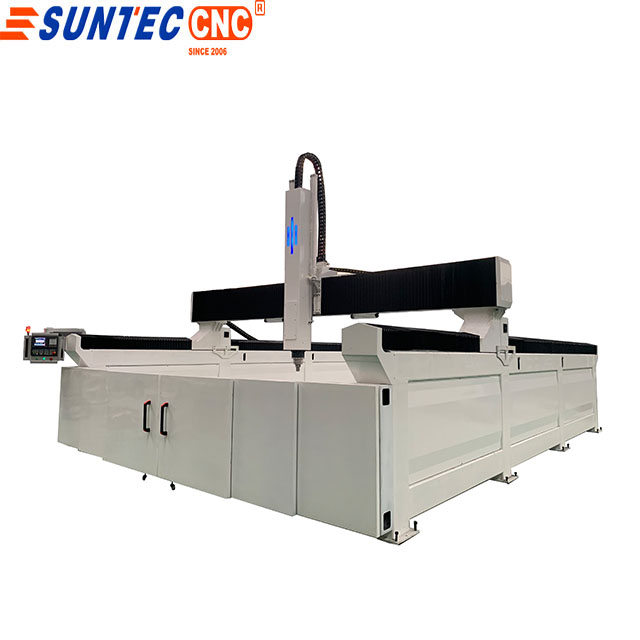

Customized SUNTEC ST-2535 hard wood 3d mold making BT40 spindle cnc router
Number | Description | Parameter |
1 | X,Y,Z Working Area | 2000x3000x1000mm |
2 | Table Size | 3500×6800mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.01/1000mm |
4 | X,Y,Z Repositioning Accuracy: | ±0.01mm |
5 | Table Surface | Vacuum and T-slot Combined (Option: T-slot Table) |
6 | Frame | Big Steel Tube Structure |
7 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
8 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
9 | Max. Power Consumption | (Without Spindle) 4 Kw |
10 | Max. Rapid Travel Rate | 40000mm/min |
11 | Max. Working Speed | 30000mm/min |
12 | Spindle Power | BT40 spindle |
13 | Spindle Speed | 0-24000RPM |
14 | Drive Motors | 1800 absolutely syntec servo |
15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
16 | Command Language | G Code |

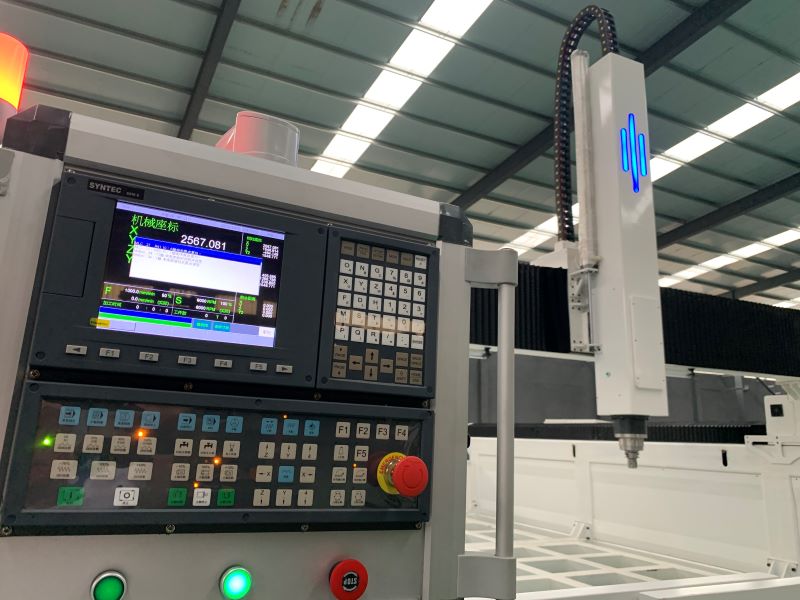

17 | Operating System | Syntec Control System/osai |
18 | Computer Interface | USB |
19 | Flash Memory | 512M |
20 | Collet | BT40 |
21 | X,Y Resolution | <0.01mm |
22 | Software Compatibility | Type3/UcancameV9 software (Option: Artcam software) |
23 | Running Environment Temperature | 0 - 45 Centigrade |
24 | Relative Humidity | 30% - 75% |
25 | Packing Size | 3300X2100X2300mm |
26 | N.W. | 5000KG |
27 | G.W. | 6000KG |

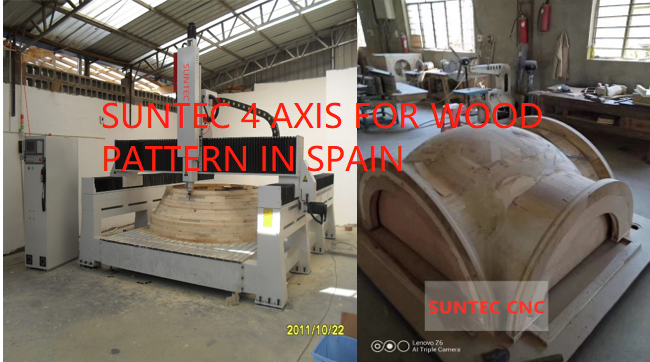

suntec 4 axis woodworking cnc router 3d mold in spain customer workshp since 2011
hard wood shape strong cast iron table 5.5kw water cooling spindle syntec controller no vibrating till now still work well .

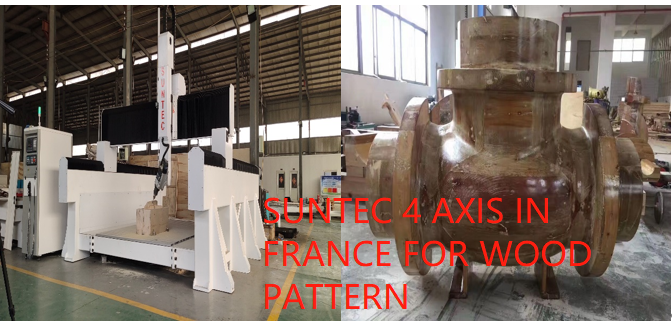

Suntec 4 axis 3d mold swing 180 degree rotary cnc router in france who make wood pattern we communicate with French he check all our machine details then buy it till now used still well hardwoodworking cnc router high precision with hsd spindle yaskawa driver 2M helical gear

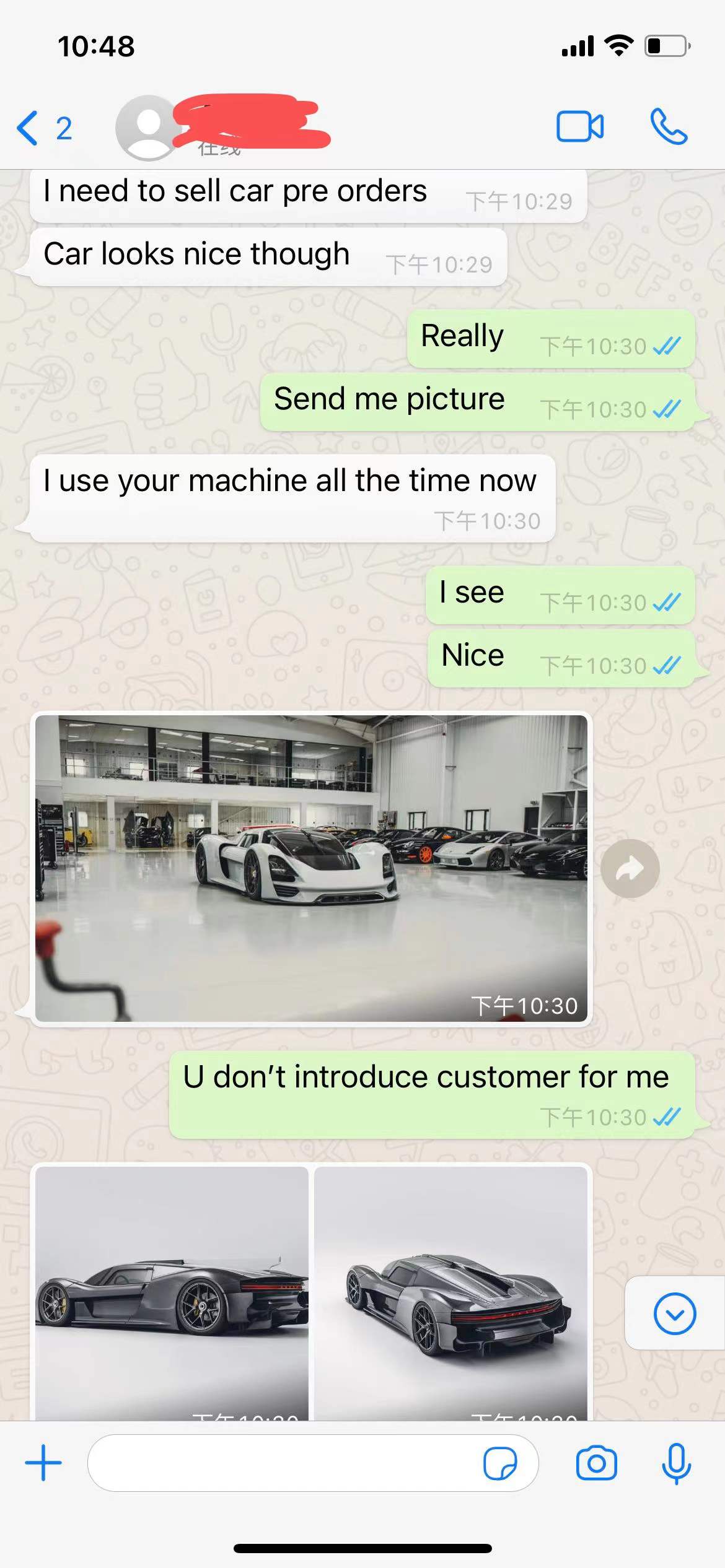

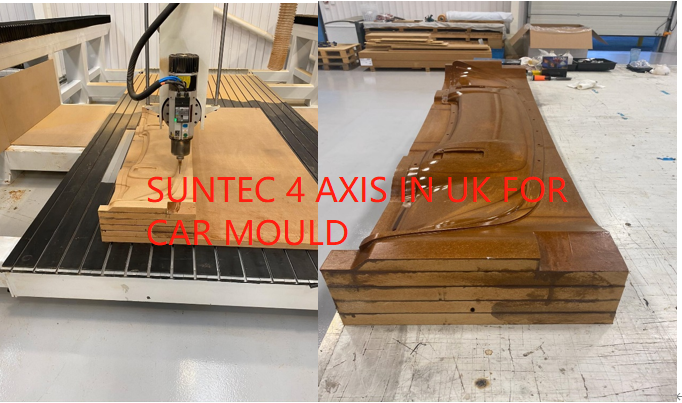

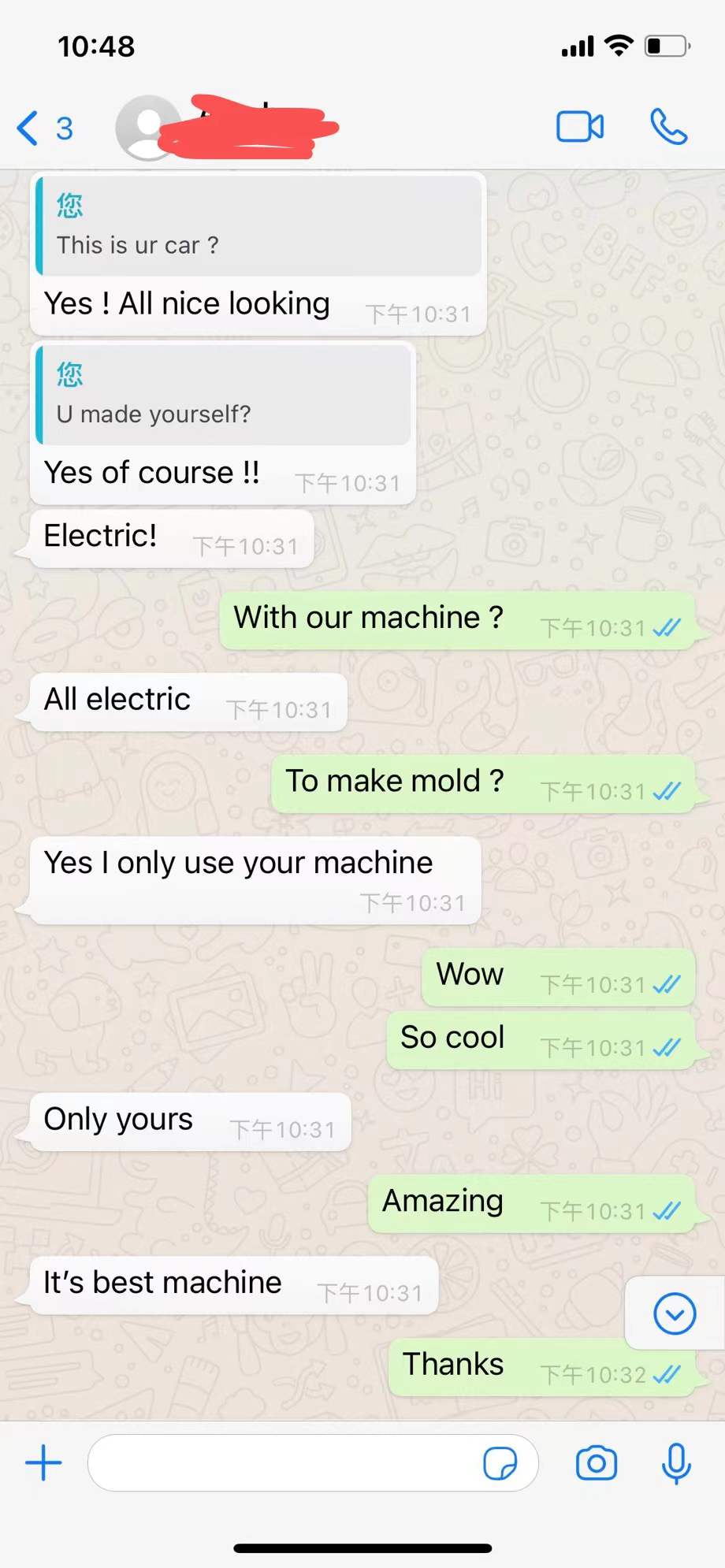

Suntec 4 axis cnc router ST-2030 in Uk customer workshop mainly for Racecar mold making .Who bought suntec 4 axis cnc router in 2009 .used soldworks software to make program file then transfer suntec syntec controller use 4 axis cnc router to make parts by parts who has successfully to make so many cool racecar and he build a special warehouse for suntec 4 axis cnc router swing 180 degree rotary woodworking machine . he also OEM some parts for other customers . make much profit for them .
Especially one day he forgot off power , spindle broken fired table . you can see there is aluminum on table .he repaired suntec cnc machine then coninue still working well . he also introduce more customer for us .
