4 Axis CNC Router

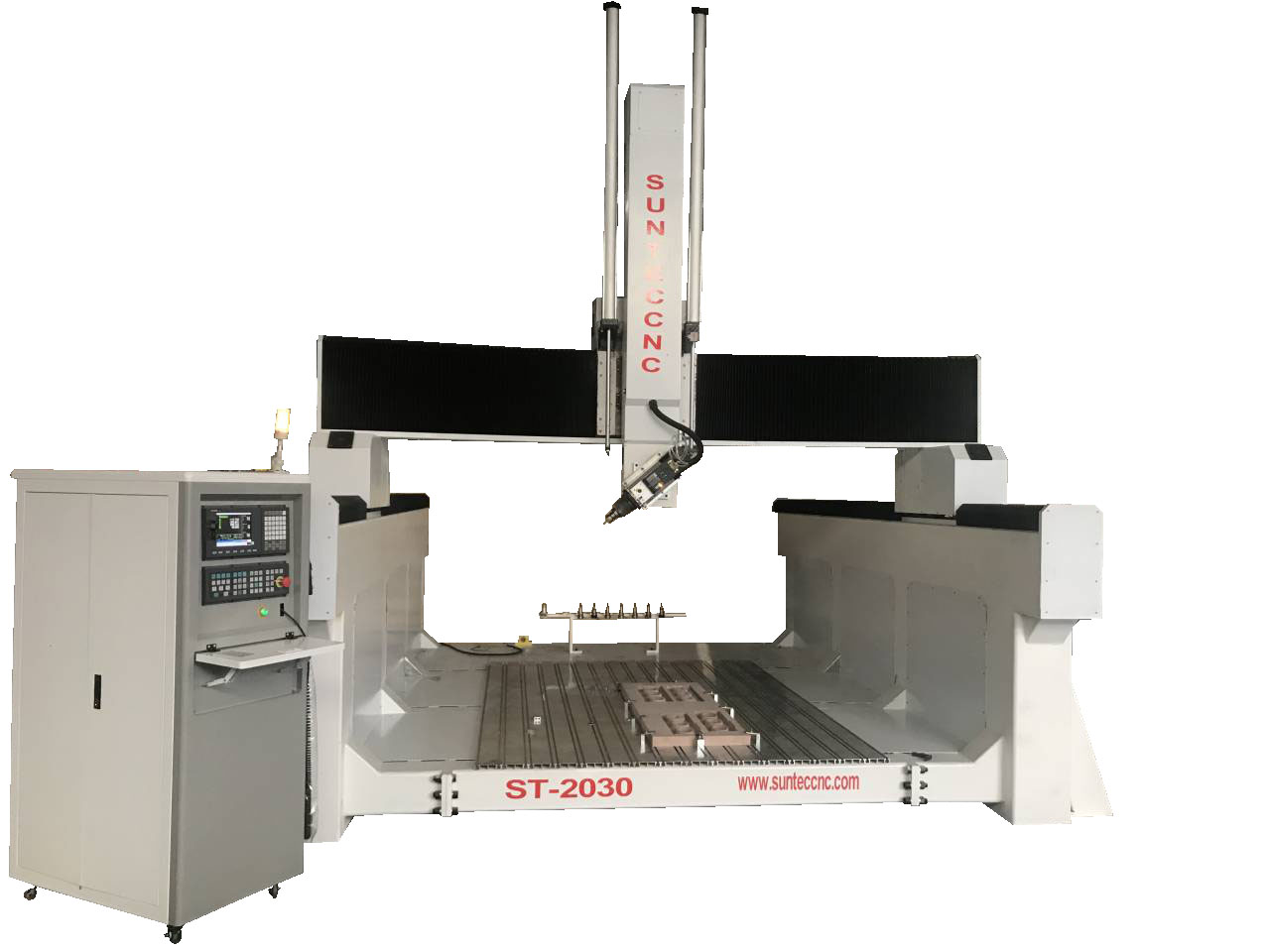

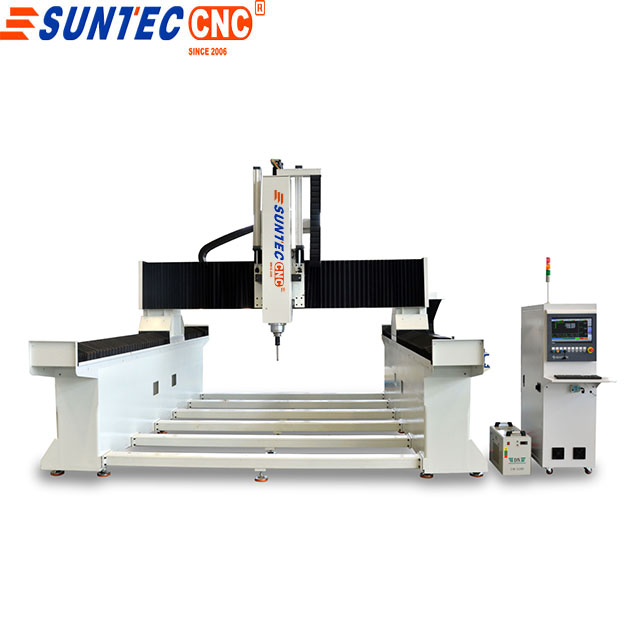

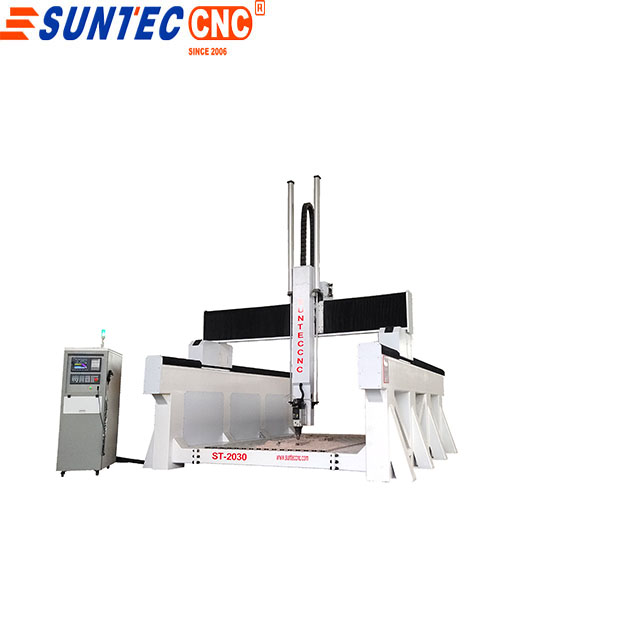

New engergy car wood mold making suntec 4 axis cnc router ST-2030

  • Model:ST-2030
  • Category : 4 Axis CNC Router
  • Working area: 2000*3000*1000mm
  • Standard price: 32000
  • Customized: Negoation
  • Payment Terms: T/T(Telegrahic Transfer), Master card, Visa, Paypal, West Union
  • Send Email WhatsApp WhatsApp

New engergy car wood mold making suntec 4 axis cnc router ST-2030


1. working 2000*3000*1000mm

2. Bt40 7.5KW water cooling mechanisam spindle ,which is powerful for wood pattern and alumiun mold .

   this spindle low speed high torque professional for hard material .so make sure high precision .

3. Heavy duty structure table with heat-treatment . no defomation using many years .

4. japan yaskawa absolutely driver and motor with shimpo reducer

5.syntec control


Number

Description

Parameter

1

X,Y,Z Working Area

1300x2500x1000mm/2000*5000*1000mm/2000*3000*1000mm or   customized size

2

Table Size

2350×3540mm*2000mm/3350*5350*2000mm/3500*4350*2000mm

3

X,Y,Z Traveling Positioning Accuracy

±0.01/1000mm

4

X,Y,Z Repositioning Accuracy:

±0.01mm

5

Table Surface

Vacuum and  T-slot Combined (Option: T-slot Table)

6

Frame

Big Steel Tube Structure

7

X, Y Structure

Rack and Pinion Drive, TaiwnPMI30 Rail Linear Bearings

8

Z Structure

Hiwin Rail Linear Bearings and Ball Screw

9

Max. Power Consumption

(Without Spindle)  9 Kw

10

Max. Rapid Travel Rate

80000mm/min

11

Max. Working Speed

60000mm/min

12

Spindle Power

Italy 9KW HSD /Hiteco ATC 8 piece

13

Spindle Speed

0-24000RPM

14

Drive Motors

1300W Yaskawa Motors

15

Working Voltage

AC380V/50/60Hz,3PH (Option: 220V))

16

Command Language

G Code

17

Operating System

Syntec 60-E  Control System

18

Computer Interface

USB

19

Flash Memory

512M

20

Collet

ISO 30

21

X,Y Resolution

<0.01mm

22

Software Compatibility

 powermill UG software

23

Running Environment  Temperature

0 - 45 Centigrade

24

Relative Humidity

30% - 75%

25

Packing Size

6500X2100X2300mm

26

N.W.

8000KG

27

G.W.

8300KG

28

Optional Parts

Dust Collector/ Dust Hoods for three Axis

Vacuum Pump

Rotary System

Mist-cooling System

Delta/ Panasonic Servo Motors

Colombo Spindle/Hitec

TPA/OSAI control

Productions details

4axis structure.png


suntec all the structure table welded square tube steel then heat -treat ment so suntec cnc machine can use many years no deformation .

Working sample


suntec ST-1325 in Thailand

ST-1325 cnc router 4 axis cnc 3d mold  making customer mainly for 3d figure people making with rotary spindle can swing 180 degree then mill surface right and left to make high precision .

ST-2050  4 axis cnc in UK

Uk customer mainly used suntec 4 axis making racecar mold using hard wood and carbon glass to make usingsolidworks software making program .

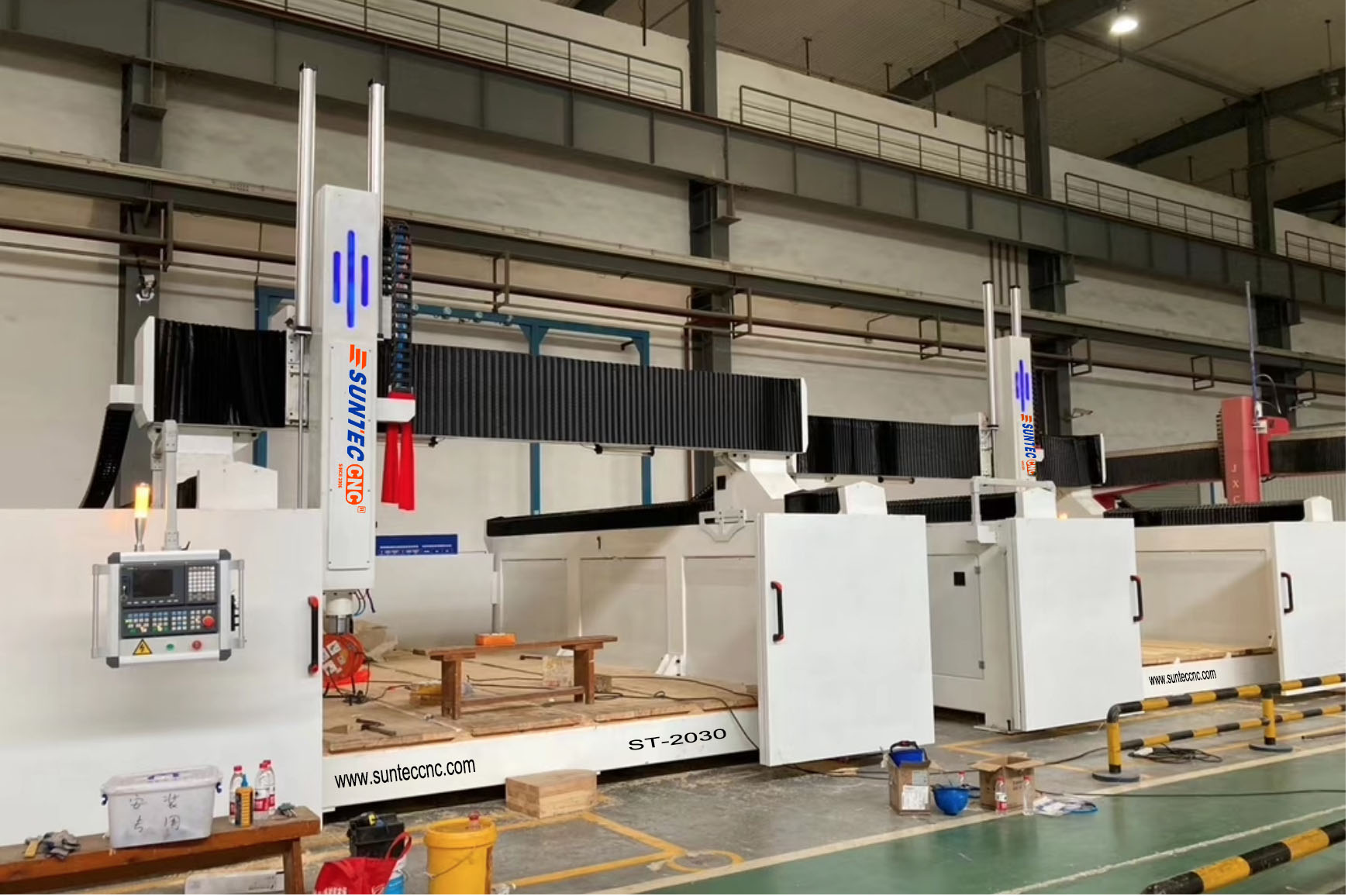

ST-2030 in france

ST-2030 4 axis cnc in france for hardwood pattern

suntec 4 axis in spain

ST-2030 in spain customer workshop who used sunteccnc more than 10 years . mainly for hard wood mold making precision can be 0.05-0.1mm .highpowerful spindle with absolutely driver and motor no need everytime home origin  when working .improve working effiency saving labor cost .


ST-2030 two sets in USA customer workshop .

Suntec cnc mainly for wood mold cnc we can according your requirements to do different kinds of cnc , we will give you solutions plan to satisfired you requirements .
