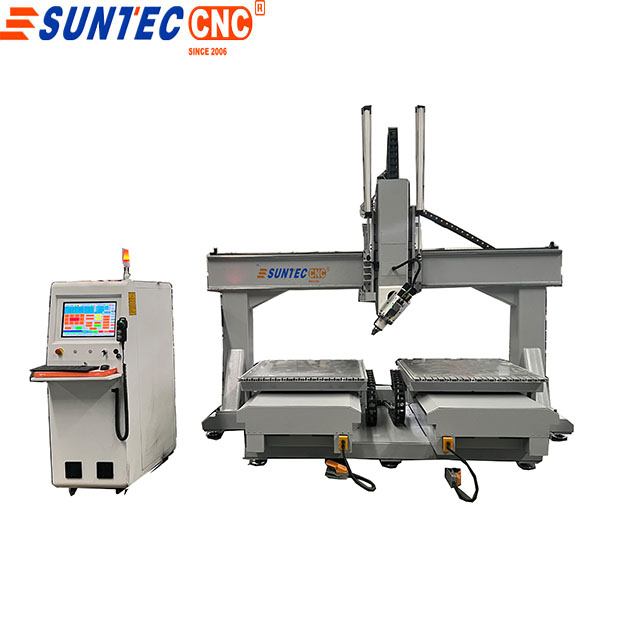

suntec 4 axis cnc solid wood columns staircase making cnc router

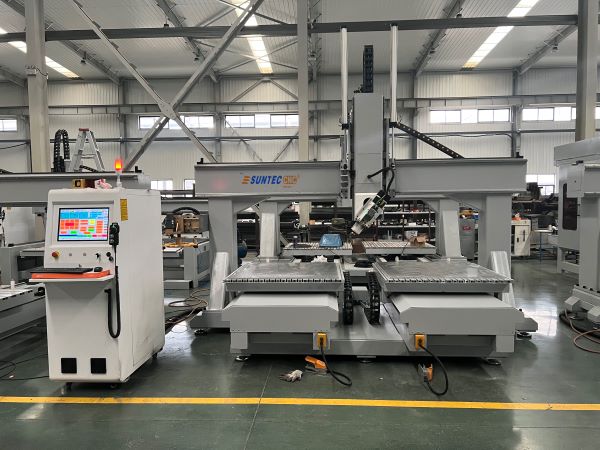

suntec 4 axis cnc in workshop

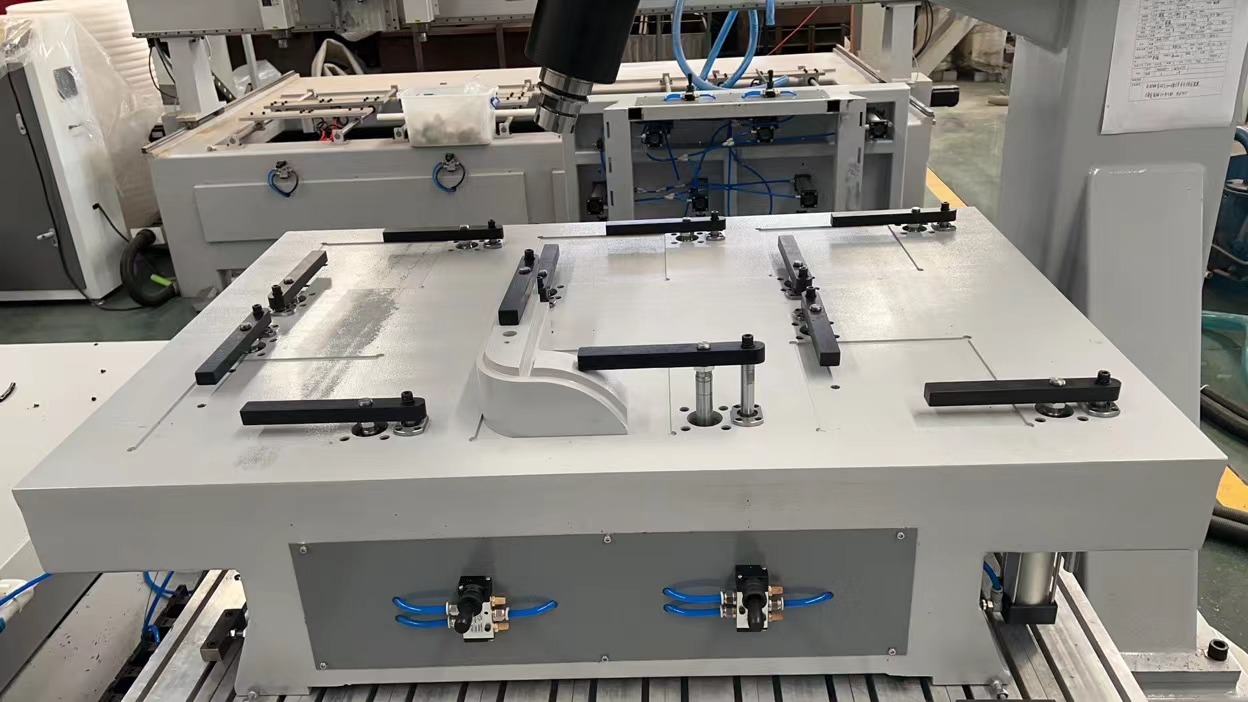

customized suntec fixture for solid wood columns staircase fixed which can movable , when you make staircase you can put on tablt , if you dont need it you can take it away .

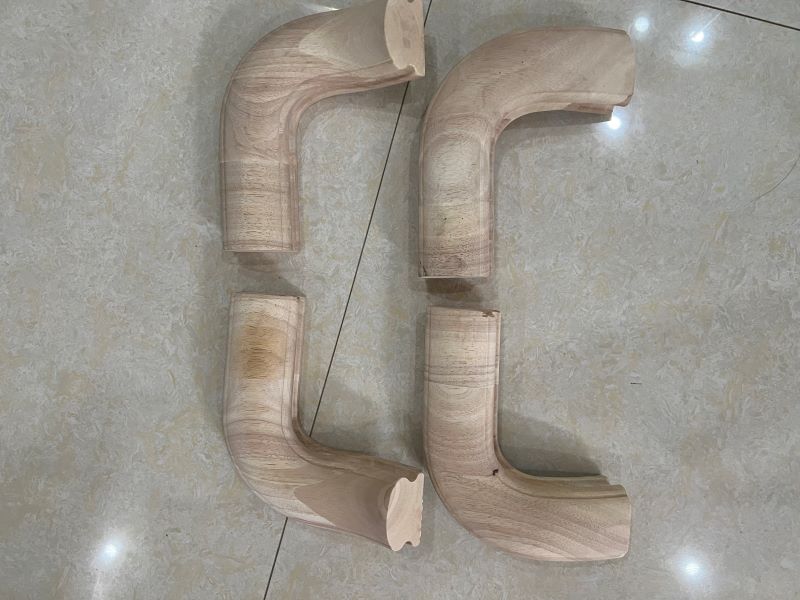

suntec 4 axis making columns staircase sample
1.suntec cnc can provide professional solutions for your chairs columns staircase solidwood 3d wood mold stryrofoam mold such as plane car etc
2.all size according your requirments to customized .
3. fixture according your wood shape to choose
Number | Description | Parameter |
1 | X,Y,Z Working Area | 1200x1200x600mm/2000*5000*1000mm/2000*3000*1000mm or customized size |
2 | Table Size | 2350×3540mm*2000mm/3350*5350*2000mm/3500*4350*2000mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.01/600mm |
4 | X,Y,Z Repositioning Accuracy: | ±0.01mm |
5 | Table Surface | Vacuum and T-slot Combined (Option: T-slot Table) |
6 | Frame | Big Steel Tube Structure |
7 | X, Y Structure | Rack and Pinion Drive, TaiwnPMI30 Rail Linear Bearings |
8 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
9 | Max. Power Consumption | (Without Spindle) 9 Kw |
10 | Max. Rapid Travel Rate | 80000mm/min |
11 | Max. Working Speed | 60000mm/min |
12 | Spindle Power | Italy 9KW HSD /Hiteco ATC 8 piece |
13 | Spindle Speed | 0-24000RPM |
14 | Drive Motors | 1300W Yaskawa Motors |
15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
16 | Command Language | G Code |
17 | Operating System | Syntec 60-E Control System |
18 | Computer Interface | USB |
19 | Flash Memory | 512M |
20 | Collet | ISO 30 |
21 | X,Y Resolution | <0.01mm |
22 | Software Compatibility | powermill UG software |
23 | Running Environment Temperature | 0 - 45 Centigrade |
24 | Relative Humidity | 30% - 75% |
25 | Packing Size | 6500X2100X2300mm |
26 | N.W. | 8000KG |
27 | G.W. | 8300KG |
28 | Optional Parts | Dust Collector/ Dust Hoods for three Axis |
Vacuum Pump | ||
Rotary System | ||
Mist-cooling System | ||
Delta/ Panasonic Servo Motors | ||
Colombo Spindle/Hitec | ||
TPA/OSAI control |
