Wooden patterns foam casting patterns Aluminium pattern Composite material patterns 3d mold making 5 axis cnc router ST2050

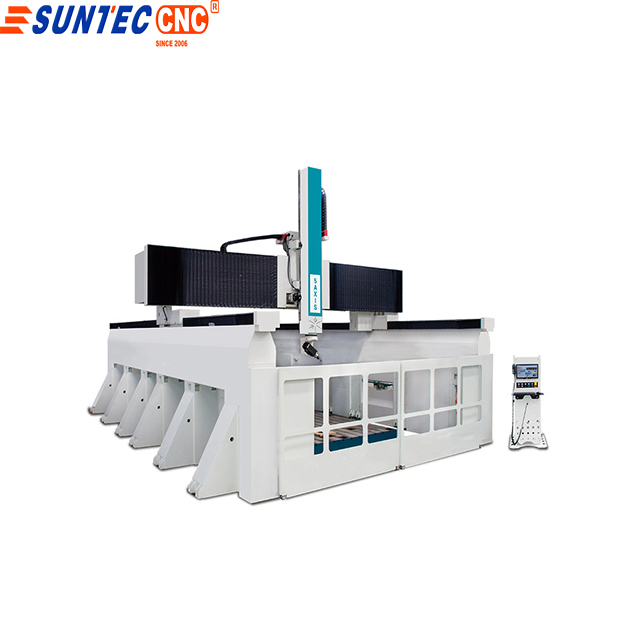

 wood foam mould making 5 axis cnc router

1. The spindle can rotate A +-110 ,C 220 +- degree can make multi-kinds of surface which we can design with Software such as powermill , UG etc
2. We use top quality components for the machines, like HSD, Hiteco ,saccardo spindle, Syntec EZ-21MA ,OSAI ,TPA  control system , Delta Inverter,Yaskawa absolutely servo motors, and separate control box, Hiwin linear and so on, to keep the machine in best condition even after many years working.
3. With hard steel structure, it is fit for hard wood working, like cutting and engraving on Rosewood for furniture, indoor decoration. And with the Vacuum holding way and dust collector, the machine is qualified for mass- producing of furniture.
4. This machine all model heat -treatment . the cast iron bed weight 35t . the total machine weight 65t . so no vibrating whenworking .
5. Working size can customized 2000*5000*1000mm or 3500*6500mm or according your requirments
6.. working table and structure according your material , Foam wood aluminum etc
7. MPG XYZAC Hand Wheel for easy origin and work piece setting.
8. Tool setting device.
9. One starter set woodworking tools.
10. 3 x collets, choice from 1-20mm (imperial available if preferred).wood foam mould making 5 axis cnc router
11. Inverter: Taiwanese Delta Inverter 0-22000rpm control.
12. France Schneider Electronic Spare parts.
13. Japanese OMRON limit switches.
14. Voltage: 3PH 415V 50HZ. or 440v with transformer stablitier

15. RTCP function (Rotation Tool Center Point)

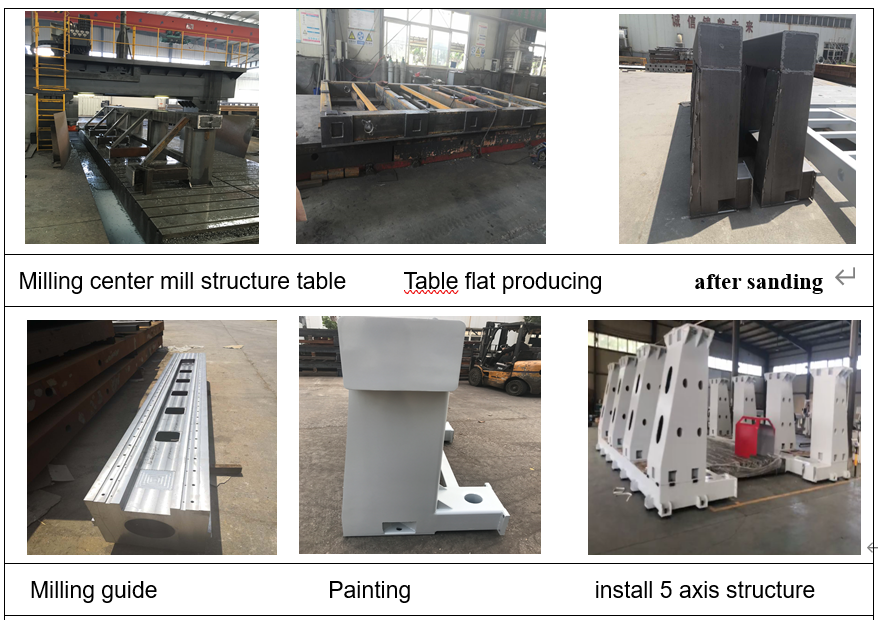

Production details

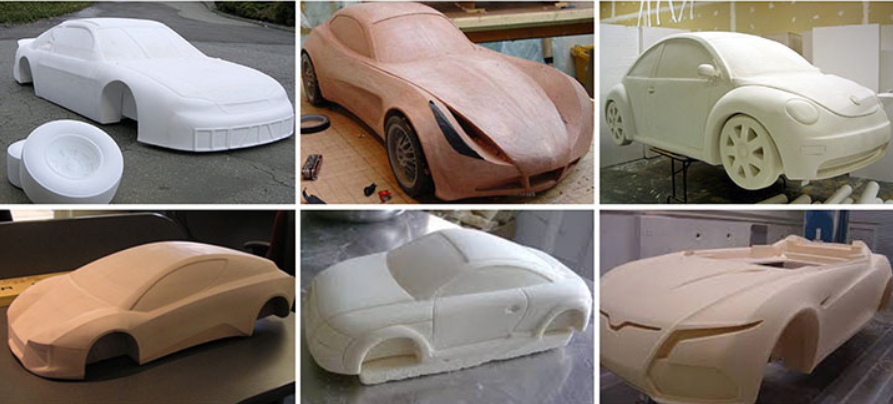

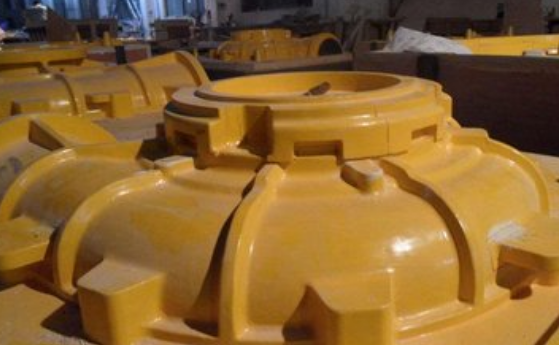

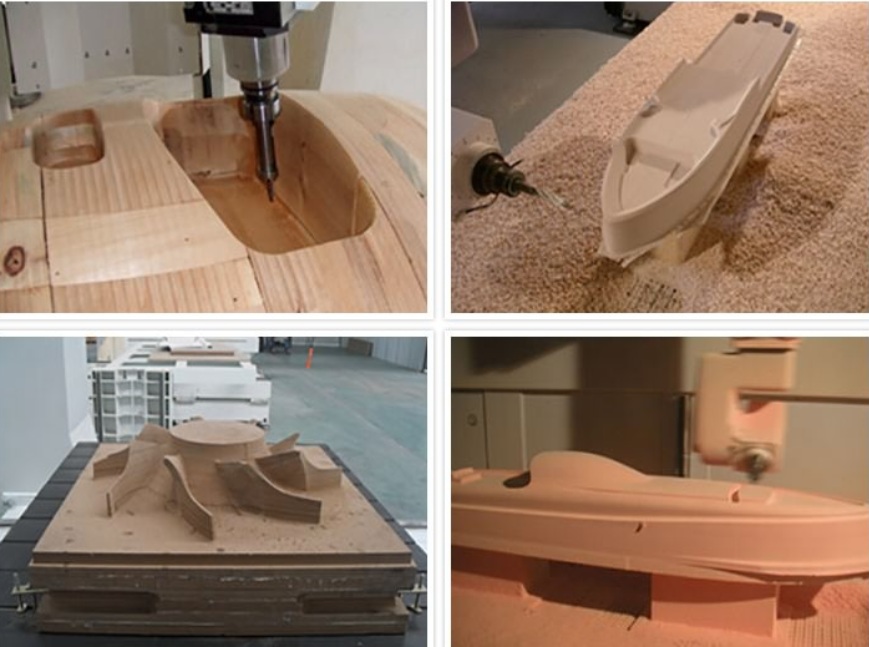

sample picture
