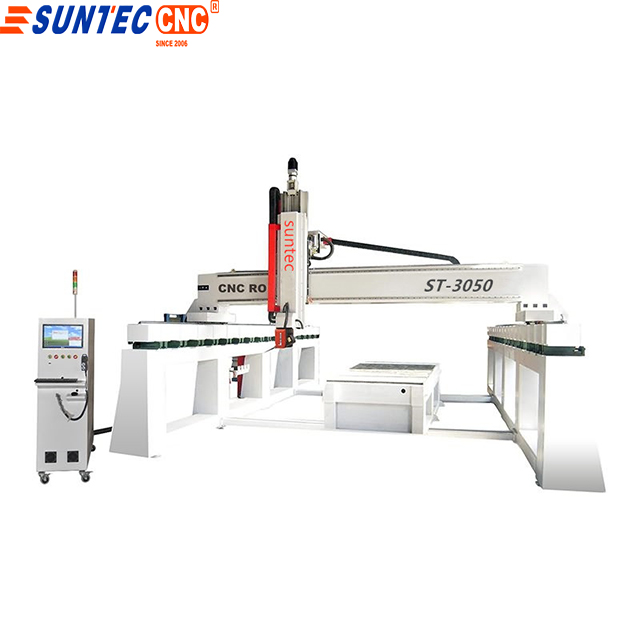

large industry wood foam ship boat plane car making 5 axis cnc router ST3050

5 axis cnc router large  industry wood foam  ship boat plane car  making 5 axis cnc router ST3050

5 axis cnc router

1. The spindle can rotate A +-110 ,C 320 +- degree can make multi-kinds of surface which we can design with Software.

2. We use top quality components for the machines, like HSD ,Hitec Saccardo spindle , Syntec 610 -5 axis  osai TPA control , Delta Inverter,Yaskawa absolutely  servo motors, and separate control box, Hiwin linear and so on, to keep the machine in best condition even after many years working.
3. With hard steel structure, is fit for hard wood working, like cutting and engraving on Rosewood for furniture, indoordecoration. And with the Vacuum holding way and dust collector, the machine is qualified for mass- producing of furniture.
4. this machine all model heat -treatment . the cast iron bed weight 35t . the total machine weight 65t . so no vibrating whenworking .
5. working size can customized 5000*5000*2000mm or 5000*65000mm or according your requirments
6.. working table and structure according your material , Foam wood aluminum etc
7. MPG XYZAC Hand Wheel for easy origin and work piece setting.
8. Tool setting device.
9. One starter set woodworking tools.
10. 3 x collets, choice from 1-20mm (imperial available if preferred).
11. Inverter: Taiwanese Delta Inverter 0-22000rpm control.
12. German Schneider Electronic Spare parts.
13. Japanese OMRON limit switches.
14. Voltage: 3PH 415V 50HZ.with transformer

15.RTCP function

16. Powermill .UG

Application

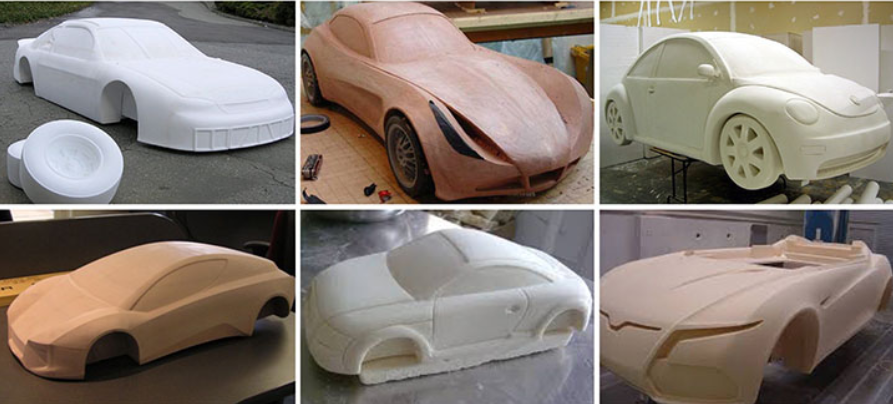

 1.Automobile Related -  vehicle models, interior assemblies, parts molds  patterns.

 2. Aviation Related - Parts molds / patterns, Propellers, Turbine Blades.

3. Composite Materials - Vacuum forming, Fiberglass parts, Rubber components.

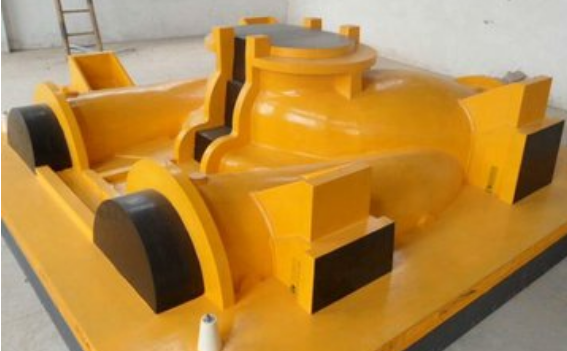

 4. Foundry - Wooden patterns, foam casting patterns,Alumnium pattern , Composite material patterns.

5. Furniture Manufacturers - Mortise and tenon, Solid wood curved surfaces, Hand rail elbow.

6. Maritime Related - Parts molds / patterns, Turbine Blades.

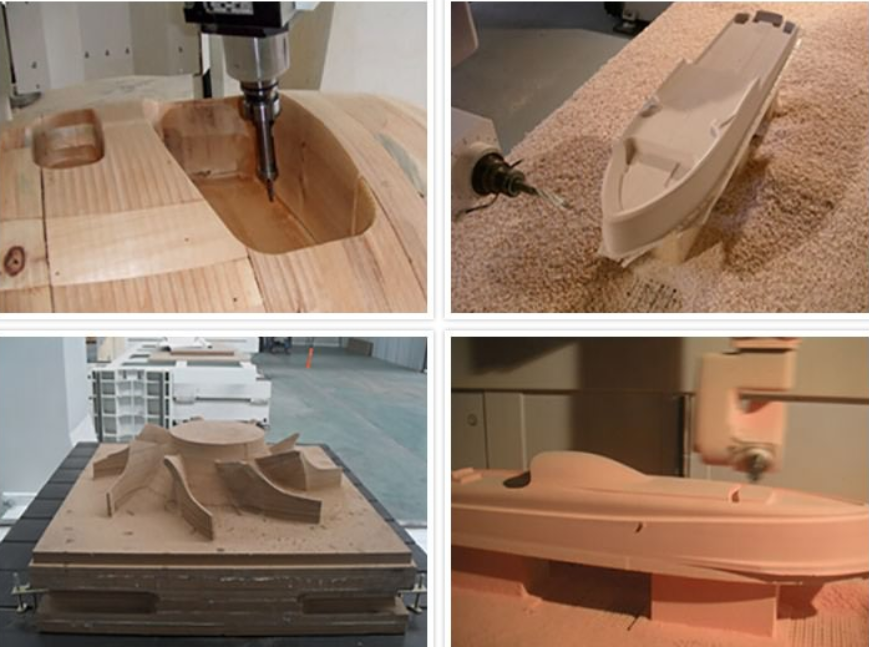

7. Modeling Related - Any kind of 3D shapes, Real estate Models.

8. Sculpture Scene Making Related - Theme park decorations, Movie props, Humanoid sculptures.
