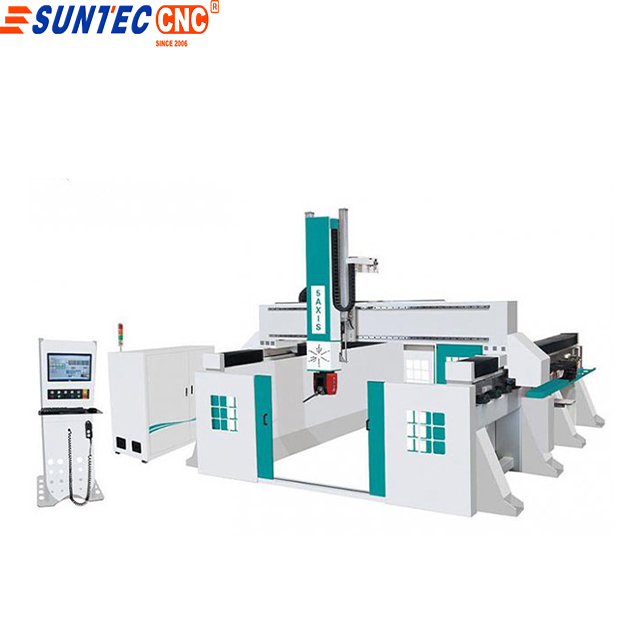

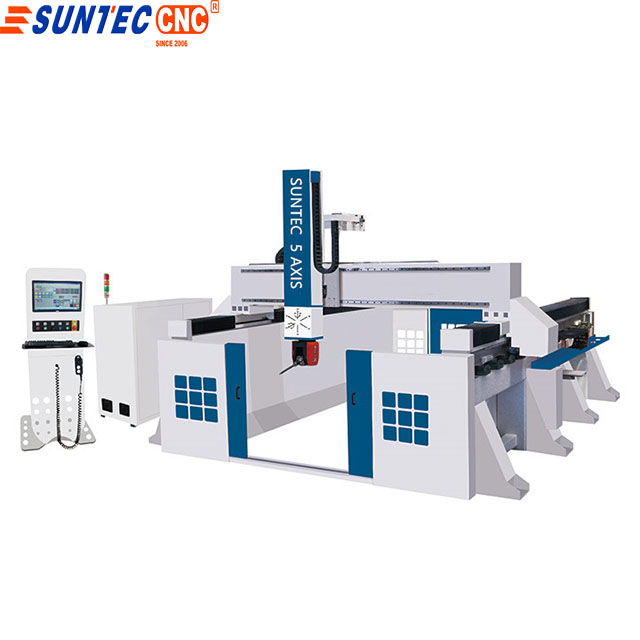

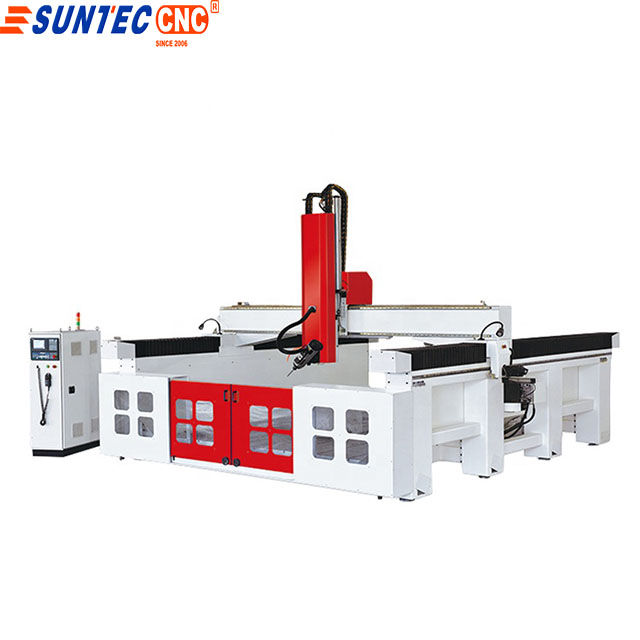

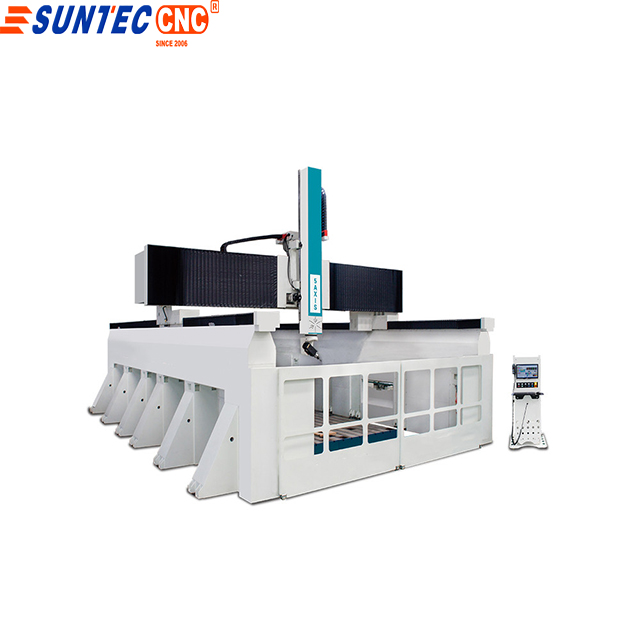

jinan factory GPG GRC 3D MOULD MAKING ATC 5 AXIS CNC ROUTER

Product

Single table CNC 5 axis Center

Function

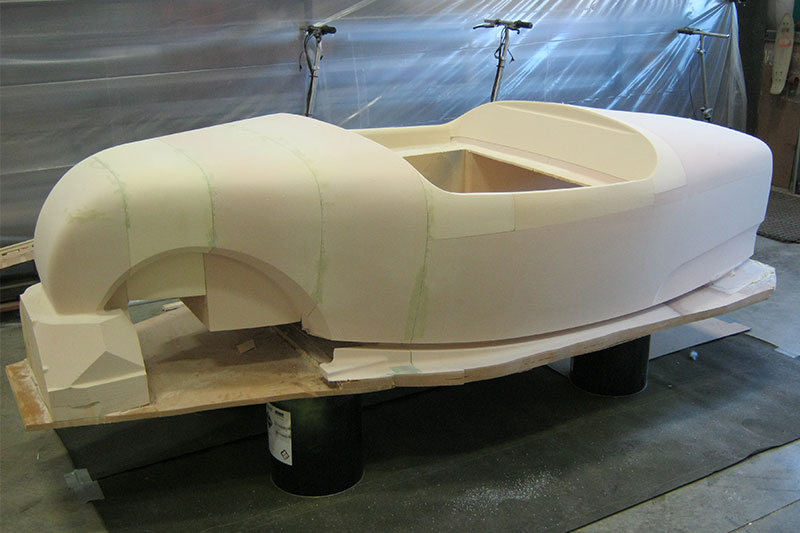

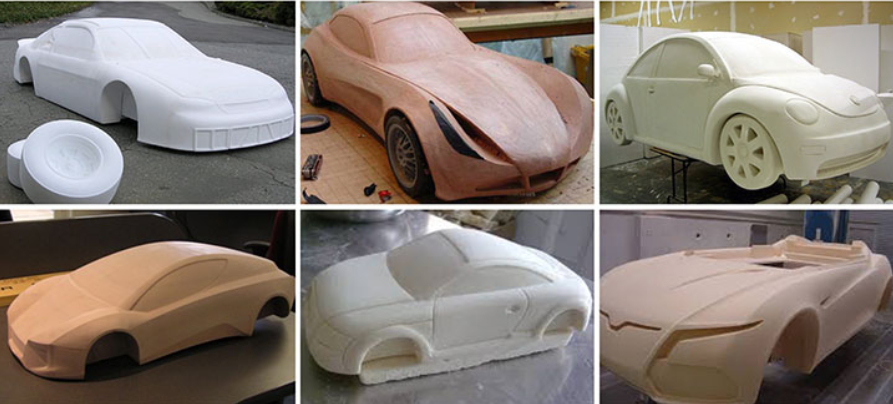

All kinds of planks, stone, artificial stone, light   metal, polyurethane, glass fiber and so on for grooving, chamfering, milling   type, hook groove and other multi-process multi-angle high-precision,   efficient processing.

Control axis name

The left and right directions of the spindle part move   (that is, the transverse stroke). Move in the right direction to X +

The front and back directions of the table Move   (longitudinal stroke). Move in front direction to Y+

The upper and down direction of the spindle part moves   (vertically) in upper direction is Z+

Control axis home position

X-axis: Spindle Center on the left side of the   machining table

Y axis: The back position of the spindle center on the   machining table

Control axis travel

X axis working travel

2600mm

Y axis working traveL

17000mm

Z axis working travel

200-320mm

A axis

±120°

C axis

±320°

Working table size

2.7m*6m or customized size

X, Y axis transmission way

Taiwan granding gear, x axis double Yaskawa serovo   motor

Z axis transmission way

High precision ballscrew(imported), axis 30 orbit.

 Height from table to earth

780mm

Load weight of working table

3000KGS

 height from beam to table

≥300mm

Speed

No-load running speed

35-40m/min

Cutting speed

2-4m/min, 6mm thick sheet cutting at one time

Thickness of Aluminuim sheet

3-20mm

Table structure

Vacuum table

Vacuum zone

10-12 zone

Gantry

Whole steel structure,processed with high precision CNC   machining, make sure 20 years no change

Orbit

Y,Z axis adopt M35 linear orbit(imported)

Drag chain and wire

Flexible cables (imported)

Spindle

model

Italy HSD-16HP air cooling electronic spindle/Hitec spindle

5 axis head

Imported DMS 5 axis head

Rotating speed of spindle

4000-24000RPM

Cooling way

Air cooling

Tool magzine

8 Knife Disc Change knife

Align and changing tool

Imported automatic tool alignment device, with   automatic tool change function

Precision

Accuracy of feeding

±0.05mm/10m

Repeated positioning accuracy

±0.1mm

Control system

Type

syntec 5 axis control system /osai/tpa for optional

 Suggest air flash arrange

3000-6000m³/h

 Electronic system

Including control cabinet IP55, inverter, touch screen,   PLC control system, all electrical components are Schneider, inverter Siemens   or the same grade above products

Other

1. Tool spray Cooling Device Set

2. Compressed air with cold dryer

3. Dry Vacuum pump 6 sets, with soundproof room, with   control cabinets, and ensure ventilation, indoor temperature is not higher   than normal temperature.

4. Chip removal system, spindle head vacuum cover belt   internal aluminum chip suction Follow-up system, aluminum chip can be   automatically collected, sealed belt with the device, water tower type dust   protection system, aluminum chip collection rate of 99.5%

5. Photoelectric safety protective device before and   after belt

6. 3D handheld controller (imported)

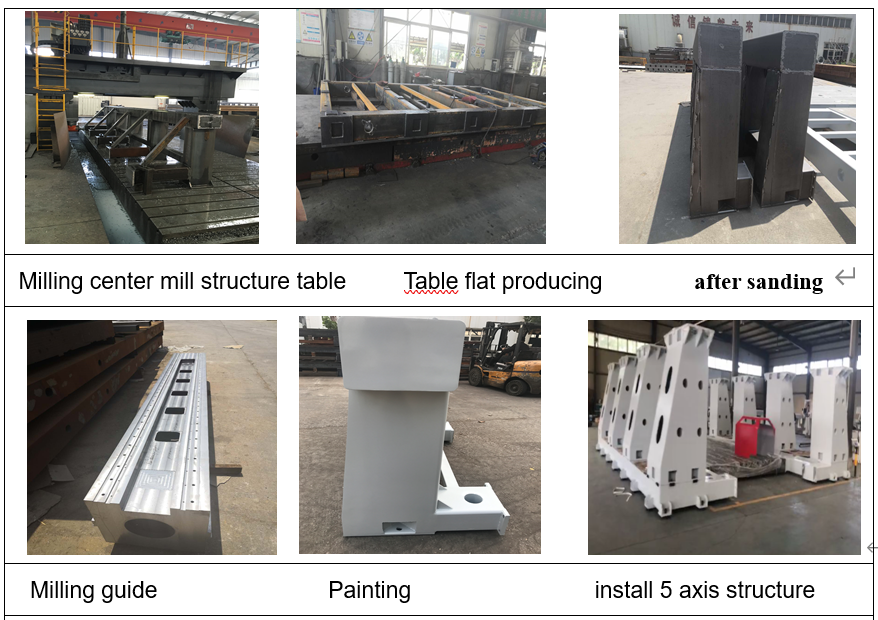

Machine structure and NC specification

Machine tool bed, column, Workbench base and so on are   the use of high-quality steel casting, and the use of advanced heat treatment   technology and precision processing and manufacturing process, high-precision   five-sided machining center machine high-precision processing, to ensure that   the machine has lasting stability, accuracy and high strength, static and   dynamic rigidity, and has a good damping, Thermal stability and impact   resistance. CNC system using Man, menu selection and background editing, rich   programming functions, easy to learn, large memory capacity, complete   diagnostic functions, alarm information display, easy maintenance, with pitch   compensation, tool compensation function, but also according to customer   requirements to replace other brand CNC system.

Quality Guarantee

The guide rail of the machine tool adopts Taiwan brand   high dust-proof high mute guide rail and Taiwan ball screw, all servo motor   motors are Japanese Anchuan brand, all electrical appliances are used by the   world famous brand Schneider, France.

Power

Mode

3phase  380V,50/60Hz

Whole power

About 22kw

Delivery time

80-90 working days after receipt of deposit prepayment   after contract signing

The machine has advanced structure, reasonable layout,   simple operation and easy maintenance, smooth appearance, smooth and elegant
