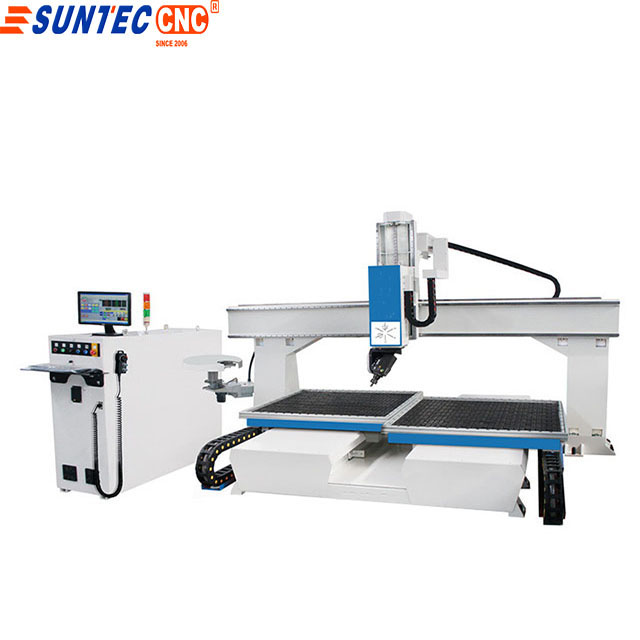

Double table movable chair 3d mould making 5 axis cnc router

Double table movable chair 3d mould making 5 axis cnc router

1. The spindle can rotate A +-110 ,C 220 +- degree can make multi-kinds of surface which we can design with Software.

2. We use top quality components for the machines, like HSD spindle, Syntec EZ-21MA control system osai TPA, Delta Inverter,
Yaskawa servo motors, and separate control box, Hiwin linear and so on, to keep the machine in best condition even after manyyears working.
3. With hard steel structure, is fit for hard wood working, like cutting and engraving on Rosewood for furniture, indoor
decoration. And with the Vacuum holding way and dust collector, the machine is qualified for mass- producing of furniture.
4. this machine movable table which can do two piece at same time
5. working size can customized1200*1200*600mm or according your requirments
6.. working table and structure according your material , Foam wood aluminum etc
7. MPG XYZAC Hand Wheel for easy origin and work piece setting.
8. Tool setting device.
9. One starter set woodworking tools.
10. 3 x collets, choice from 1-20mm (imperial available if preferred).
11. Inverter: Taiwanese Delta Inverter 0-22000rpm control.
12. German Schneider Electronic Spare parts.
13. Japanese OMRON limit switches.
14. Voltage: 3PH 415V 50HZ.with transformer

15.RTCP function
