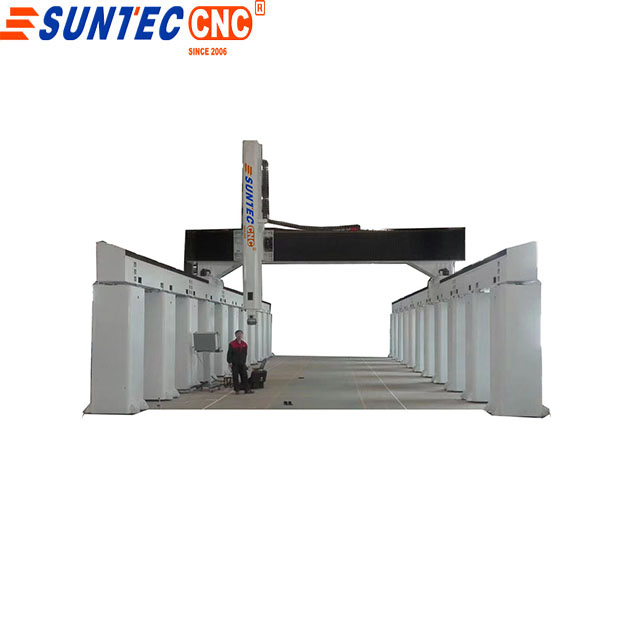

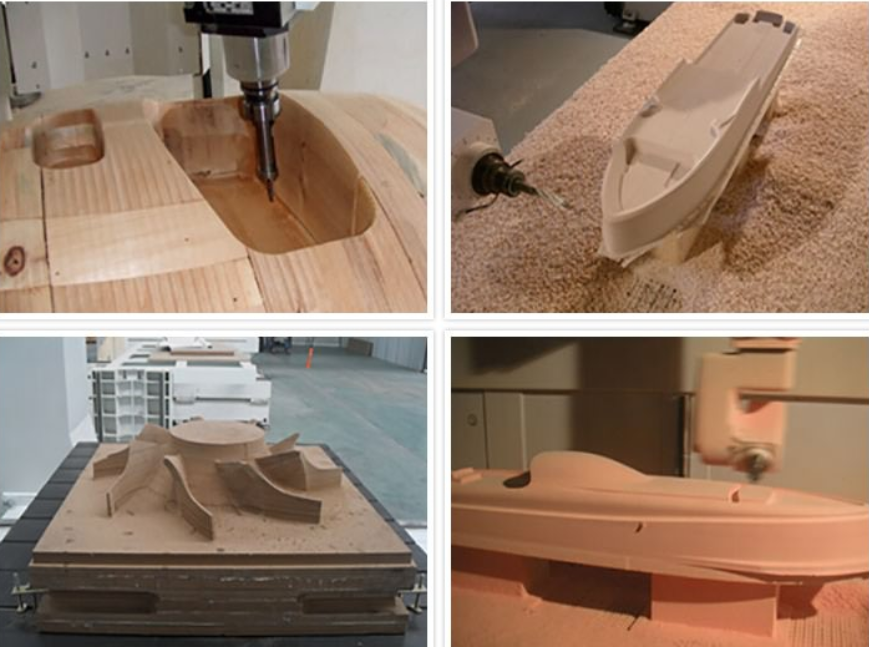

Customized Suntec 30M length yacht boat 3d mold making 5 axis cnc router

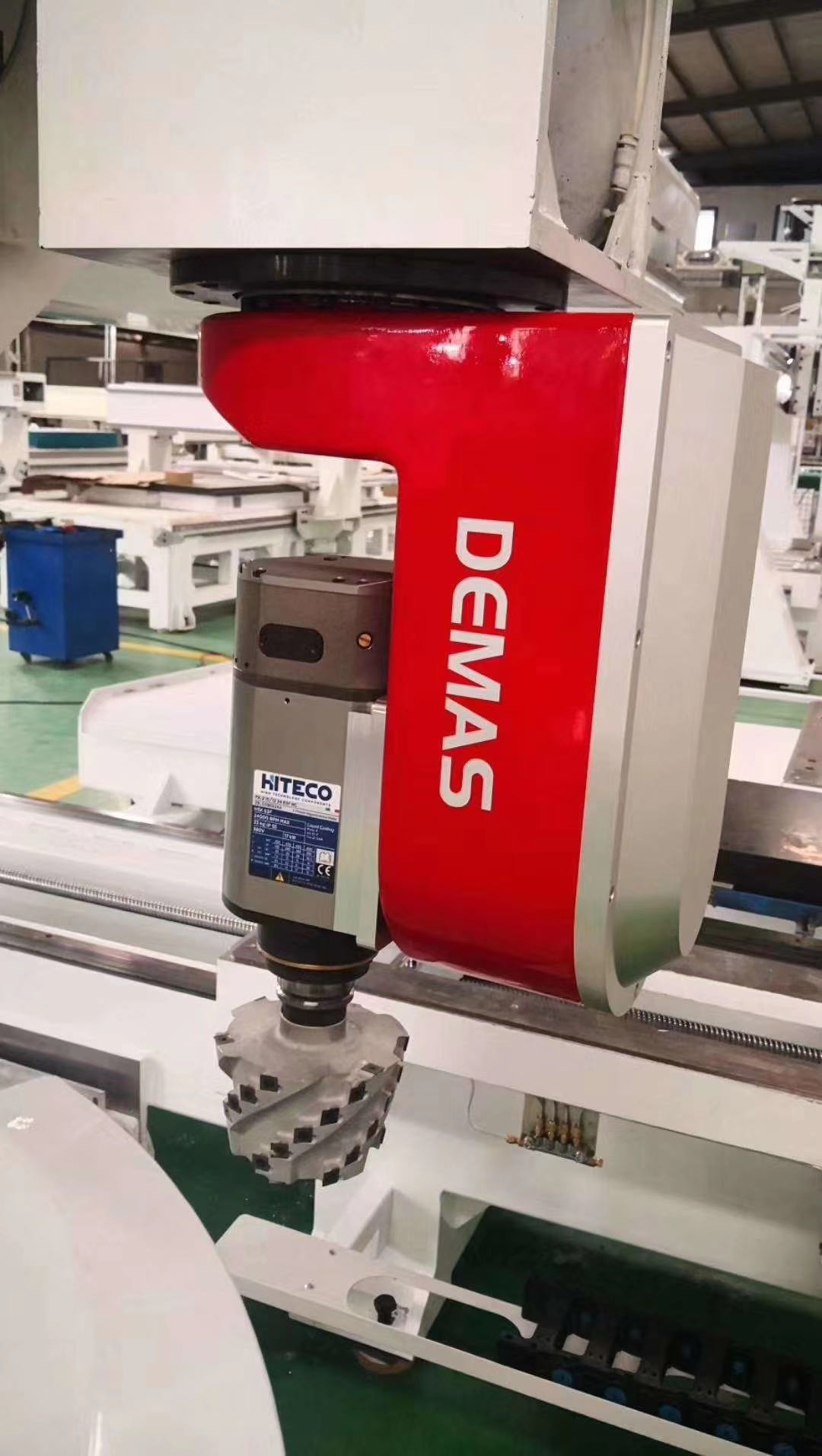

1. The spindle can rotate A +-110 ,C 320 +- degree can make multi-kinds of surface which we can design with Software.

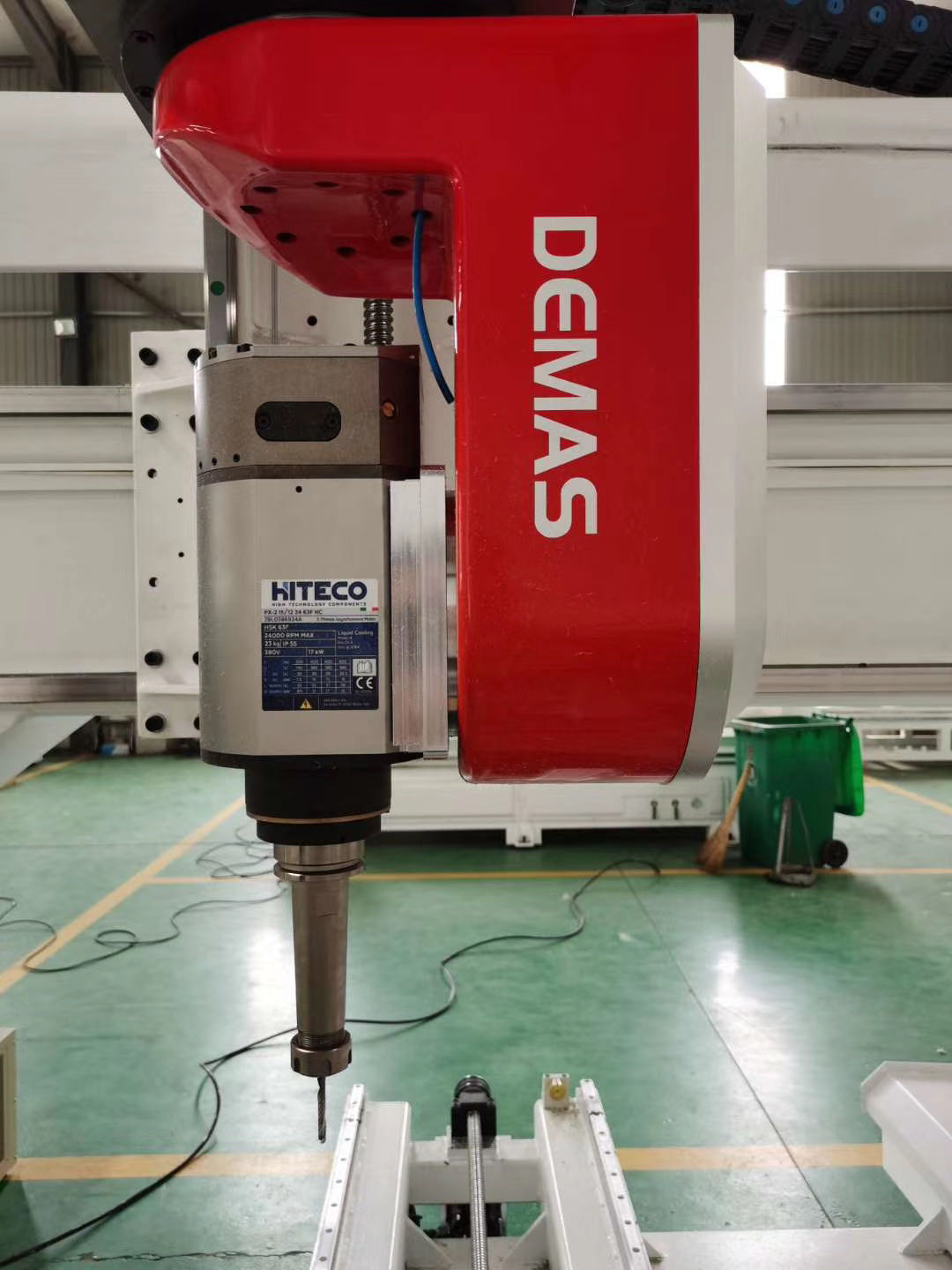

2. We use top quality components for the machines, like HSD ,Hitec Saccardo spindle , Syntec 610 -5 axis osai TPA control , Delta Inverter,Yaskawa absolutely servo motors, and separate control box, Hiwin linear and so on, to keep the machine in best condition even after many years working.
3. With hard steel structure, is fit for hard wood working, like cutting and engraving on Rosewood for furniture, indoordecoration. And with the Vacuum holding way and dust collector, the machine is qualified for mass- producing of furniture.
4. this machine all model heat -treatment . the cast iron bed weight 35t . the total machine weight 65t . so no vibrating whenworking .
5. working size can customized 5000*5000*2000mm or 5000*65000mm or according your requirments
6.. working table and structure according your material , Foam wood aluminum etc
7. MPG XYZAC Hand Wheel for easy origin and work piece setting.
8. Tool setting device.
9. One starter set woodworking tools.
10. 3 x collets, choice from 1-20mm (imperial available if preferred).
11. Inverter: Taiwanese Delta Inverter 0-22000rpm control.
12. German Schneider Electronic Spare parts.
13. Japanese OMRON limit switches.
14. Voltage: 3PH 415V 50HZ.with transformer
15.RTCP function
16. Powermill .UG
Number | Description | Parameter |
1 | X,Y,Z Working Area | 3000*30000*1000mm |
2 | Table Size | 5000×35000mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.01/1000mm |
4 | A C ROTARY | A 110 degree C 220 degree |
5 | Table Surface | cast iron table |
6 | Frame | Big Steel Tube Structure with heat treatment |
7 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
8 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
9 | Max. Power Consumption | (Without Spindle) 10 Kw |
10 | Max. Rapid Travel Rate | 40000mm/min |
11 | Max. Working Speed | 30000mm/min |
12 | Spindle Power | 10kw |
13 | Spindle Speed | 0-24000RPM |
14 | Drive Motors | 5000W Yaskawa Motors |
15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
16 | Command Language | G Code |
17 | Operating System | Syntec Control System/TPA /osai |
18 | Computer Interface | USB |
19 | Flash Memory | 512M |
20 | Collet | HSK-F63 |
21 | X,Y Resolution | <0.01mm |
22 | Software Compatibility | Type3/UcancameV9 powermill UG software |
23 | Running Environment Temperature | 0 - 45 Centigrade |
24 | Relative Humidity | 30% - 75% |
25 | Packing Size | 5500X2100X2300mm |
26 | N.W. | 16000KG |
27 | G.W. | 18000kG |
28 | Optional Parts | Dust Collector/ Dust Hoods for three Axis |
Vacuum Pump | ||
Rotary System | ||
Mist-cooling System | ||
Delta/ Panasonic Servo Motors | ||
Colombo Spindle |
suntec 5 axis cnc production details

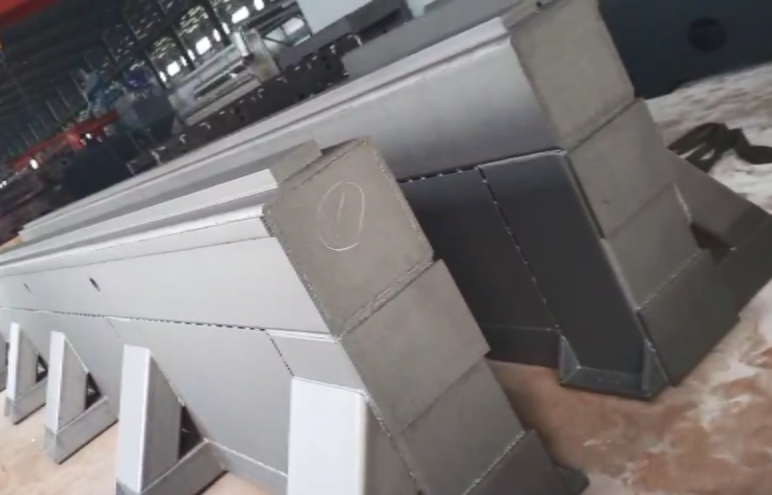

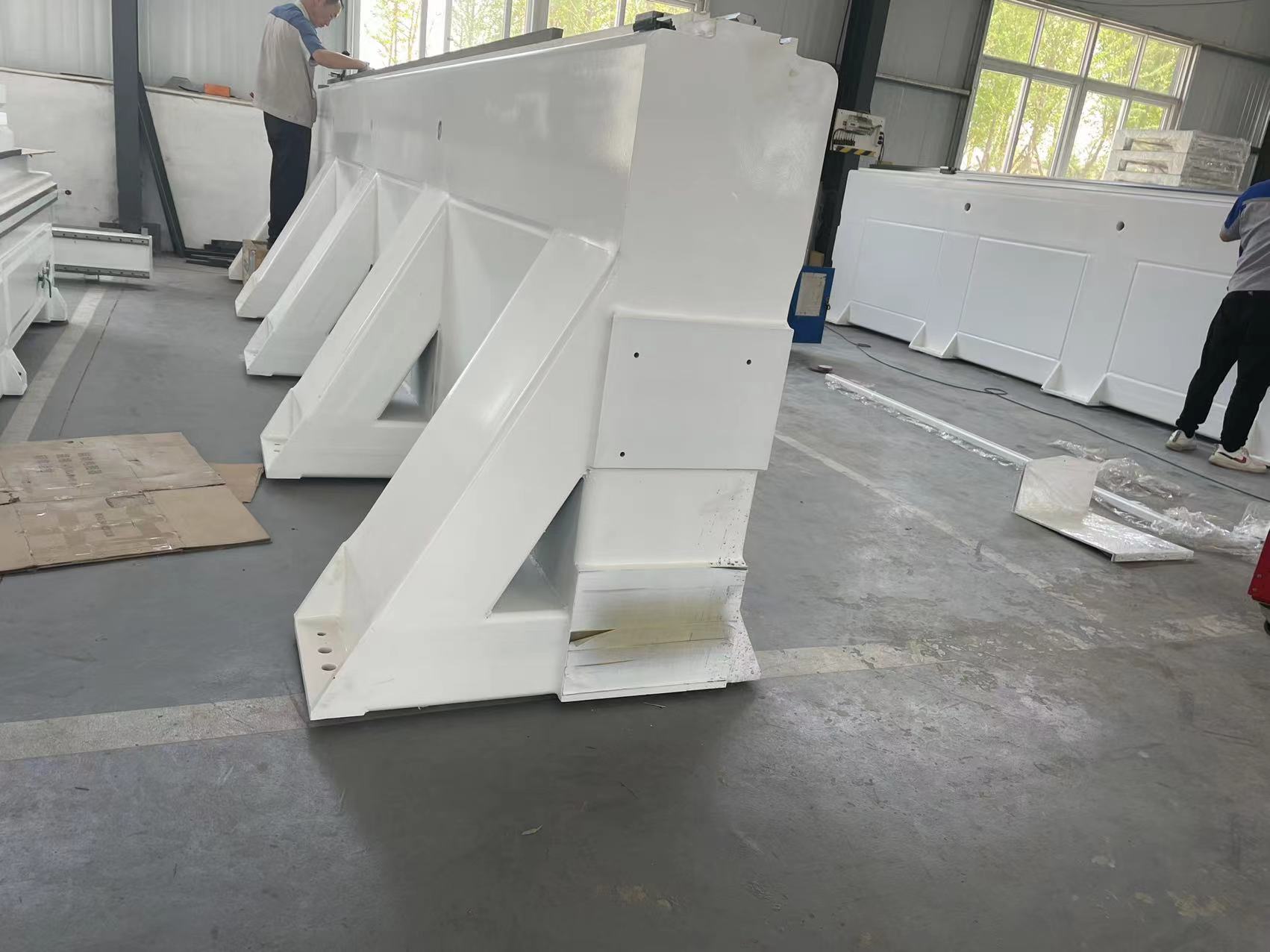

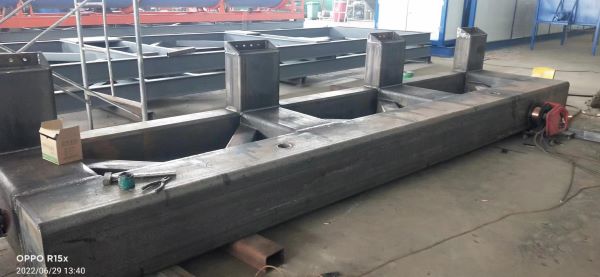

SUNTEC all structure table welded with big square guide 12mm thickness welded one legs about 5 t
to bear gantry and z axis power to make surehigh precision

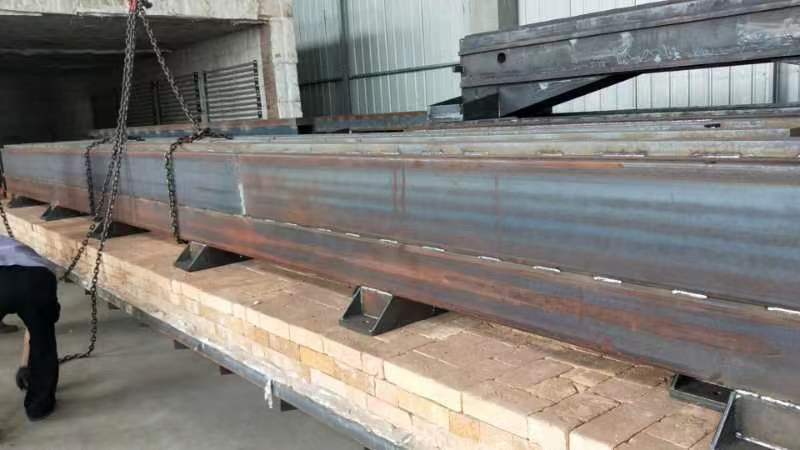

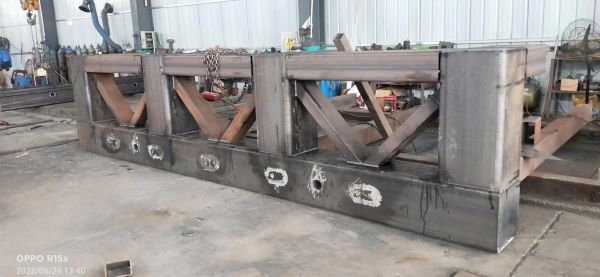

Suntec all structure heat-treatment high temperating , to delete itself rigidity to make sure using
many years no deformed and also make sure machine itself high precision . suntec 5 axis cnc machine precision
0.1mm so every parts must make sure high precision .

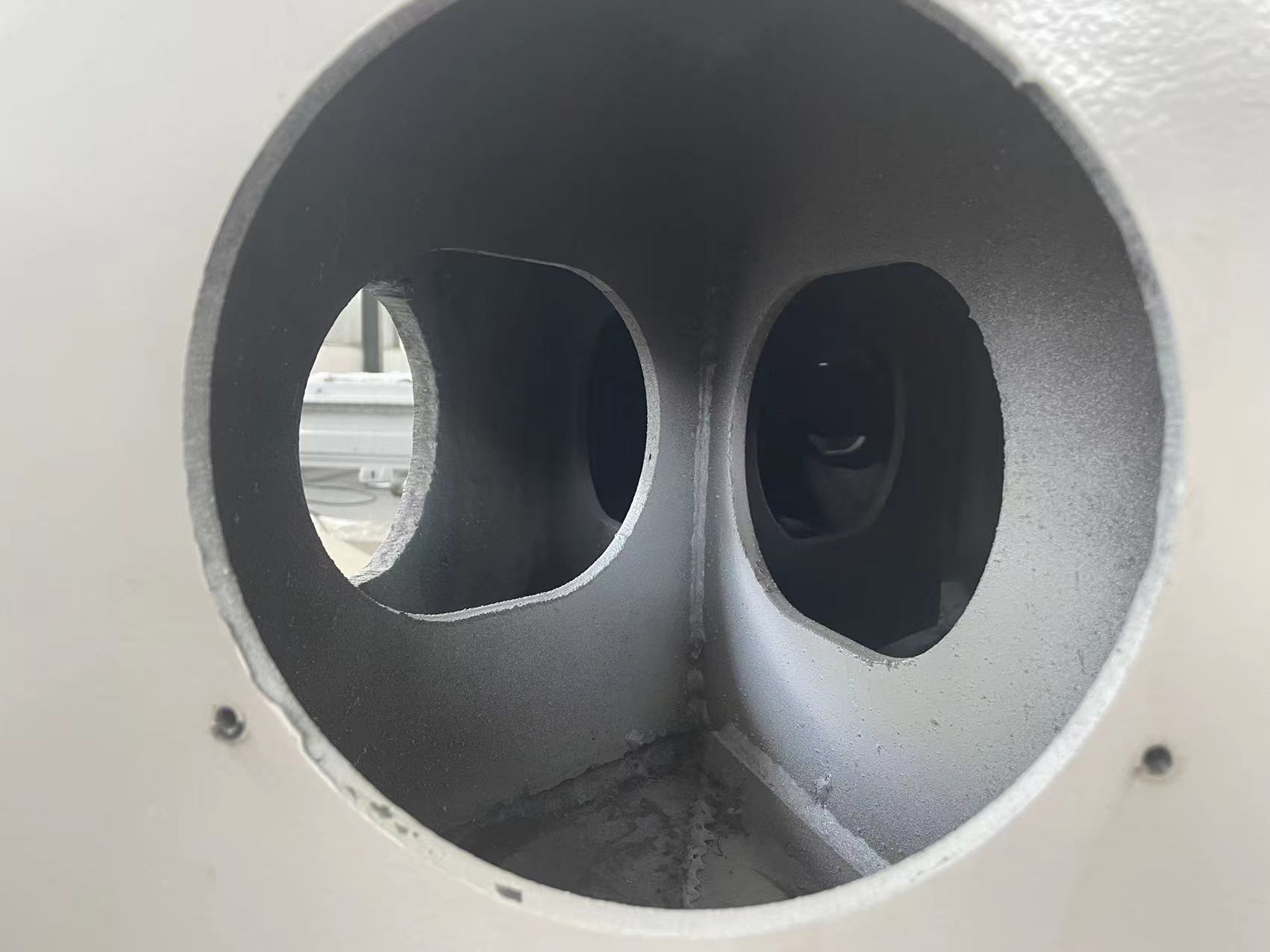

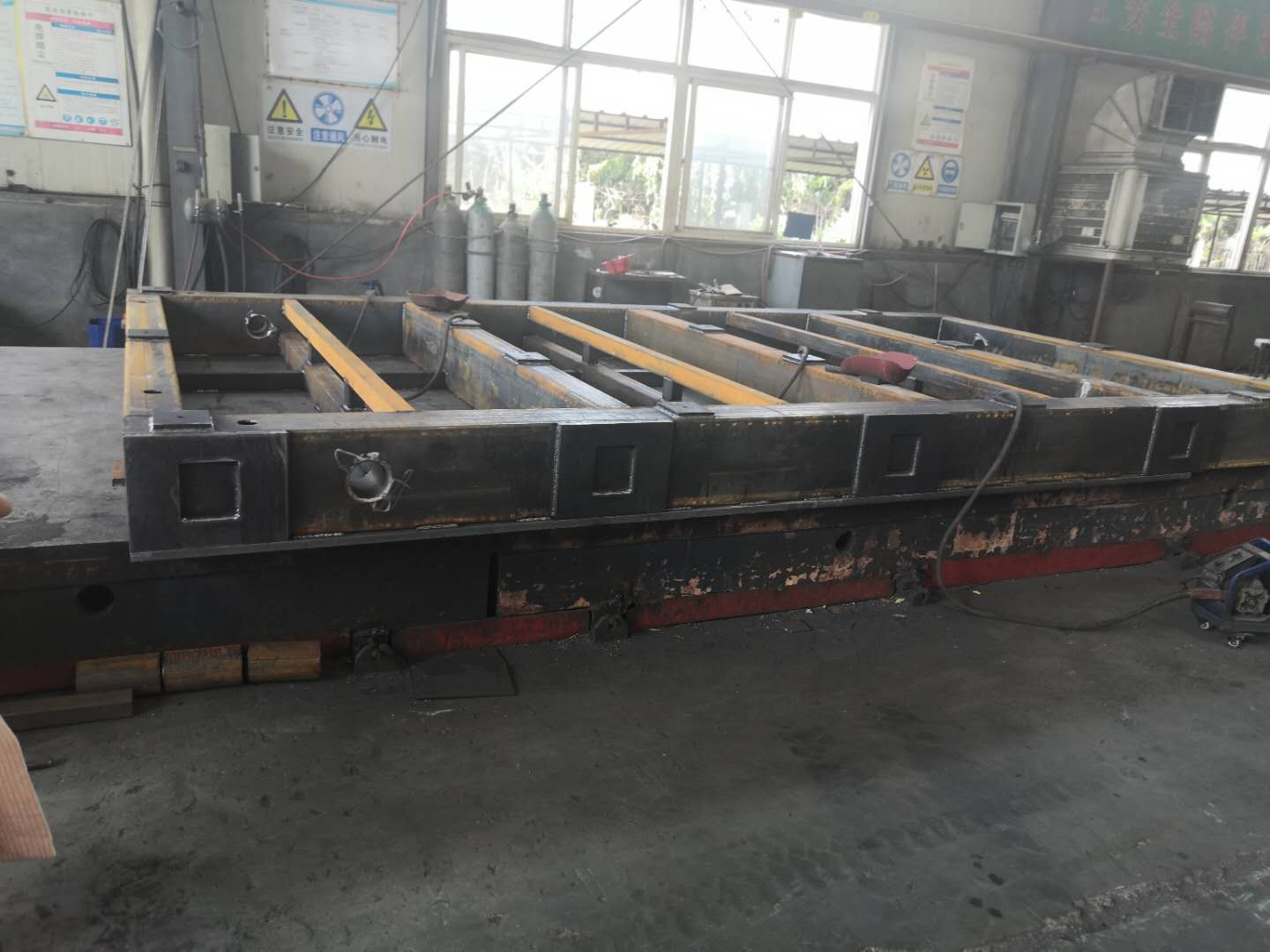

suntec all structure table inside have enfored steel plate to enforced all structure powerful
Suntec 5 axis cnc legs after heattreatment then sanding blase to delete it dust and paiting well .

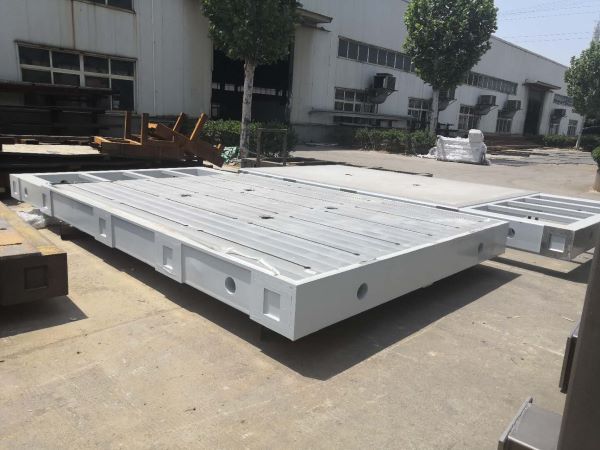

cast iron table or welded tabe for optional to make sure flat make sure precision .
install machine

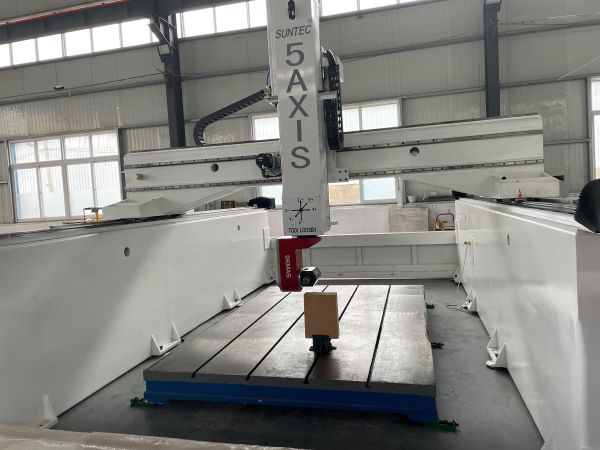

cast iron table with T slot

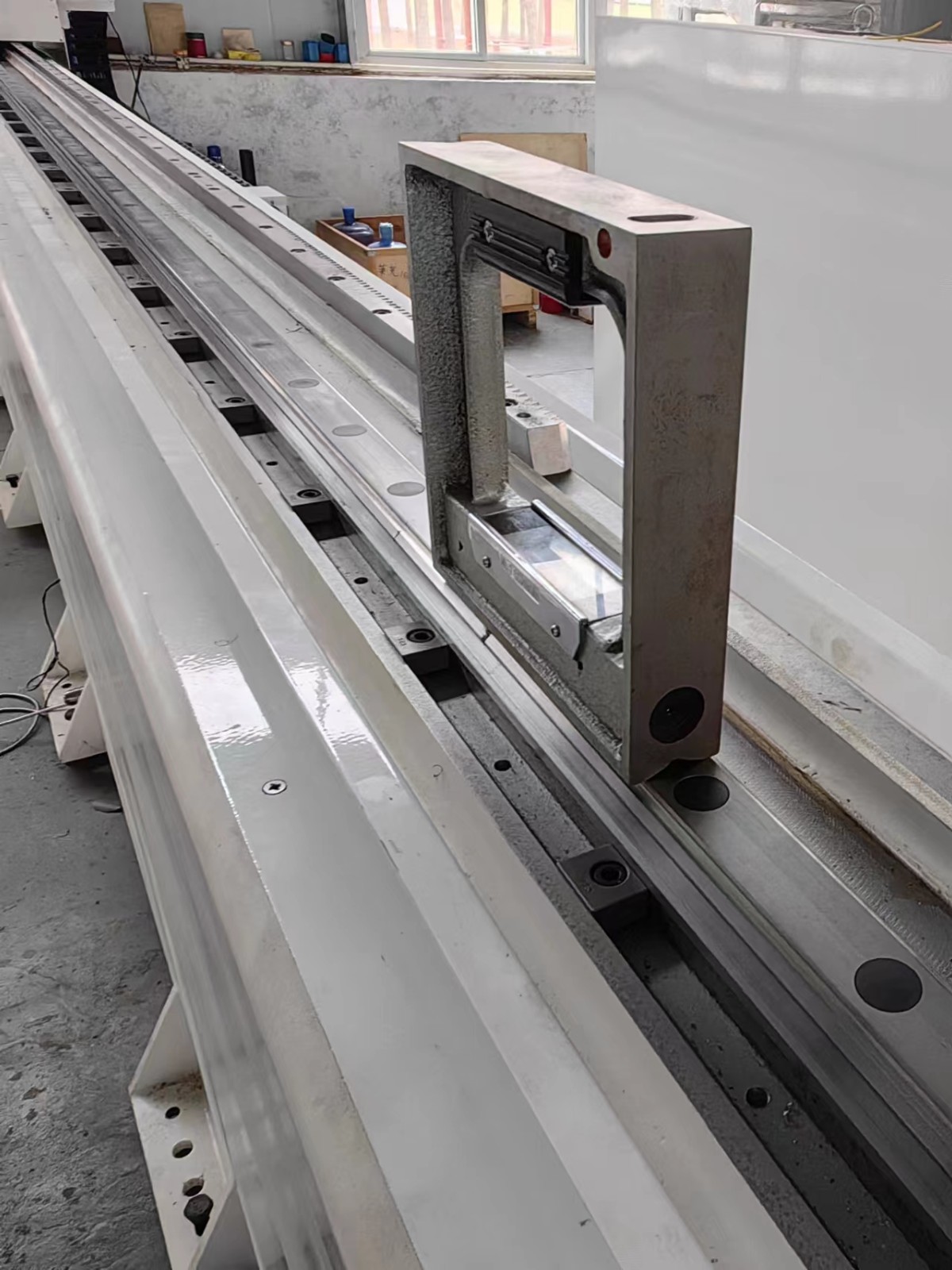

Vertical test to make sure square at same level
Horizonal test for four side to make sure two legs at same level .

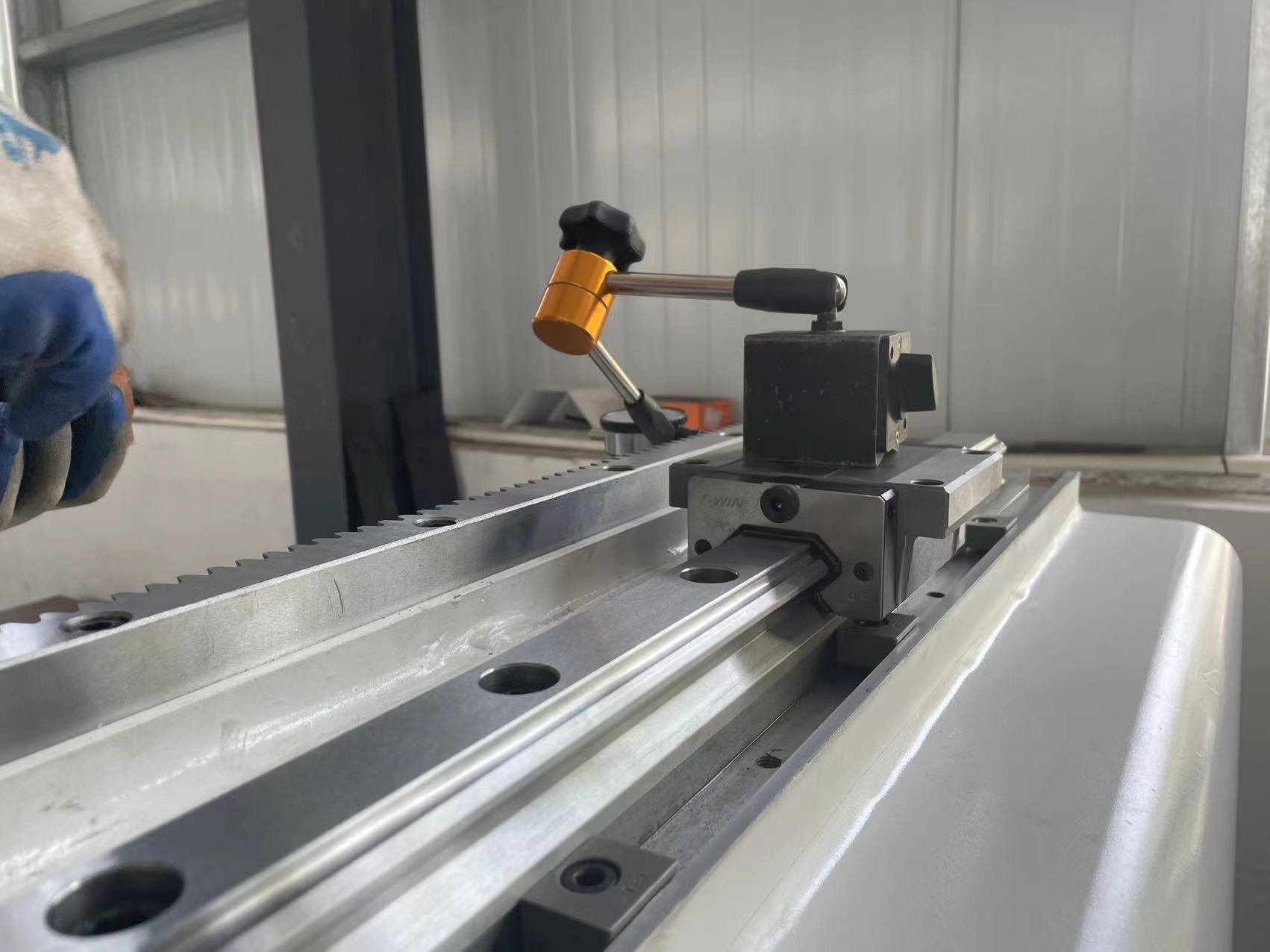

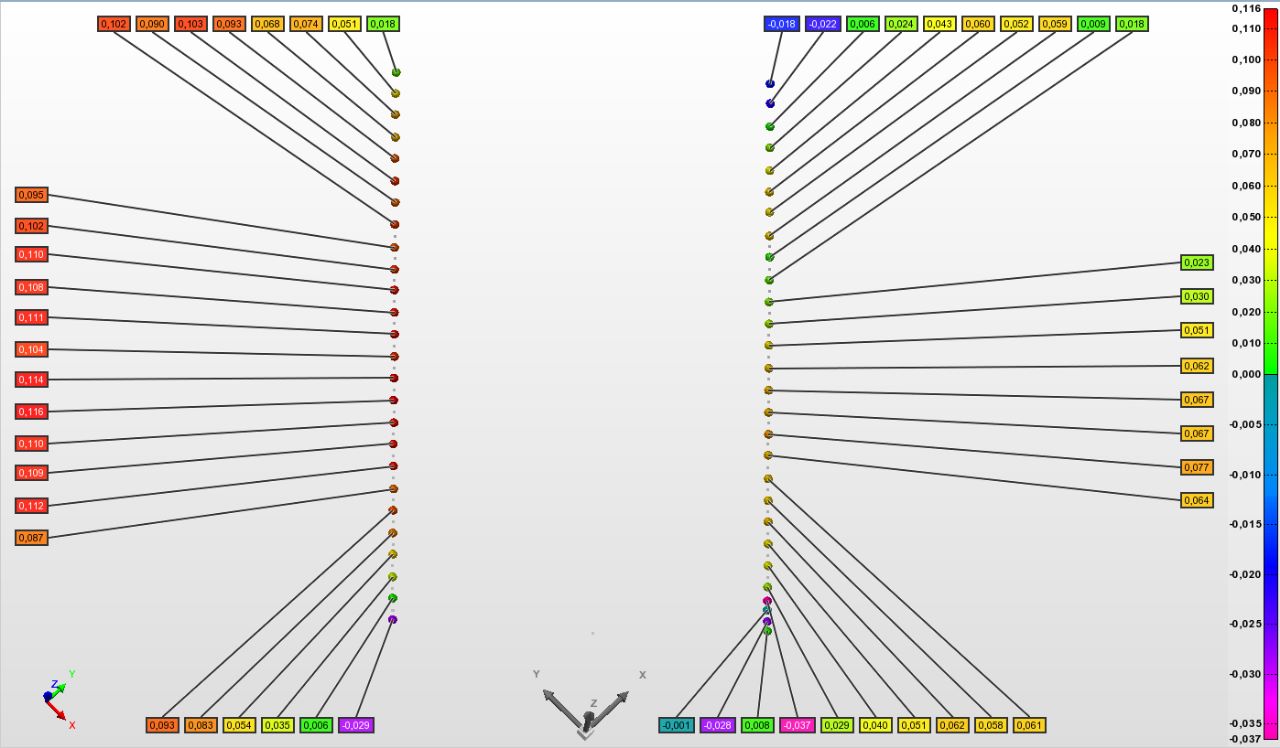

Laser test precision 0.1mm to satisfired customer requirments
Test again and again before delivery .
