Customized PTP table 5 axis cnc router with double table boring head

Customized PTP table 5 axis cnc router with double table boring head

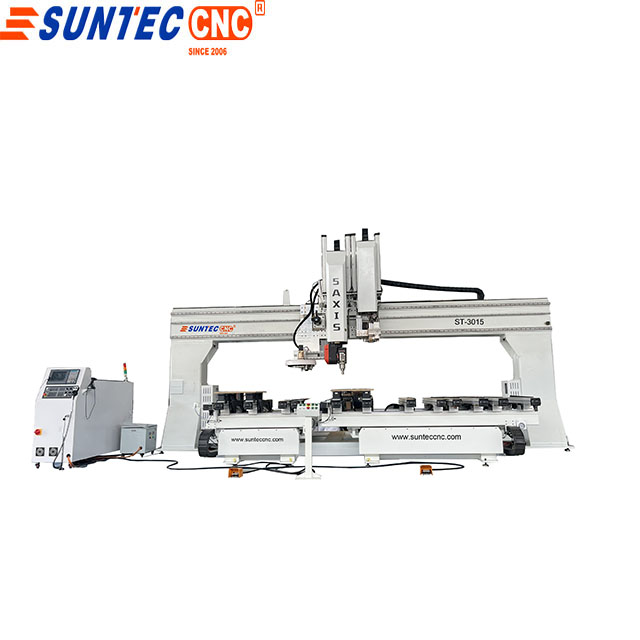

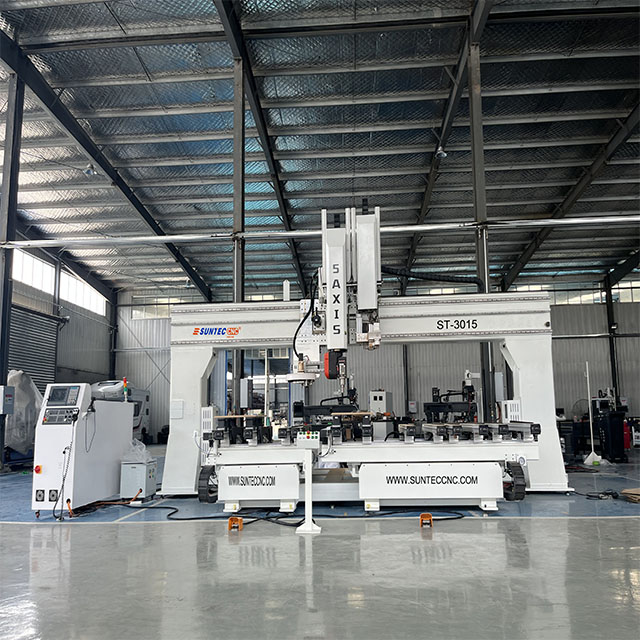

SUNTEC 5 AXIS CNC ROUTER CENTER HSD SPINDLE WITH BORING HEAD DOUBLE TWO WORKING TABLE WITH PTP SCHMALZ TABLE  READY TO SHIP IN WORKSHOP

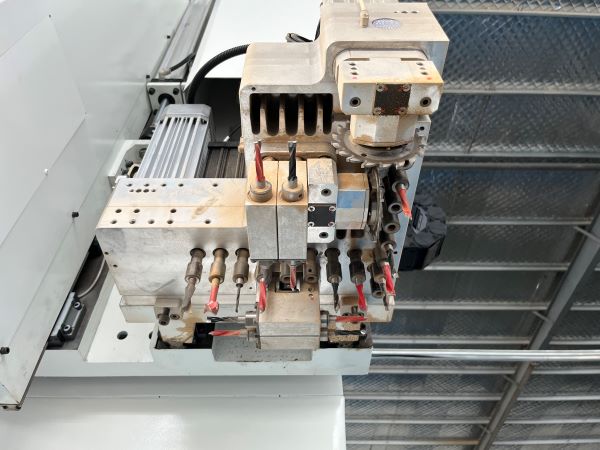

HSD SPINDLE WITH BORING HEAD 16V4H2S FOR ANY DEGREE ROTARY FOR HOLE  CUTTING MILLING DRILLING

16V4H2S BORING HEAD FOR 5 SIDES MAKING HOLE CUTTING DRILLING

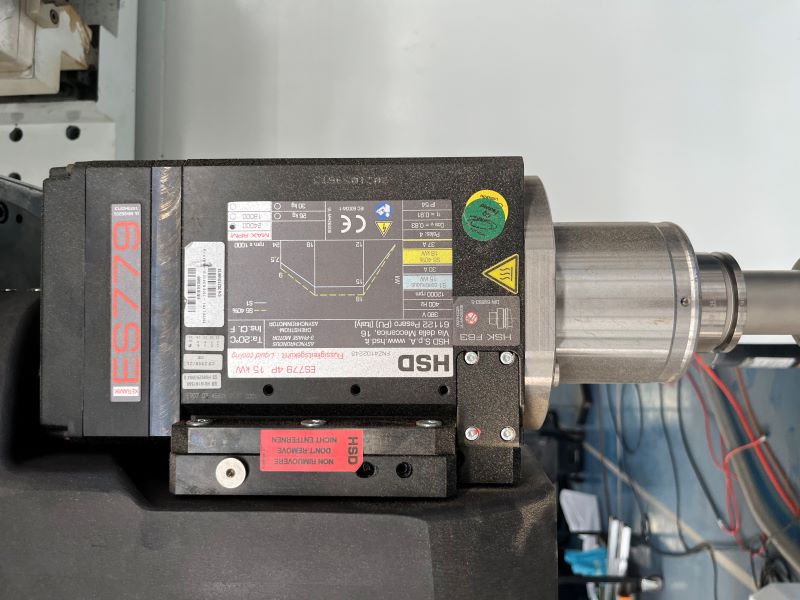

15KW HSD SPINDLE POWER HIHG POWERFUL FOR HARD WOOD SPEED 24000 RPM

LOW TORQUE FOR ANY SHAPE OF WOOD TO CUT MILL DRILL ROUTE

SYNTEC 5 AXIS CNC CONTROLLER WITH HANWHEEL RCTP FUNCTION

AUTOMATIC TOOL CHANGE 12 PIECE WITH HSKF63

SCANNER FOR SCAN CODE REDUCE WORKING TIME

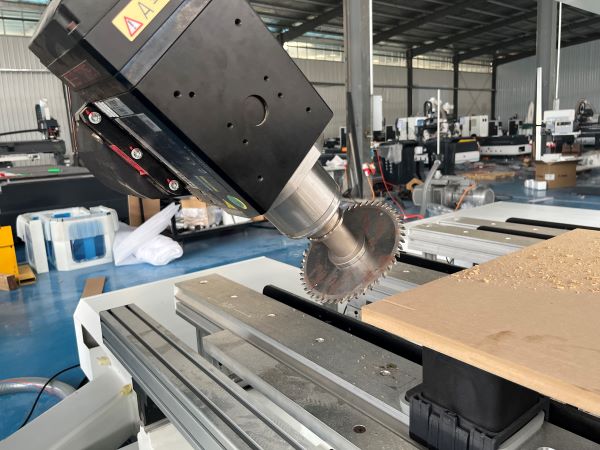

SPINDLE 0-90 DEGREE FOR CUTTING SIDE BORAD

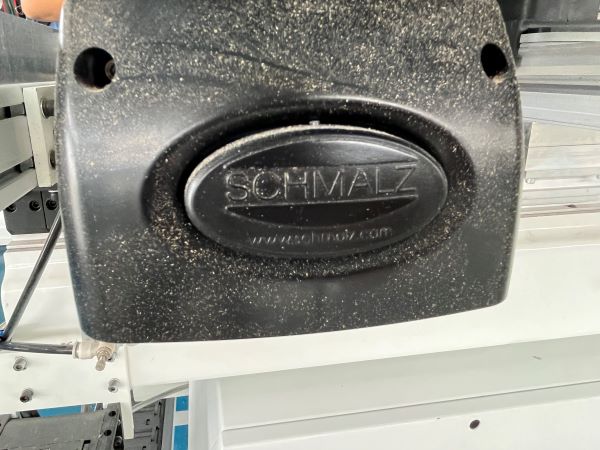

GERMANY SCHMALZ PTP TABLE

TOOL SET MEASURE

SCHMALZ VACUUM CUPS ACCORDING CUSTOMZER WORKING BOARD SIZE TO MADE

WORKING SAMPLE

1. The spindle can rotate A +-120 ,C+- 245 degree can make multi-kinds of surface which we can design with Software.
2. We use top quality components for the machines, like italy hitec , Syntec control
syntec servo motors, and separate control box, Hiwin linear and so on, to keep the machine in best condition even after manyyears working.
3. With hard steel structure, is fit for hard wood working, like cutting and engraving on Rosewood for furniture, indoor
decoration. And with the Vacuum holding way and dust collector, the machine is qualified for mass- producing of furniture.
4. this machine all model heat -treatment . which using many years no deformation.so no vibrating when
working .
5. 5 axis/working size  1500*3000*1000mm. 1500*1500*1000MM  customized for vacuum table
6.. working table and structure according your material , Foam wood aluminum etc
7. MPG XYZAC Hand Wheel for easy origin and work piece setting.
8. Measure Tool setting device.
9. One starter set woodworking tools.
10. 3 x collets, choice from 1-20mm (imperial available if preferred)
11. Inverter: Taiwanese Delta Inverter 0-22000rpm control.
12. German Schneider Electronic Spare parts.
13. Japanese OMRON limit switches.

14.RTCP function

RTCP (Rotation Tool Center Point) Function maintains rotary axes at a constant angle between tool and surface to be machined. It is a crucial difference between real (simultaneous) and fake (3+2) 5-axis CNC systems.

For machines with RTCP functionality, the control system keeps the tool center in the programmed position. In this case, programming is independent and is programming that is independent of machine motion. When processing on the machine, you don't have to worry about machine movement and tool length. All you need to consider is the relative motion between the tool and the workpiece. The work control system will handle the rest for you.

For machines that does not have RTCP functionality, that is to say, the pseudo five-axis programming needs to consider the swing length of the spindle and the position of the rotating table. This means that when programming with a fake five-axis CNC system and machine tools, it is necessary to rely on CAM programming and po

st-processing techniques to plan the tool path in advance.
