Customized Gantry moved PTP table 5 axis cnc router with Ce barrier ST-2040

Customized Gantry moved PTP table 5 axis cnc router with Ce barrier ST-2040

5 axis type

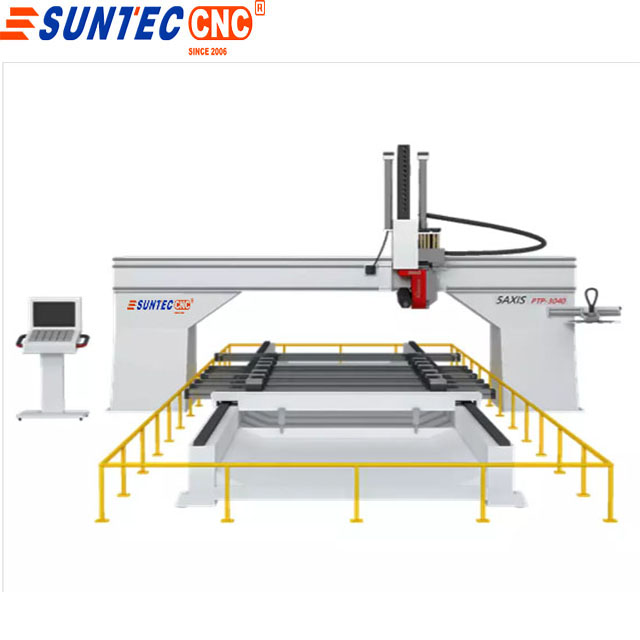

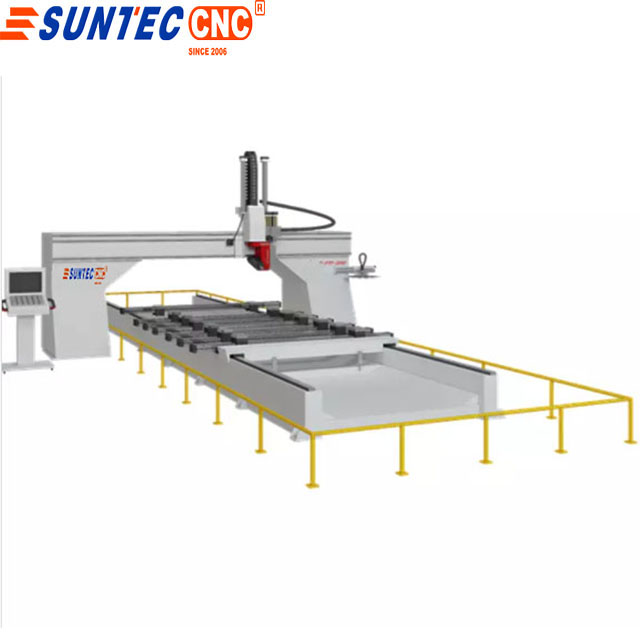

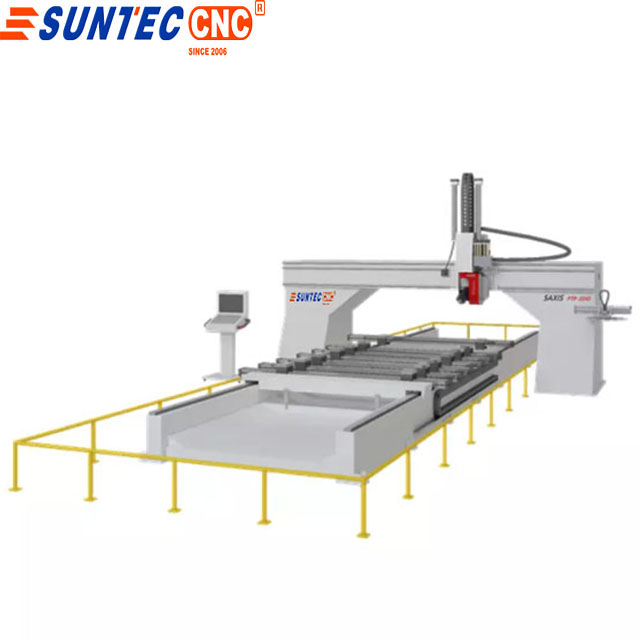

1. Gantry moved two type one is cast iron table independent or connect with two legs another is heavy cast iron table with height gantry moved it easily for loading container .

2. Moved table which for small 5 axis such as 1000*2000 or 1200*1200 1300*2500mm one table or two double table moved

3. Large size 5 axis such as 3*60m 3*50m etc according your working size to make design then make sure .

Main specification

1. The spindle can rotate A +-110  ,C 220 +- degree   can make multi-kinds of surface which we can design with Software.

2. We use top quality components for the machines, like HSD spindle, Syntec EZ-21MA control system  osai TPA, Delta Inverter, Yaskawa servo motors, and separate control box, Hiwin linear and so on, to keep the machine in best condition even after many years working.

3. With hard steel structure, is fit for hard wood working, like cutting and engraving on Rosewood for furniture, indoor decoration. 3D wood mold  fiber glass  ,cabon materil  plastic foam wood  eps non metal material etc  And with the Vacuum holding way and dust collector, the machine is qualified for mass- producing of furniture.

3. this machine all model heat -treatment . the cast iron bed weight 35t . the total machine weight 65t . so no vibrating when working .

4. working size can customized 1300*2500*1000mm  or 3500*6500mm or according your requirments

5. working table  with schmalz  ptp table withe schmalz vacuum pump can fix small piece Foam wood aluminum etc

6. MPG XYZAC Hand Wheel for easy origin and work piece setting.

7. Tool setting device.

8. One starter set woodworking tools.

9. 3 x collets, choice from 1-20mm (imperial available if preferred).

10. 8 x HSK 63F Tool Holder included. it can for different tools cutter sawblade etc

11. Inverter: Taiwanese Delta Inverter 0-22000rpm control.

12. German Schneider Electronic Spare parts.

13. Japanese OMRON limit switches.

14. MAXICAM double sheathed, fire retardant and highly flexible towline cable can be bent 300,000 times.

15. Igus cable chain carrying system.

14. Voltage: 3PH 415V 50HZ.with transformer

15.RTCP (Rotated Tool Center Point), also known as TCPM,TCPC or RPCP, refers to the function maintaining rotary axes at constant angle between tool and surface to be machined. In 5-axis machining, the additional motion of the tool point is generated due to the rotary motion when following the tool point path and the angle between the tool and the workpiece. The control point of CNC system is often not coincident with the tool point, so the CNC system should automatically correct the control point to ensure that the tool point moves according to the given trajectory.
